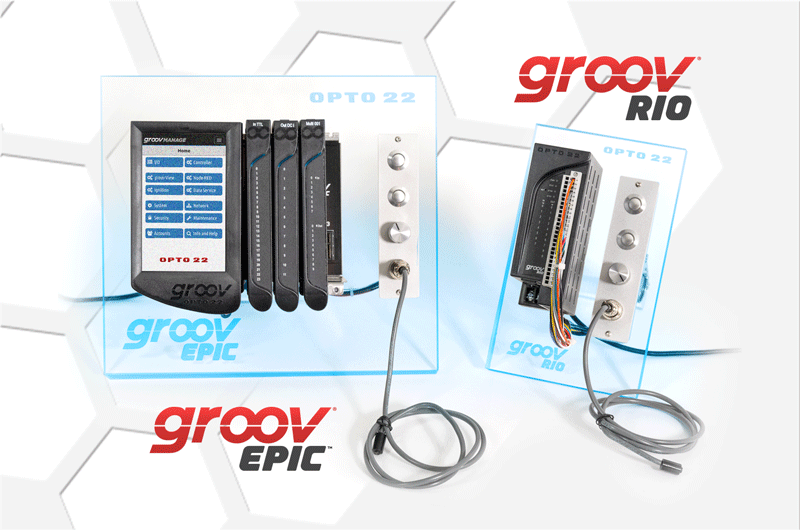

Hands-On Learning and Demo Units

Explore, learn, and demo your automation or industrial Internet of Things (IIoT) project with groov EPIC edge control and groov RIO edge I/O Learning Centers. Use them as complete demonstration units for your real-world, proof-of-concept (POC) projects and see how easily you can meet your project goals.

You get the full-featured EPIC processor and I/O modules, or RIO module, in a comprehensive, standalone unit. No scaled-down versions here! Build your POC and show others exactly how it works.

---

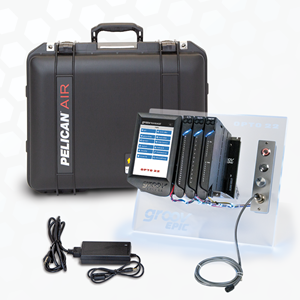

groov EPIC Learning Center

The groov EPIC Learning Center (GRV-EPIC-LC2) is a complete package of fully functional EPIC hardware and software. Opto 22's groov EPIC is the world's first Edge Programmable Industrial Controller (EPIC)—it's much more than your average PLC.

With an embedded Linux^® operating system, independent Ethernet network interfaces, USB and HDMI ports, and an integrated touchscreen, it's well suited for any automation and IIoT applications.

Not only is the groov EPIC Learning Center the principal tool in our onsite Premium Factory Training, it's also designed to work with Opto 22’s free online, self-guided learning modules (available through OptoU Online Training) and the free downloadable project, available on our website.

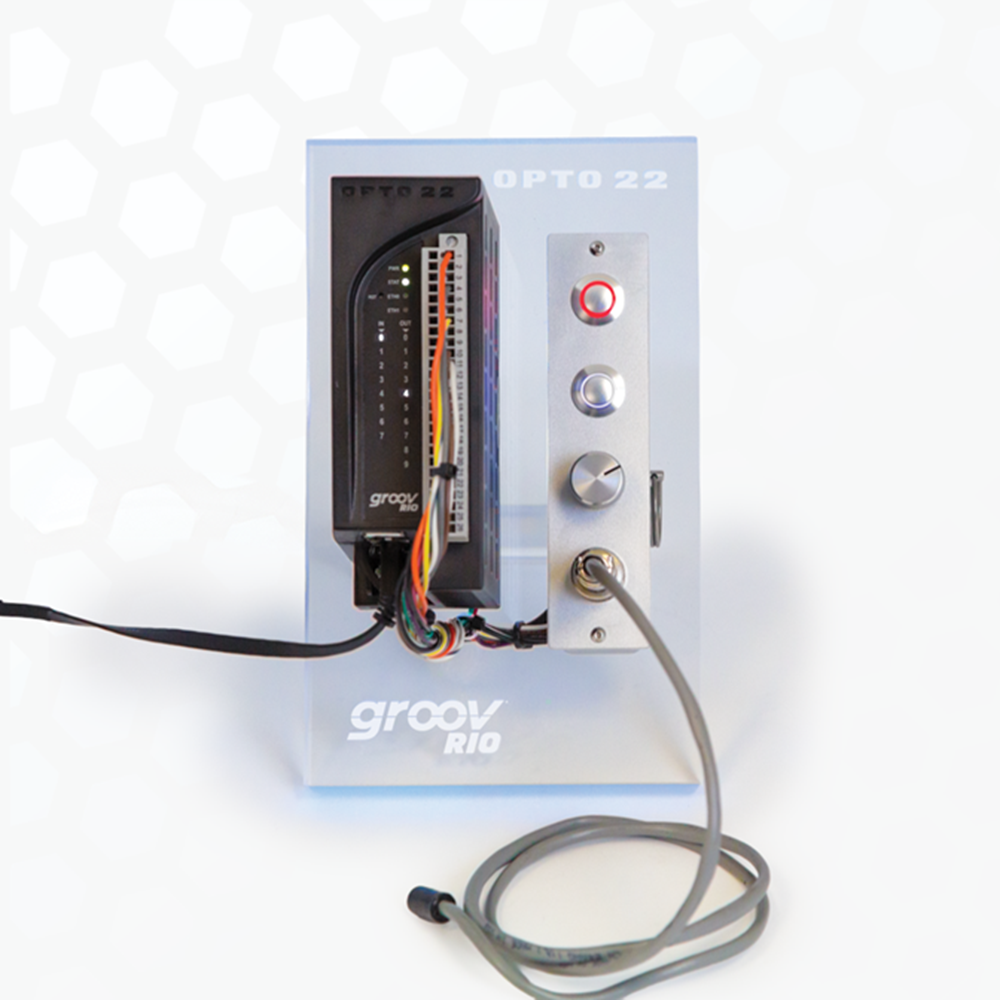

groov RIO Learning Centers

Like the groov EPIC Learning Center, groov RIO Learning Centers are complete packages of fully functional hardware and software. Opto 22's groov RIO is a compact, yet powerful, remote, multi-signal, universal I/O unit that gives you the flexibility for any kind of application. With two models to choose from, you’re sure to find a groov RIO that works for you.

Both RIO Learning Centers include remote I/O that offers hundreds of thousands of unique, software-configurable I/O combinations in a single PoE-powered industrial package with web-based configuration, control logic with CODESYS, and built-in flow logic software, plus support for multiple OT and IT protocols.

The groov RIO Learning Centers are also designed to work with Opto 22's free online training and downloadable project. Choose between two RIO Learning Centers:

• GRV-RIO-LC—Includes a GRV-R7-MM1001-10
• GRV-RIO2-LC—Includes a GRV-R7-MM2001-10 with pre-installed Ignition^® and Ignition Edge^® software from Inductive Automation^®, increased memory, and more storage capacity

---

What's Included



groov EPIC

Mounted on an acrylic desktop stand with an operator load panel are:

• 1 groov EPIC processor, GRV-EPIC-PR2
• 1 power supply, GRV-EPIC-PSPT
• 1 AC/DC input module, GRV-IACDCTTL-24
• 1 DC output module, GRV-ODCI-12
• 1 universal I/O module, GRV-MM1001-10
• 1 four-position chassis, GRV-EPIC-CHS4
• 2 illuminated pushbuttons
• 1 potentiometer
• 1 ICTD temperature probe with resistor (for PID loop control)
• 1 Sonalert alarm
• 3 multi-color LEDs: red, blue, and green

Software

• groov Manage
• PAC Control Engine
• CODESYS^® Runtime Engine
• groov View
• Ignition^® and Ignition Edge^® (includes Development License)
• Built-in MQTT and OPC UA^® servers
• Node-RED
• Secure Shell (SSH)

In addition to the built-in software on the groov EPIC processor, you can download the groov EPIC Learning Center Package, which has project files you can run on the Learning Center. These project files show you how to use groov View, Node-RED, CODESYS, and PAC Control.


groov RIO

Mounted on an acrylic desktop stand with an operator load panel are:

• 1 groov RIO mixed-signal multifunction module:
  • GRV-RIO-LC: GRV-R7-MM1001-10
  • GRV-RIO2-LC: GRV-R7-MM2001-10 (pre-installed with Ignition and Ignition Edge)
• 1 DIN rail (mount the groov RIO module on the rail)
• 2 illuminated pushbuttons
• 1 potentiometer
• 1 temperature probe connector
• 1 ICTD temperature probe with resistor (for PID loop control)
• 1 single-color backlight LED

Software

• groov Manage
• CODESYS^® Runtime Engine (with license purchase)
• Built-in MQTT and OPC UA^® servers
• Node-RED
• Secure Shell (SSH)
• (GRV-RIO2-LC only) Ignition^® and Ignition Edge^®

Additionally, you can download the groov RIO Learning Center Package, which has project files you can run on the Learning Center. These project files contain configured I/O, Node-RED flows, a PID control loop, and more, fully demonstrating all the groov RIO’s features.

The Perfect Pairing with Online Training

In case you hadn’t heard, Opto 22 provides FREE online training that seamlessly integrates with our groov Learning Centers, allowing you to learn about our products wherever you are and at your own pace.



Get your Learning Center today:

• GRV-EPIC-LC2—the groov EPIC Learning Center
• GRV-RIO-LC—the groov RIO Learning Center
• GRV-RIO2-LC—the groov RIO Learning Center pre-installed with Ignition and Ignition Edge

Once you have your groov Learning Center assembled, you’re ready to go!

To get started with your online training:

1. Create a MyOpto account on our website by going to https://www.opto22.com and clicking Register (or Log in if you already have an account) in the top right corner.
2. Complete the registration form (or enter your credentials to log in).
3. Explore the following curriculum for your groov Learning Center:
   • groov EPIC Training Series
   • groov RIO Training Series

You can work through the training modules as you please, or complete them in order—it’s your choice!

And, as always, if you encounter any issues or have any questions regarding your groov Learning Center, Opto 22 Product Support is free.
