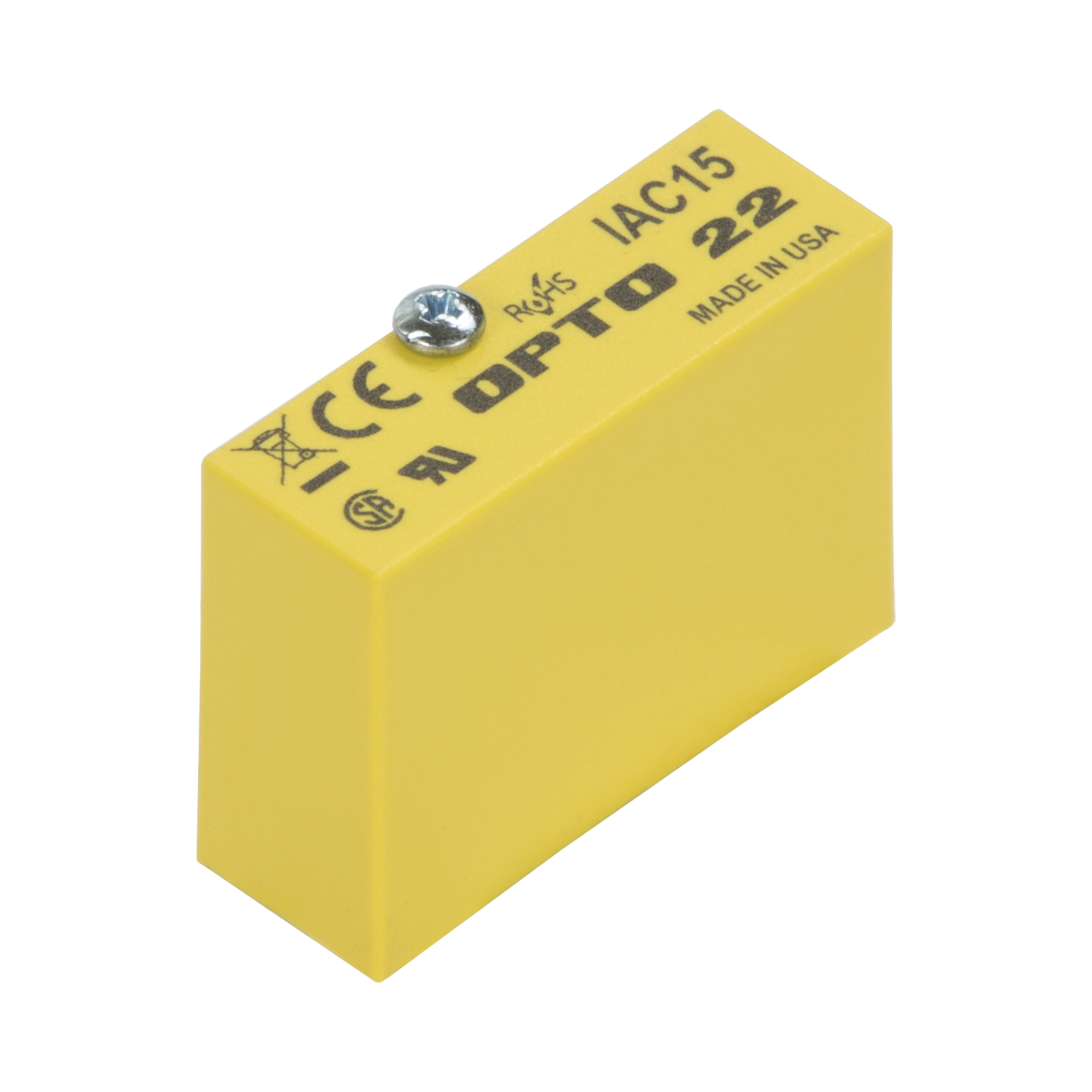

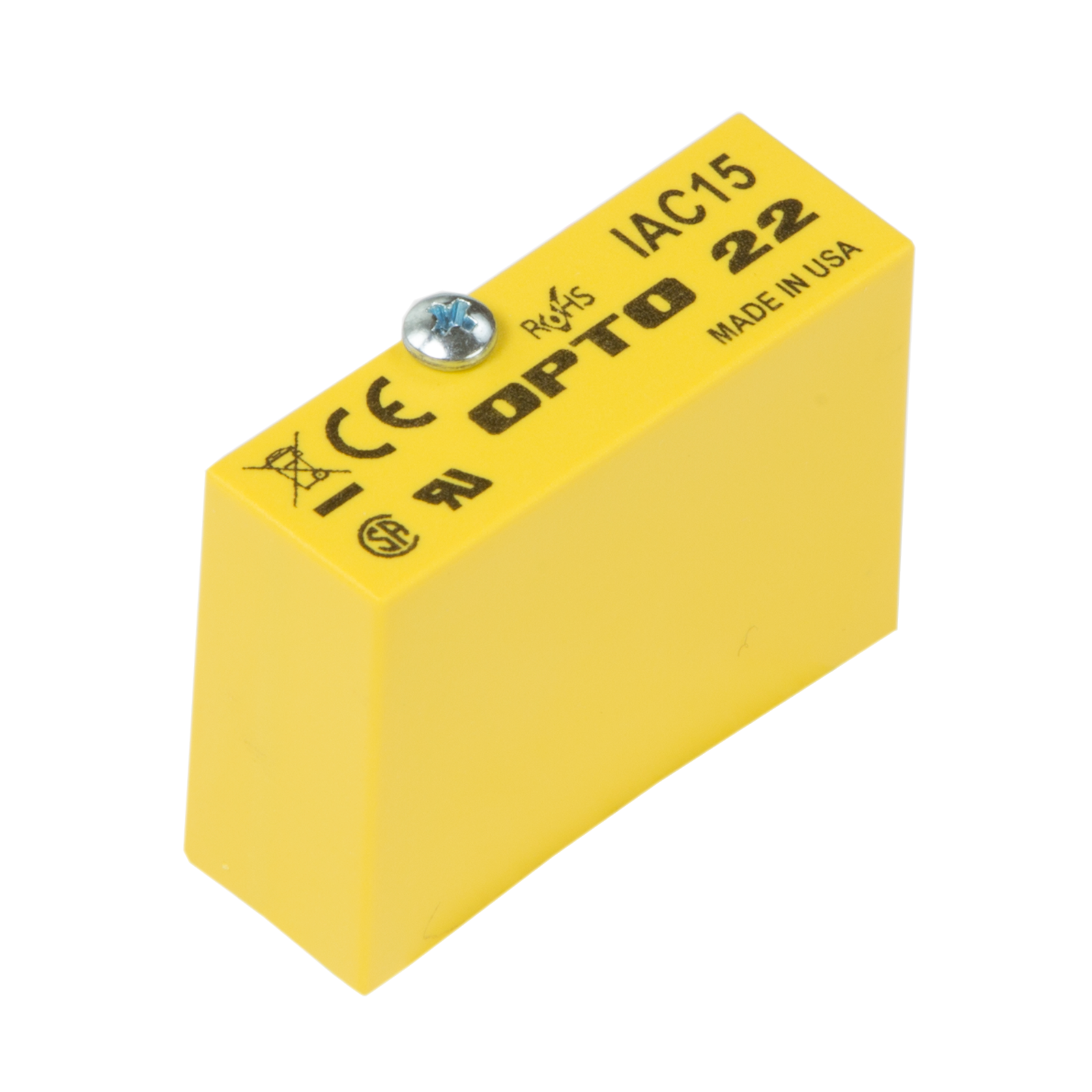

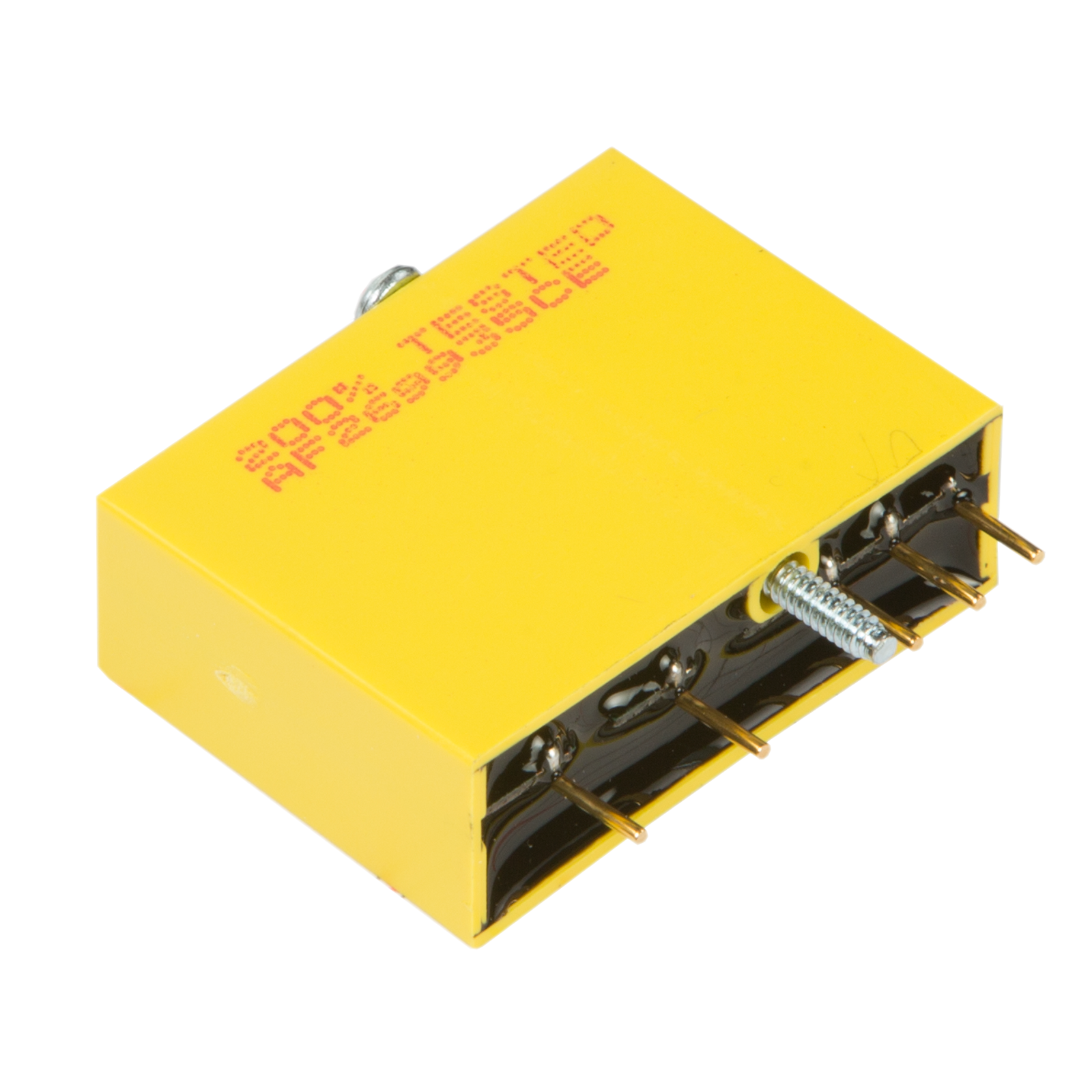

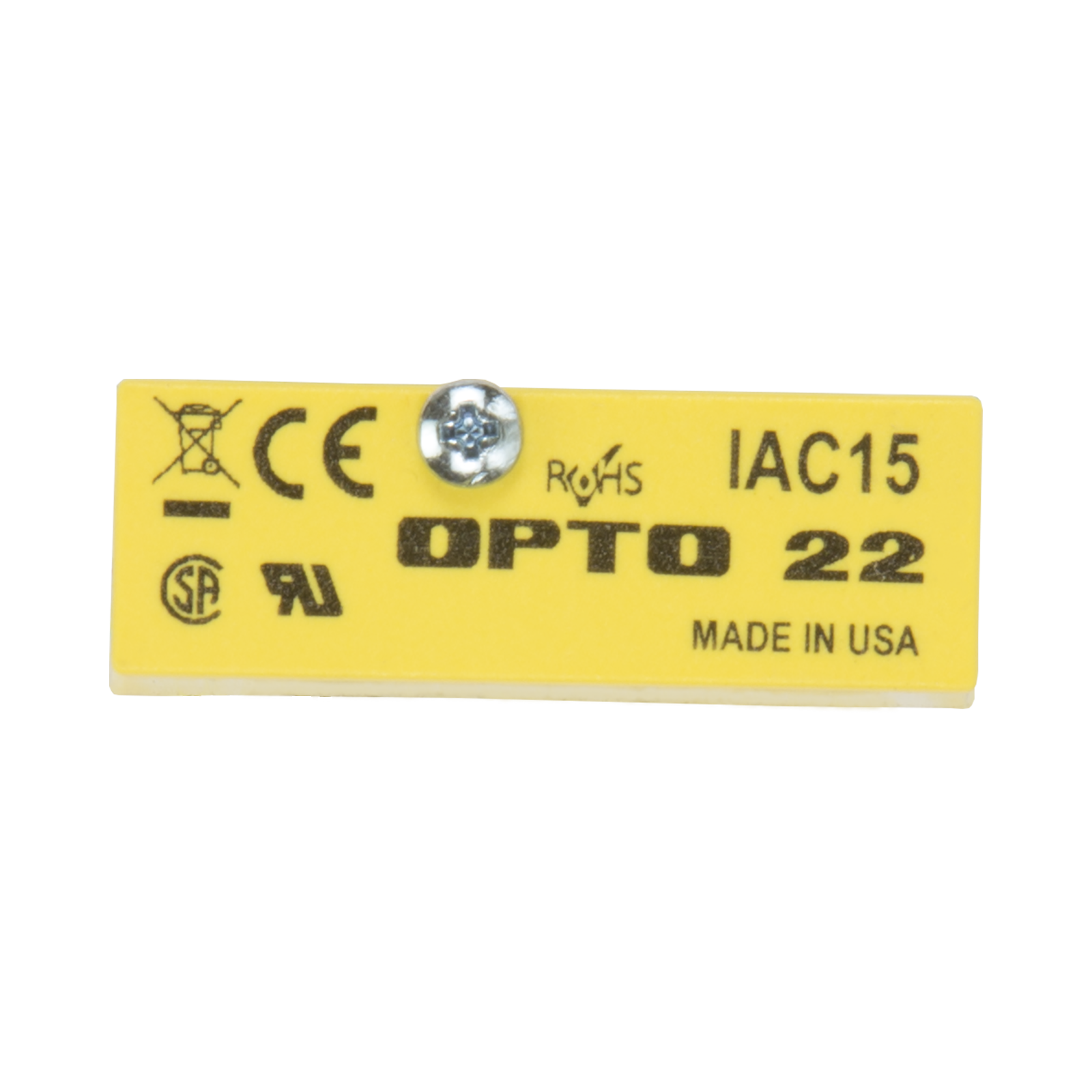

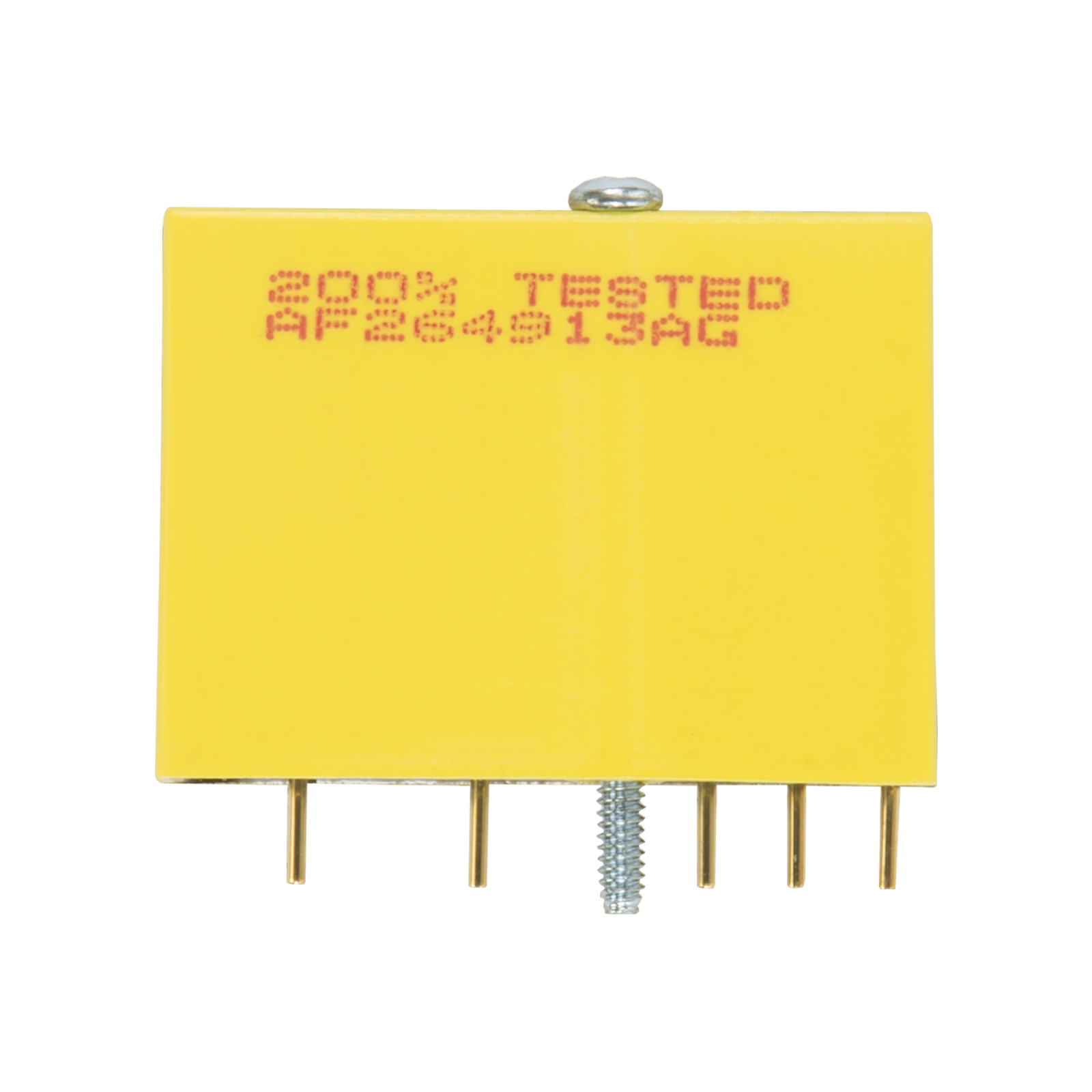

The IAC15 digital input module is used to sense ON/OFF AC voltage levels at 90-140 VAC. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free clean switching. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the logic output of the circuit. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as:
IAC15 modules are not for use with Opto 22 brains.
Operating Ambient
-30 to 70 °C
Isolation, Input-to-Output (Transient)
4000 volts
Output Voltage Drop
0.4 volts @ 50 mA
Output Current
50 mA
Output Leakage With No Input
0.1 mA @ 30 VDC
Output Transistor
30 volts breakdown
AC Input Module Specifications
Unit
IDC5
IDC5G
IDC15*
IDC24*
IAC5
IAC15*
IAC24*
IAC5A
IAC15A*
IAC24A*
Input Voltage Range
VAC
12–32
35–60
90–140
180–280
Input Current @ Max Line
mA
25
6
5
5.0
Turn-on Time
msec
10
20
Turn-off Time
15
Input Allowed for No Output
mA, V
1, 3
0.7, 7
3, 45
1.7, 80
Output Supply Voltage-Nominal
VDC
24
Output Supply Voltage-Range
4.5–6
12–18
20–30
Output Supply Current @ Nominal Logic Voltage
12
Input Resistance (R1 in schematic diagram)
Ohms
1.5k
10k
28k
70k
Control Resistance
220
1k
2.2k
* Not for use with Opto 22 brains.
Input modules are used for sensing ON/OFF voltage levels.
AC input modules are used for sensing ON/OFF alternating current (AC) voltage levels.
