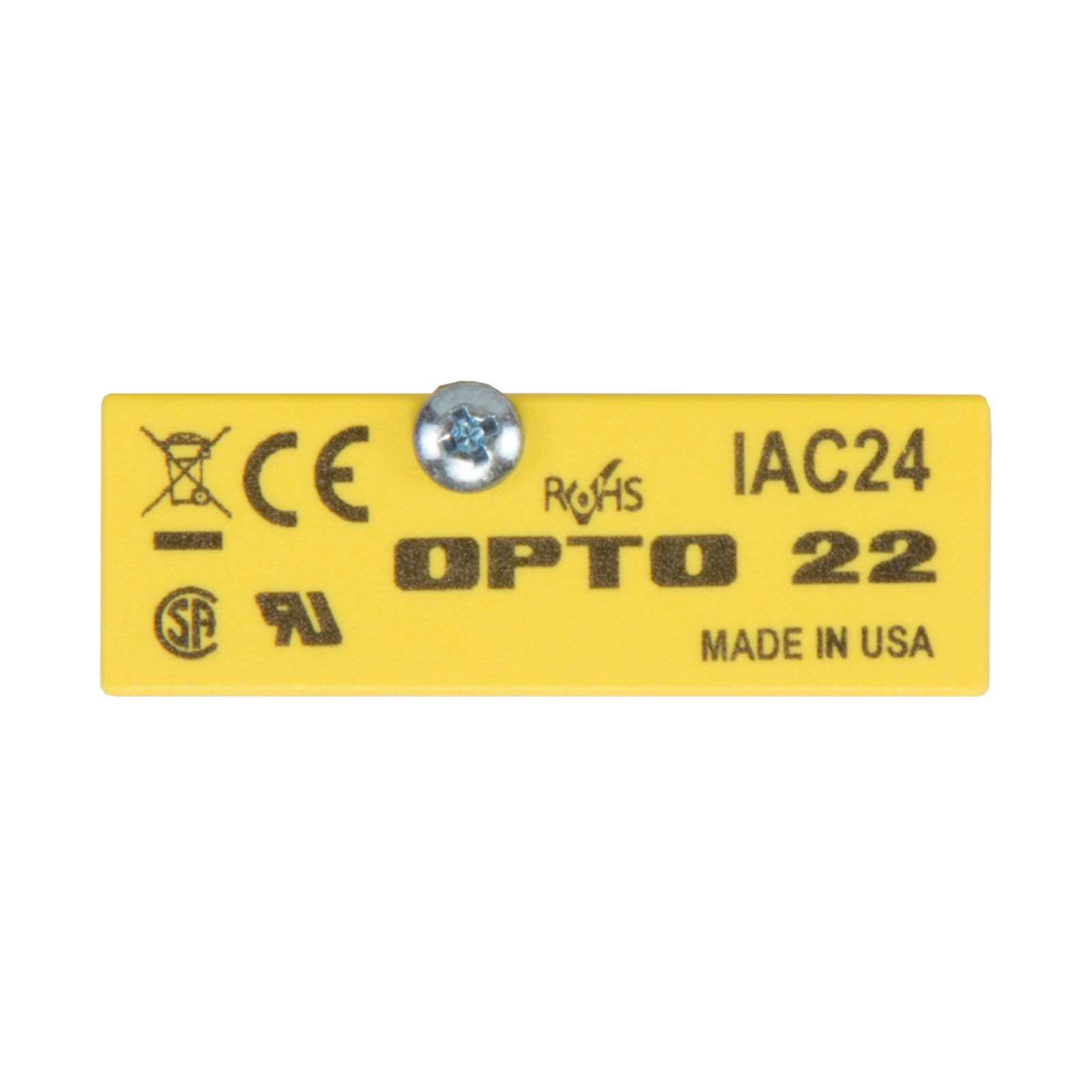

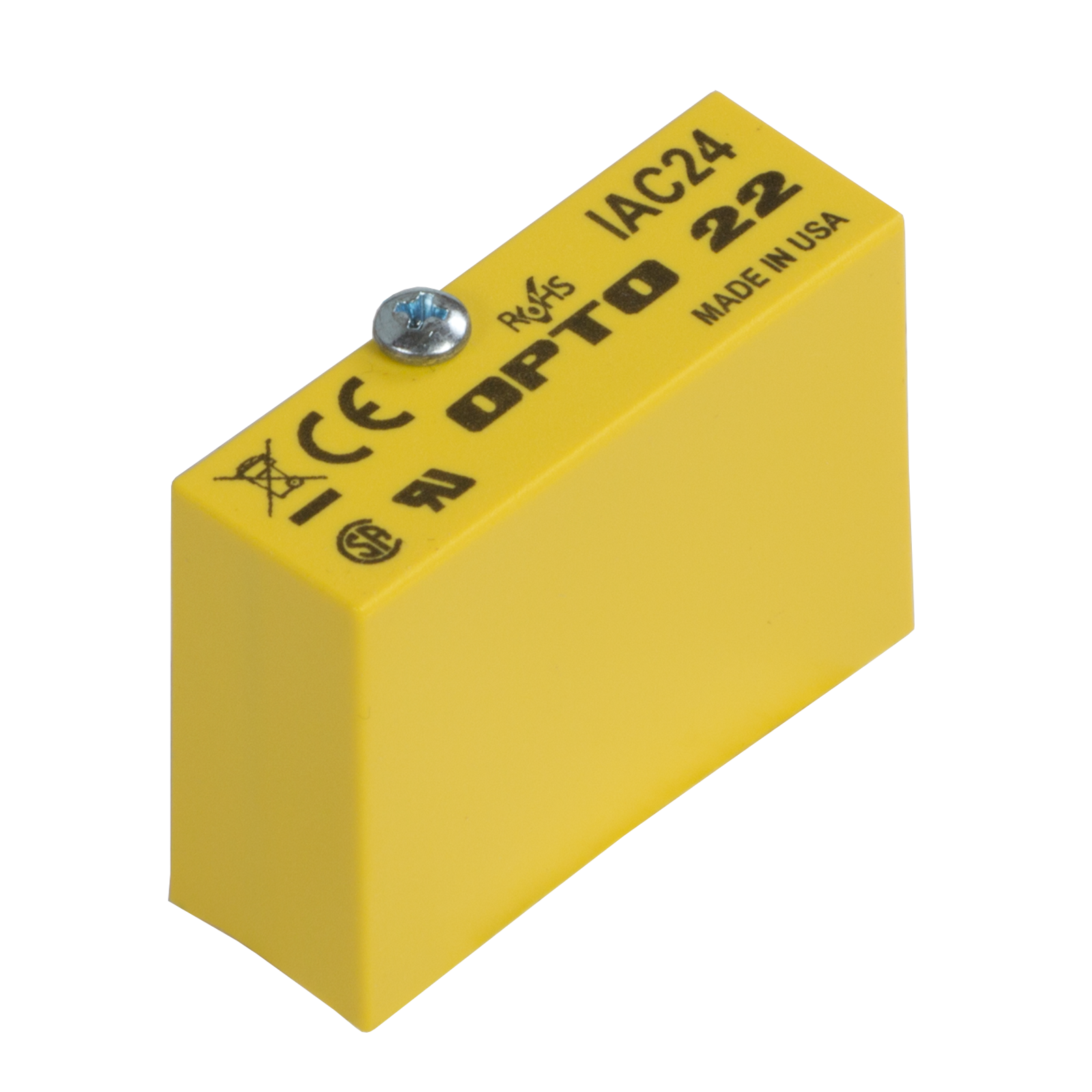

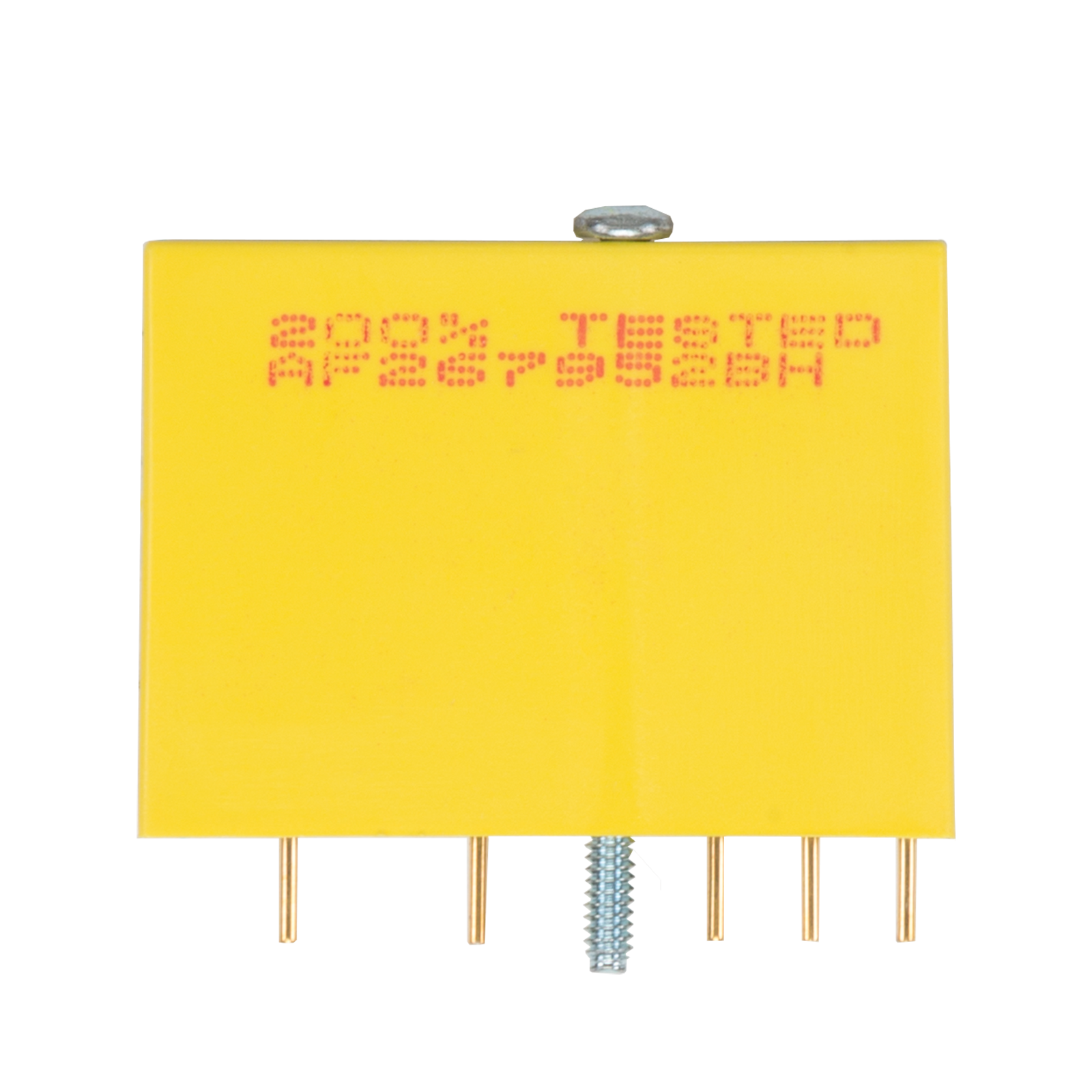

G1 AC Digital Input, 90-140 VAC, 24 VDC Logic

Production Specification

G1 I/O Family

The IAC24 input module is used to sense ON/OFF AC voltage levels at 90-140 VAC. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free clean switching. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the logic output of the circuit.

Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as:

  • Proximity switches
  • Limit switches
  • Float switches
  • Selector switches
  • Push buttons
  • Toggle switches
  • Thermostats


IAC24 modules are not for use with Opto 22 brains.

Operating Ambient

-30 to 70 °C

Isolation, Input-to-Output (Transient)

4000 volts

Output Voltage Drop

0.4 volts @ 50 mA

Output Current

50 mA

Output Leakage With No Input

0.1 mA @ 30 VDC

Output Transistor

30 volts breakdown

Agency Approvals UL, CE, CSA, RoHS; UKCA

AC Input Module Specifications



Unit

IDC5

IDC5G

IDC15*

IDC24*

IAC5

IAC15*

IAC24*

IAC5A

IAC15A*

IAC24A*

Input Voltage Range

VAC

12–32

35–60

12–32

12–32

90–140

90–140

90–140

180–280

180–280

180–280

Input Current @ Max Line

mA

25

6

25

25

5

5

5

5.0

5.0

5.0

Turn-on Time

msec

5

10

5

5

20

20

20

20

20

20

Turn-off Time

msec

5

15

5

5

20

20

20

20

20

20

Input Allowed for No Output

mA, V

1, 3

0.7, 7

1, 3

1, 3

3, 45

3, 45

3, 45

1.7, 80

1.7, 80

1.7, 80

Output Supply
Voltage-Nominal

VDC

5

5

15

24

5

15

24

5

15

24

Output Supply
Voltage-Range

VDC

4.5–6

4.5–6

12–18

20–30

4.5–6

12–18

20–30

4.5–6

12–18

20–30

Output Supply Current
@ Nominal Logic Voltage

mA

12

12

15

15

12

15

15

12

15

15

Input Resistance
(R1 in schematic diagram)

Ohms

1.5k

10k

1.5k

1.5k

28k

28k

28k

70k

70k

70k

Control Resistance

Ohms

220

220

1k

2.2k

220

1k

2.2k

220

1k

2.2k

* Not for use with Opto 22 brains.

Standard Digital DC Input Modules Data Sheet

Input modules are used for sensing ON/OFF voltage levels.

Standard AC Input Modules Data Sheet

AC input modules are used for sensing ON/OFF alternating current (AC) voltage levels.
