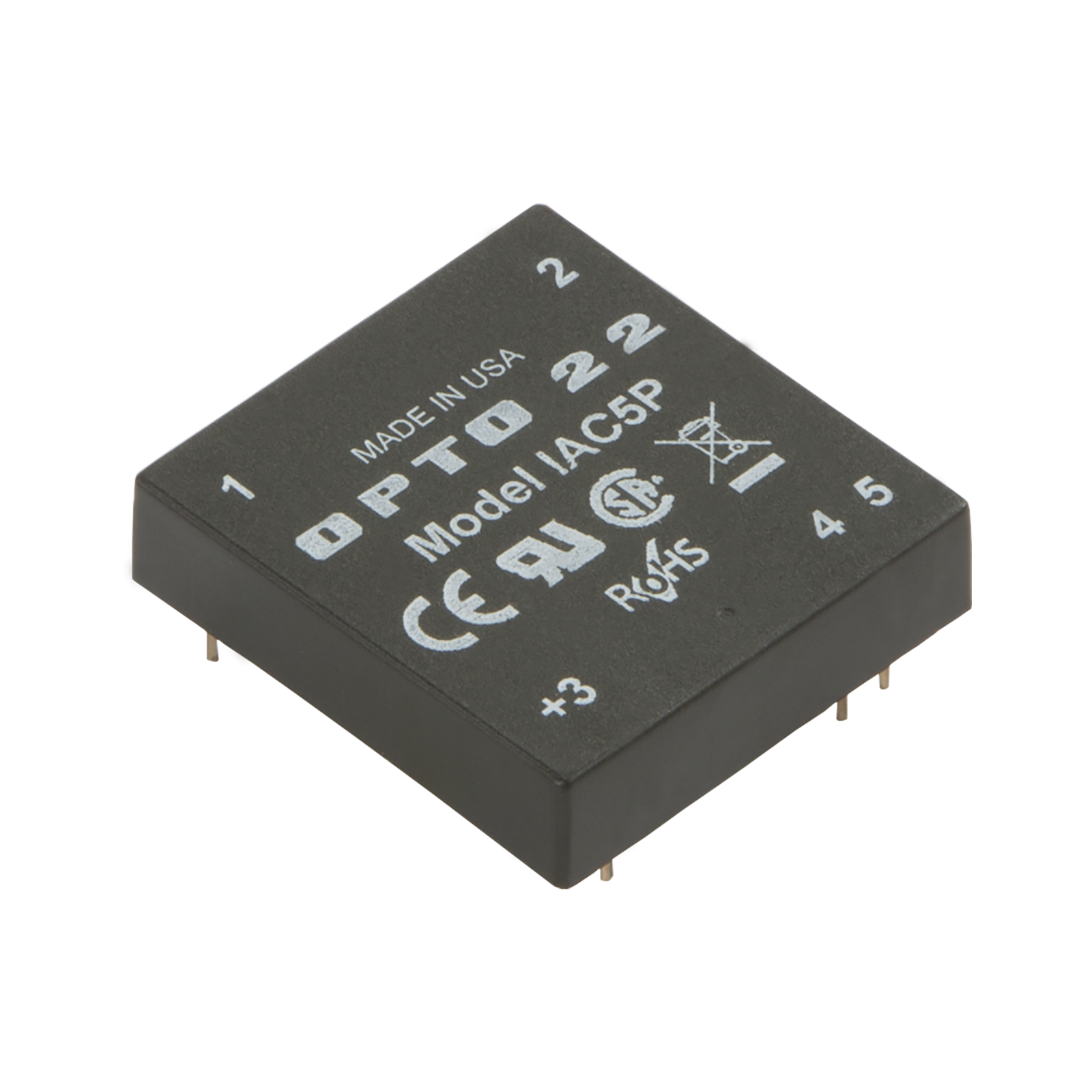

Because of their low profile, Flat Pak modules are ideal for user-designed printed circuit boards where the standard single-channel or Quad Pak modules do not provide an exact fit.
The IAC5P handles 90-140 VAC or VDC.
Flat Pak input modules are used for sensing ON/OFF voltage levels. All Flat Pak input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient free "clean" switching. Each module provides up to 4000 V of optical isolation between field inputs and the logic side of the circuit.
Typical uses and applications include sensing the presence or absence of voltage from sources such as:
IAC5P
IDC5P
Input Voltage Range
90–140 VAC or VDC
10–32 VDC or 12–32 VAC
Input Current at Maximum Line
11 mA
25 mA
Turn-on Time
20 ms
5 ms
Turn-off Time
Input Allowed for No Output
3 mA, 45 V
1 mA, 3 V
Logic Supply Voltage, Nominal
5 VDC
Logic Supply Voltage Range
4.5–6.0 VDC
Logic Supply Current at Nominal Logic Voltage
12 mA
Input Resistance (R1 in Schematic Diagram)
14,000 Ohms
1500 Ohms
Control Resistance (Rc in Schematic Diagram
220 Ohms
Optical Isolation, Input-to-output
4000 Vrms
Output Voltage Drop
0.4 V @ 50 mA
Output Current
50 mA
Output Leakage with No Input
100 µA maximum @ 30 VDC
Operating Temperature
–30 to 70 °C
Agency Approvals
UL, CE, CSA, RoHS; UKCA
Warranty
Lifetime
Flat Pak modules include AC and DC input and output modules.
