IAC5Q
Hover over image to zoom in

IAC5Q

$110.00 (USA and Canada only)

Availability: In stock
Quad Pak 4-channel AC/DC Input 90-140 VAC/VDC, 5 VDC Logic

Production Specification

Quad Pak I/O family

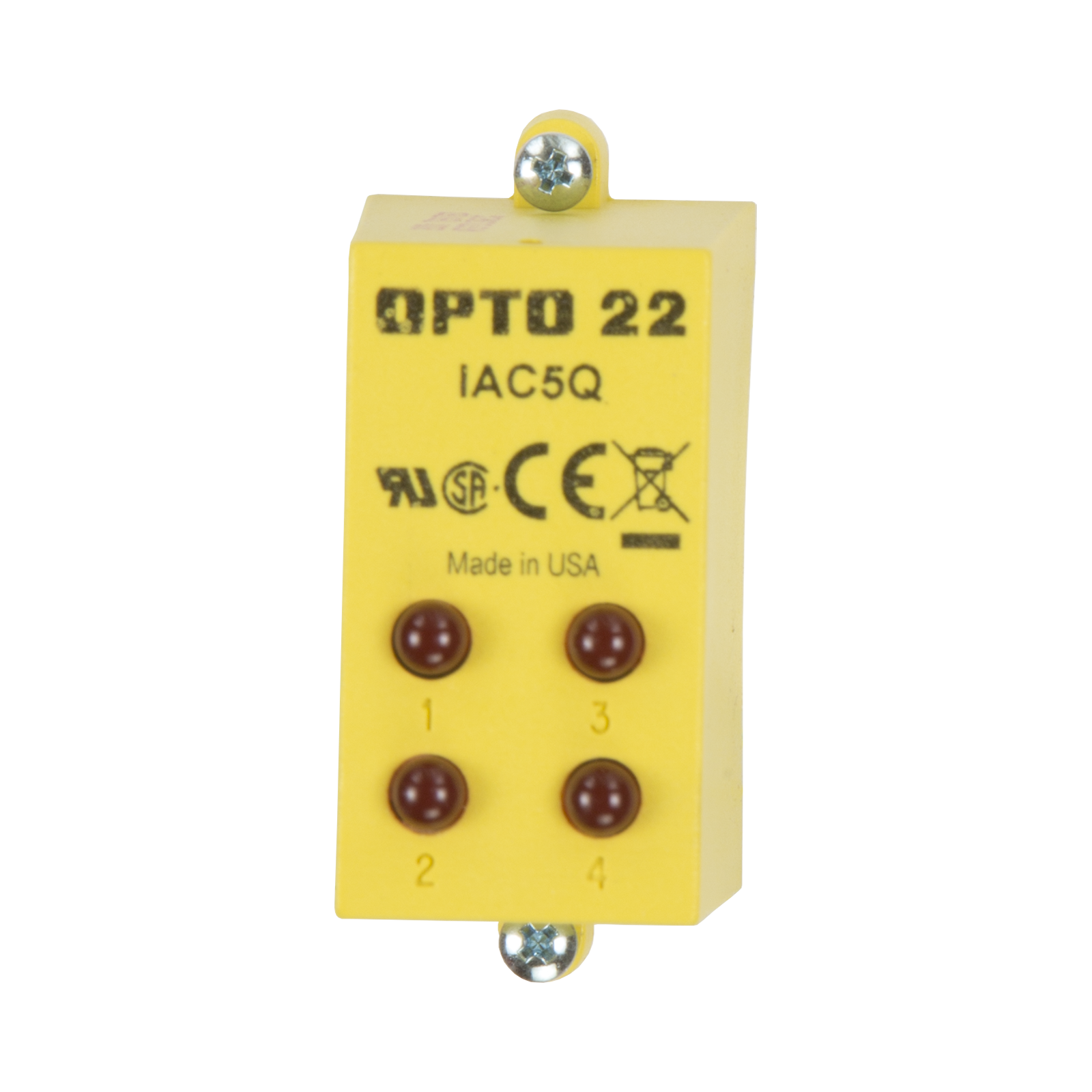

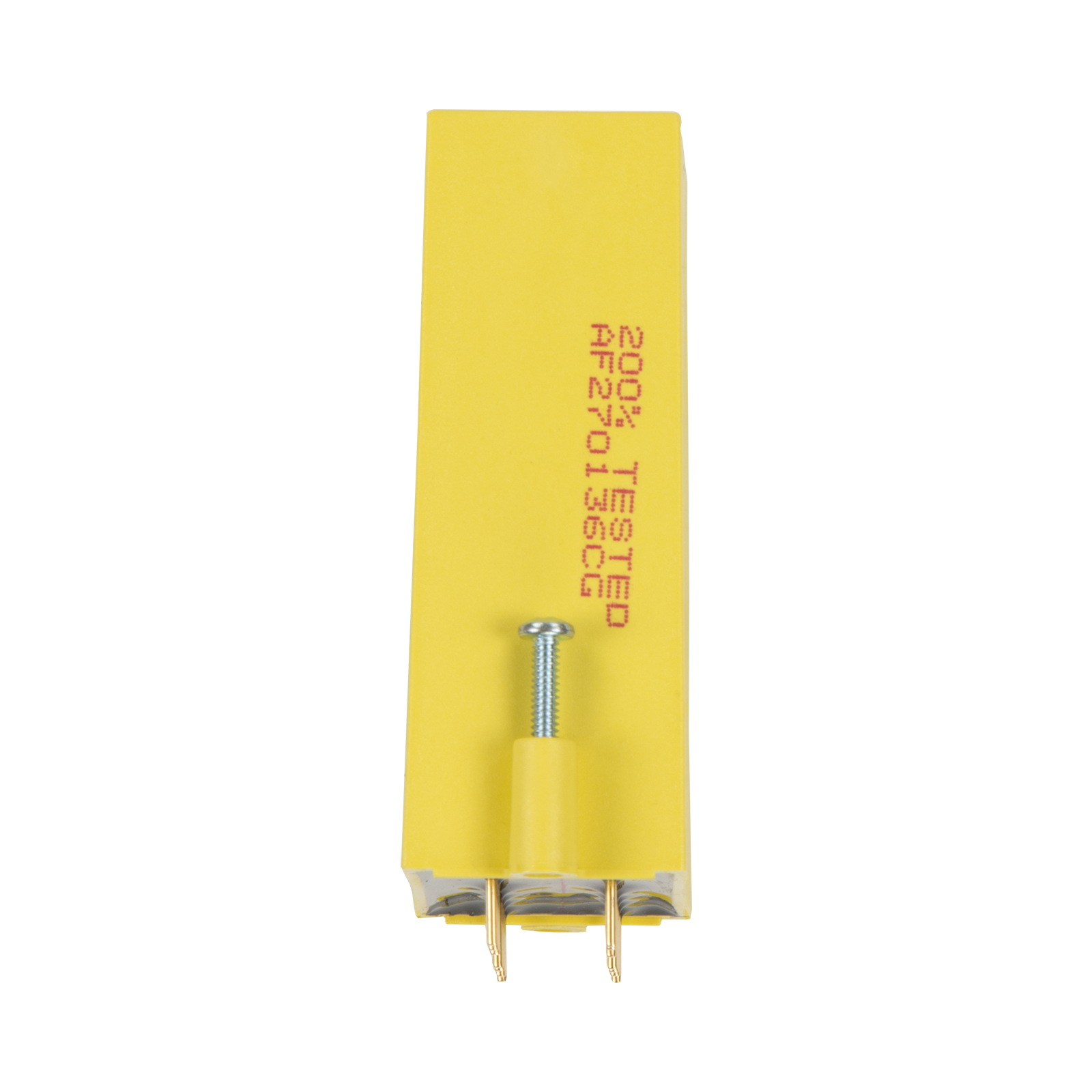

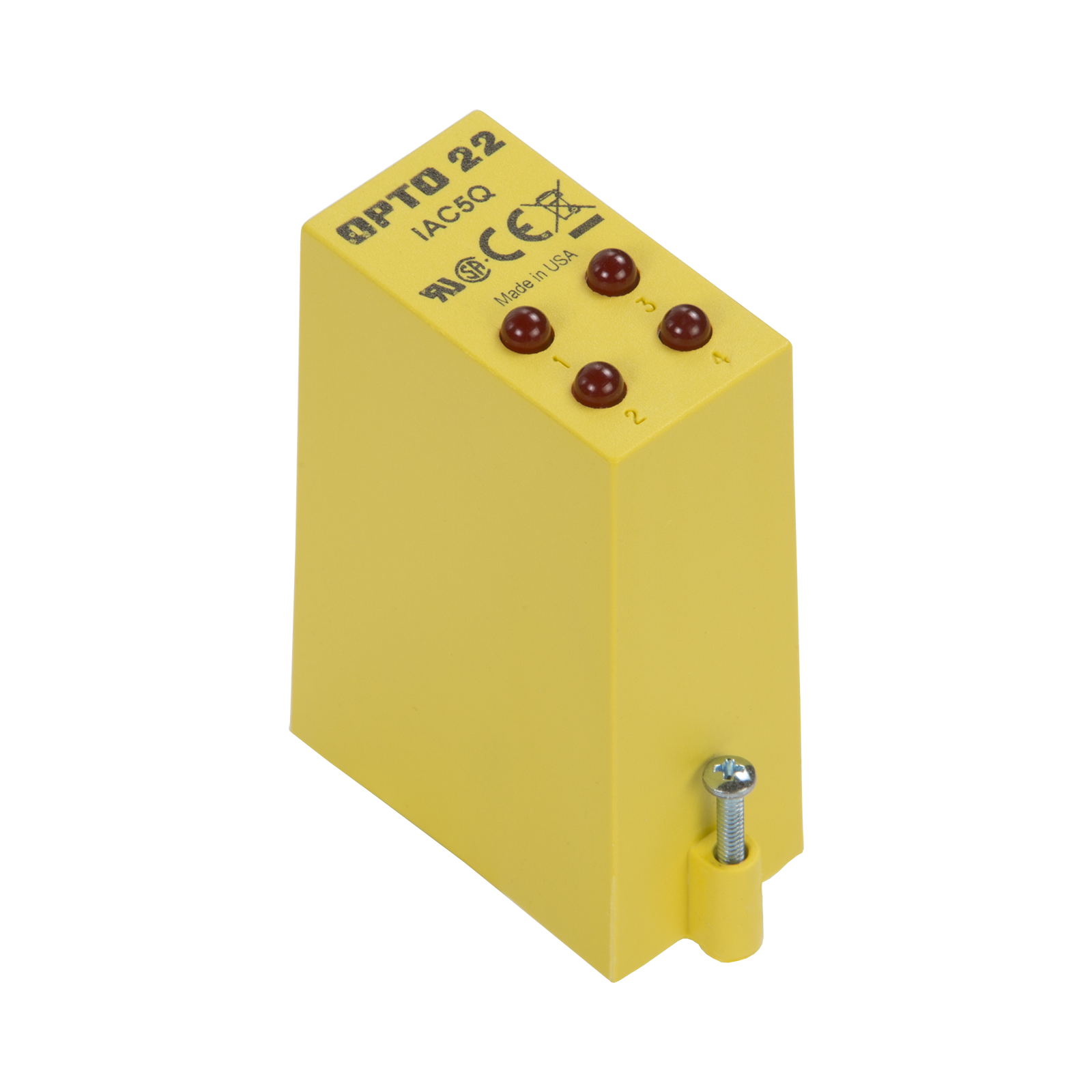

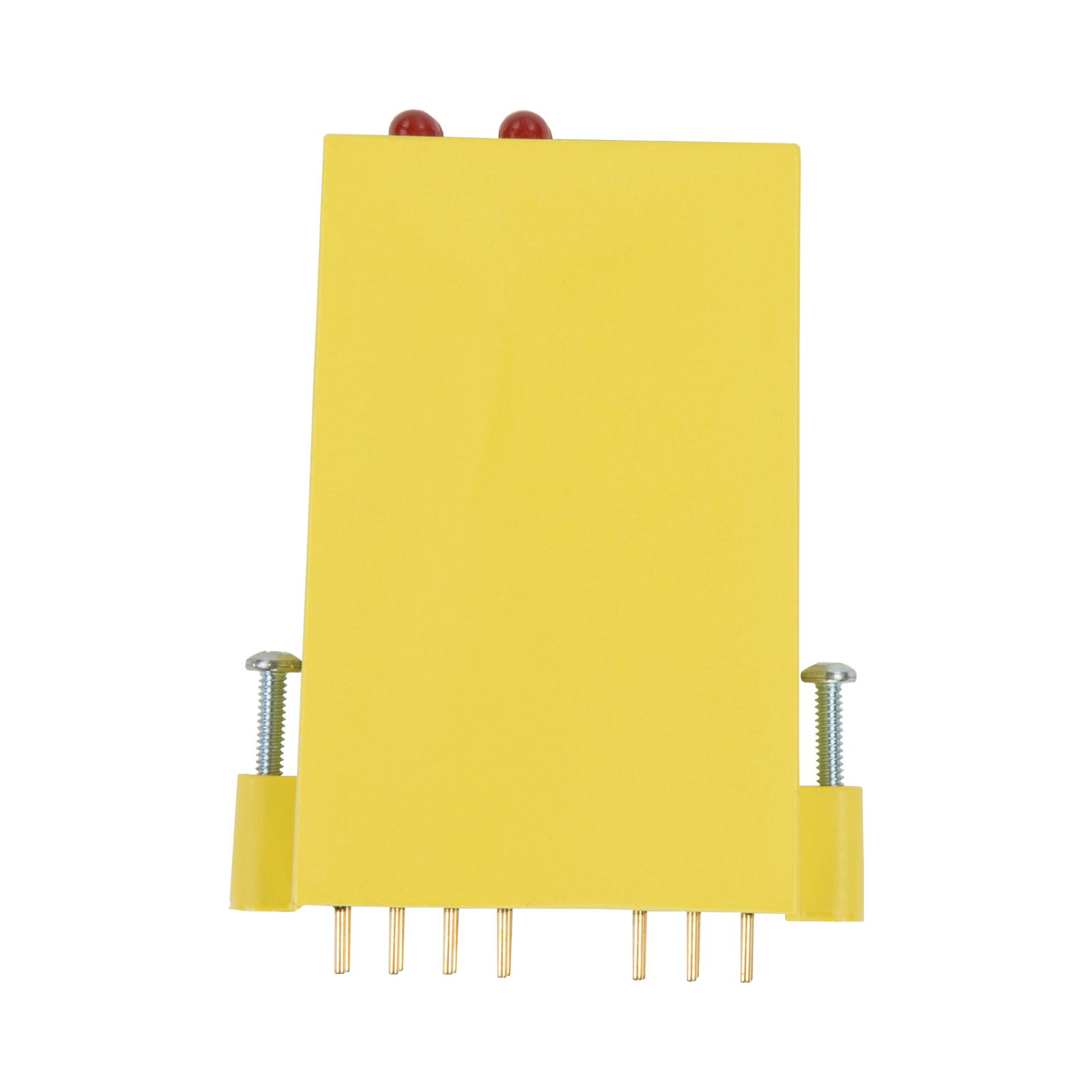

The IAC5Q is a 4-channel AC/DC input module. It accepts input voltage of 90-140 VAC/VDC and uses 5 VDC logic. It is compatible with Opto 22 Optomux, Pamux, and Mistic protocol brain boards and mounting racks, as well as racks using a direct cable connection to a computer. This module can also be used with a Raspberry Pi, the Digital I/O Carrier Board (part number OPTO-P1-40P), and the PB16HQ mounting rack.

Quad Pak modules contain the equivalent of four single-channel I/O circuits in a single package. Each Quad Pak module can be divided into two pairs, with each pair sharing a common connection.

Quad Pak modules plug into  Quad Pak I/O mounting racks. They are not compatible with single-channel racks or SNAP racks.

AC input modules are used for sensing ON/OFF AC voltages. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free “clean” switching. Each module provides up to 4,000 Vrms of optical isolation between field inputs and the logic side of the circuit.

Operating Ambient Temperature

-30 to 70 °C

Isolation Input-to-Output

4,000 Vrms

Output Voltage Drop

0.4 volts @ 50 mA

Output Current (per channel)

50 mA

Output Leakage With No Input

100 microamps maximum @ 5 VDC

Output Transistor

30 volts breakdown







Units

IDC5Q

IDC5BQ

IAC5Q

IAC5AQ

Input Voltage Range (VAC)

VAC

12–32

N/A

90–140

180–280

Input Voltage Range (VDC)

VDC

10–32

4–16

90–140

180–280

Input Current@ Maximum Line

mA

29

45

11

6.5

Turn-on Time

msec

5

0.05

20

20

Turn-off Time

msec

5

0.1

20

20

Input Allowed For No Output

mA, V

1, 3

0.7, 1

3, 45

1.7, 80

Logic Supply Voltage - Nominal

VDC

5

5

5

5

Logic Supply Voltage - Nominal

VDC

4.5–6

4.5–6

4.5–6

4.5–6

Logic Supply Voltage - Nominal

mA

12

12

12

12

Input Resistance

Ohms

1.5K

300

14K

43K

Control Resistance

Ohms

220

220

220

220

Agency Approvals   UL, CE, CSA, UKCA UL, CE, CSA, UKCA UL, CE, CSA, UKCA UL, CE, CSA, UKCA
