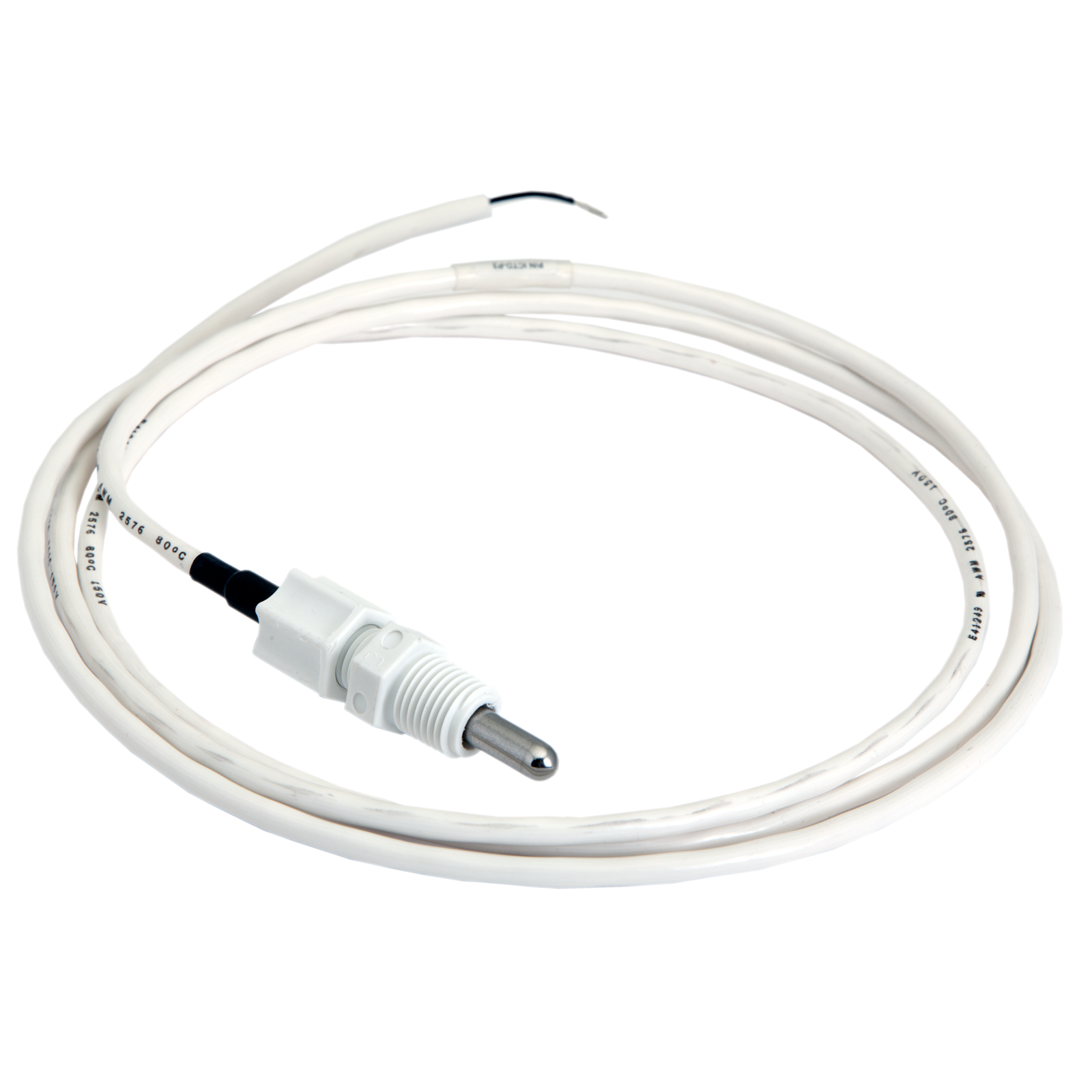

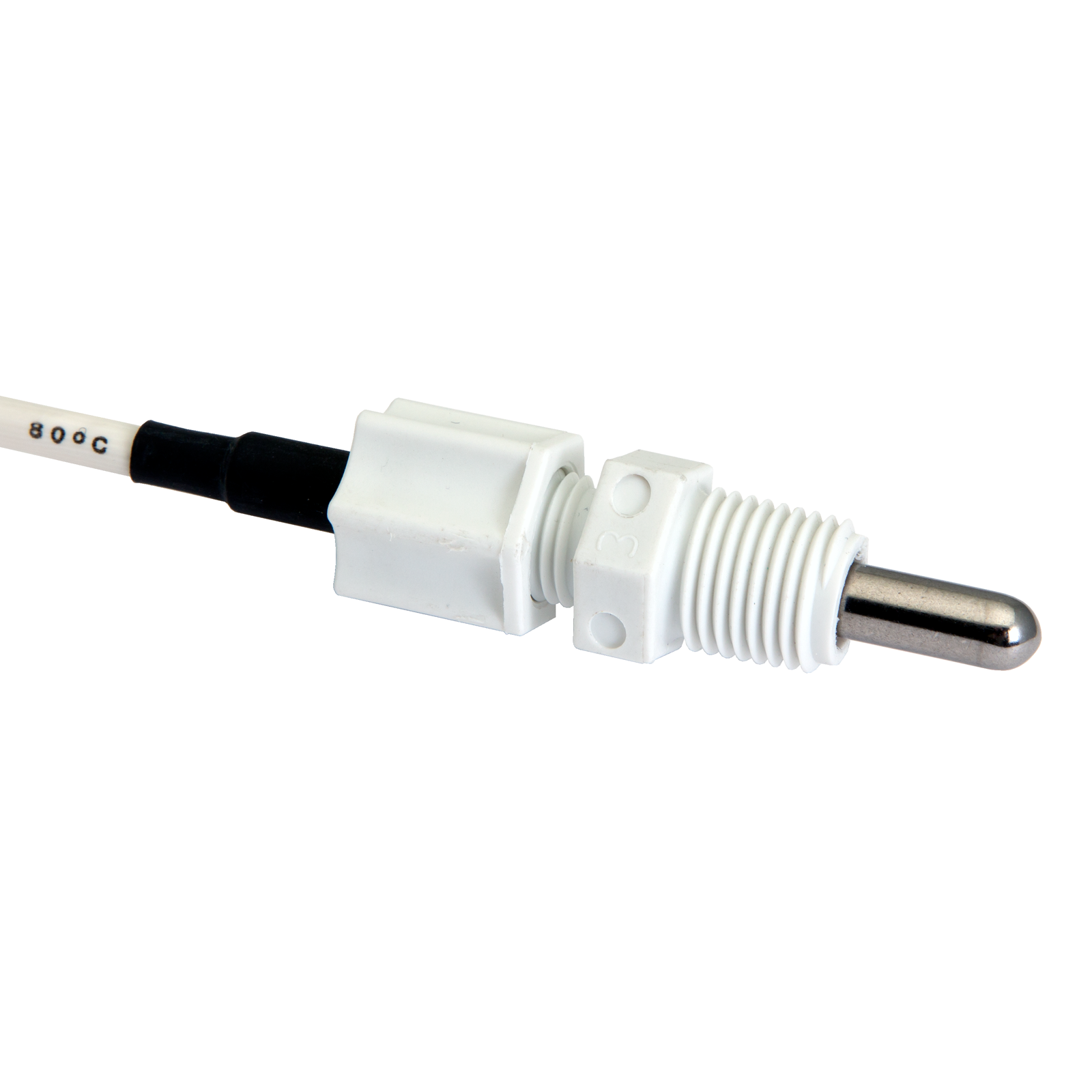

Immersion ICTD Temperature Probe, 1/4-inch Diameter

Please call (800) 321-6786 to order.

ICTD-P3

Production Specification

The ICTD-P3 is an immersion ICTD temperature probe, 1/4 inch in diameter, designed for use with thermowells. Use this probe with the following Opto 22 analog input modules:



ICTD

ICTD-P2

ICTD-P3

Features

Epoxy probe, non-immersion
Suited for air temperature

Stainless steel probe, waterproof
Suited for air or liquid temperatures

Stainless steel probe, waterproof
Suited for air or liquid temperatures

Input Temperature Range

- 40 °C to 100 °C

- 40 °C to 100 °C

- 40 °C to 100 °C

Output

233 µA @ -40 °C
373 µA @ 100 °C

233 µA @ -40 °C
373 µA @ 100 °C

233 µA @ -40 °C
373 µA @ 100 °C

Sensitivity

1 µA/°K

1 µA/°K

1 µA/°K

Input Response Time (% of Span/Δ °C/ΔTime)

5 %/7 °C/7.8 seconds
20 %/28 °C/33.6 seconds
63.2 %/88.48 °C/150 seconds

5 %/7 °C/7.8 seconds
20 %/28 °C/33.6 seconds
63.2 %/88.48 °C/150 seconds

5 %/7 °C/7.8 seconds
20 %/28 °C/33.6 seconds
63.2 %/88.48 °C/150 seconds

Output Accuracy

±0.5 °C @ 25 °C.
Factory calibrated.

±0.5 °C @ 25 °C.
Factory calibrated.

±0.5 °C @ 25 °C.
Factory calibrated.

Repeatability

±0.25 °C

±0.25 °C

±0.25 °C

Thermal Time Constant

2.5 minutes typical (still air)

2.5 minutes typical (still air)

2.5 minutes typical (still air)

Isolation

-- n/a --

500 V between metal shell and temperature element

500 V between metal shell and temperature element

Pipe Fitting Thread Type

-- n/a --

1/4" NPT

1/4" NPT

Maximum Liquid Pressure

-- n/a --

250 psi

200 psi

Maximum Cable Length

>2,000 ft. (610 m.)

>2,000 ft. (610 m.)

>2,000 ft. (610 m.)

Dimensions (nominal)

Overall length: 39 in. (1 m.)
Cylinder tip: 0.7” (1.78 cm) L, 0.375" (0.95 cm) D

Lead wires: 5 ft. (1.52 m.)
Probe diameter: 3/8 in.
Probe length: 2 in. (5.08 cm.)

Lead wires: 6 ft. (1.83 m.)
Probe diameter: 1/4 in.
Probe length: 2.75 in. (6.99 cm)

Warranty

30 months

30 months

30 months

ICTD Temperature Probes Data Sheet

ICTD temperature probes are temperature sensors used with Opto 22 ICTD analog input modules, including SNAP, G4, and Standard (G1) modules.
