G1 I/O family

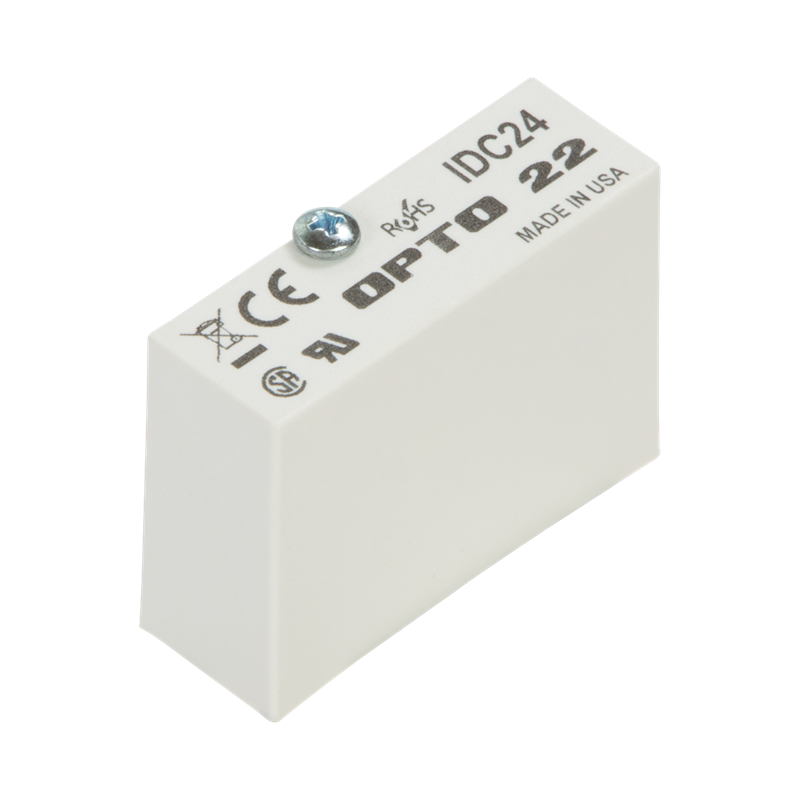

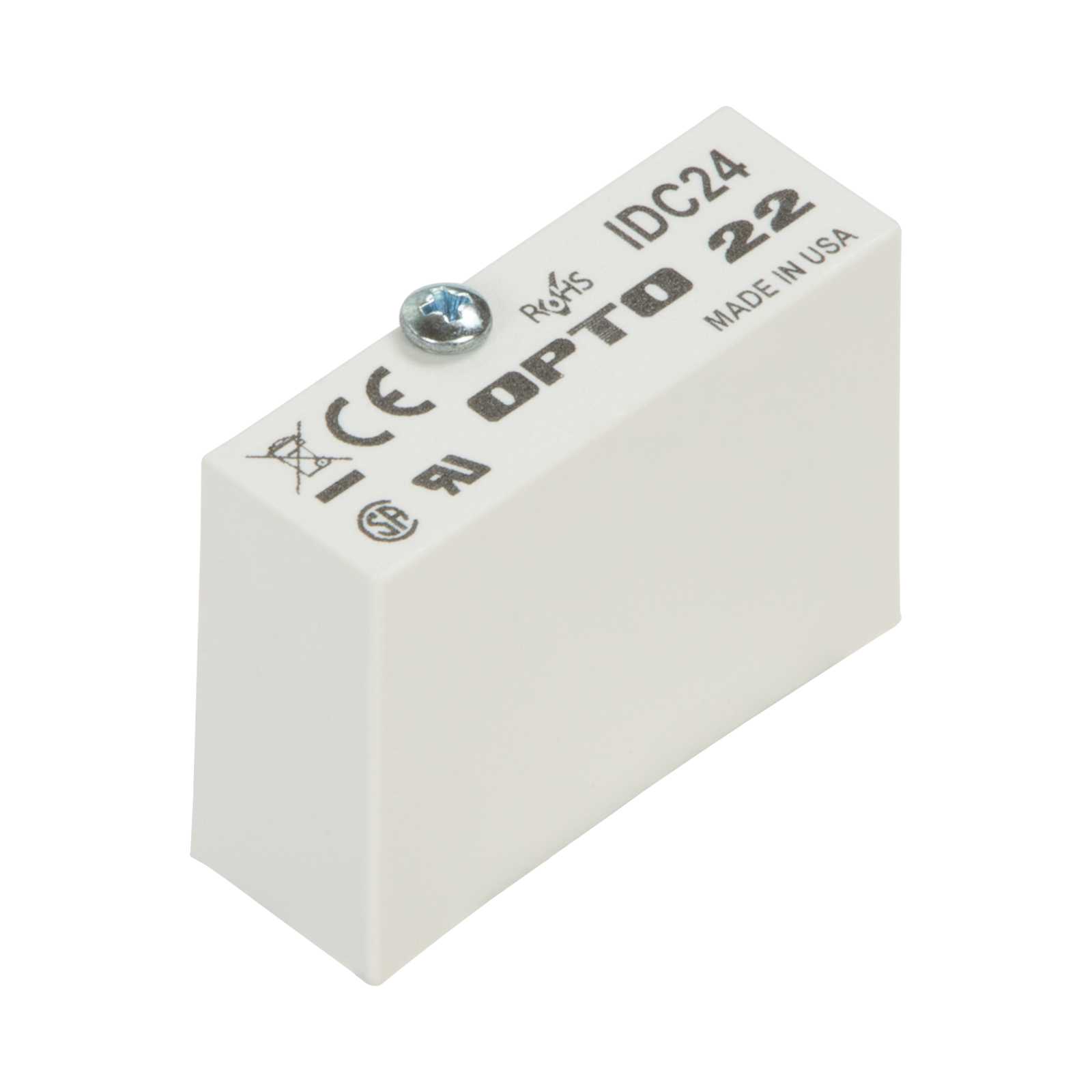

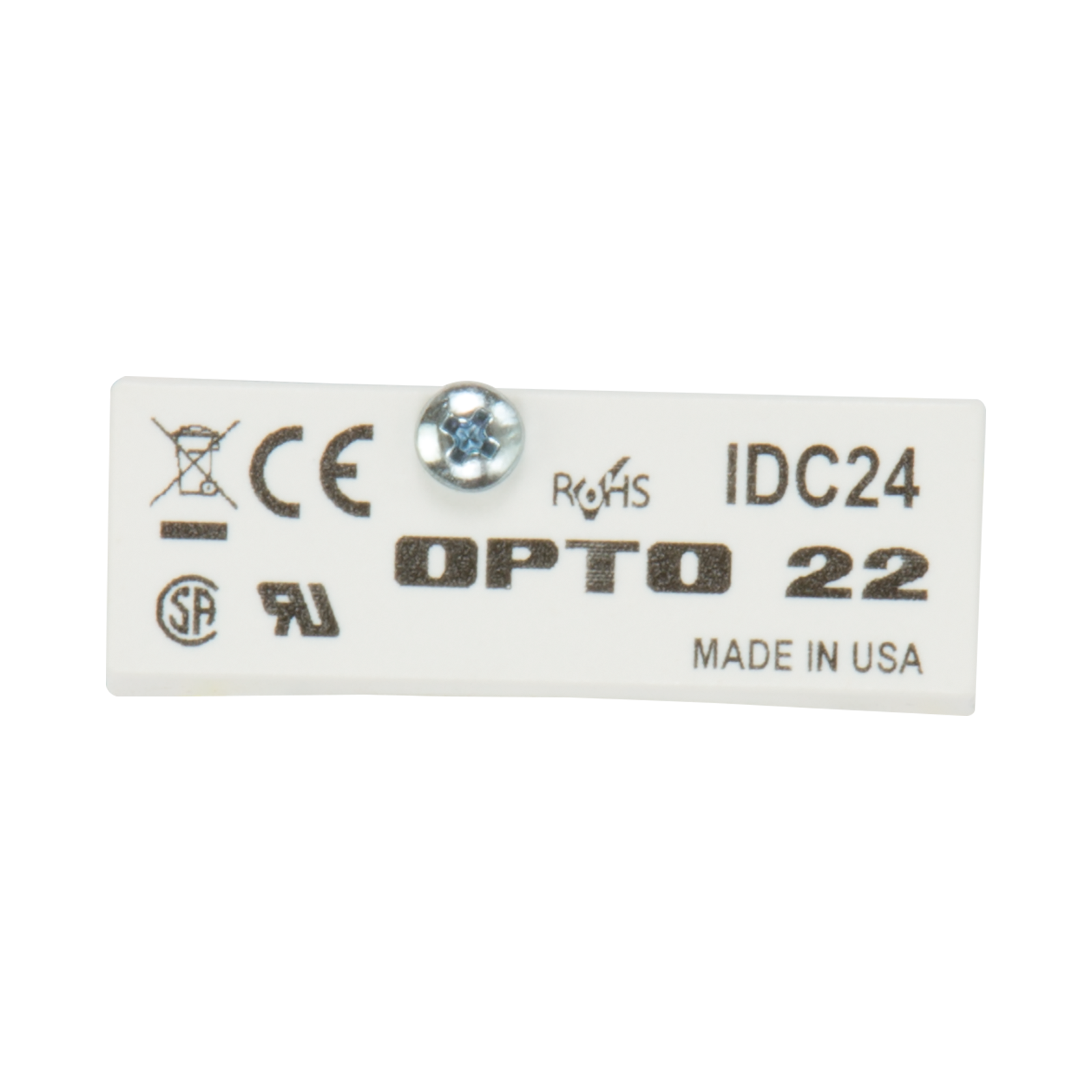

The IDC24 can act as either a DC or AC input, accepting 10-32 VDC or 12-32 VAC. All AC and DC input modules have a bridge-rectifier input. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit.
Input modules are used for sensing ON/OFF voltage levels. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as:
IDC24 modules are not for use with Opto 22 brains.
-30 to 70 °C
Isolation, Input-to-Output (Transient)
Output Voltage Drop
0.4 volts @ 50 mA
Output Leakage With No Input
0.1 mA @ 30 VDC
30 volts breakdown
AC Input Module Specifications
Input Voltage Range
Input Current @ Max Line
Input Allowed for No Output
Output Supply Current
@ Nominal Logic Voltage
(R1 in schematic diagram)
* Not for use with Opto 22 brains.
Input modules are used for sensing ON/OFF voltage levels.
AC input modules are used for sensing ON/OFF alternating current (AC) voltage levels.
