$29.00 (USA and Canada only)
G1 I/O family

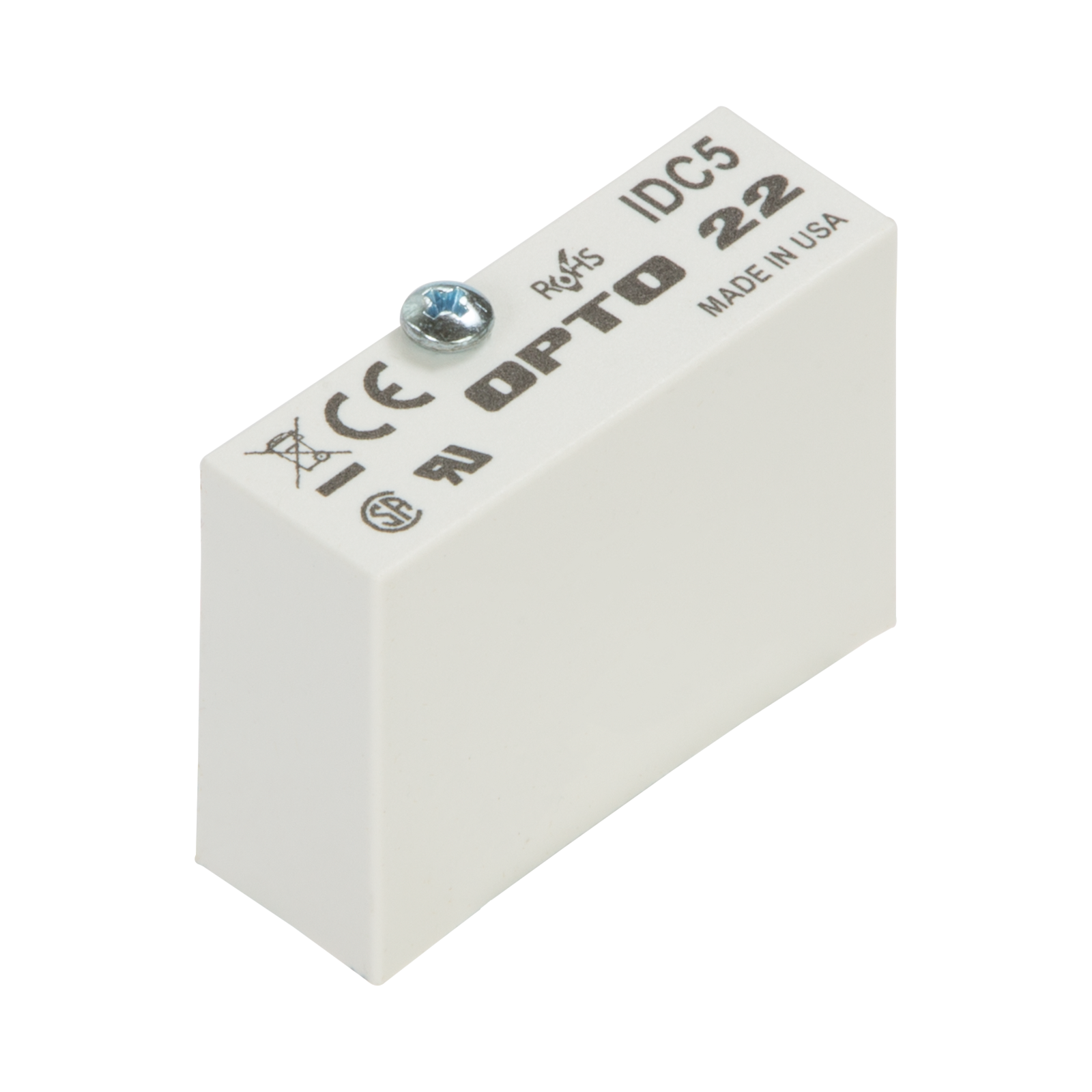

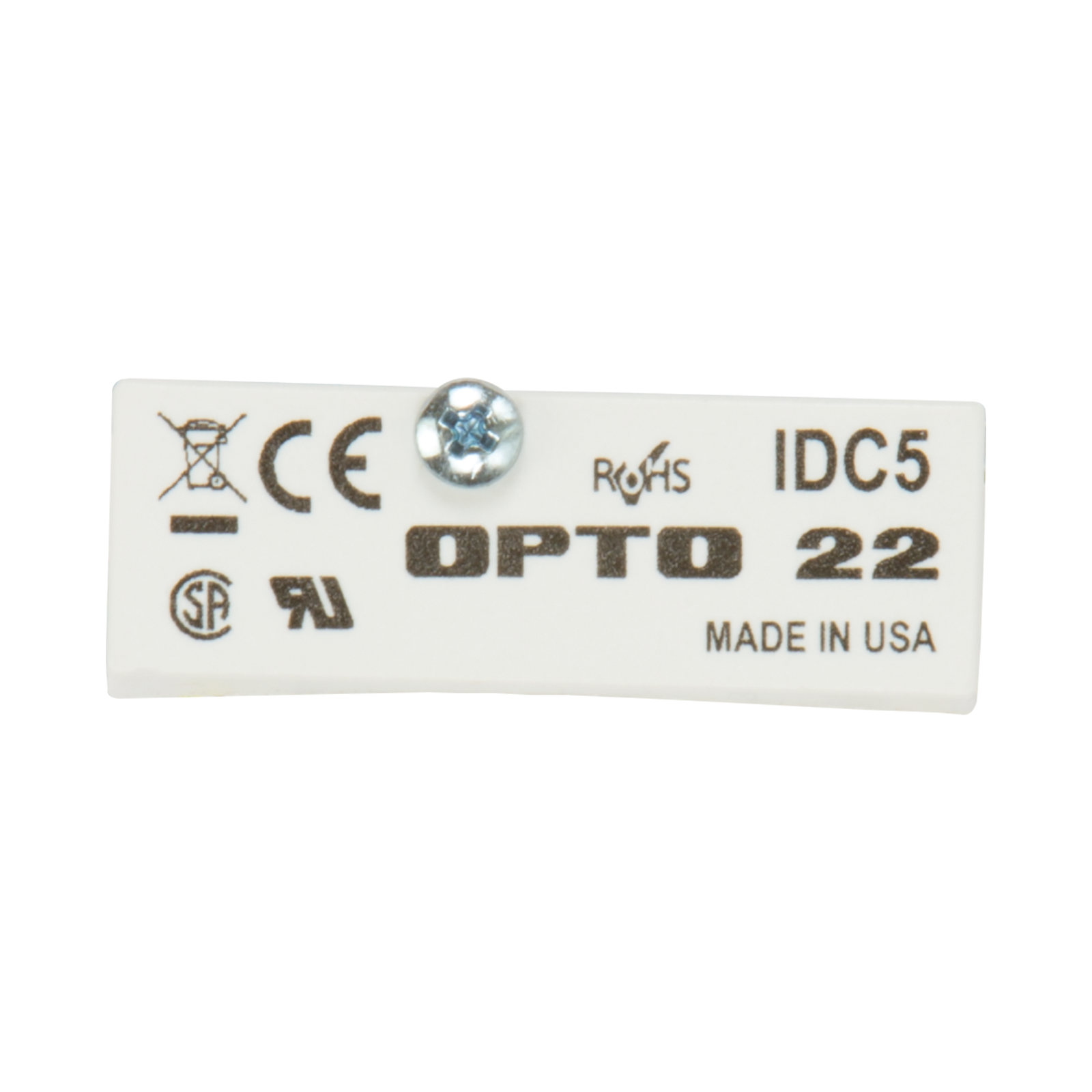

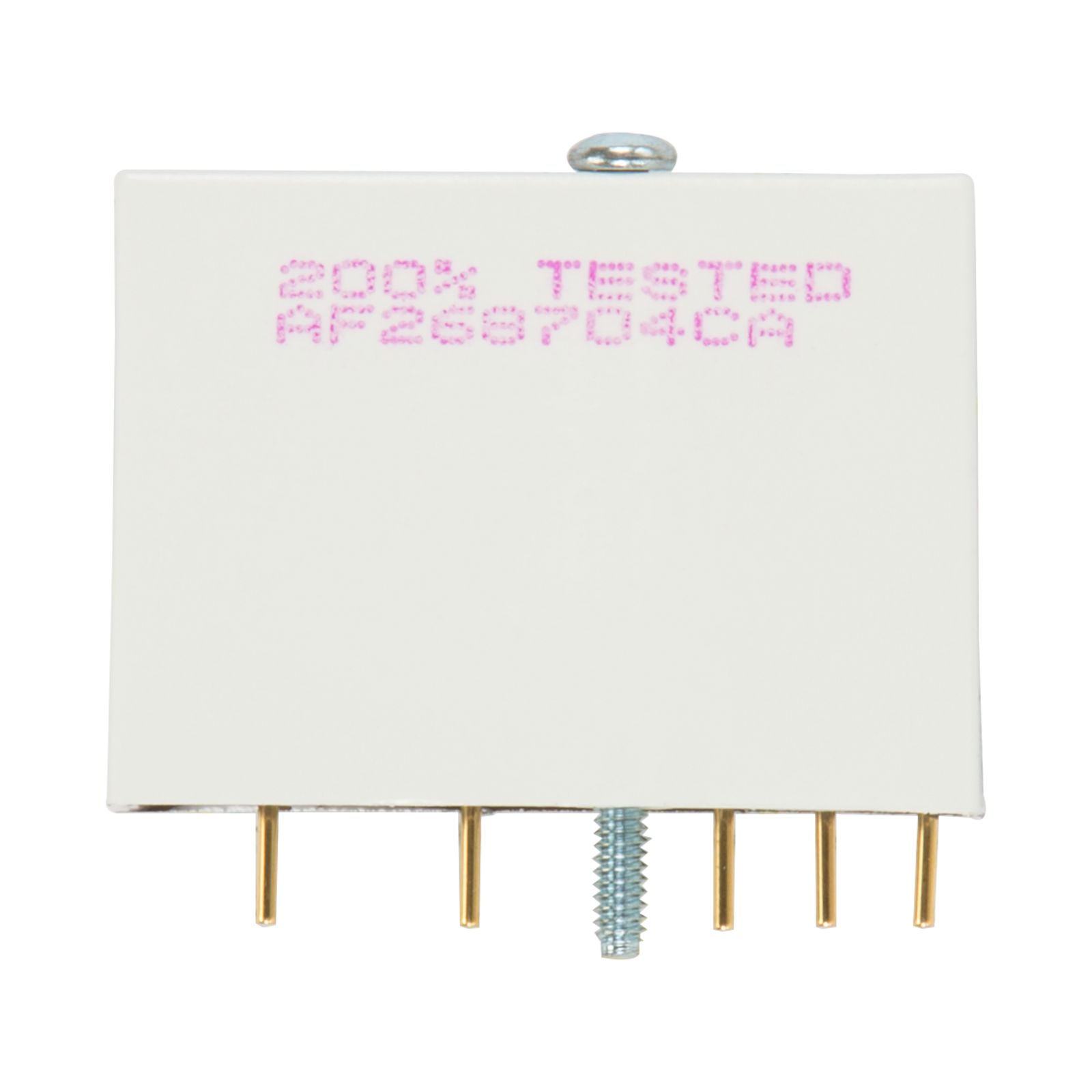

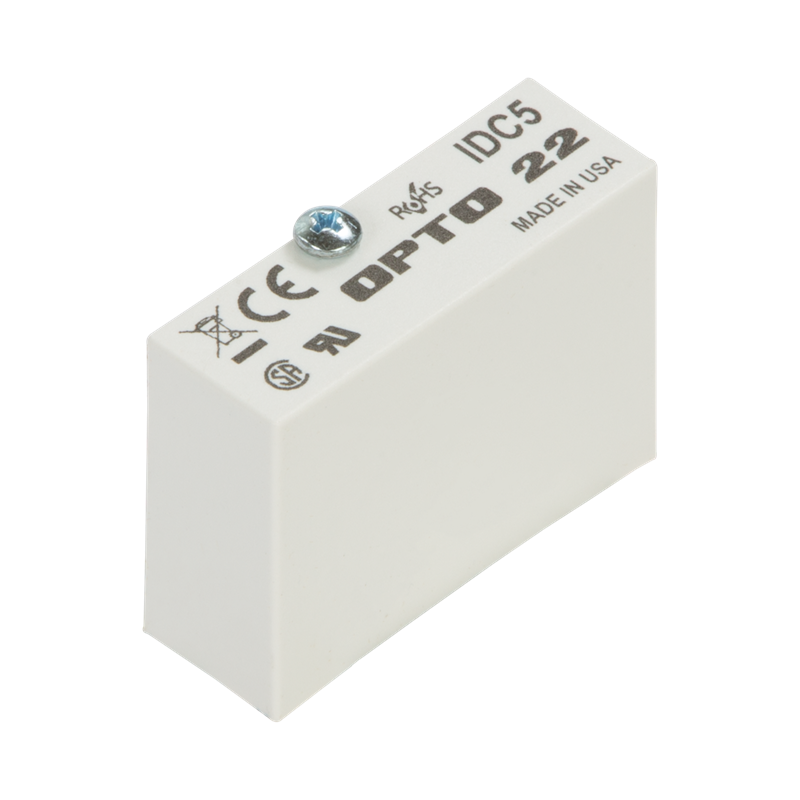

The IDC5 can act as either a DC or AC input, accepting 10-32 VDC or 12-32 VAC. All AC and DC input modules have a bridge-rectifier input. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit. Input modules are used for sensing ON/OFF voltage levels. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as:
Standard DC Inputs
Operating Ambient Temperature
- 30 to 70 °C
Isolation, Input-to-Output (Transient)
4000 V
Output Voltage Drop: logic side
0.4 volts @ 50 mA
Output Current
50 mA
Output Leakage With No Input IDC5D Only
0.1 mA @ 30 VDC 0.01 mA @ 30 VDC
Transistor
30 volts breakdown
DC Input Module Specifications
Unit
IDC5
IDC5B
IDC5D
IDC5G
IDC15
IDC24
Input Voltage Range
VDC
10–32
4–16
2.5–28
35–60
VAC
12–32
—
Input Current @ Max Line
mA
25
45
30
6
Turn-on Time
msec
5
0.05
1
10
Turn-off Time
0.1
1.5
Input Allowed for No Output
0.7
0.2
Volts
3
7
Output Supply Voltage-Nominal
15
24
Output Supply Voltage-Range
4.5–6
12–18
20–30
Output Supply Current @ Nominal Logic Voltage
12
18
Input Resistance
Ohms
1.5k
300
900
10k
Control Resistance (Rc in schematic diagram)
220
470
1k
2.2k
IAC5
IAC15
IAC24
IAC5A
IAC15A
IAC24A
90–140
180–280
20
28k
70k
Input modules are used for sensing ON/OFF voltage levels.
AC input modules are used for sensing ON/OFF alternating current (AC) voltage levels.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
Wiring diagrams for Standard digital modules and racks
This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.
This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
