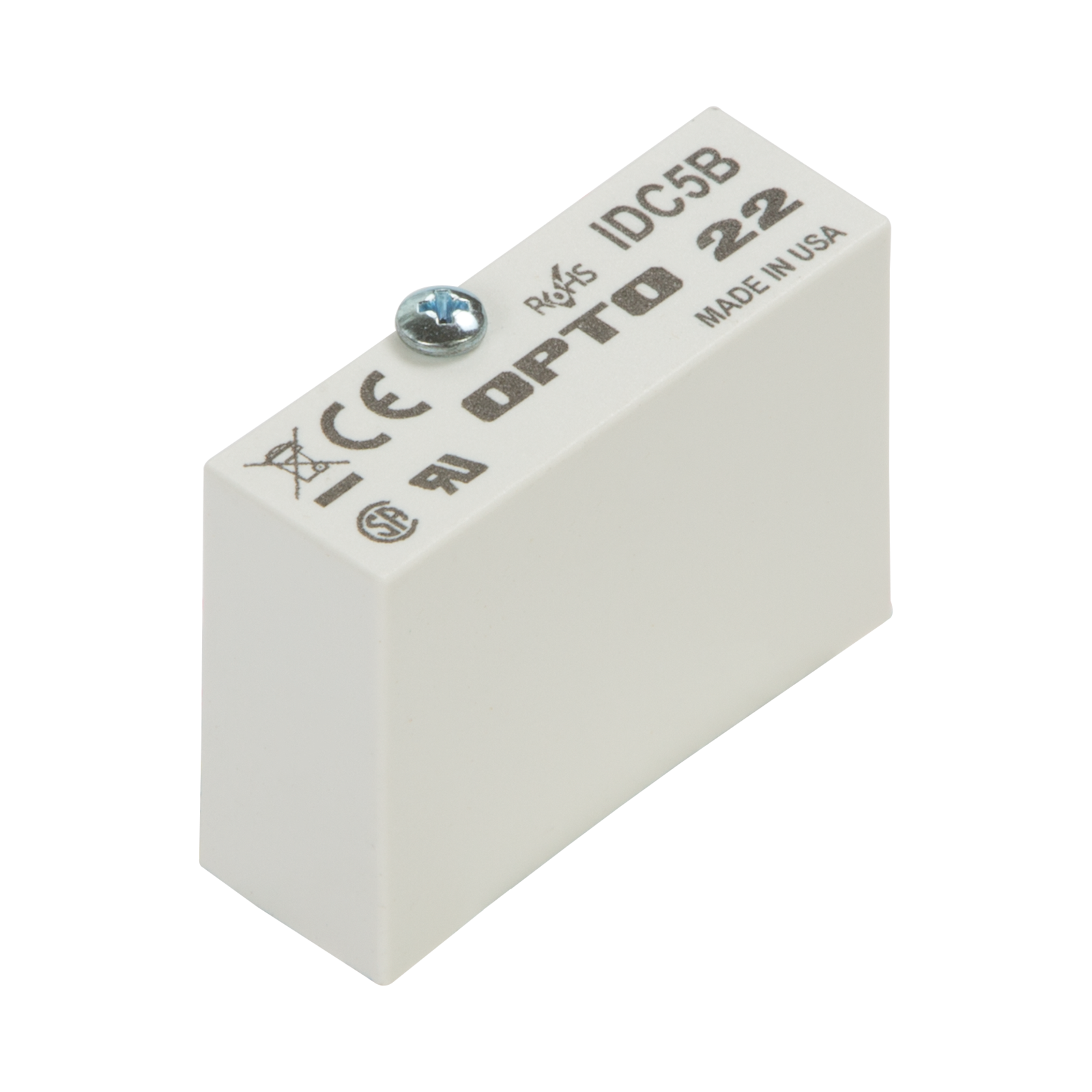

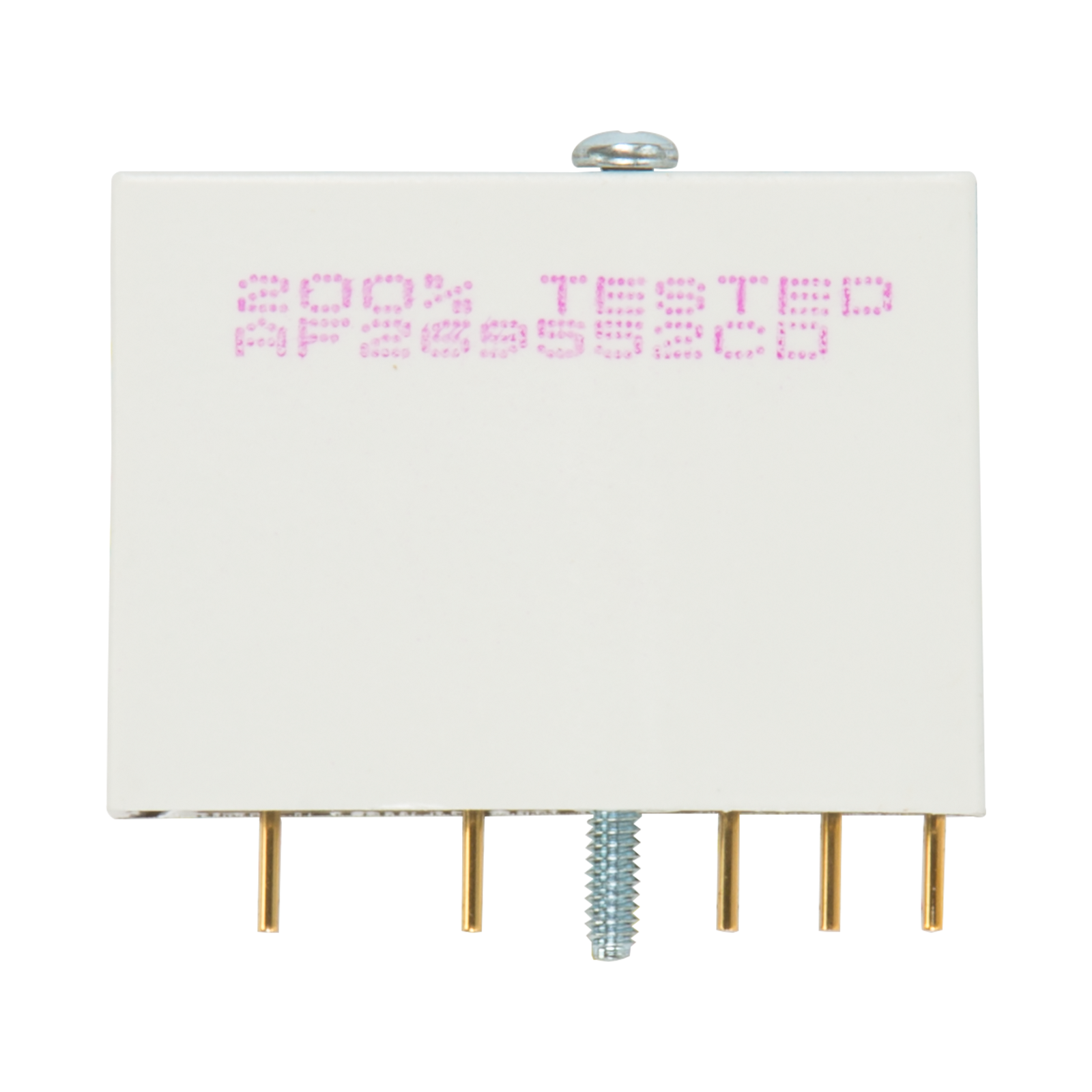

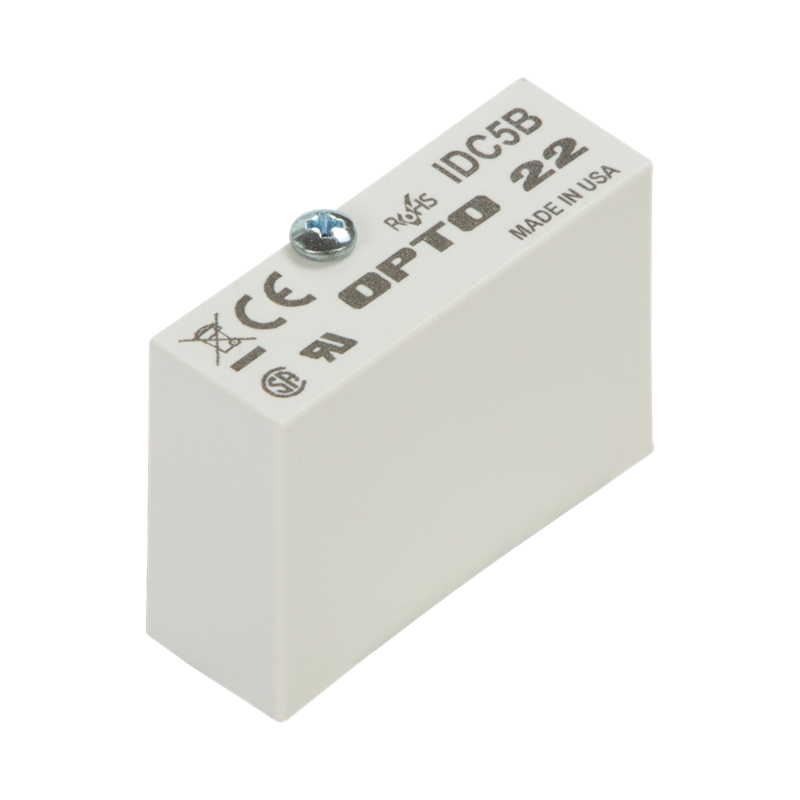

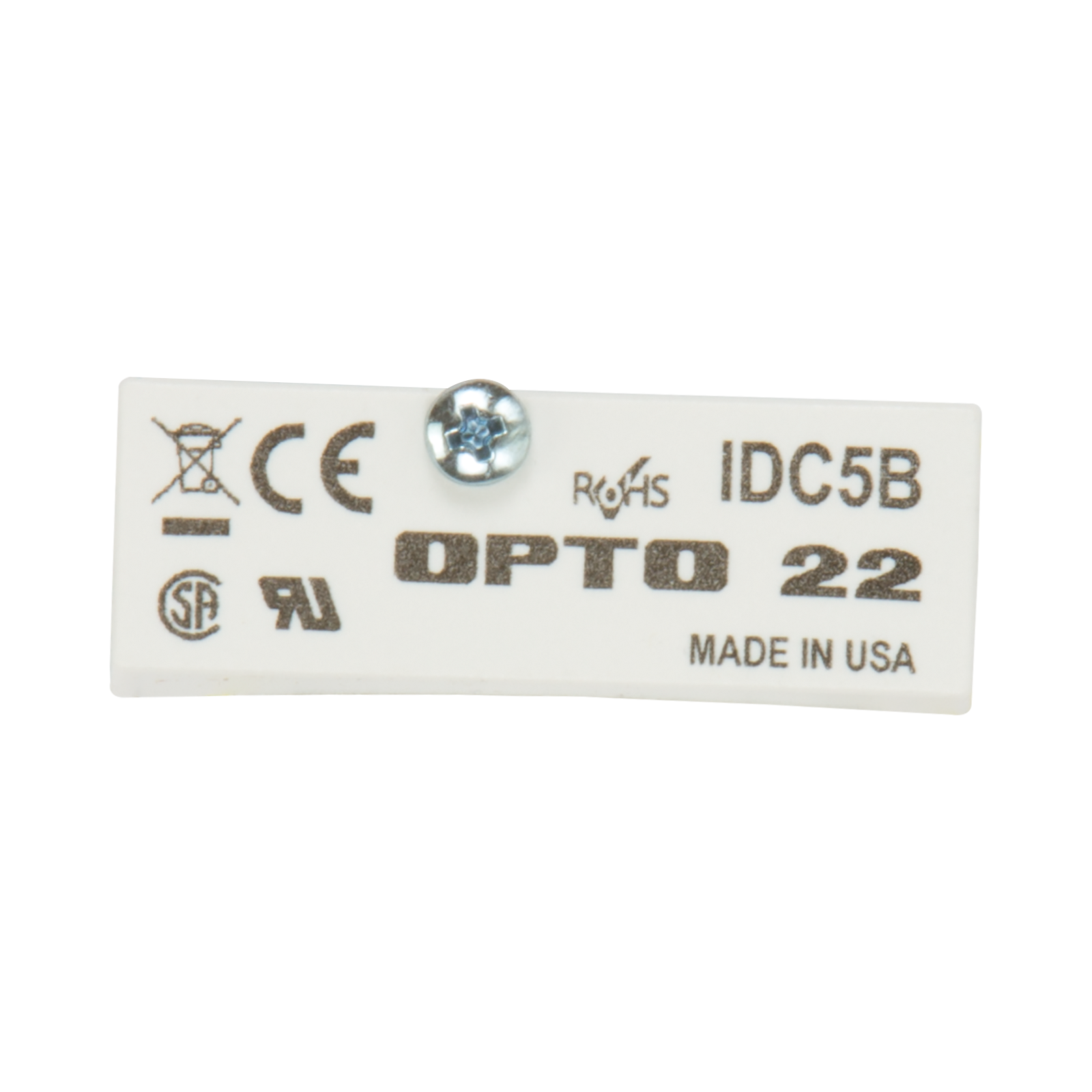

IDC5B
Hover over image to zoom in

IDC5B

$27.25 (USA and Canada only)

Availability: In stock
G1 DC or AC Digital Input, 4-16 VDC/VAC, 5 VDC Logic, High Speed

Production Specification

G1 I/O family

The IDC5B can act as either a DC or AC input, accepting 4-16 VDC or VAC. Input modules are used for sensing ON/OFF voltage levels. This module is a fast-switching input module for signals produced by photoelectric switches or TTL level devices. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the output side of the circuit.

General

Operating Ambient Temperature

- 30 to 70 °C

Isolation, Input-to-Output (Transient)

4000 V

Output Voltage Drop: logic side

0.4 volts @ 50 mA

Output Current

50 mA

Output Leakage With No Input
  IDC5D Only

0.1 mA @ 30 VDC
0.01 mA @ 30 VDC

Transistor

30 volts breakdown

Agency Approvals UL, CE, CSA, RoHS; UKCA

Input Module Specifications



Unit

IDC5

IDC5B

IDC5D

IDC5G

IDC15

IDC24

Input Voltage Range

VDC

10–32

4–16

2.5–28

35–60

10–32

10–32

VAC

12–32

4–16

35–60

12–32

12–32

Input Current @ Max Line

mA

25

45

30

6

25

25

Turn-on Time

msec

5

0.05

1

10

5

5

Turn-off Time

msec

5

0.1

1.5

10

5

5

Input Allowed for No Output

mA

1

0.7

0.2

0.7

1

1

Volts

3

1

1

7

3

3

Output Supply
Voltage-Nominal

VDC

5

5

5

5

15

24

Output Supply
Voltage-Range

VDC

4.5–6

4.5–6

4.5–6

4.5–6

12–18

20–30

Output Supply Current
@ Nominal Logic Voltage

mA

12

12

12

12

15

18

Input Resistance

Ohms

1.5k

300

900

10k

1.5k

1.5k

Control Resistance
(Rc in schematic diagram)

Ohms

220

220

470

220

1k

2.2k





Unit

IAC5

IAC15

IAC24

IAC5A

IAC15A

IAC24A

Input Voltage Range

VDC

90–140

90–140

90–140

180–280

180–280

180–280

VAC

90–140

90–140

90–140

180–280

180–280

180–280

Input Current @ Max Line

mA

5

5

5

5

5

5

Turn-on Time

msec

20

20

20

20

20

20

Turn-off Time

msec

20

20

20

20

20

20

Input Allowed for No Output

mA

3

3

3

1

1

1

Volts

45

45

45

45

45

45

Output Supply
Voltage-Nominal

VDC

5

15

24

5

15

24

Output Supply
Voltage-Range

VDC

4.5–6

12–18

20–30

4.5–6

12–18

20–30

Output Supply Current
@ Nominal Logic Voltage

mA

12

15

18

12

15

15

Input Resistance

Ohms

28k

28k

28k

70k

70k

70k

Control Resistance
(Rc in schematic diagram)

Ohms

220

1k

2.2k

220

1k

2.2k

Standard Digital DC Input Modules Data Sheet

Input modules are used for sensing ON/OFF voltage levels.
