IDC5P

IDC5P

$17.00 (USA and Canada only)

Availability: In stock

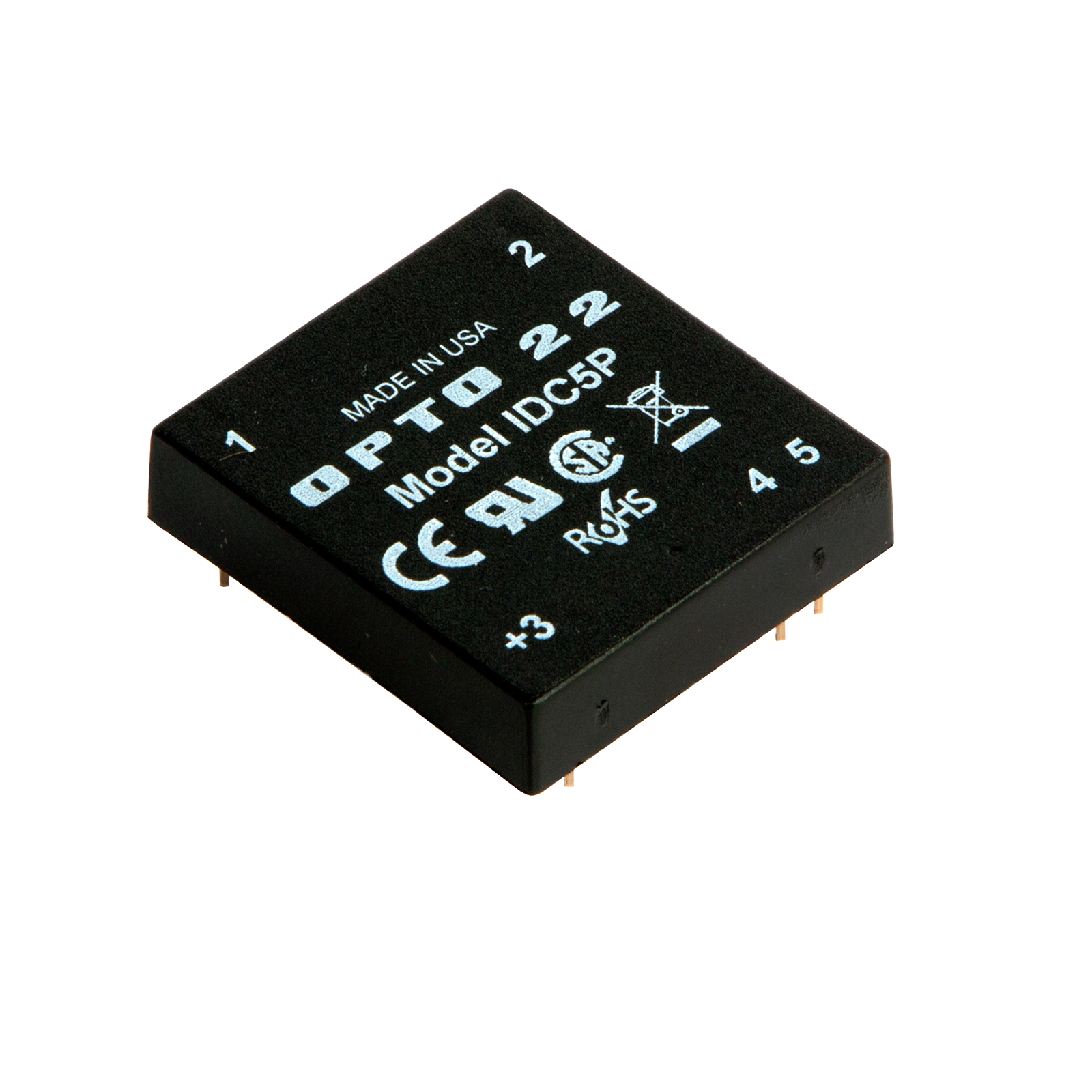

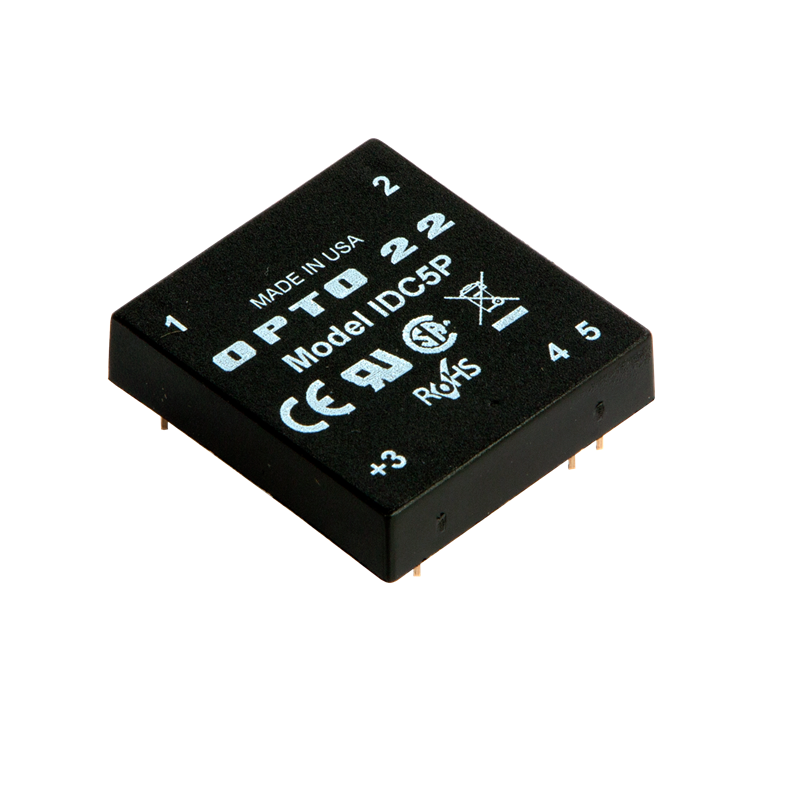

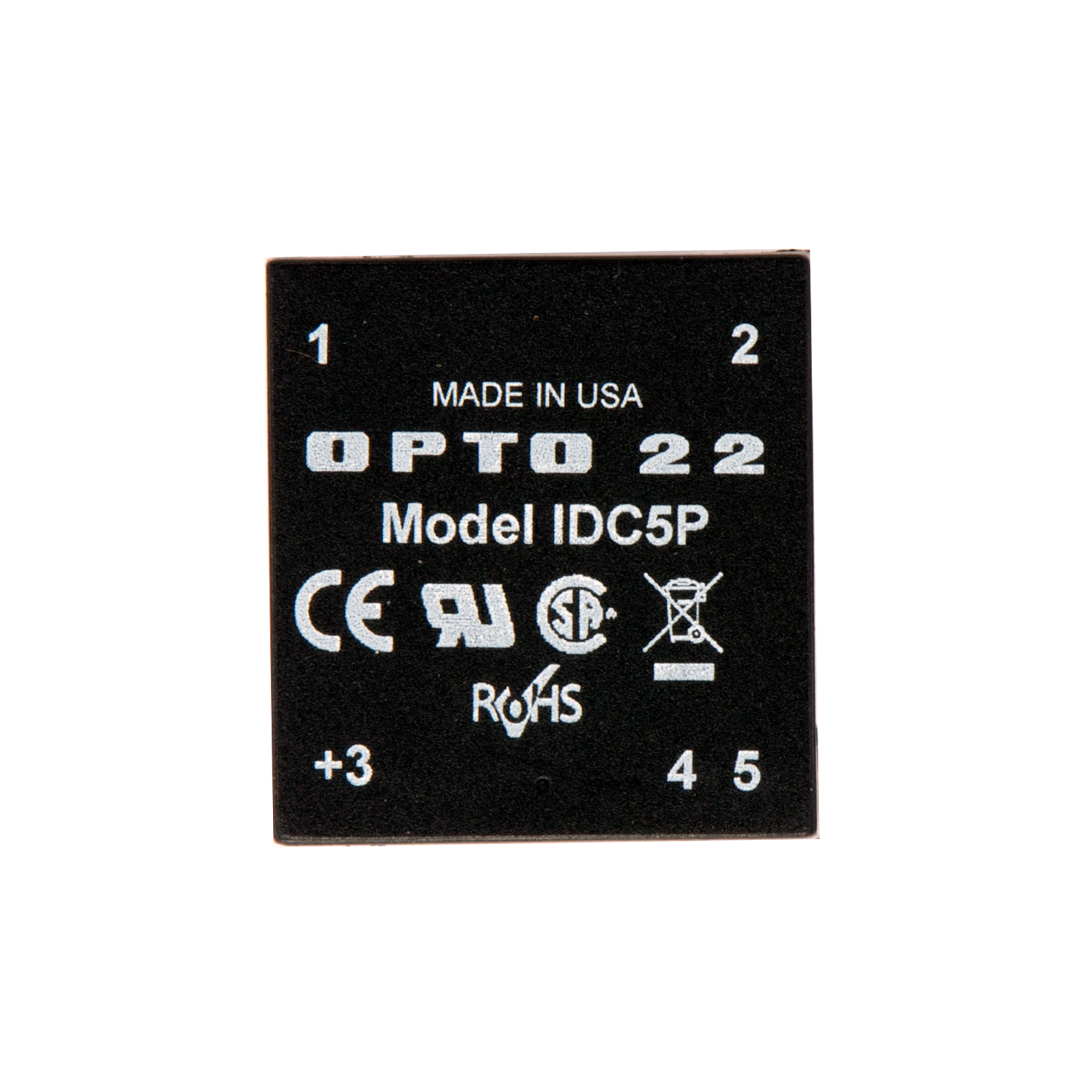

Flat Pak Input Module, 10-32 VDC or 12-32 VAC

Please call (800) 321-6786 to order.

Production Specification

Because of their low profile, Flat Pak modules are ideal for user-designed printed circuit boards where the standard single-channel or Quad Pak modules do not provide an exact fit.

The IDC5P handles 10-32 VDC or 12-32 VAC.

Flat Pak input modules are used for sensing ON/OFF voltage levels. All Flat Pak input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient free "clean" switching. Each module provides up to 4000 V of optical isolation between field inputs and the logic side of the circuit.

Typical uses and applications include sensing the presence or absence of voltage from sources such as:

  • Proximity switches
  • Limit switches
  • Selector switches
  • Push-button and toggle switches
  • Thermostats
  • Photoelectric switches
  • TTL-compatible devices



IAC5P

IDC5P

Input Voltage Range

90–140 VAC or VDC

10–32 VDC or 12–32 VAC

Input Current at Maximum Line

11 mA

25 mA

Turn-on Time

20 ms

5 ms

Turn-off Time

20 ms

5 ms

Input Allowed for No Output

3 mA, 45 V

1 mA, 3 V

Logic Supply Voltage, Nominal

5 VDC

5 VDC

Logic Supply Voltage Range

4.5–6.0 VDC

4.5–6.0 VDC

Logic Supply Current at Nominal Logic Voltage

12 mA

12 mA

Input Resistance (R1 in Schematic Diagram)

14,000 Ohms

1500 Ohms

Control Resistance (Rc in Schematic Diagram

220 Ohms

220 Ohms

Optical Isolation, Input-to-output

4000 Vrms

4000 Vrms

Output Voltage Drop

0.4 V @ 50 mA

0.4 V @ 50 mA

Output Current

50 mA

50 mA

Output Leakage with No Input

100 µA maximum @ 30 VDC

100 µA maximum @ 30 VDC

Operating Temperature

–30 to 70 °C

–30 to 70 °C

Agency Approvals

UL (E58169), CSA (35852), RoHS, CE

UL (E58169), CSA (35852), RoHS, CE

Warranty

Lifetime

Lifetime

Flat Pak I/O Module Data Sheet

Because of their low profile, Flat Pak modules are ideal for user-designed printed circuit boards where the standard single-channel or Quad Pak modules do not provide an exact fit.

Flat Pak modules include AC and DC input and output modules.
