(USA and Canada only)
Operating Ambient Temperature
-30 to 70 °C
Output Voltage Drop
0.4 volts @ 50 mA
Output Current (per channel)
Output Leakage With No Input
100 microamps maximum @ 5 VDC
30 volts breakdown
Input Voltage Range (VAC)
Input Voltage Range (VDC)
Input Current@ Maximum Line
Input Allowed For No Output
Logic Supply Voltage - Nominal

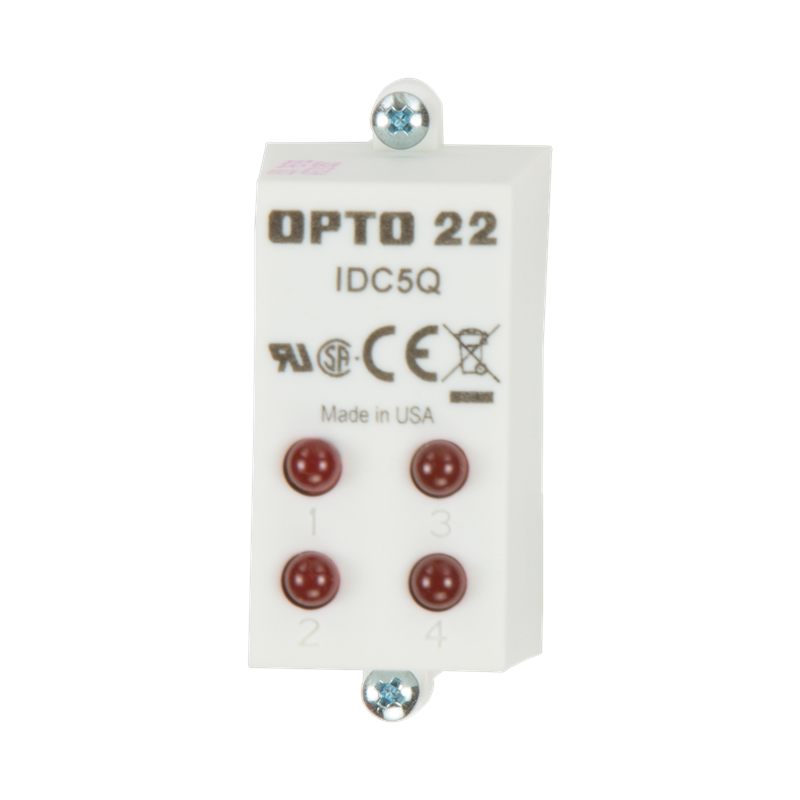

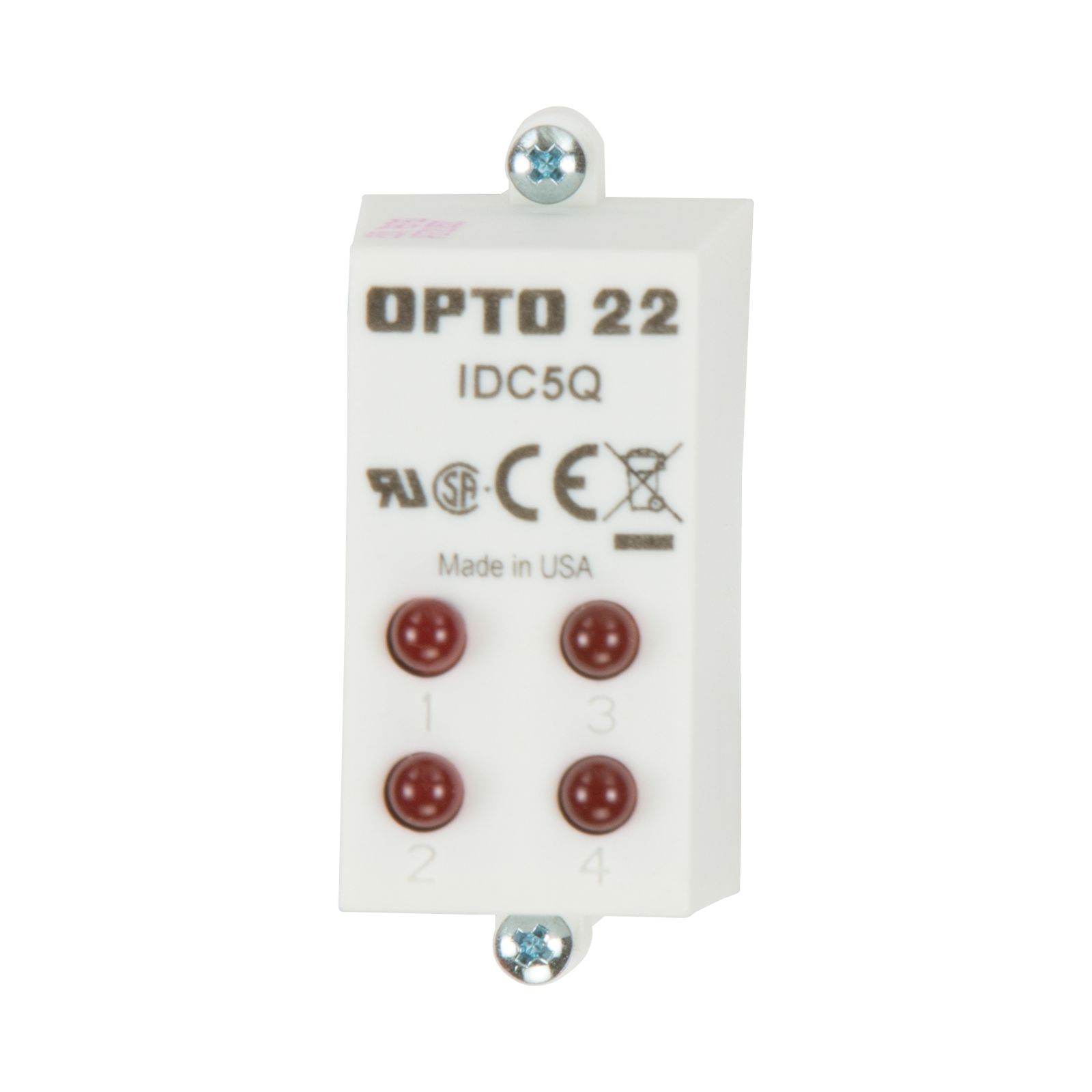

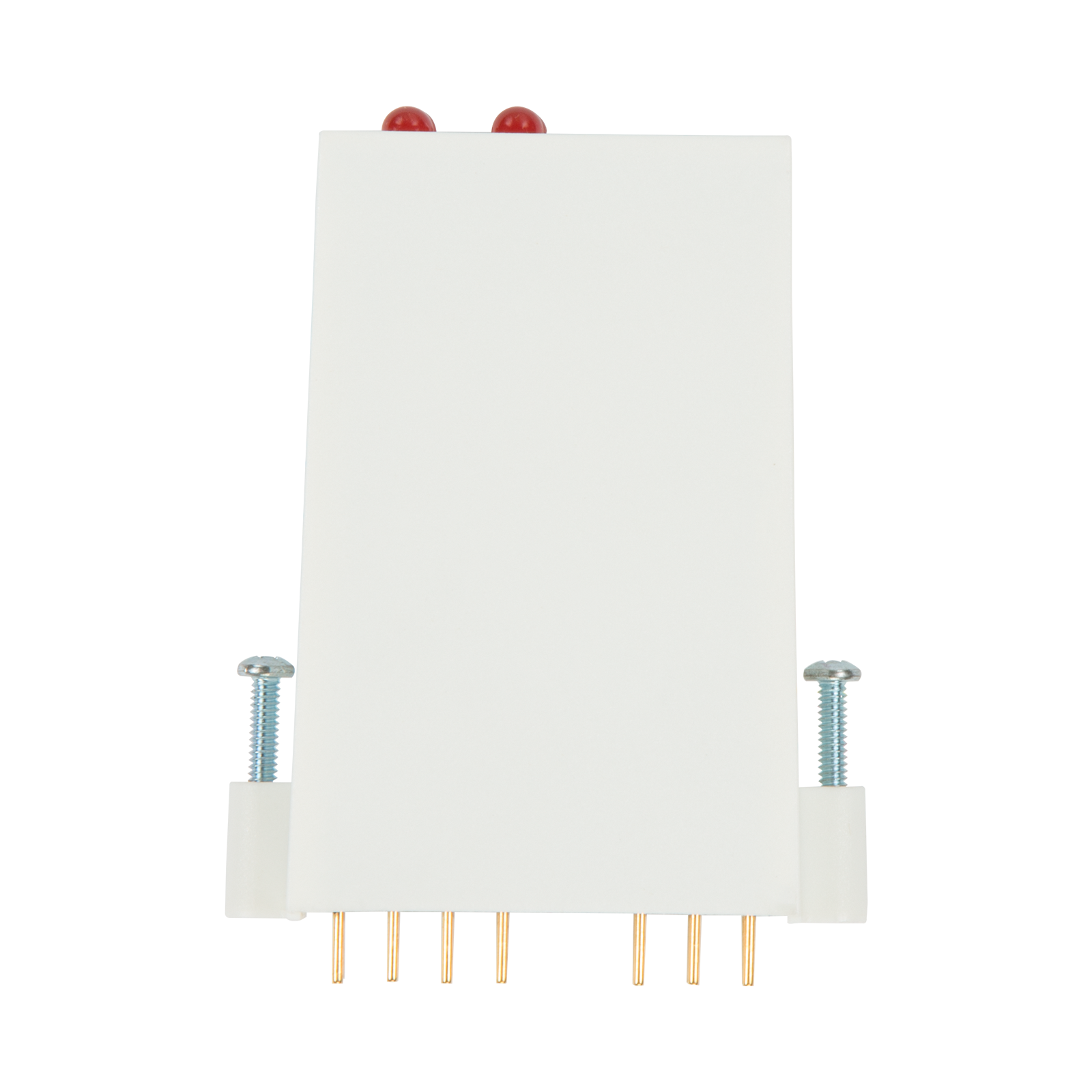

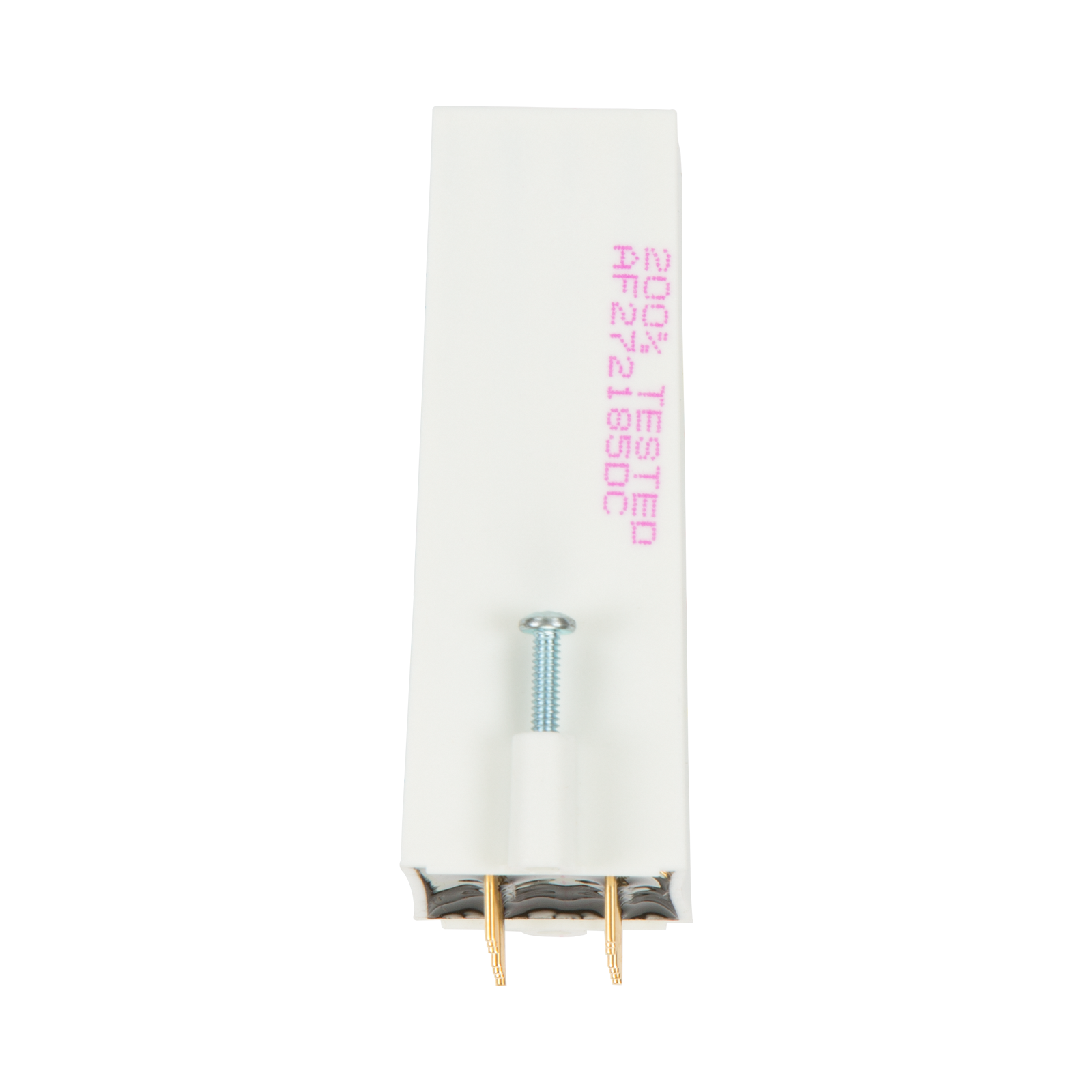

Quad Pak modules contain the equivalent of four single-channel I/O circuits in a single high-density package.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.
This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
