INPUT SWITCH
Hover over image to zoom in

INPUT SWITCH

$33.00 (USA and Canada only)

Availability: In stock
G1 Digital Input Switch, 5, 15, or 24 VDC Logic

Production Specification

G1 I/O family

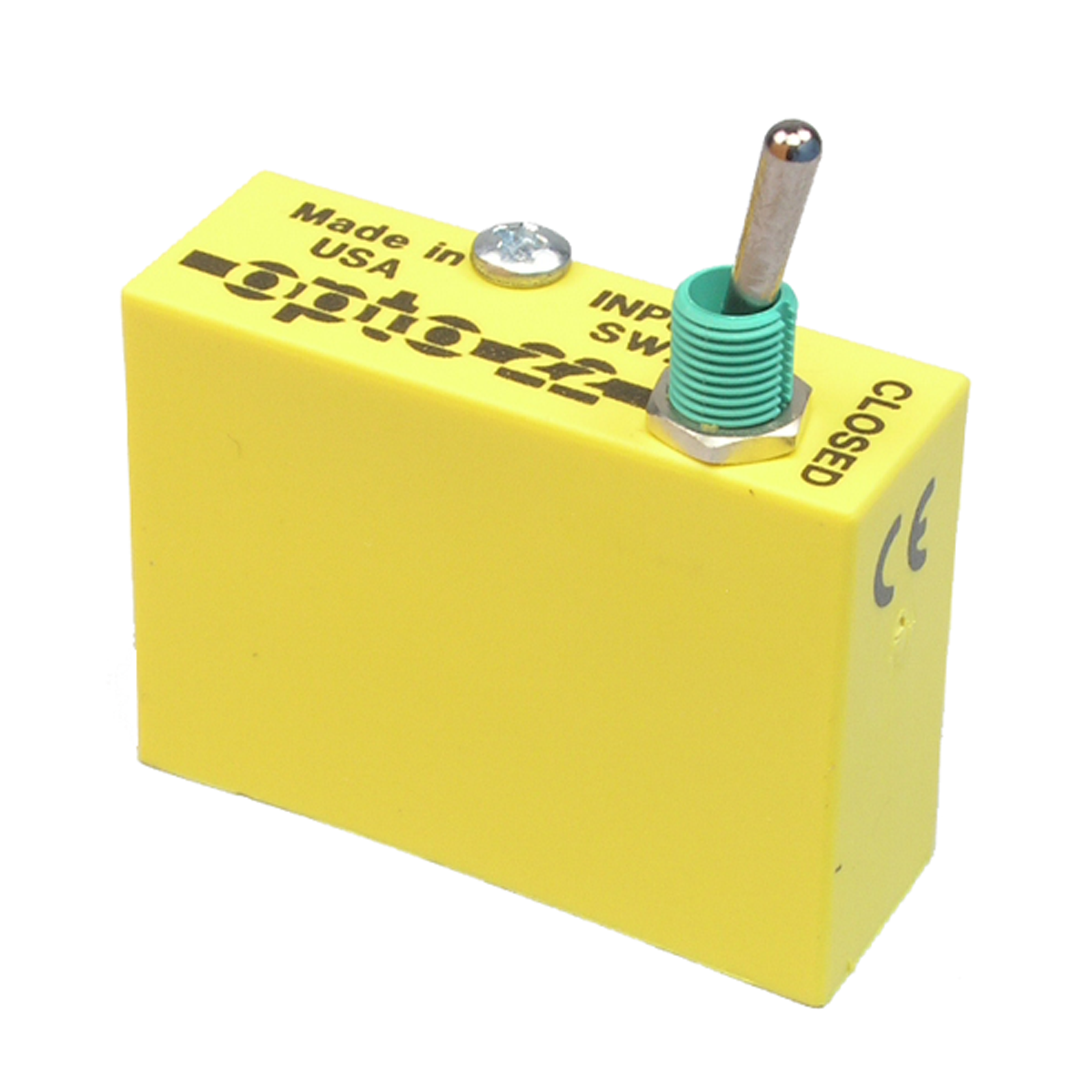

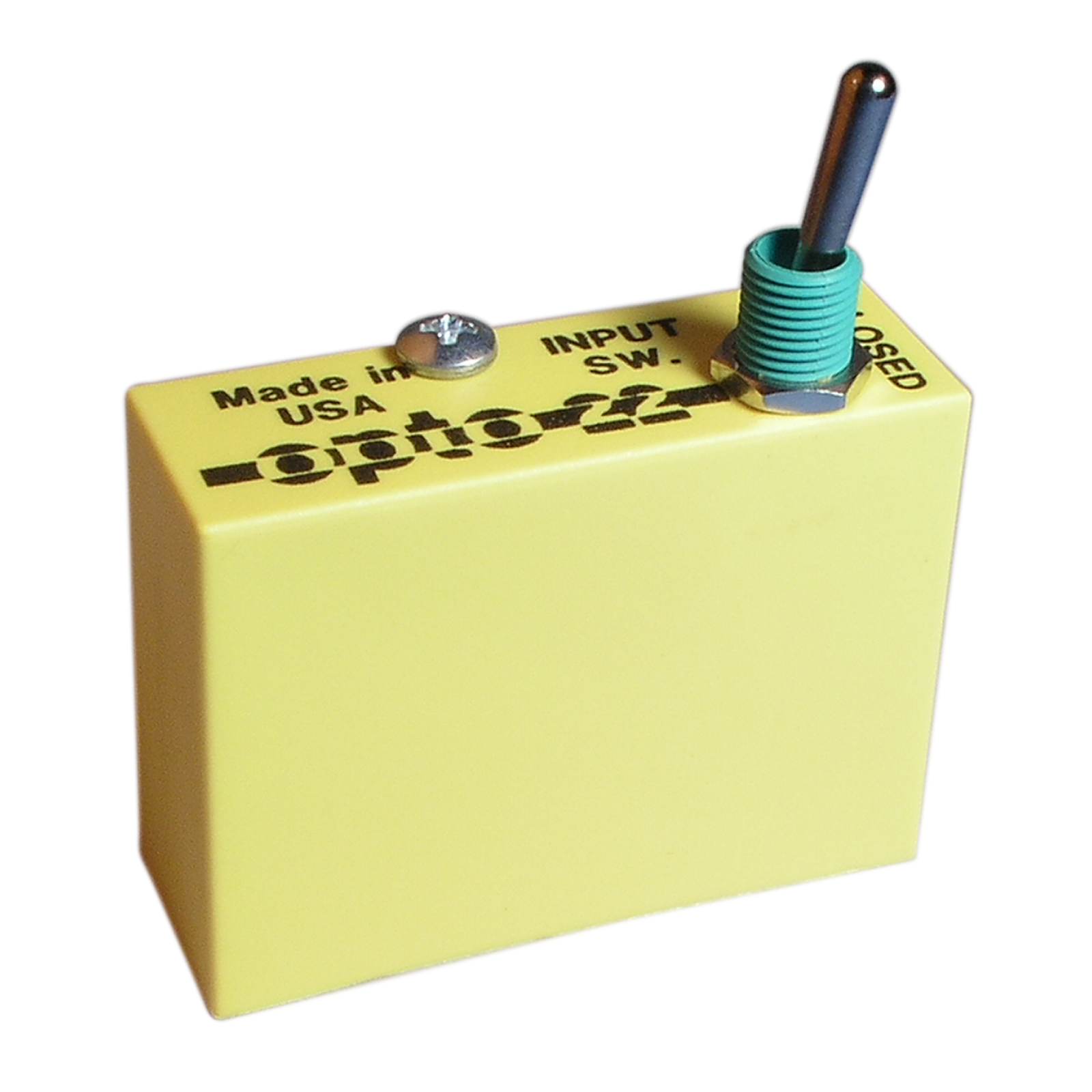

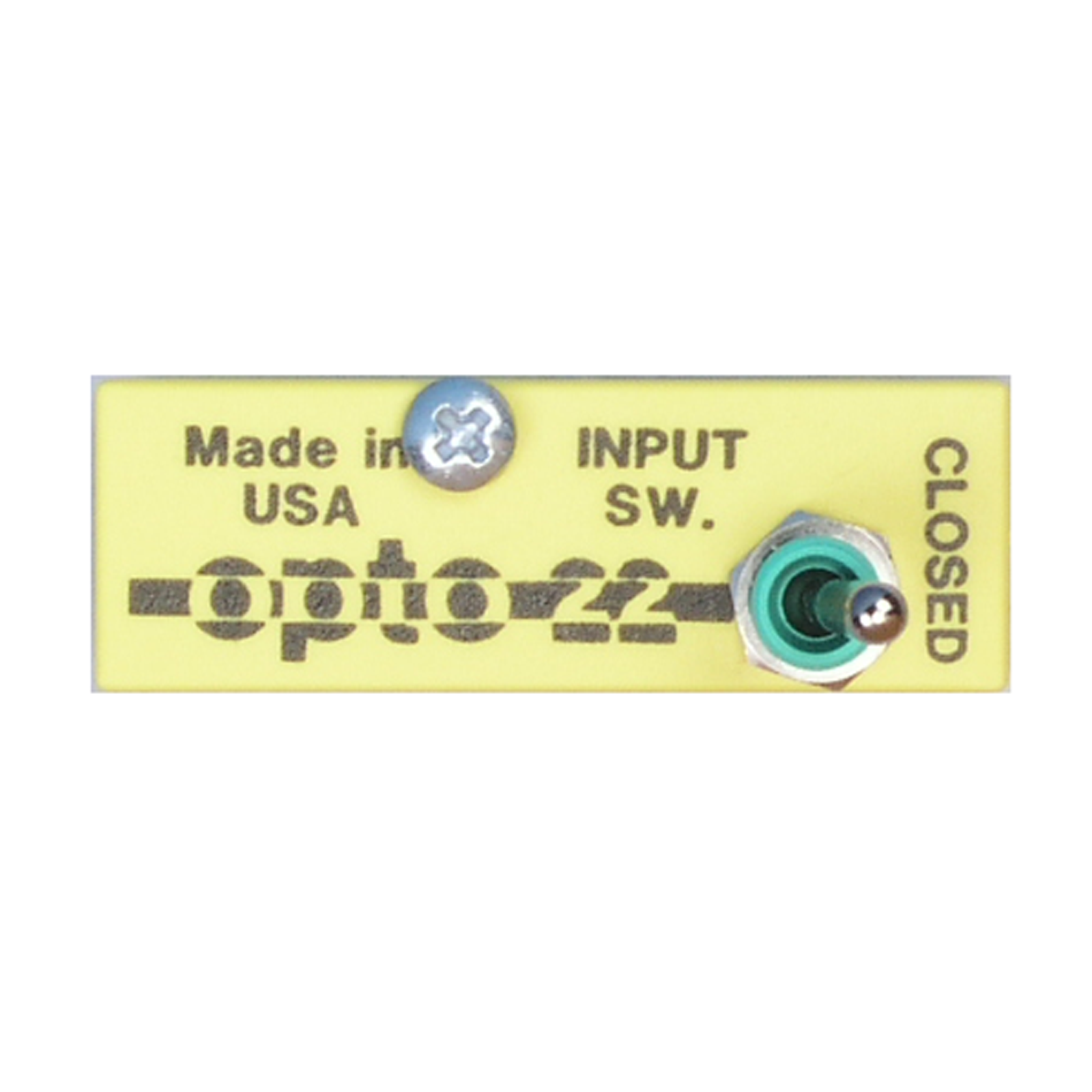

The input test module simulates an input on an I/O mounting rack. Each module contains a toggle switch that closes a contact on the logic side of the module. An internal resistor limits the current through the switch contact and provides a load similar to an actual module. The module works with logic voltages of 5, 15, and 24 volts. Internally, there is no connection to the field input terminals.

The input switch module is ideal for simulating external discrete events in order to test application software.

Specifications are not currently available for this product.

Standard Digital Input Test Module Data Sheet

The input test module is a device that simulates an input on an I/O mounting rack ideal for simulating external discrete events in order to test the application software.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

No downloads are available for this product.
No videos or demos are available for this product.
