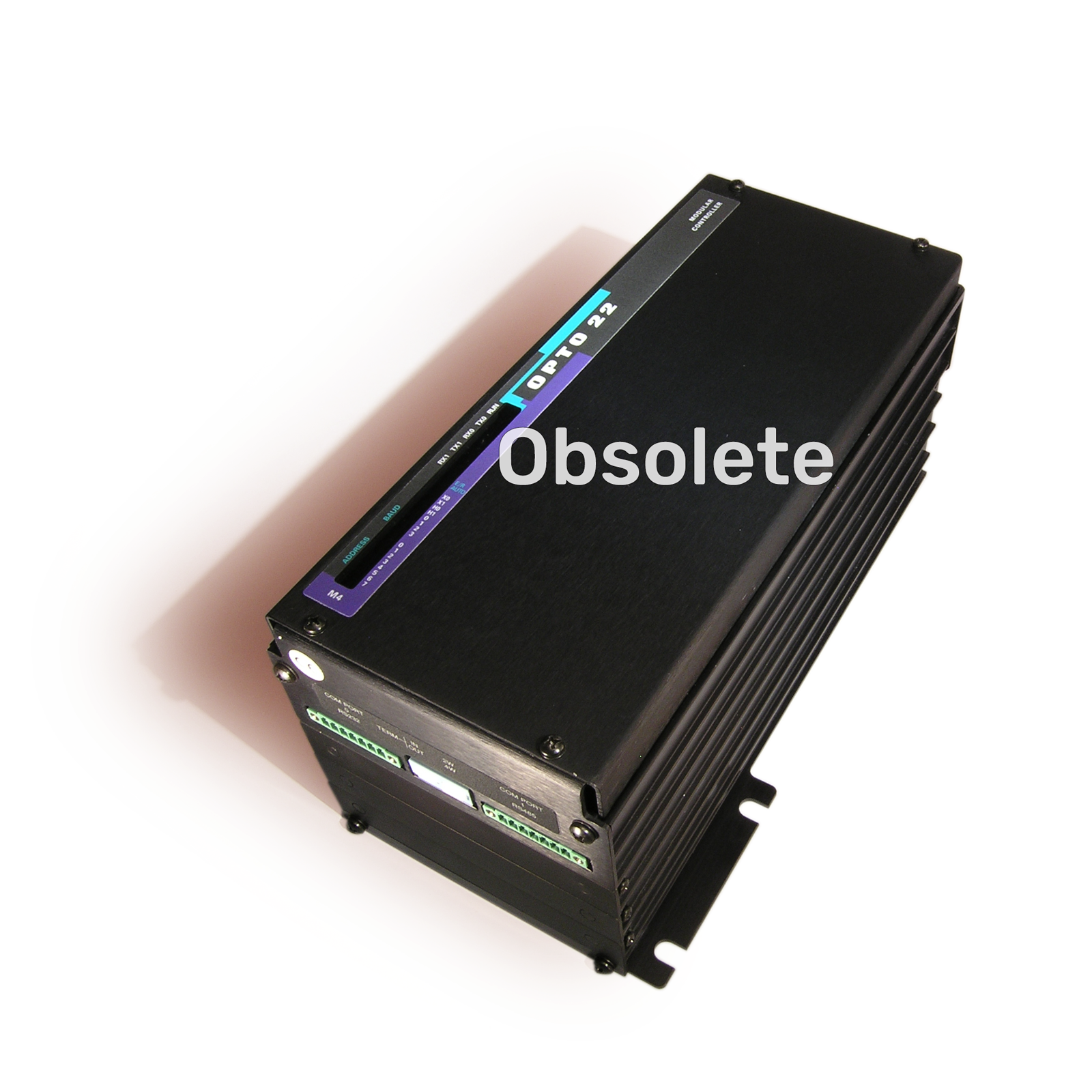

OBSOLETE Opto 22 Modular Controller for FactoryFloor systems

Production Specification

Opto 22 controller designed for use with legacy FactoryFloor software.

This product is obsolete and no longer available.

For new development, system expansion, or modernization, we recommend using the SNAP-PAC-S2 standalone controller and the PAC Project Professional software suite. SNAP PAC S-series controllers with PAC Project Pro offer a migration path for legacy mistic systems. The SNAP-PAC-S2 controller is more powerful, offers 4 configurable serial ports plus Ethernet network connections, and is less expensive.

For migration information, see the FactoryFloor to PAC Project Migration Technical Note.

Item

Specification

CPU

32-bit Motorola 68020 processor
IEEE floating-point math

CPU clock frequency

16.67 MHz

Memory:
RAM
Flash EEPROM on controller



1 MB with battery backup (user programs and data)
256 KB -1 MB (Mistic firmware and user programs)

RAM/clock battery

3.6-volt lithium, non-rechargeable

Communication:
  Base unit
  Expansion
  Modem support



1 RS-232 and 1 RS-485/422 port
Via daughter cards: configurable serial ports, Ethernet, ARCNET
Direct, lease, and radio

Real-time clock

Clock/calendar, Epson 62421A with battery backup

Power requirements

5 VDC at 3.5 A (maximum) 24 VDC at 300 mA (maximum)

Typical operating temperature

-20 °C to 70 °C

Storage temperature

-40 °C to 85 °C

Humidity

5% to 95% relative humidity

Software

FactoryFloor (OptoControl, OptoDisplay, OptoServer, OptoConnect)
Classic Software (Cyrano, Mistic MMI, MDS)

System monitors:
  Host communications
  Watchdog timers
  RAM battery backup low
  Operating temperature



Detect communication errors from processor, I/O, etc.
Detect main power supply operation
Detects program corruption (checksum RAM test)
Detects temperature



M4 Modular Controller Data Sheet

The Modular M4 Controller features powerful communications capabilities, built-in diagnostics, and 32-bit processors. Modular controllers are designed to work with Opto 22’s Windows 32-bit FactoryFloor software suite.

RAM & EPROM Memory Expansion Options Data Sheet

****  These parts are obsolete and no longer available. ****

Tables and other information for selecting RAM and EPROM expansion options for controllers.

M4RTU/M4IO User's Guide

This reference manual provides complete specifications and instructions to set up and install an M4RTU or M4IO controller.

OptoControl-based Controller Firmware README

This README file lists revision changes made to the firmware used in the following Opto 22 controllers that run OptoControl strategies: G4LC32, G4LC32SX, M4, M4IO, M4RTU, SNAP-LCSX, SNAP-LCSX-PLUS, and SNAP-LCM4.

Cyrano-based Controller Firmware README

This README file lists revision changes made to the firmware used in the following Opto 22 controllers that run Cyrano strategies: G4LC32, G4LC32SX, G4LC32ISA, G4LC32ISA-LT, M4, M4IO, M4RTU, M4RTU Rev.2, SNAP-LCM4, SNAP-LCSX, and SNAP-LCSX-PLUS.
