Availability: Obsolete

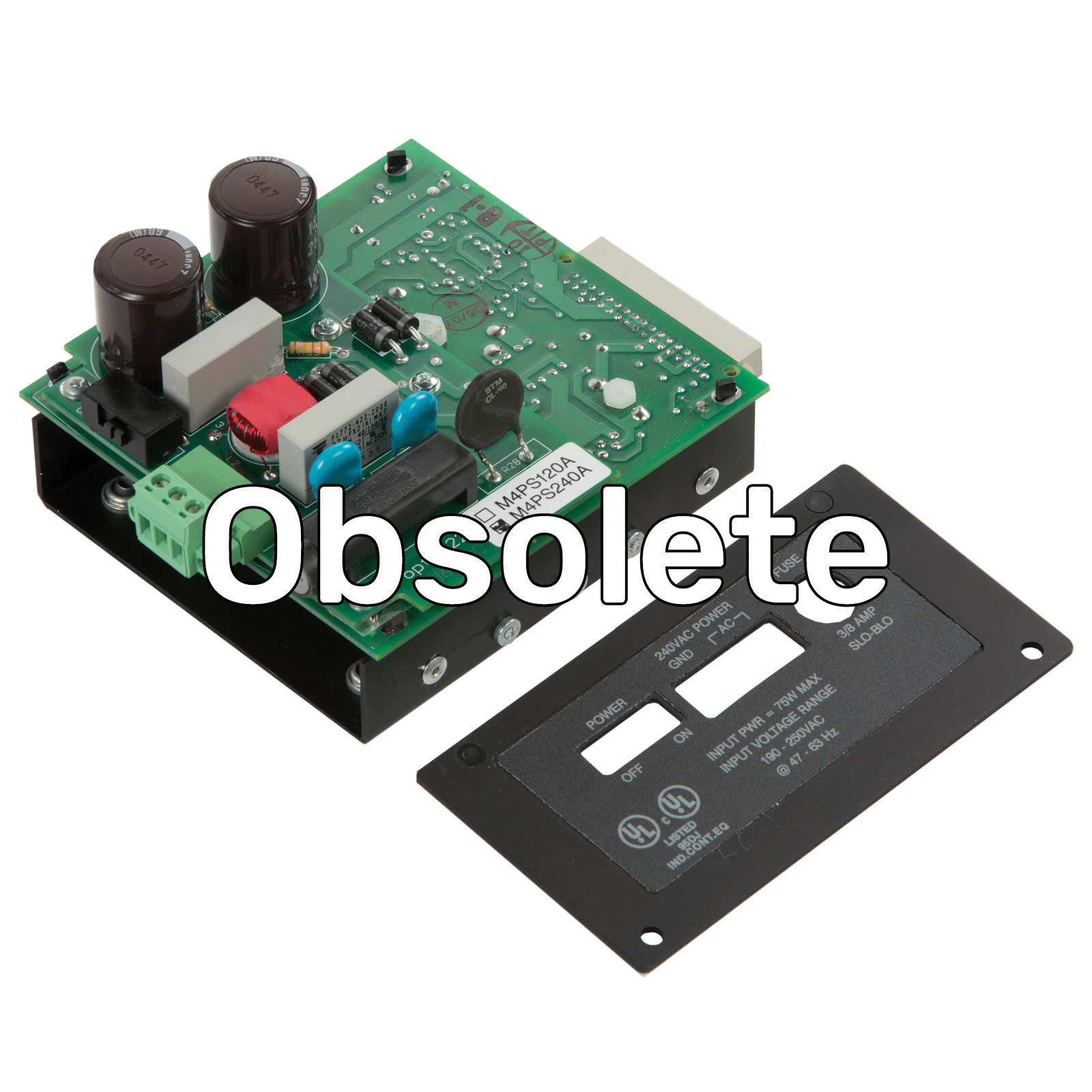

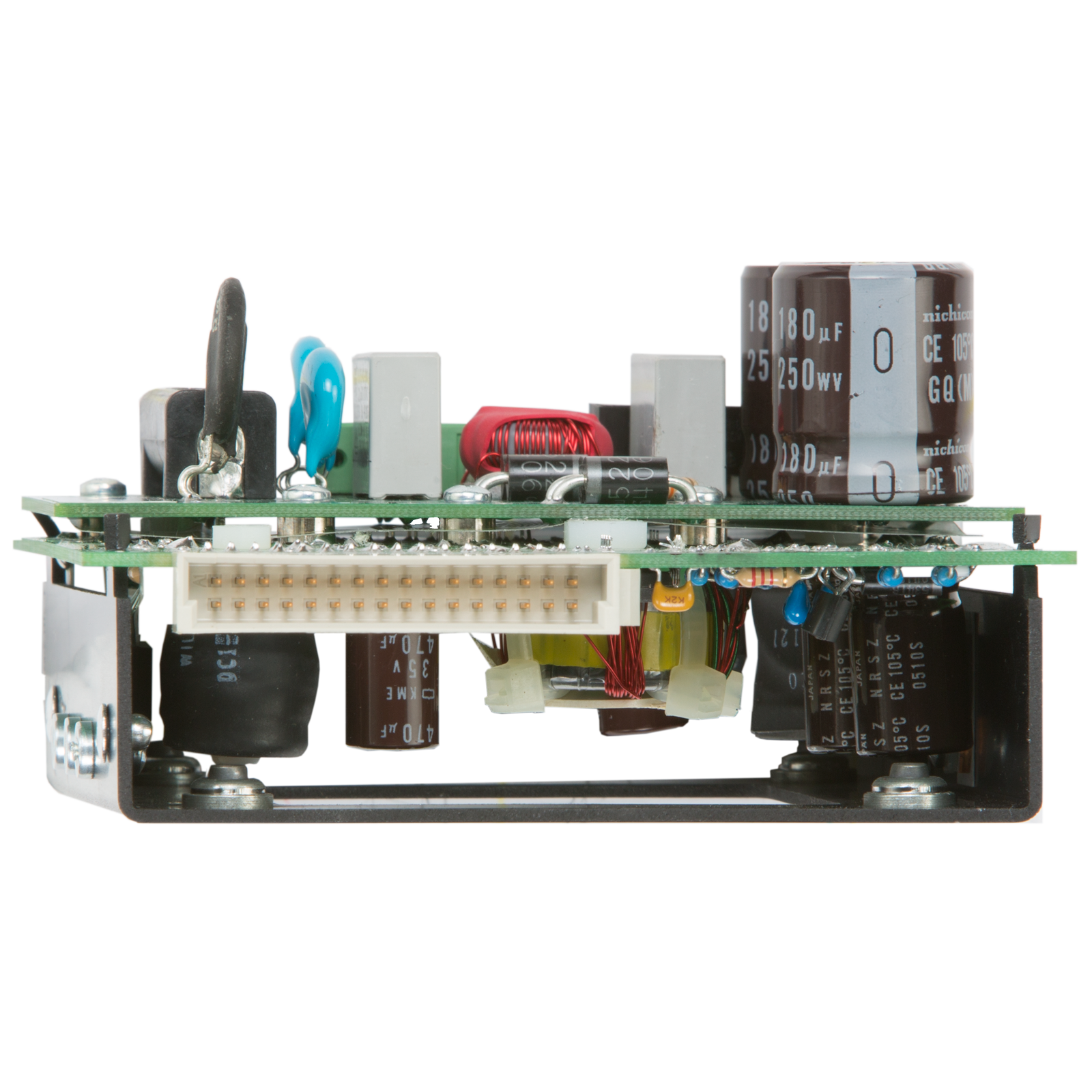

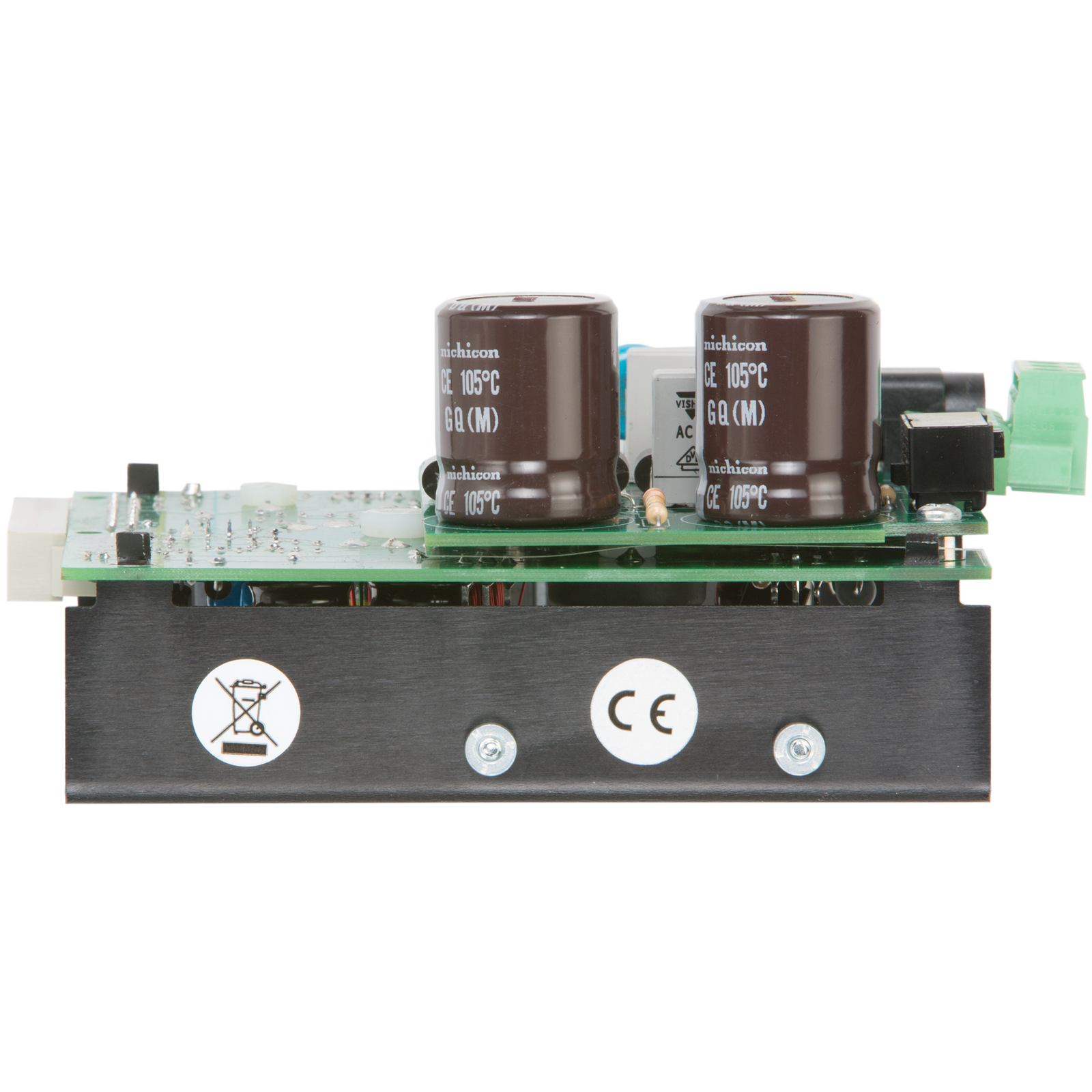

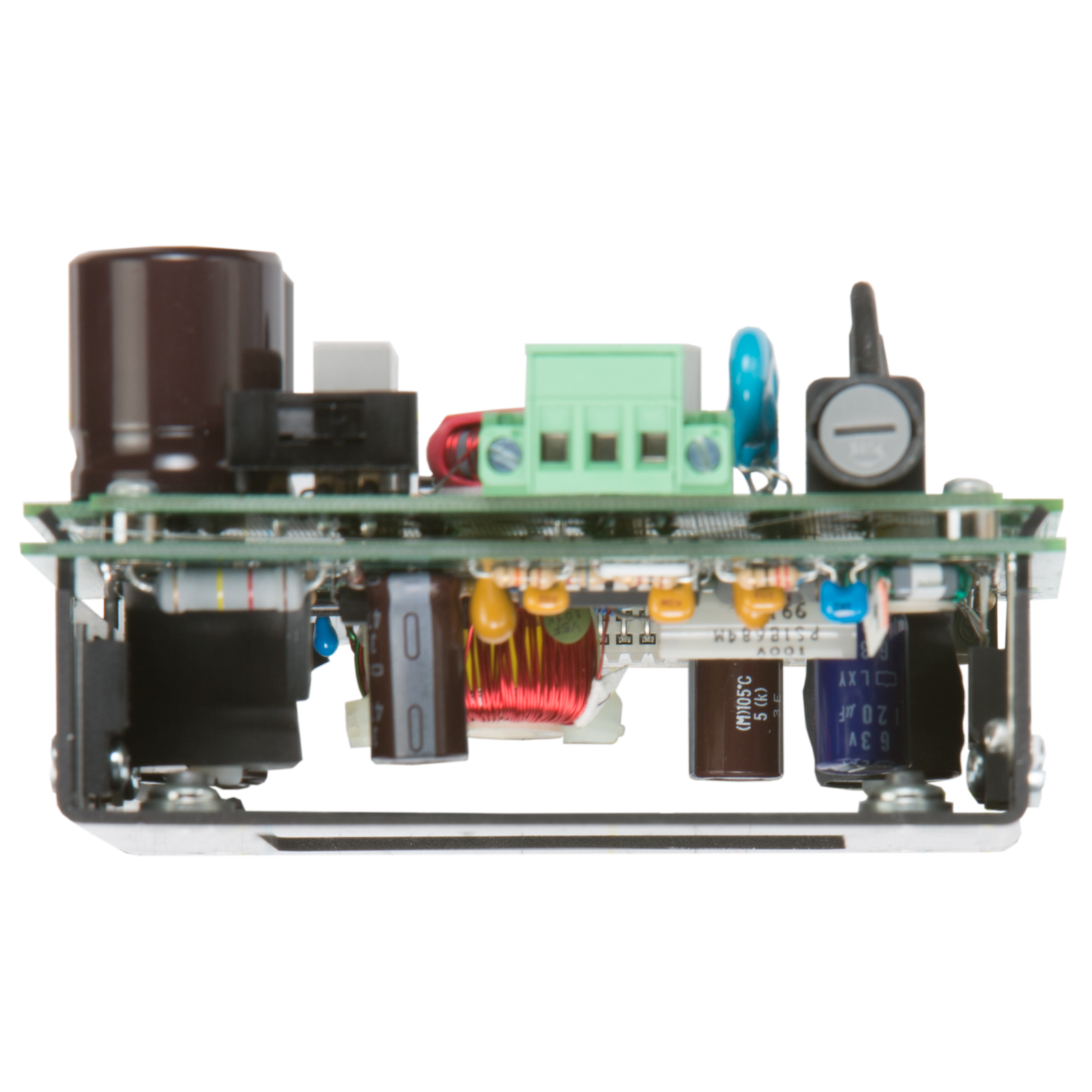

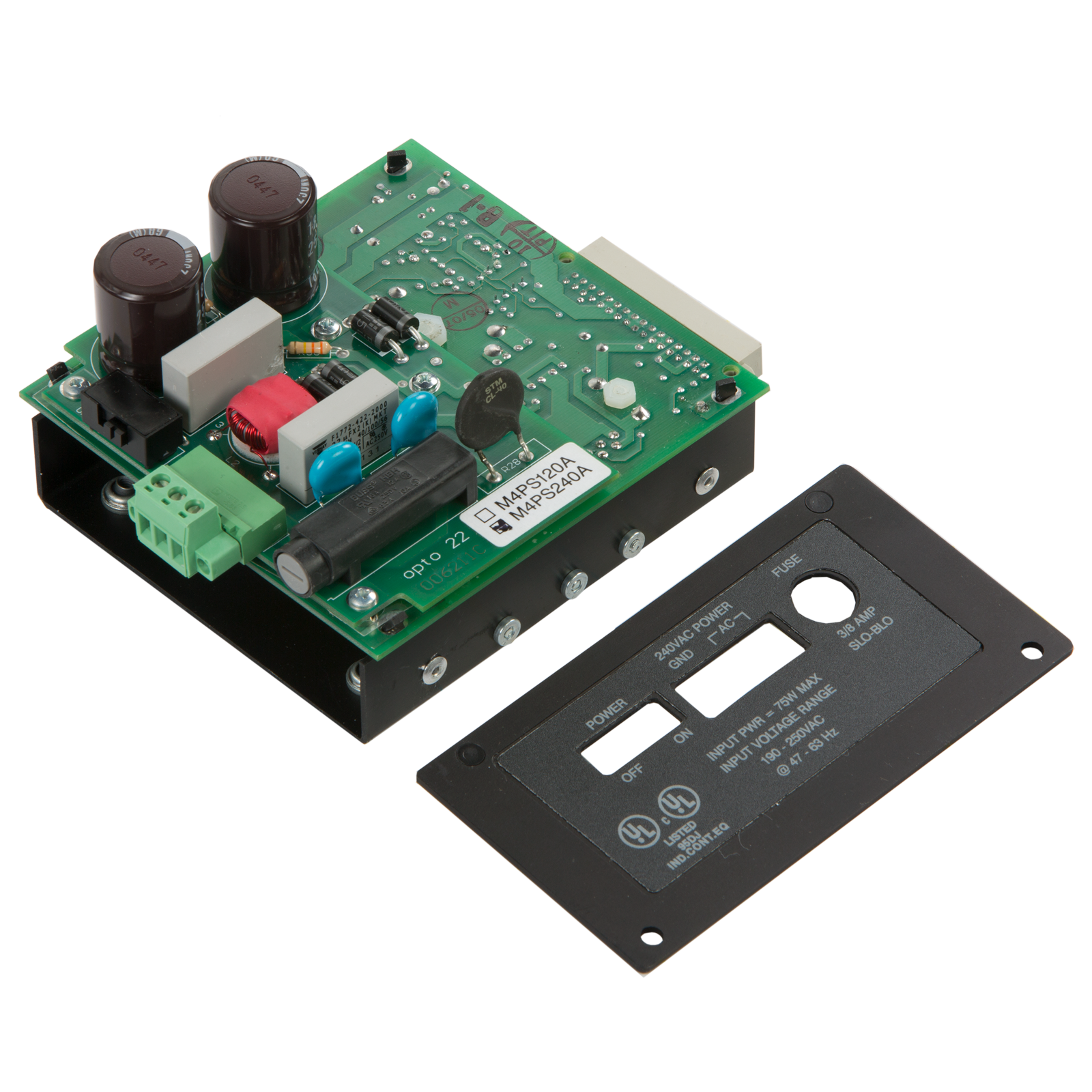

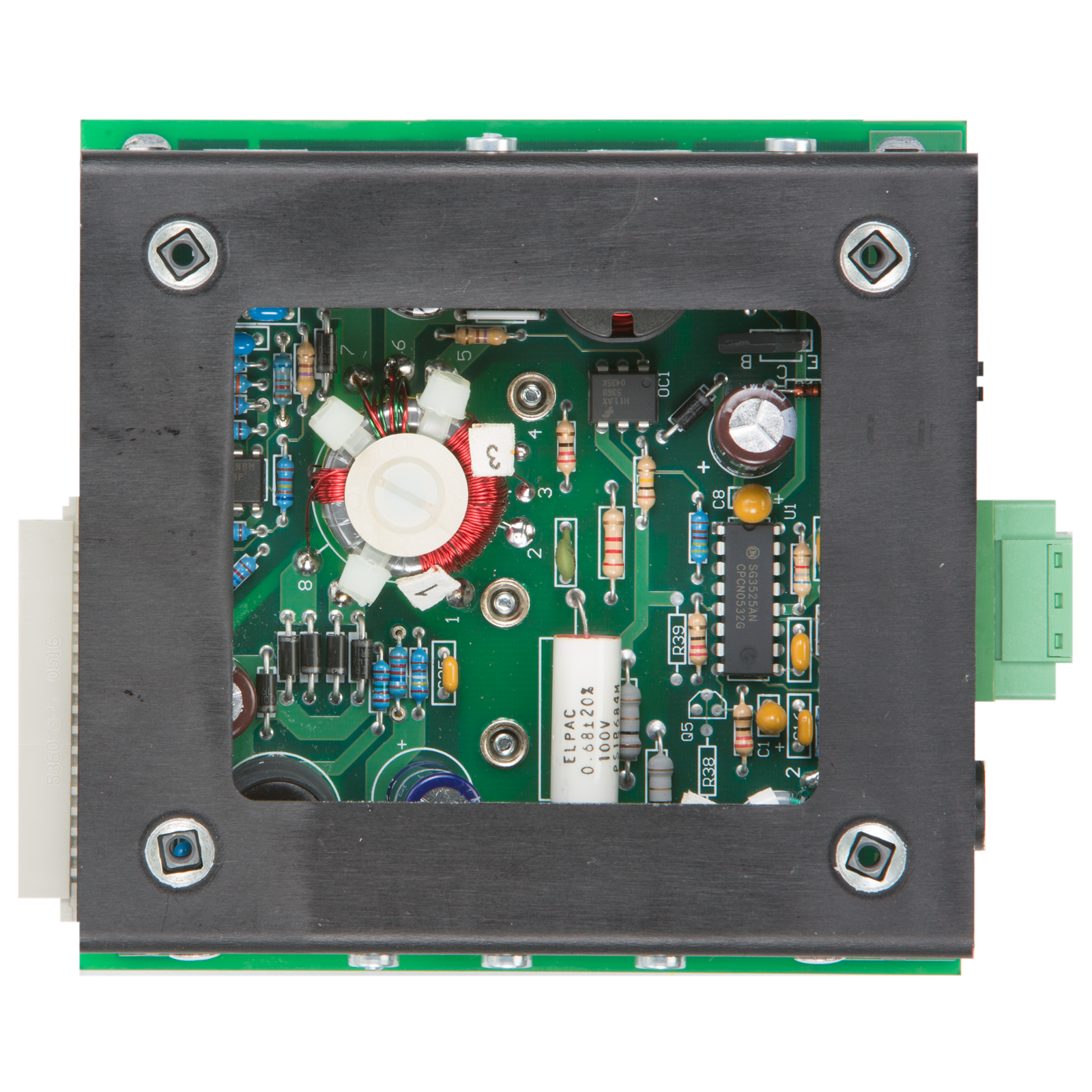

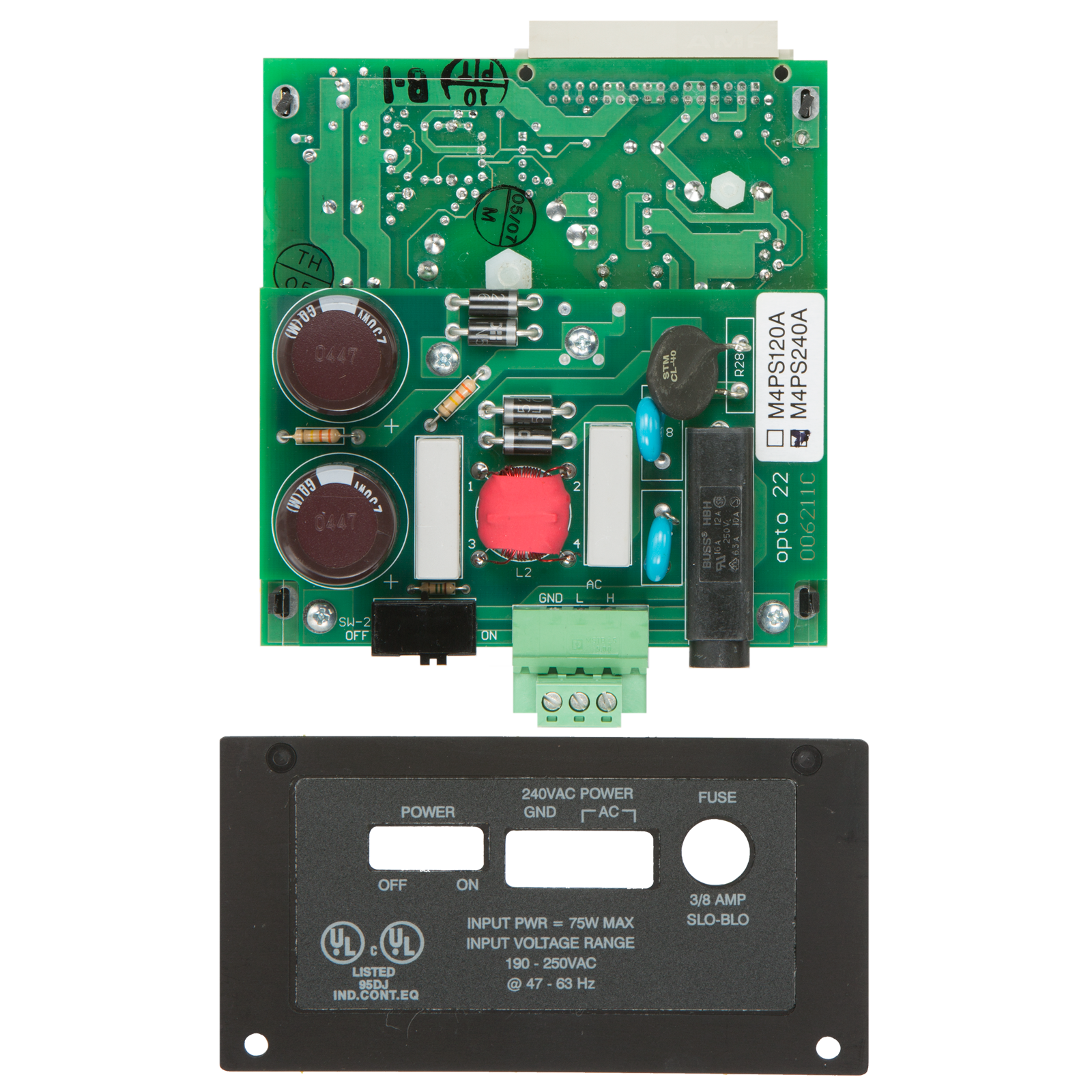

OBSOLETE Modular Controller AC Power Supply 180-250v

Production Specification

 *** NOTE: This part is obsolete and no longer available when current stock is depleted. ***

Modular Controller Power Supplies


Typical Operating Temperature

-20 to 70 °C

Storage Temperature

-40 to 85 °C


Input Power Connector

Wire size range

18–12 AWG

Screw torque

0.5 to 0.6 Nm or
70.8 to 84.9 ounce-inch









Input Voltage Range

9-15 VDC

18-30 VDC

36-60 VDC

94-156 VDC

95-130 VAC

190-250 VAC


5.0 A

2.5 A

1.5 A

0.5 A

0.5 A

0.375 A

Frequency Range





47-63 Hz

47-63 Hz


Power Supplies for M4 Controllers Data Sheet

*** NOTE: These parts are obsolete and no longer available when current stock is depleted. ***

There are six models of input power supplies available for any Modular controller. This data sheet describes these parts: M4PS12D, M4PS24D, M4PS48D, M4PS125D, M4PS120A, M4PS240A.

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.
