*** This product is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.

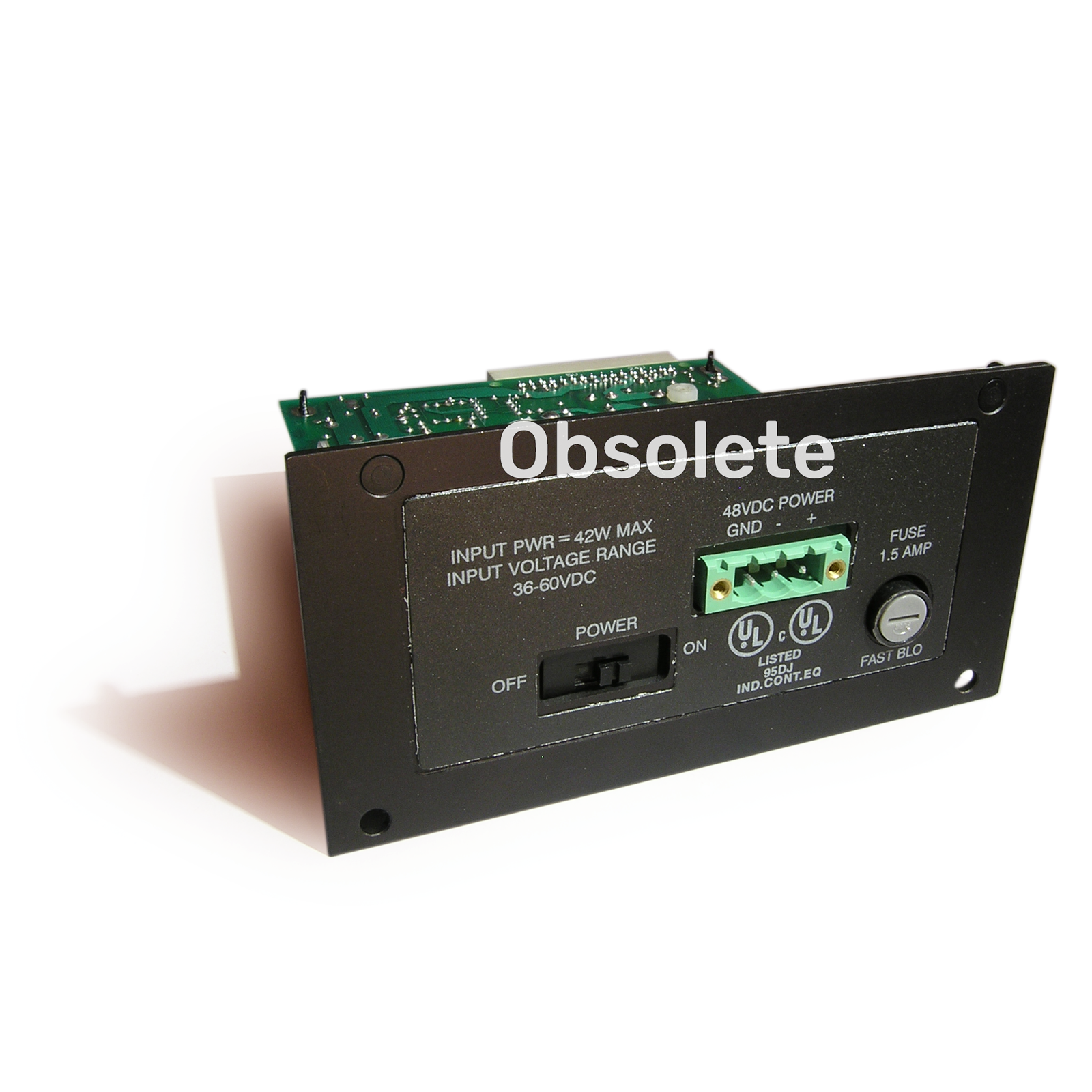

Modular Controller DC Power Supply 36-60 V
Modular Controller Power Supplies
|
General
|
|
Typical Operating Temperature
|
-20 to 70 °C
|
|
Storage Temperature
|
-40 to 85 °C
|
|
Input Power Connector
|
|
Wire size range
|
18–12 AWG
|
|
Screw torque
|
0.5 to 0.6 Nm or
70.8 to 84.9 ounce-inch
|
|
|
M4PS12D
|
M4PS24D
|
M4PS48D
|
M4PS125D
|
M4PS120A
|
M4PS240A
|
|
Input Voltage Range
|
9-15 VDC
|
18-30 VDC
|
36-60 VDC
|
94-156 VDC
|
95-130 VAC
|
190-250 VAC
|
|
Fuse
|
5.0 A
|
2.5 A
|
1.5 A
|
0.5 A
|
0.5 A
|
0.375 A
|
|
Frequency Range
|
--------------
|
--------------
|
--------------
|
--------------
|
47-63 Hz
|
47-63 Hz
|
*** NOTE: These parts are obsolete and no longer available. ***
There are six models of input power supplies available for any Modular controller. This data sheet describes these parts: M4PS12D, M4PS24D, M4PS48D, M4PS125D, M4PS120A, M4PS240A.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with ATEX, EMC, LVD, and RoHS rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with Directive 2014/30/EU, but may not include the CE marking due to limitations of component size and/or shape.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with Directive 2014/35/EU.
No downloads are available for this product.
No videos or demos are available for this product.
