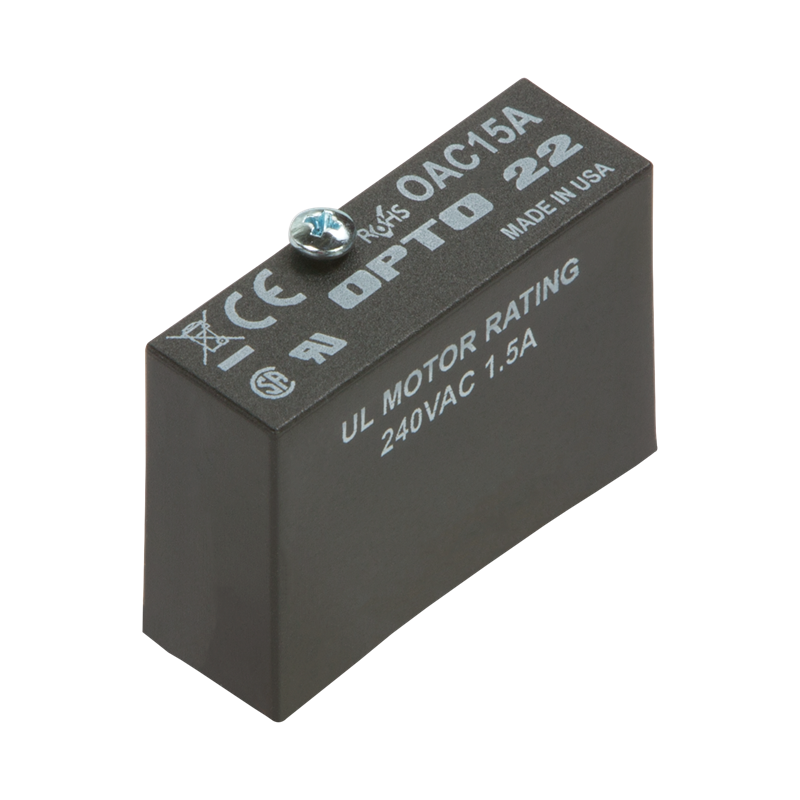

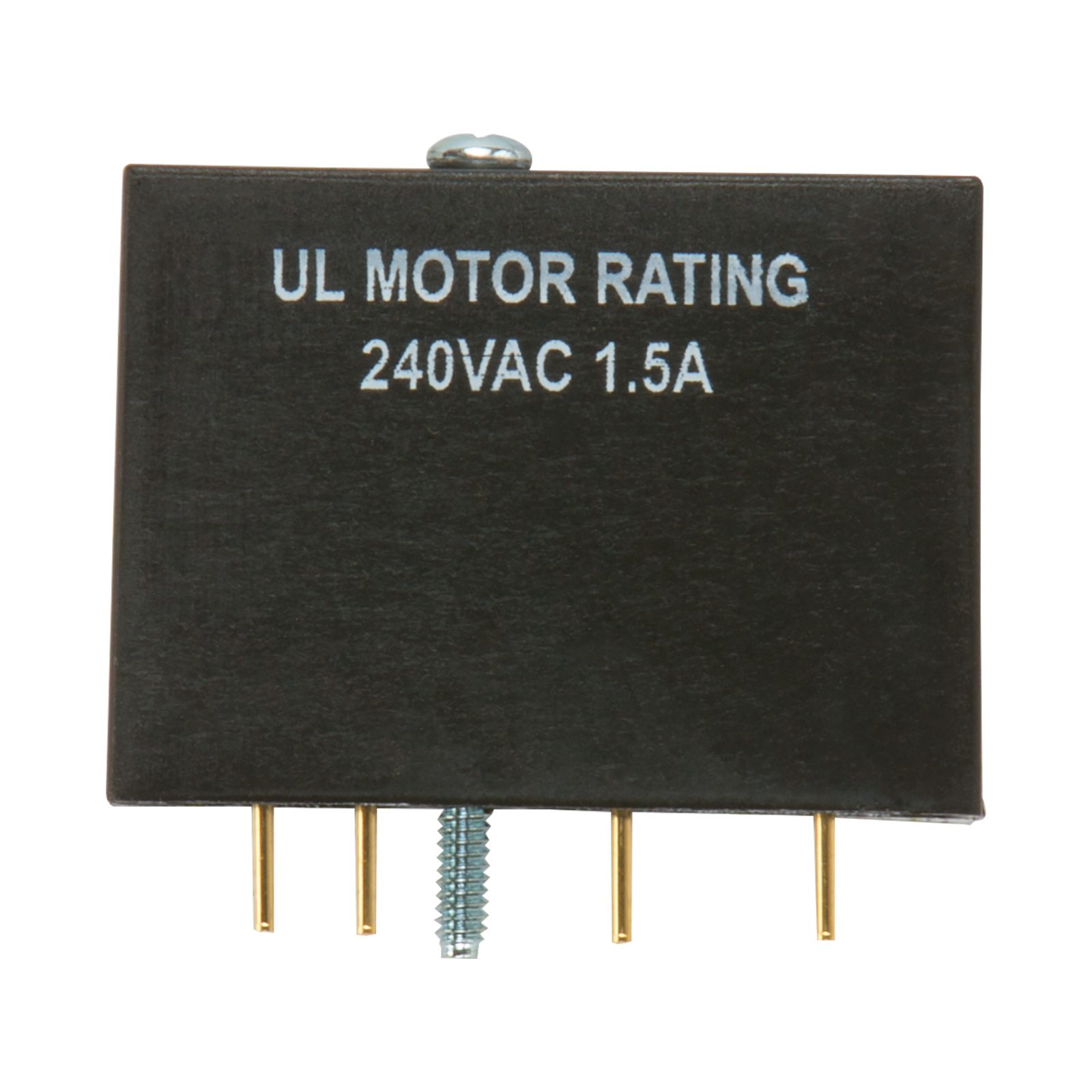

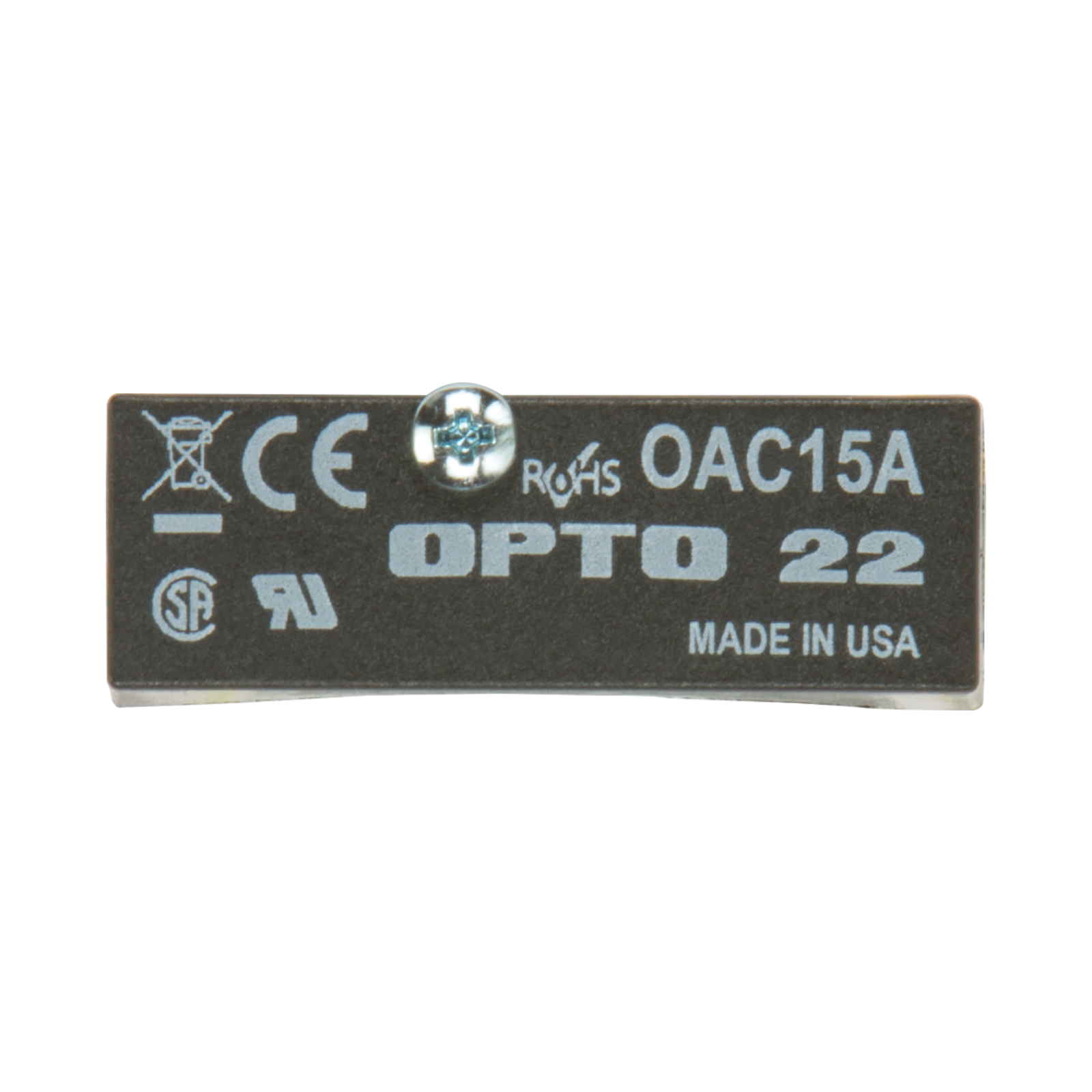

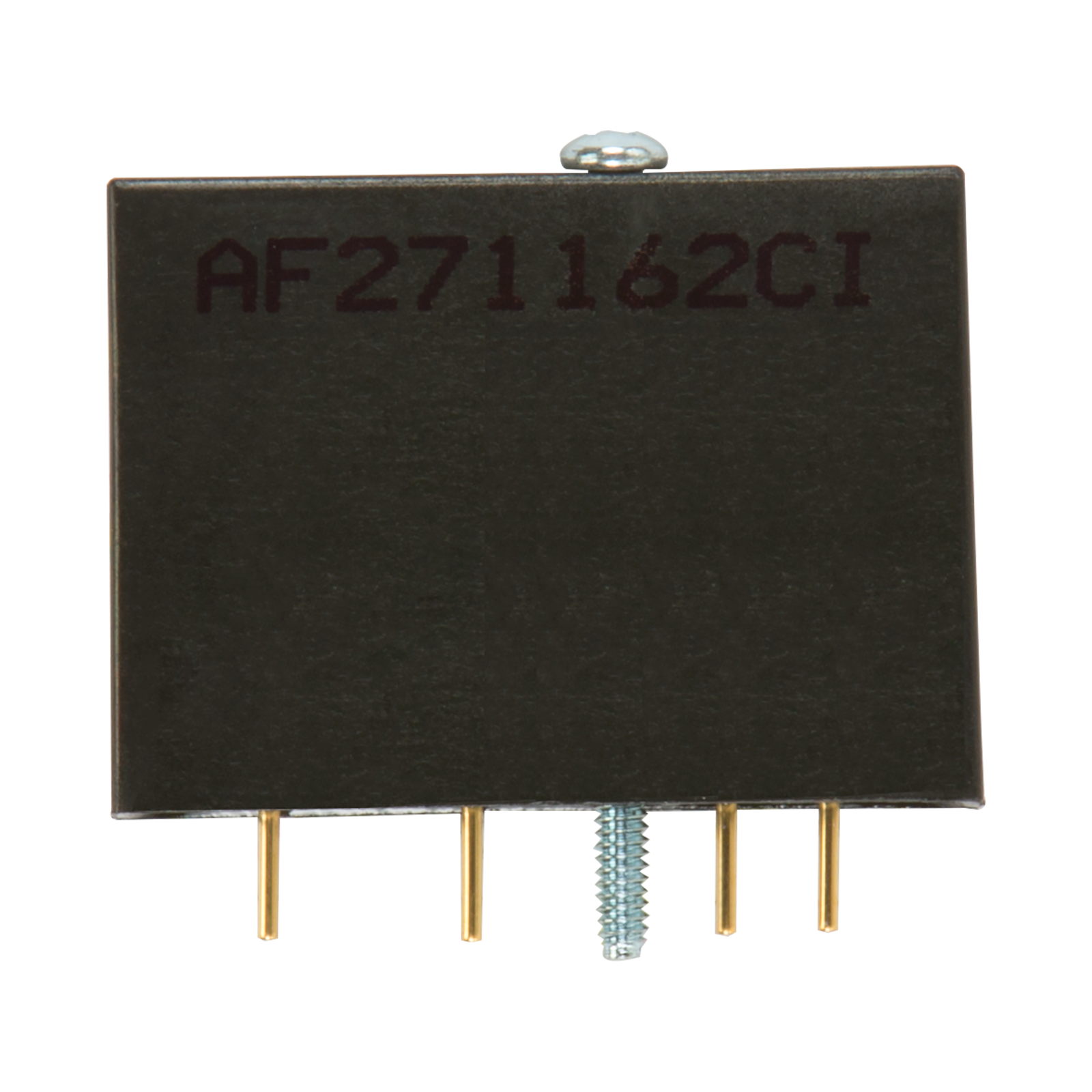

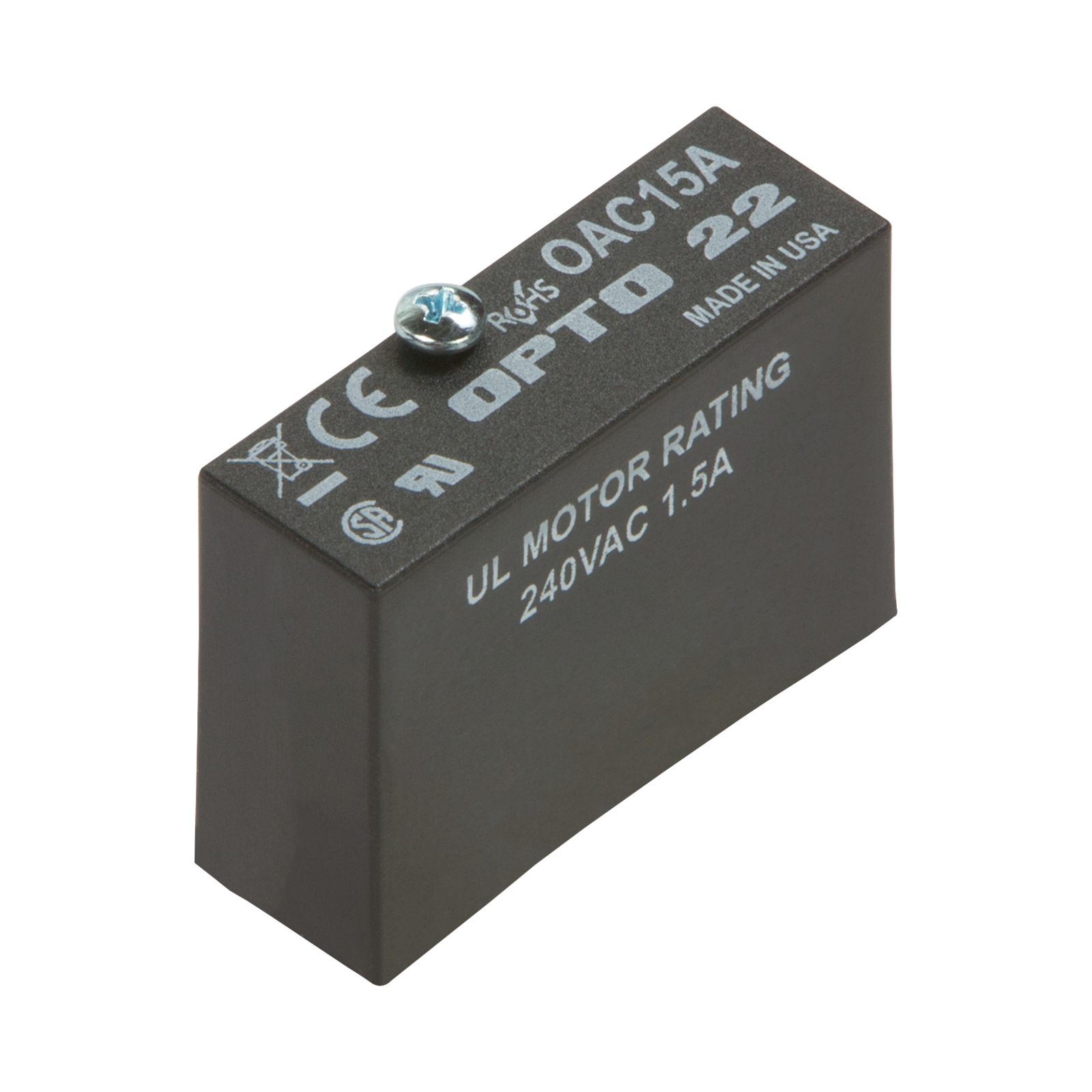

OAC15A
Hover over image to zoom in

OAC15A

$25.75 (USA and Canada only)

Availability: In stock
G1 AC Digital Output, 24-280 VAC, 15 VDC Logic

Production Specification

G1 I/O family

The OAC15A output module is used for controlling or switching AC loads of 24-280 VAC. Each module provides up to 4000 volts (transient) of optical isolation between the field devices and the control logic. This module is equivalent to a single pole, single throw, normally open contact (FORM A, SPST-NO, Make). All AC output modules feature zero voltage turn-on and zero current turn-off.

Typical uses and applications for AC output modules include switching the following loads:

  • Relays
  • Solenoids
  • Motor starters
  • Heaters
  • Lamps or indicators

OAC15A modules are not for use with Opto 22 brains.

One Cycle Surge

80 amps peak

Peak Repetitive Voltage

500 Volts

Operating Ambient Temperature

-30 to 70 °C

Isolation, Input-to-Output (Transient)

4,000 Vrms

Minimum Load Current

20 milliamps

Operating Frequency

25–65 Hz

Turn-on Time

1/2 cycle maximum-zero voltage

Turn-off Time

1/2 cycle maximum-zero current

DV/DT - Off-State

200 volts/microseconds

DV/DT - Commutating

Snubbed for rated 0.5 power factor load

Output Voltage Drop Maximum Peak

1.6 volts

Off-State Leakage
@ Nominal Voltage - 60 Hz



5 milliamps rms
2.5 milliamps rms for OAC5A OAC15A,
and OAC24A @120 VAC

Module Specifications



Units

OAC5

OAC5A

OAC5H

OAC5A5
(NC)

OAC153

OAC15A3

OAC243

OAC24A3

OAC24H3

Line Voltage - Nominal

VAC

120

240

240

120/240

120

240

120

240

240

Operating Voltage Range

VAC

12–140

24–280

24–280

24–280

12–140

24–280

12–140

24–280

24–280

Current Rating
  @ 45 °C Ambient
  @ 70 °C Ambient



amps
amps



3
2



3
2



4
2



3
2



3
2



3
2



3
2



3
2



4
2

UL Motor Load Rating

amps

1.5

1.5

-- 1

1.5

1.5

1.5

1.5

1.5

-- 1

Logic Voltage - Nominal

VDC

5

5

5

5

15

15

24

24

24

Logic Voltage Range (Vcc)2

VDC

2.5–8

2.5–8

2.5–8

2.5–8

9–16

9–16

18–32

18–32

18–32

Logic Pickup Voltage1

VDC

2.5

2.5

2.5

2.5

9

9

18

18

18

Logic Dropout Voltage

VDC

1

1

1

1

1

1

1

1

1

Logic Input Current-@ Normal Logic
Voltage (Iout in schematic diagram)

mA

12

12

12

12

15

15

18

18

18

Control Resistance
(Rc in schematic diagram)

Ohms

220

220

220

220

1K

1K

2.2K

2.2K

2.2K

Agency Approvals   UL, CE,
CSA,
RoHS,
UKCA
UL, CE,
CSA,
RoHS,
UKCA
CE,
CSA,
RoHS,
UKCA
UL, CE,
CSA,
RoHS,
UKCA
UL, CE,
CSA,
RoHS,
UKCA
UL, CE,
CSA,
RoHS,
UKCA
UL, CE,
CSA,
RoHS,
UKCA
UL, CE,
CSA,
RoHS,
UKCA
CE,
CSA,
RoHS,
UKCA

1 Not UL approved
2 Module only
3 Not for use with Opto 22 brains
