G1 I/O family

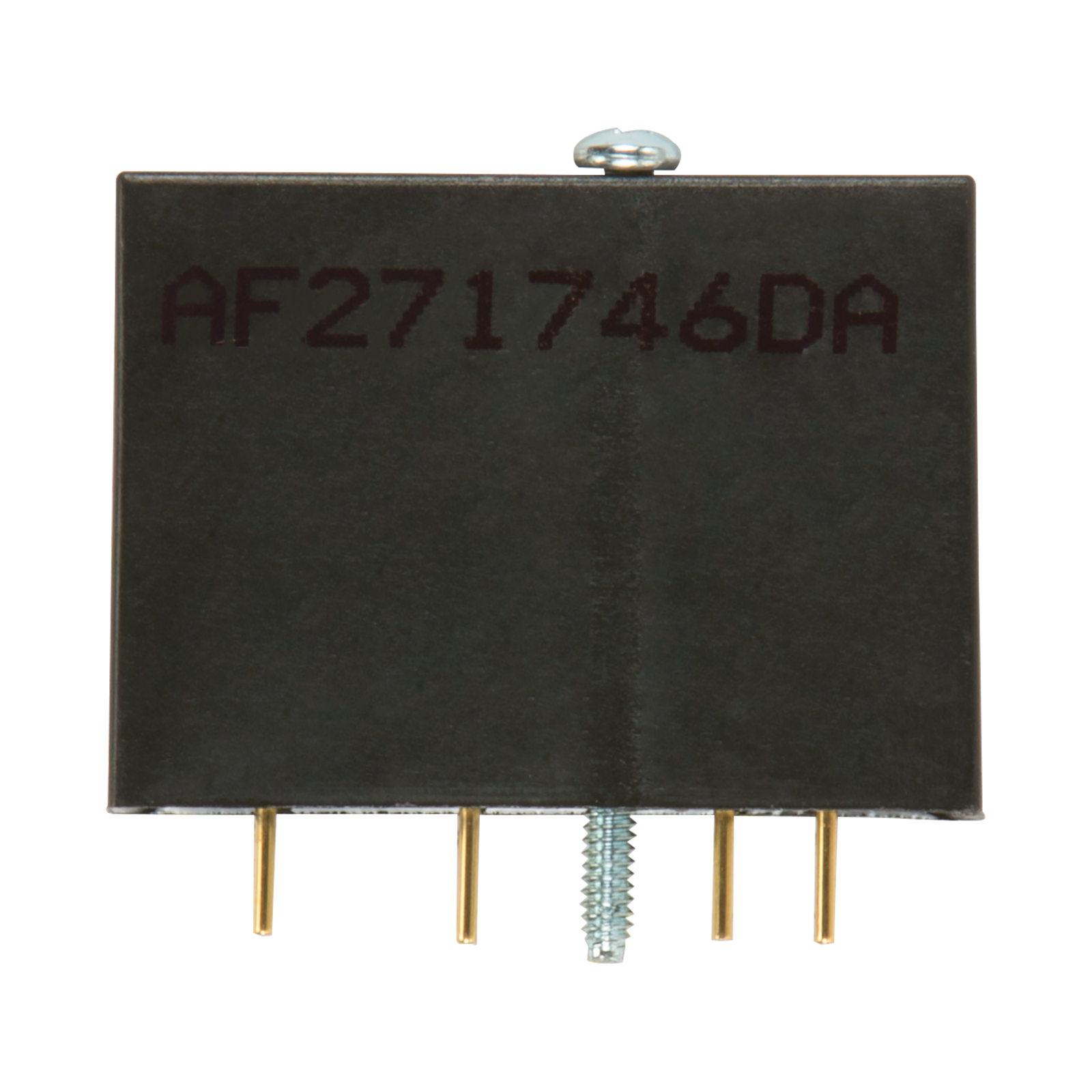

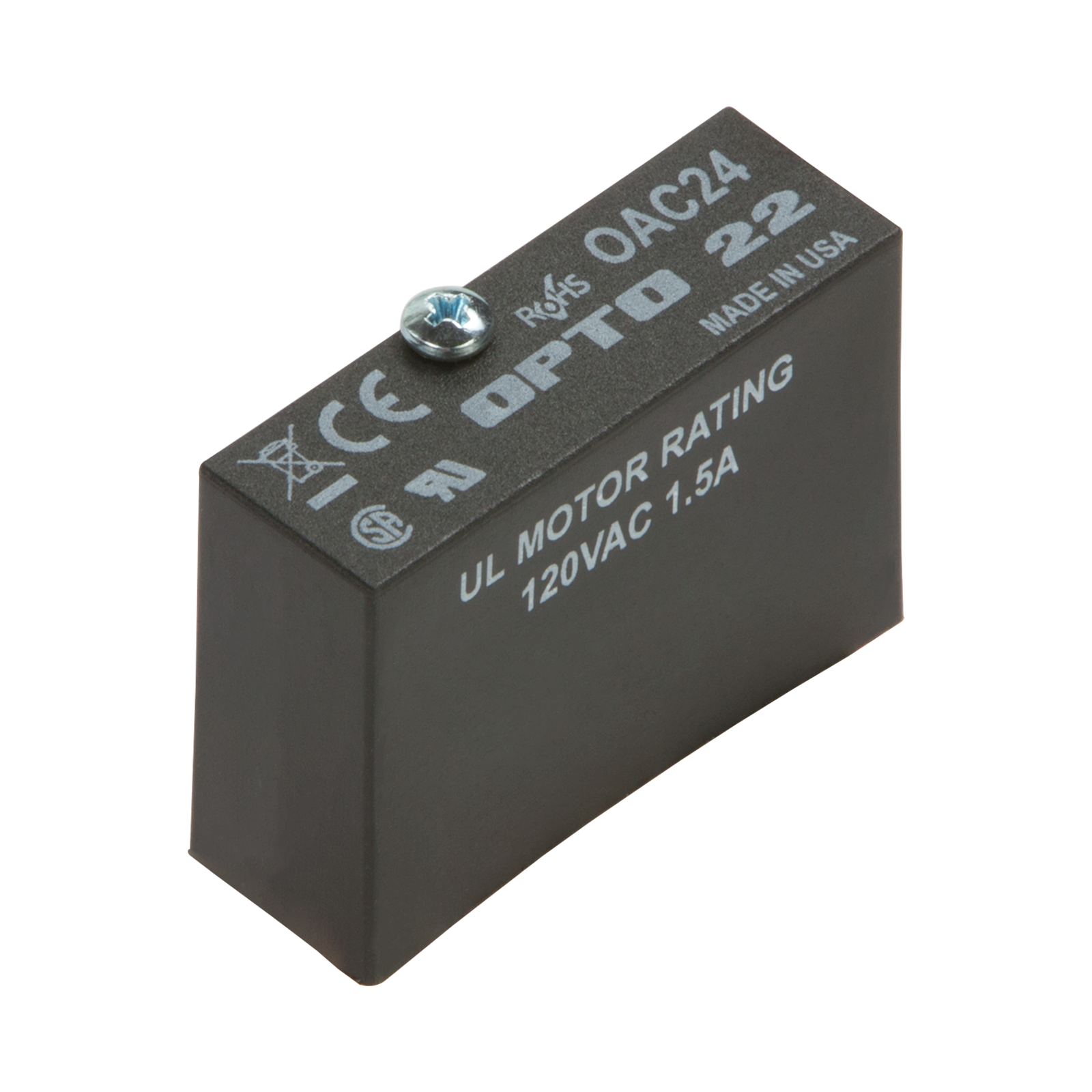

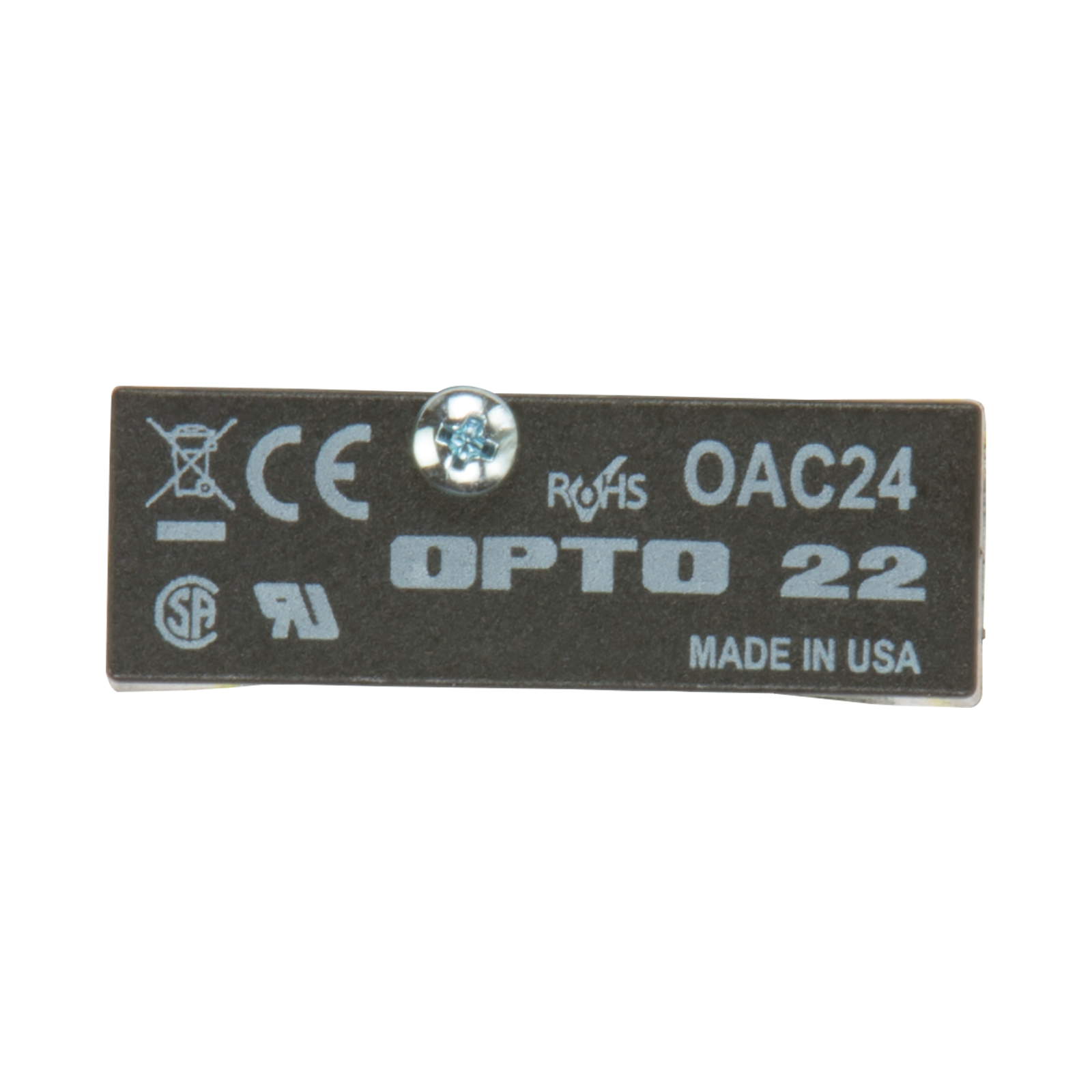

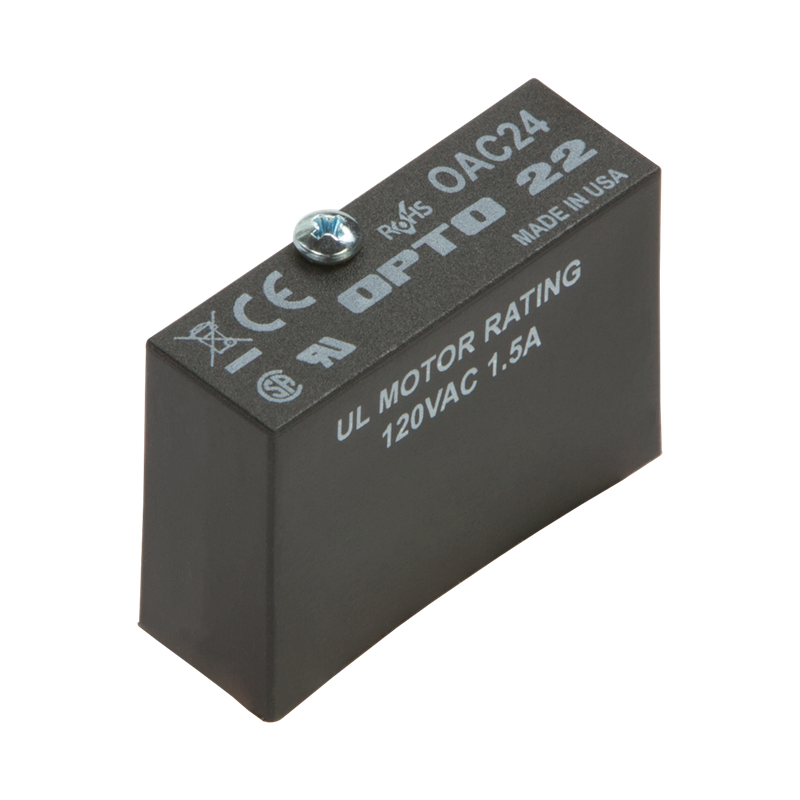

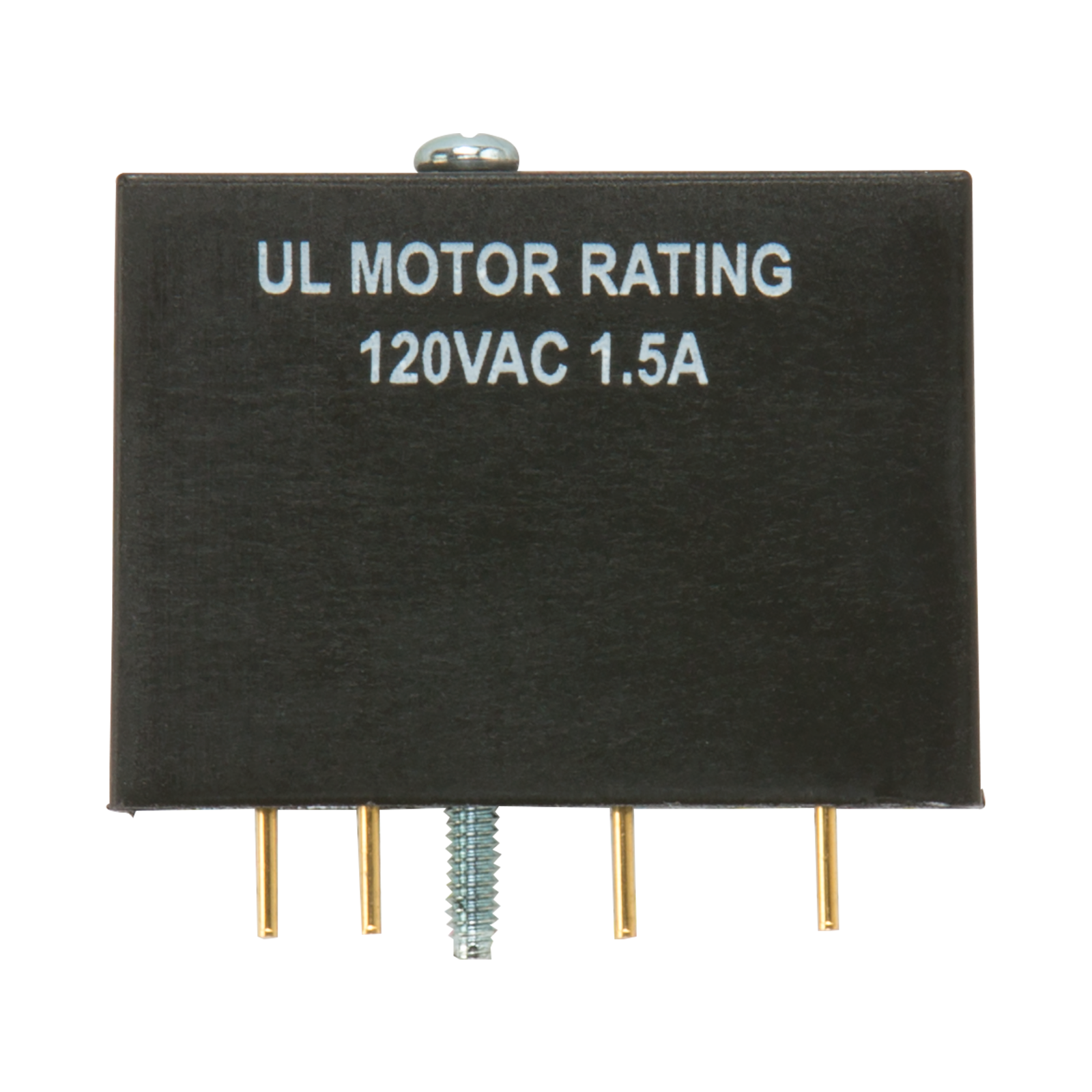

The OAC24 output module is used for controlling or switching AC loads of 12-140 VAC. Each module provides up to 4000 volts (transient) of optical isolation between the field devices and the control logic. This module is equivalent to a single pole, single throw, normally open contact (FORM A, SPST-NO, Make). All AC output modules feature zero voltage turn-on and zero current turn-off. Typical uses and applications for AC output modules include switching the following loads:
OAC24 modules are not for use with Opto 22 brains.
One Cycle Surge
80 amps peak
Peak Repetitive Voltage
500 Volts
Operating Ambient Temperature
-30 to 70 °C
Isolation, Input-to-Output (Transient)
4,000 Vrms
Minimum Load Current
20 milliamps
Operating Frequency
25–65 Hz
Turn-on Time
1/2 cycle maximum-zero voltage
Turn-off Time
1/2 cycle maximum-zero current
DV/DT - Off-State
200 volts/microseconds
DV/DT - Commutating
Snubbed for rated 0.5 power factor load
Output Voltage Drop Maximum Peak
1.6 volts
Off-State Leakage @ Nominal Voltage - 60 Hz
5 milliamps rms 2.5 milliamps rms for OAC5A OAC15A, and OAC24A @120 VAC
Module Specifications
Units
OAC5
OAC5A
OAC5H
OAC5A5 (NC)
OAC153
OAC15A3
OAC243
OAC24A3
OAC24H3
Line Voltage - Nominal
VAC
120
240
120/240
Operating Voltage Range
12–140
24–280
Current Rating @ 45 °C Ambient @ 70 °C Ambient
amps amps
3 2
4 2
UL Motor Load Rating
amps
1.5
-- 1
Logic Voltage - Nominal
VDC
5
15
24
Logic Voltage Range (Vcc)2
2.5–8
9–16
18–32
Logic Pickup Voltage1
2.5
9
18
Logic Dropout Voltage
1
Logic Input Current-@ Normal Logic Voltage (Iout in schematic diagram)
mA
12
Control Resistance (Rc in schematic diagram)
Ohms
220
1K
2.2K
1 Not UL approved 2 Module only 3 Not for use with Opto 22 brains
AC output modules are used for controlling or switching AC loads.
