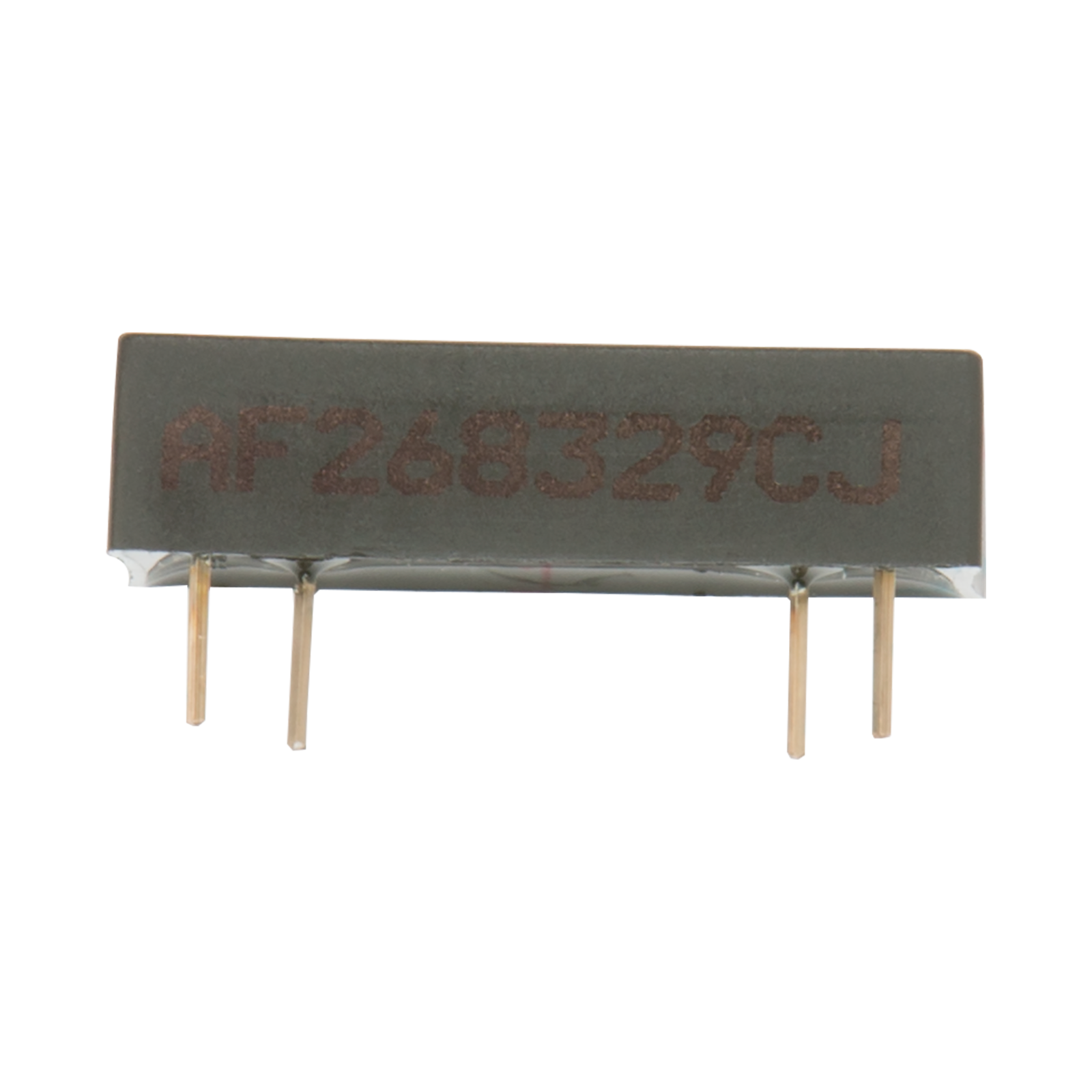

Because of their low profile, Flat Pak modules are ideal for user-designed printed circuit boards where the standard single-channel or Quad Pak modules do not provide an exact fit.

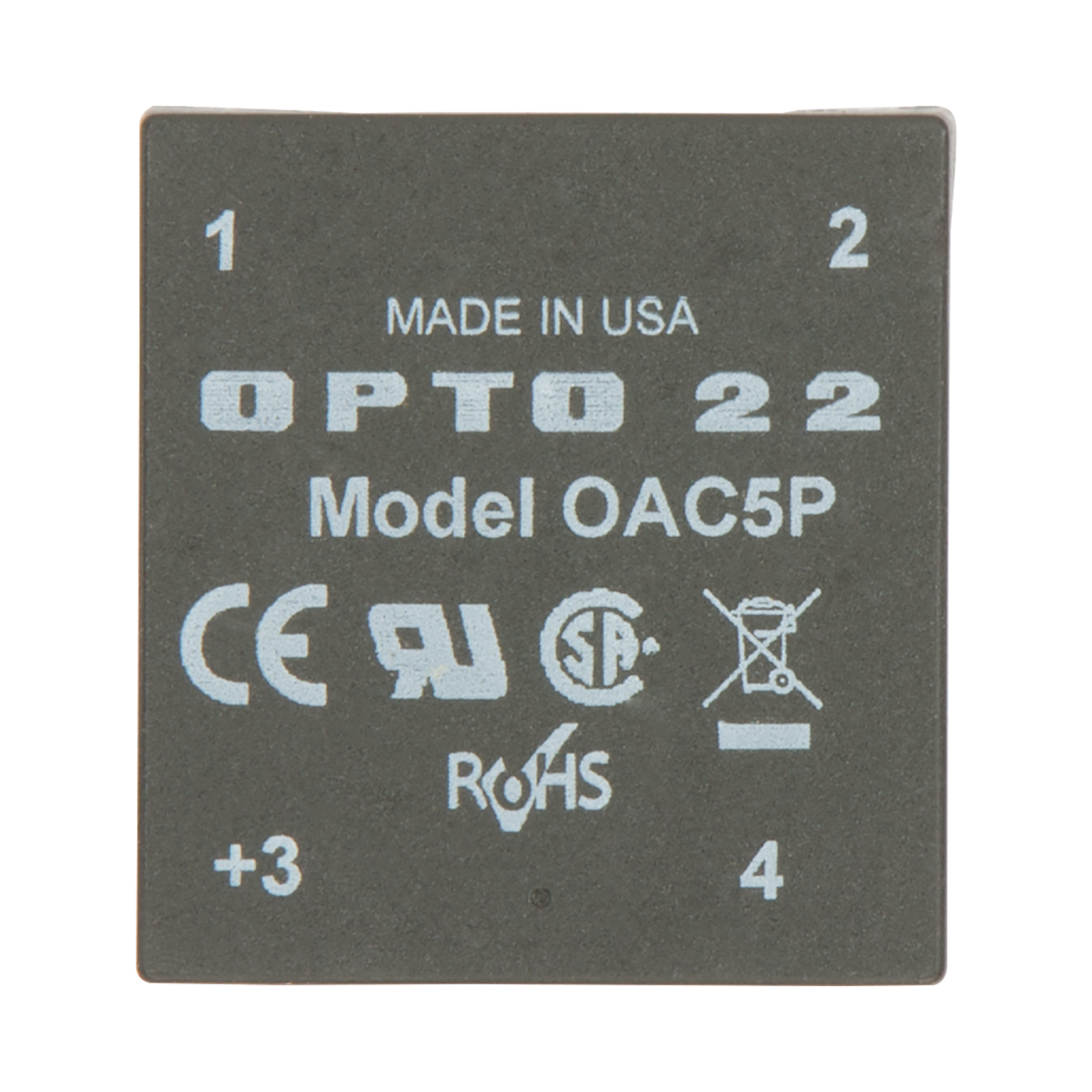

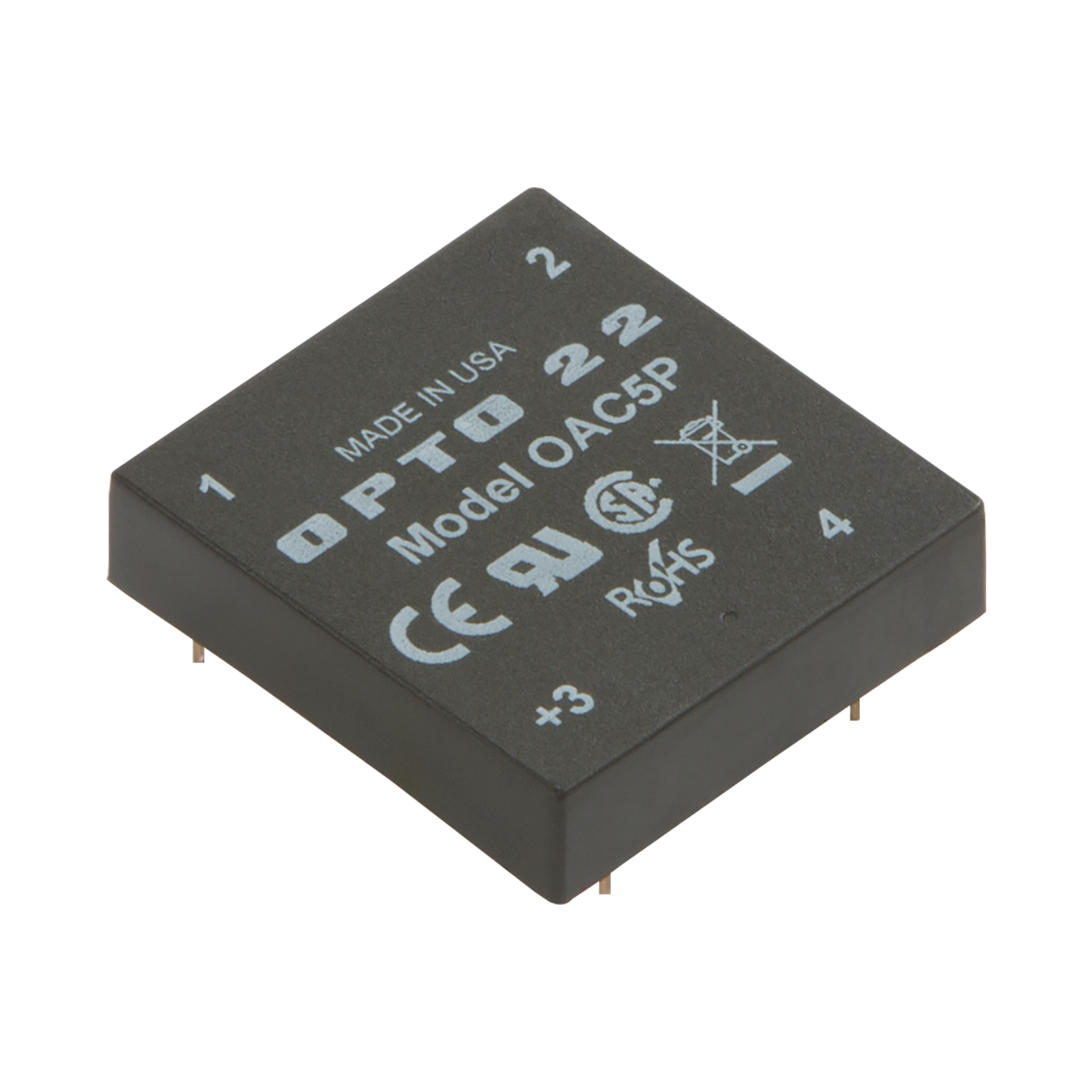

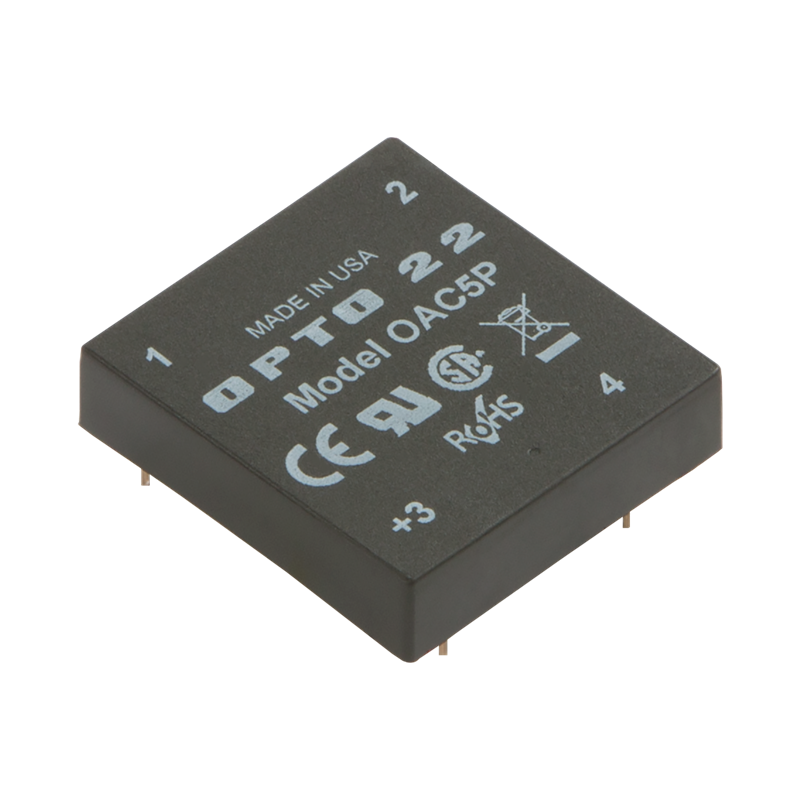

The OAC5P handles 12-140 VAC. This module is used for controlling or switching AC loads. It is equivalent to a single-pole, single-throw, normally open contact (FORM A, SPST-NO, Make). The OAC5P features zero voltage turn-on and zero current turn-off. The module provides up to 4000 V of optical isolation between field inputs and the logic side of the circuit.
Typical uses and applications include switching the following loads:
Operating Voltage Range
Line Voltage, Nominal
3 A @ 45 °C ambient
2 A @ 70 °C ambient
Off-state Leakage at Maximum Voltage
5 mA, rms
Logic Voltage, Nominal
Logic Voltage Range (Vcc)
Logic Pickup Voltage
Logic Dropout Voltage
Logic Input Current at Normal Logic Voltage
(Iout in Schematic Diagram)
Control Resistance (Rc in Schematic Diagram)
80 A peak
Peak Repetitive Voltage
Minimum Load Current
1/2 cycle maximum, zero voltage
1/2 cycle maximum, zero current
Snubbed for rated 0.5 power factor load
Output Voltage Drop Maximum Peak
–30 to 70 °C
UL, CE, CSA, RoHS; UKCA
Flat Pak modules include AC and DC input and output modules.
