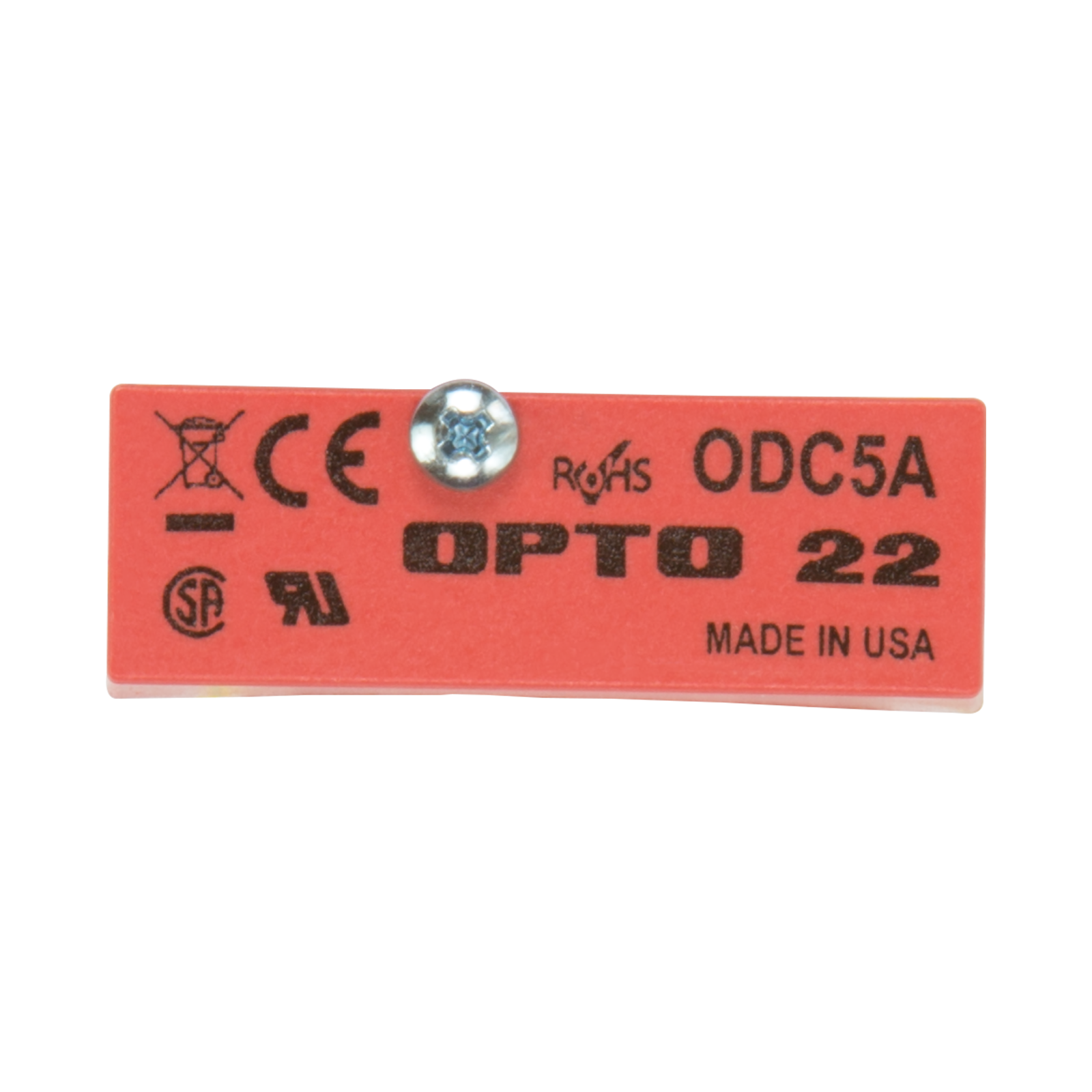

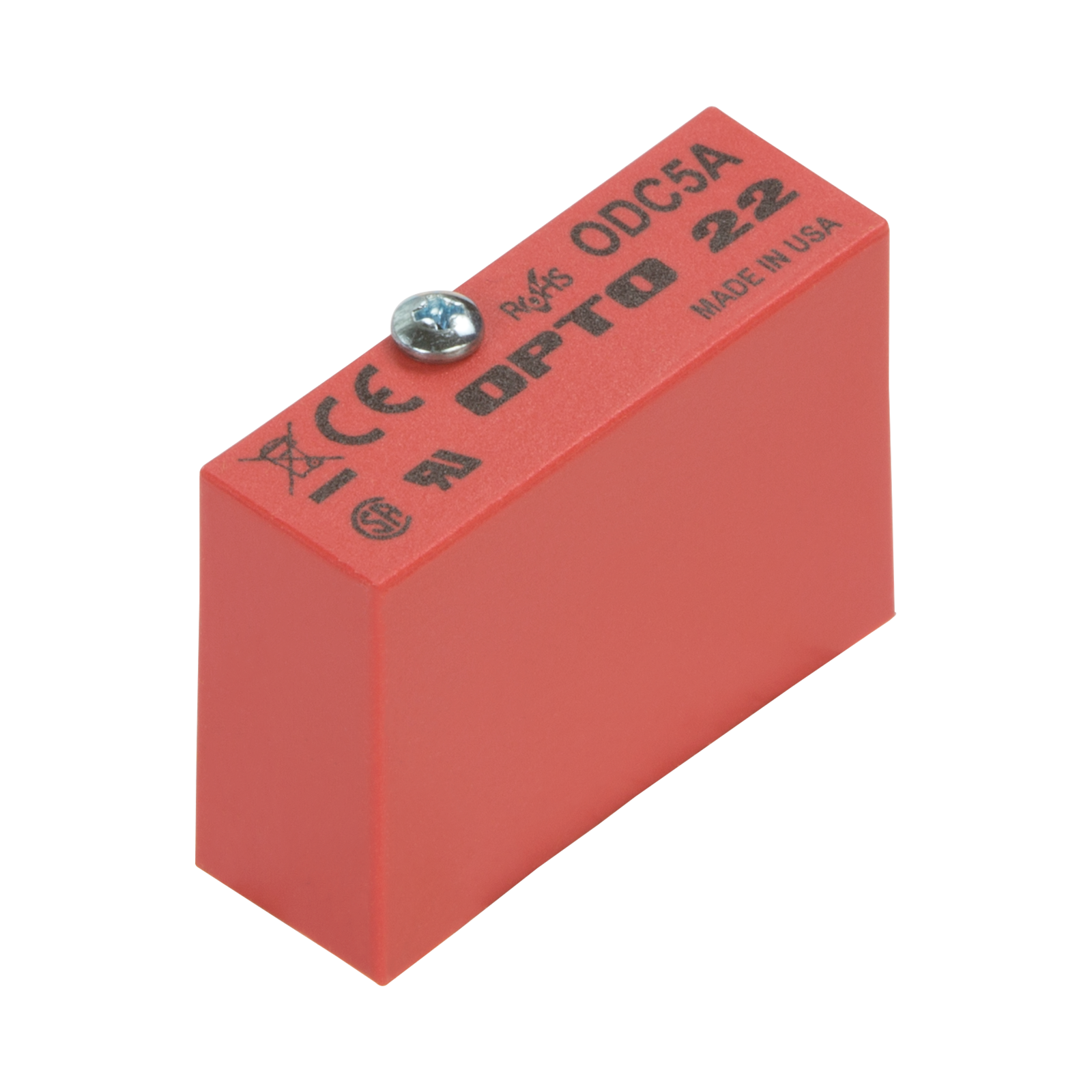

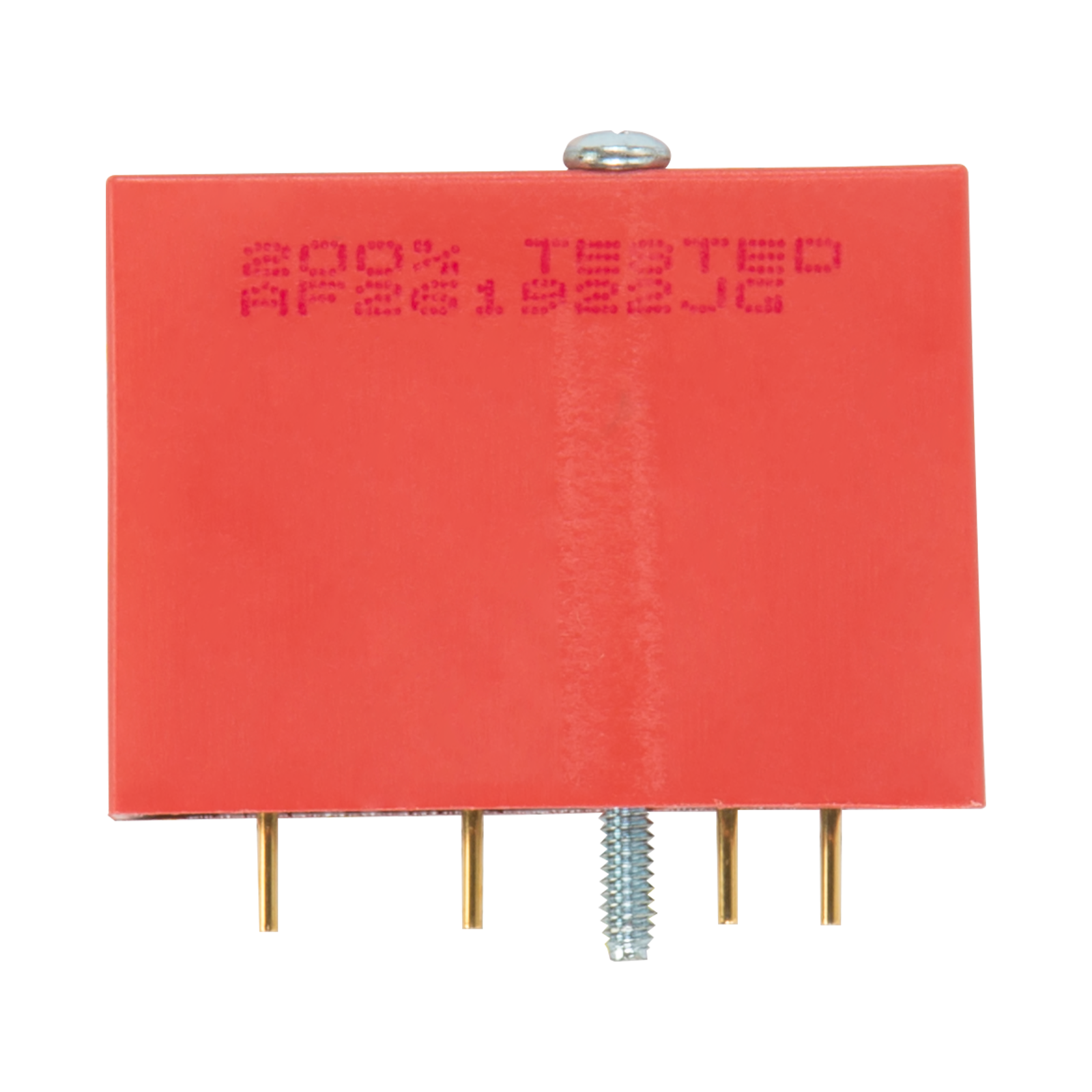

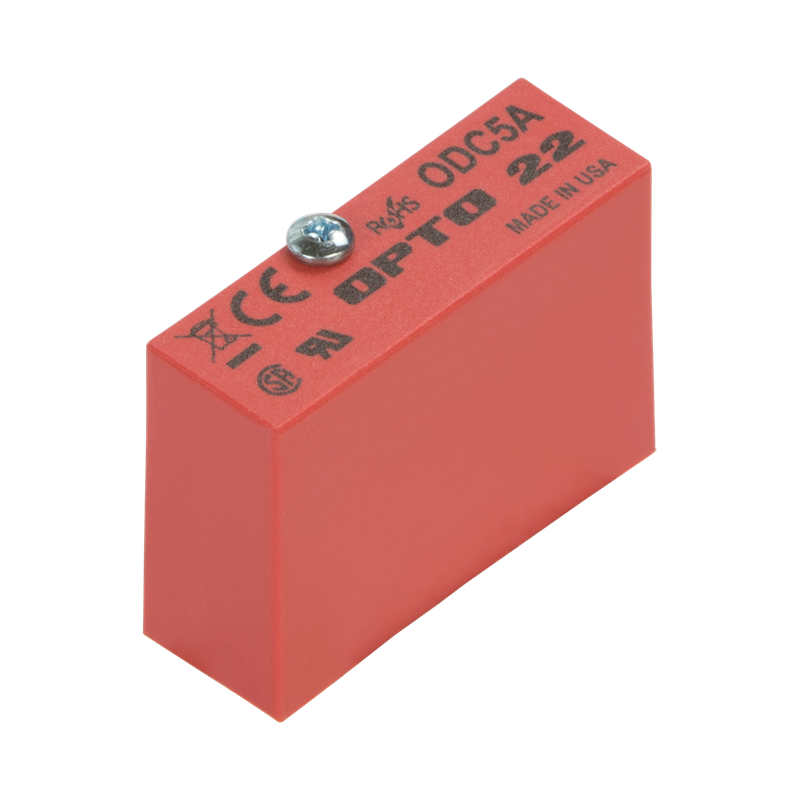

ODC5A

Availability: In stock
DC Output, 5-200 VDC, 5 VDC Logic

Please call (800) 321-6786 to order.

ODC5A

Production Specification

The ODC5A output module is used for controlling or switching DC loads of 5-200 VDC. Each module provides 4000 volts (transient) of optical isolation between the field devices and the control logic.

Typical uses and applications for DC output modules include switching the following loads:
  • DC relays
  • DC solenoids
  • DC motor starters
  • DC lamps or indicators
  • PLC logic

One-second Surge

5 A

Operating Ambient Temperature

-30 °C to 70 °C

Isolation, Input-to-Output (Transient)

4000 volts

Turn-on Time

100 µs

Turn-off Time

750 µs

Output Voltage Drop Maximum Peak

1.6 volts

Module Specifications



UNITS

ODC5

ODC5A

ODC15

ODC15A

ODC24

ODC24A

Line voltage - max.

VDC

60

200

60

200

60

200

Operating voltage range

VDC

5–60

5–200

5–60

5–200

5–60

5–200

Current rating
  @ 45 °C ambient
  @ 70 °C ambient



Amps
Amps



3
2



1
0.55



3
2



1
0.55



3
2



1
0.55

UL Motor Load rating

Amps

1.5

1

1.5

1

1.5

1

Off-state leakage @ max. voltage

mA

1

2

1

2

1

2

Logic voltage - nominal

VDC

5

5

15

15

24

24

Logic voltage range (Vcc)

VDC

2.5–8

2.5–8

9–16

9–16

18–32

18–32

Logic pickup voltage

VDC

2.5

2.5

9

9

18

18

Logic dropout voltage

VDC

1

1

1

1

1

1

Logic input current
@ nominal logic voltage

mA

12

12

15

15

18

18

Control resistance
(Rc in schematic diagram)

Ohms

220

220

1K

1K

2.2K

2.2K
