ODC5AQ
Hover over image to zoom in

ODC5AQ

$80.00 (USA and Canada only)

Availability: In stock
Quad Pak 4-channel DC Output 5-200 VDC, 5 VDC Logic

Production Specification

Quad Pak I/O family

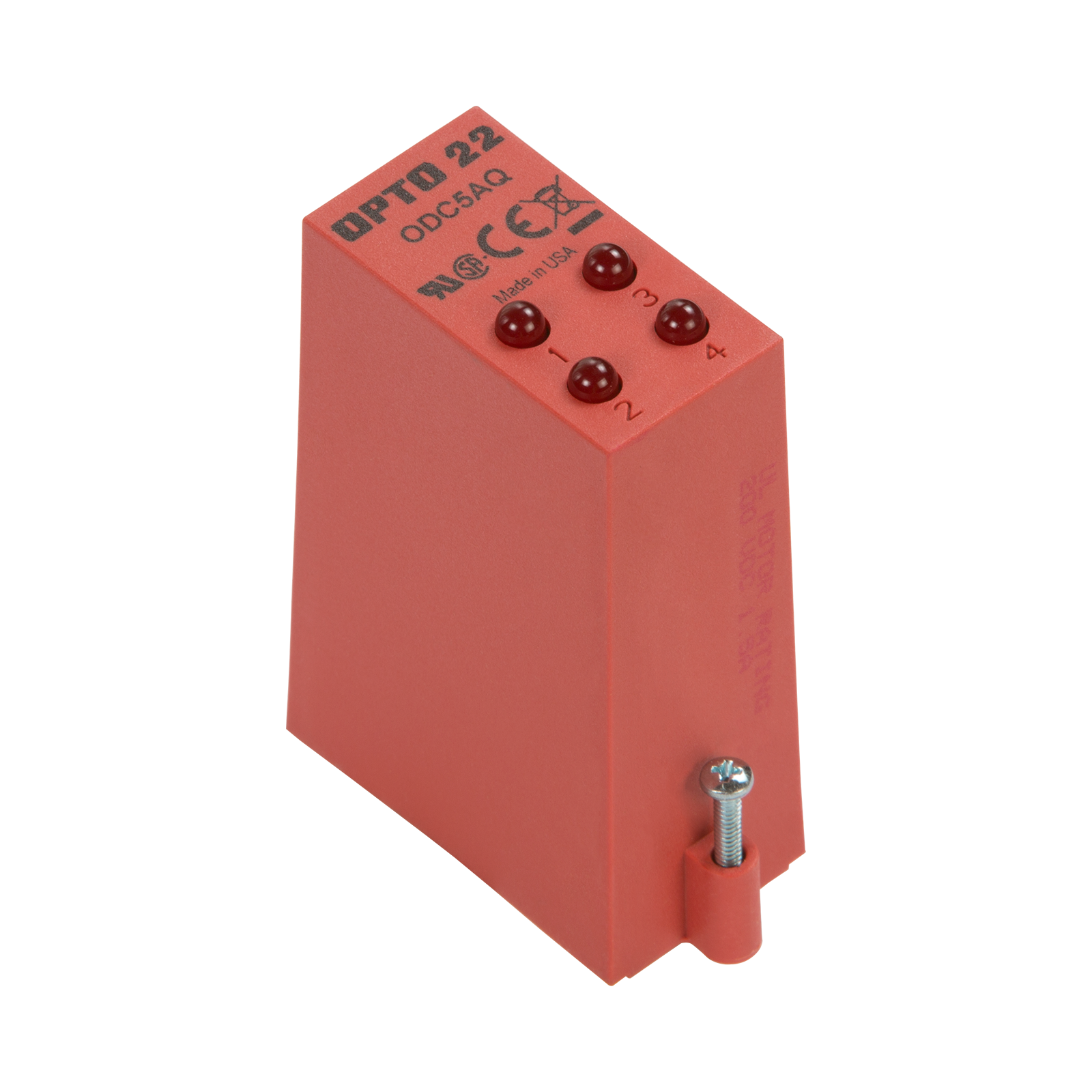

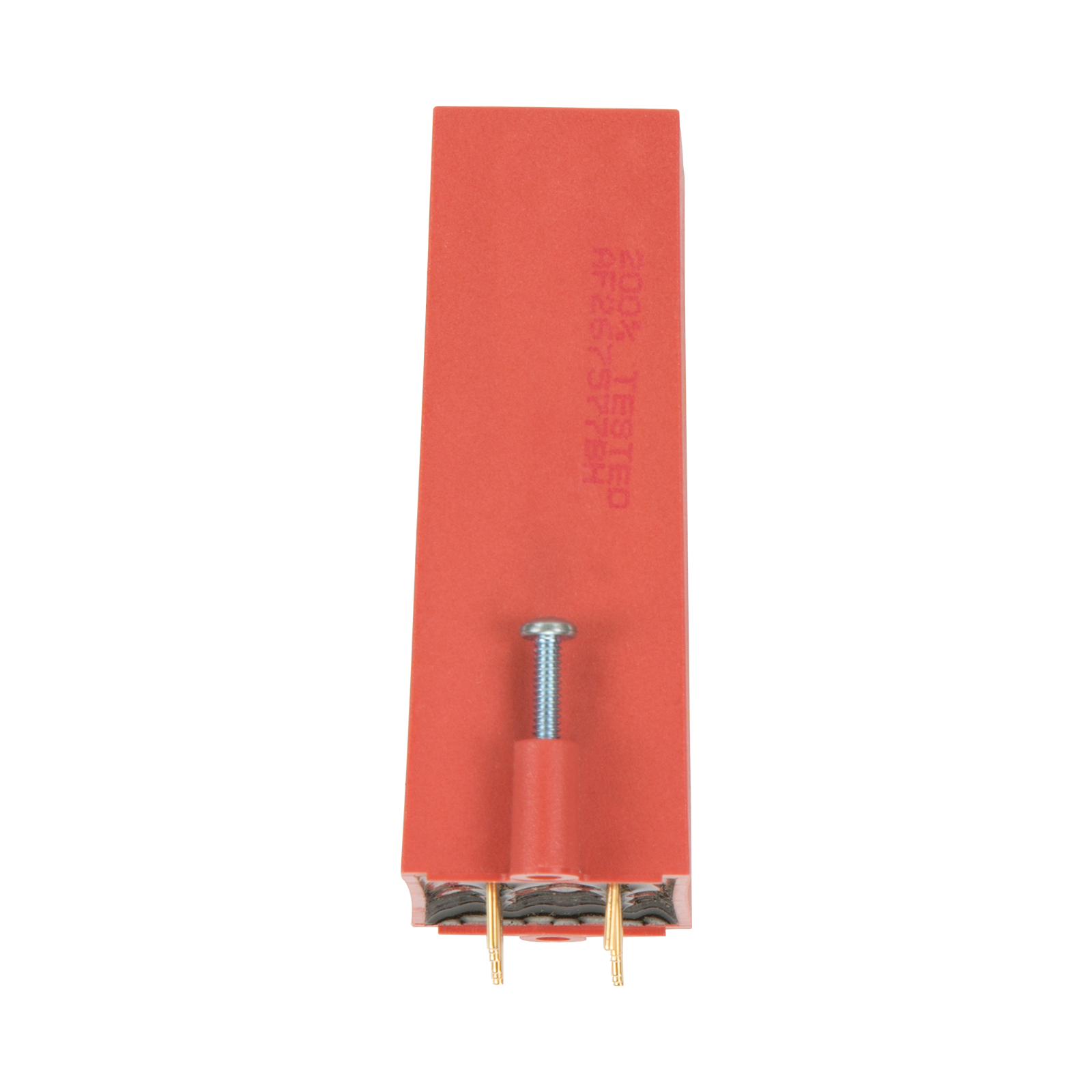

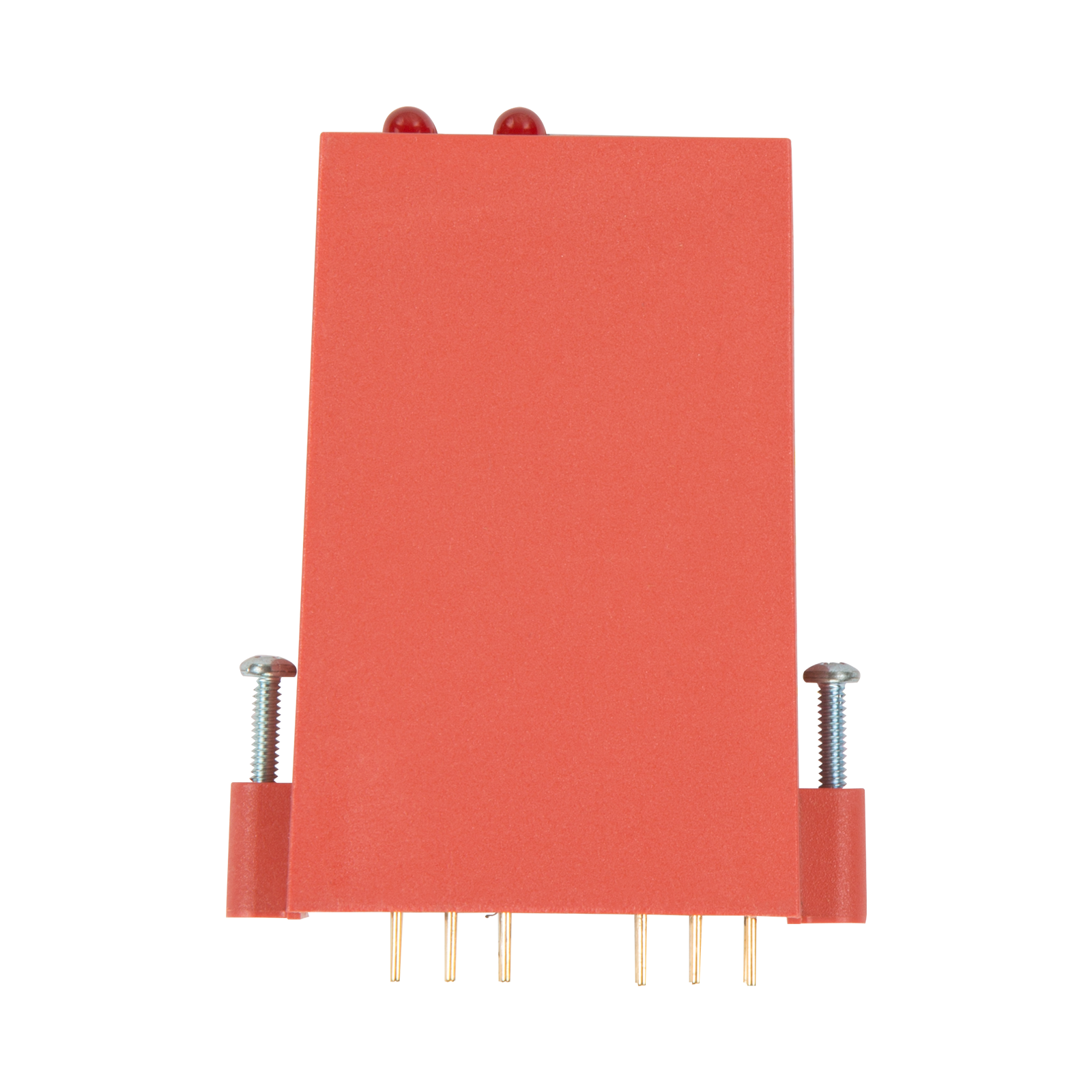

The ODC5AQ is a 4-channel DC digital output module used for controlling or switching DC loads of 5-200 VDC. It uses 5 VDC logic and is compatible with Opto 22 Optomux, Pamux, and Mistic protocol brain boards and mounting racks, as well as racks using a direct cable connection to a computer. This module can also be used with a Raspberry Pi, the Digital I/O Carrier Board (part number OPTO-P1-40P), and the PB16HQ mounting rack.

Quad Pak modules contain the equivalent of four single-channel I/O circuits in a single package. Each Quad Pak module can be divided into two pairs, with each pair sharing a common connection.

Quad Pak modules plug into Quad Pak I/O mounting racks. They are not compatible with single-channel racks or SNAP racks.

DC output modules are used for controlling or switching DC loads. Each module provides up to 4,000 Vrms of optical isolation between the field devices and the control logic. Typical uses and applications for DC output modules include switching the following loads:
  • DC Relays
  • DC Solenoids
  • DC Motor Starters
  • DC Lamps or Indicators
All Quad Pak DC outputs are current sourcing outputs. The module connection to the load is the positive connection.

ODC5AQ and ODC5Q



Units

ODC5Q

ODC5AQ

Line Voltage - Maximum

VDC

60

200

Operating Voltage Range

VDC

5 - 60

5 - 200

Current Rating (per channel)
  @ 20° C Ambient
  @ 45° C Ambient
  @ 70° C Ambient



Amps
Amps
Amps



3
2
1



1
1
0.55

Off-state Leakage @
Maximum Voltage

mA

1

2

Logic Voltage - Nominal

VDC

5

5

Logic Voltage Range (Vcc)

VDC

4 - 8

4 - 8

Logic Pickup Voltage

VDC

4.0

4.0

Logic Dropout Voltage

VDC

2.3

2.3

Logic Input Current
  @ Nominal Logic Voltage

mA

12

12

Control Resistance

Ohms

220

220

One-Second Surge Amps

5

5



Operating Ambient Temperature

°C

-30 to 70

-30 to 70

Isolation Input-to-Output

Vrms

4,000

4,000

Turn-on Time

µs

100

100

Turn-off Time

µs

750

750

Output Voltage Drop Maximum

Volts

1.6

1.6



Quad Pak DC Output Modules Data Sheet

Quad Pak modules contain the equivalent of four single channel I/O circuits in a single high-density package.
