ODC5P

$17.00 (USA and Canada only)

Availability: In stock

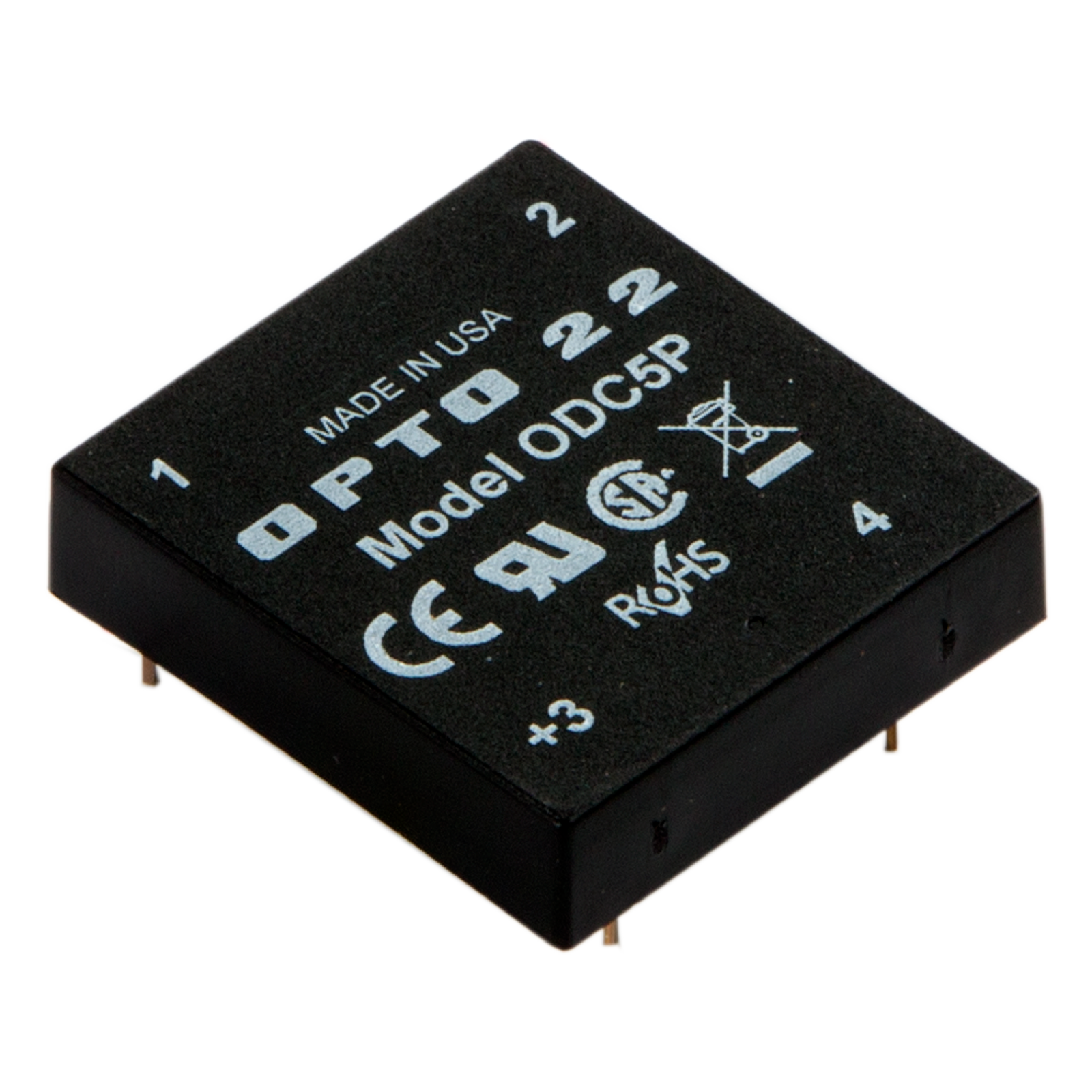

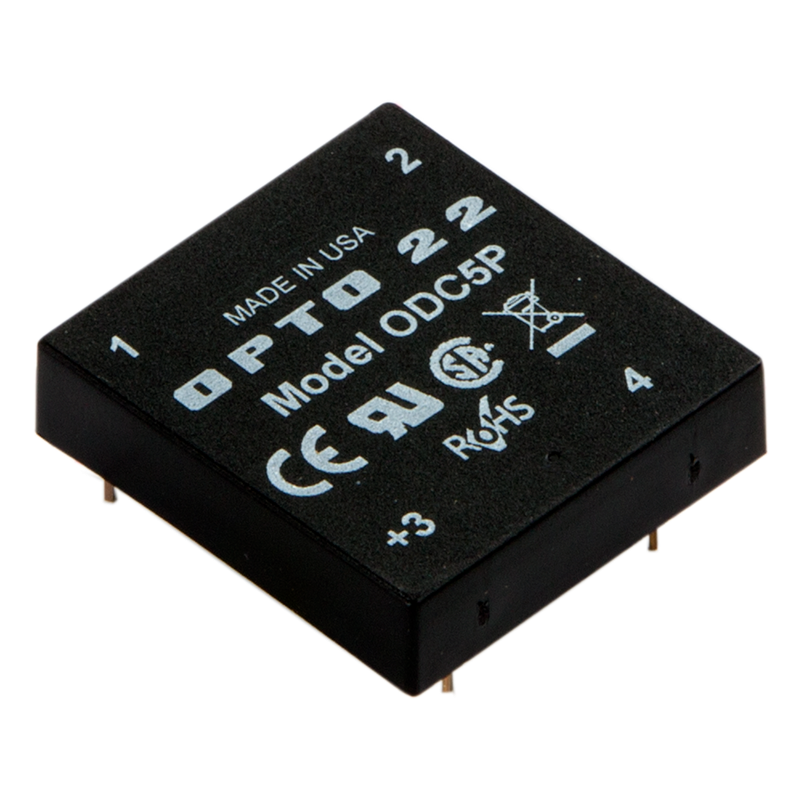

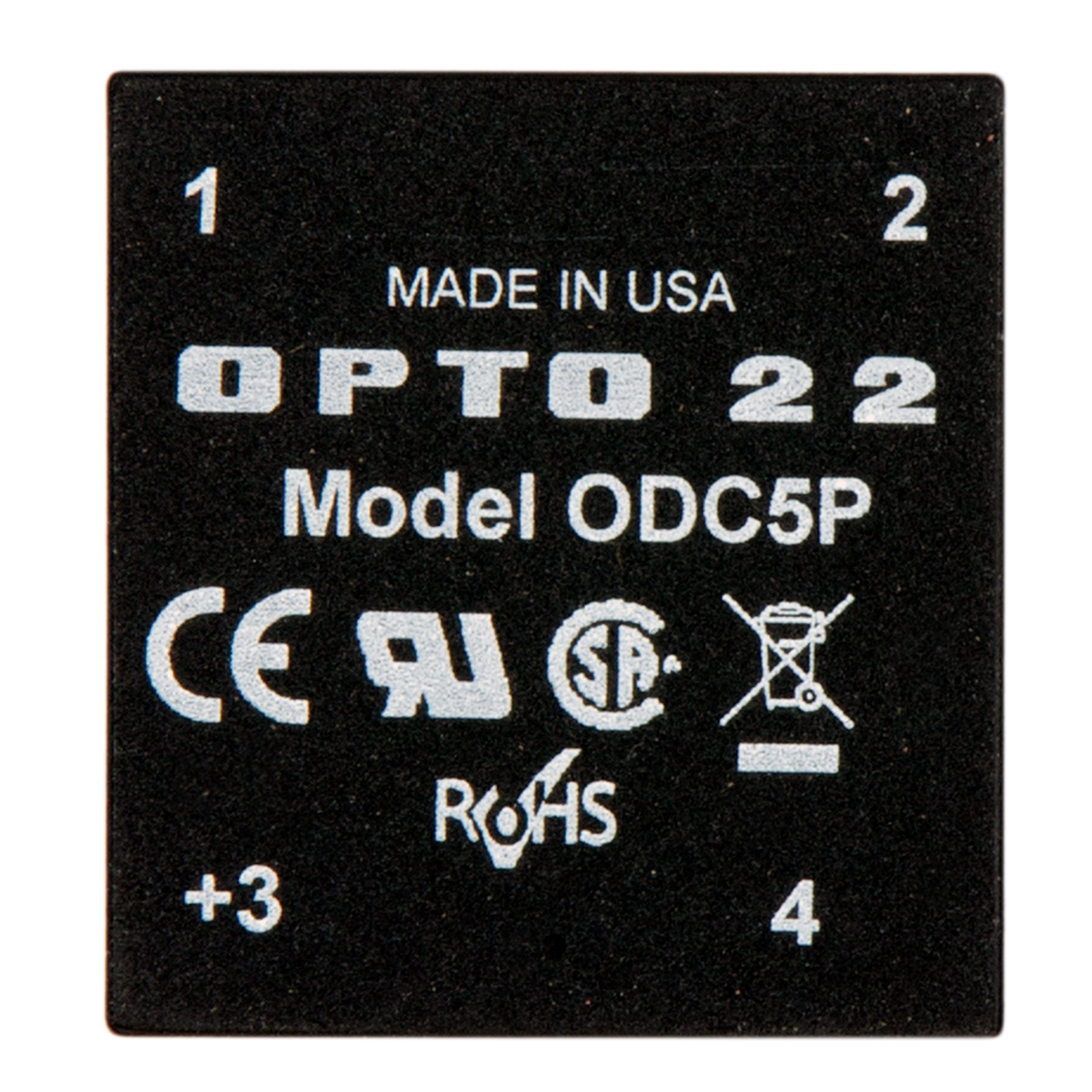

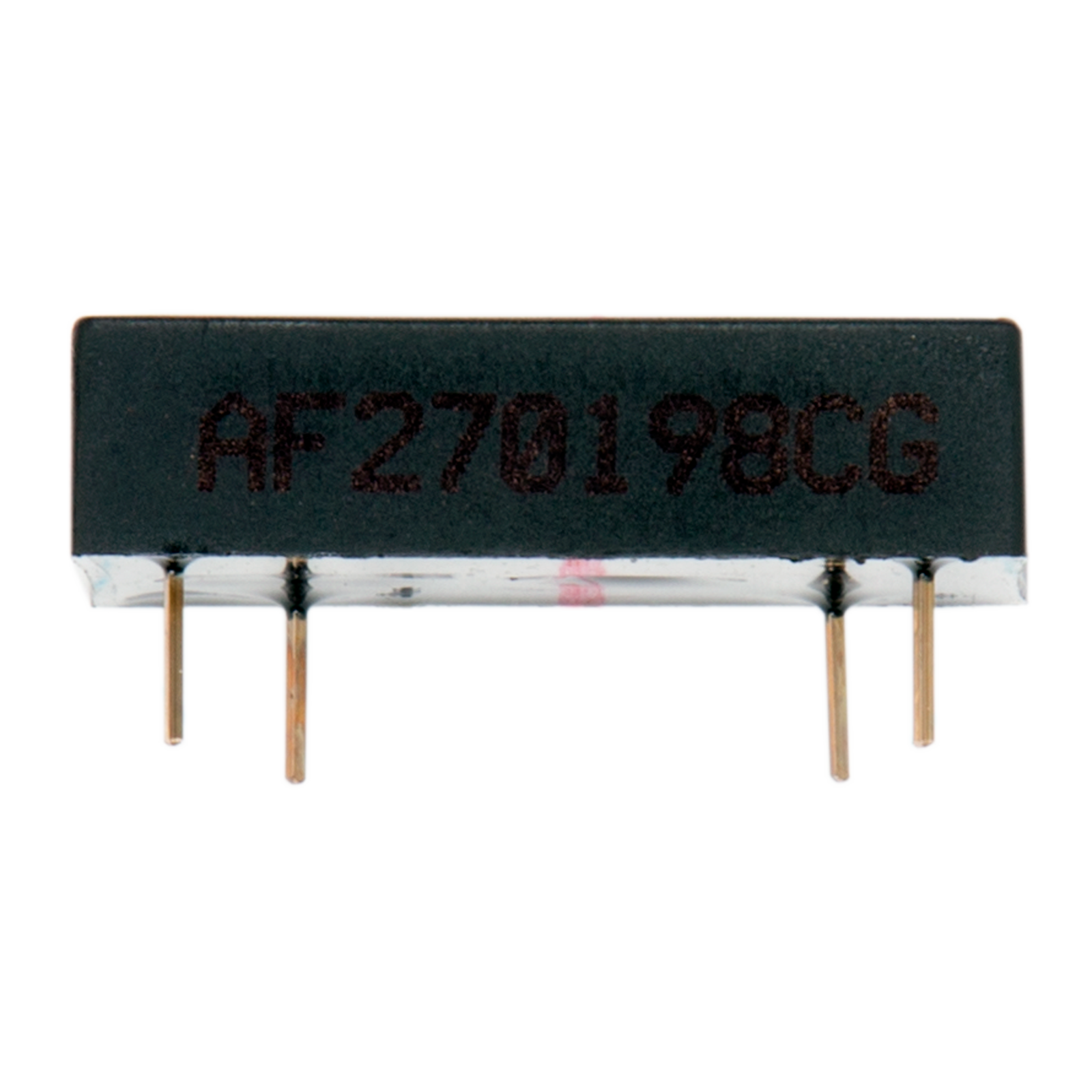

Flat Pak output module, 5-60 VDC

Please call (800) 321-6786 to order.

ODC5P

Production Specification

Because of their low profile, Flat Pak modules are ideal for user-designed printed circuit boards where the standard single-channel or Quad Pak modules do not provide an exact fit.

The ODC5P handles 5-60 VDC. This module is used for controlling or switching DC loads. The module provides up to 4000 V of optical isolation between field inputs and the logic side of the circuit.

Typical uses and applications include switching the following loads:

  • DC relays
  • DC solenoids
  • DC motor starters
  • DC lamps or indicators



OAC5P

ODC5P

Operating Voltage Range

12–140 VAC

5–60 VDC

Line Voltage, Nominal

120 VAC

n/a

Current Rating

3 A @ 45 °C ambient

2 A @ 70 °C ambient

3 A @ 45 °C ambient

2 A @ 70 °C ambient

Off-state Leakage at Maximum Voltage

5 mA, rms

1 mA

Logic Voltage, Nominal

5 VDC

5 VDC

Logic Voltage Range (Vcc)

2.5–8 VDC

2.5–8 VDC

Logic Pickup Voltage

2.55 VDC

2.5 VDC

Logic Dropout Voltage

1 VDC

1 VDC

Logic Input Current at Normal Logic Voltage
(Iout in Schematic Diagram)

12 mA

12 mA

Control Resistance (Rc in Schematic Diagram)

220 Ohms

220 Ohms

One-second Surge

n/a

5 A

One-cycle Surge

80 A peak

n/a

Peak Repetitive Voltage

500 V

n/a

Minimum Load Current

20 mA

n/a

Operating Frequency

25–65 Hz

n/a

Turn-on Time

1/2 cycle maximum, zero voltage

100 microseconds

Turn-off Time

1/2 cycle maximum, zero current

750 microseconds

DV/DT, Off-state

200 V/microsecond

n/a

DV/DT, Commutating

Snubbed for rated 0.5 power factor load

n/a

Output Voltage Drop Maximum Peak

1.6 V

1.6 V

Operating Temperature

–30 to 70 °C

–30 to 70 °C

Agency Approvals

UL (E58169), CSA (35852)

UL (E58169), CSA (35852)

Warranty

Lifetime

Lifetime

Flat Pak I/O Module Data Sheet

Because of their low profile, Flat Pak modules are ideal for user-designed printed circuit boards where the standard single-channel or Quad Pak modules do not provide an exact fit.

Flat Pak modules include AC and DC input and output modules.
