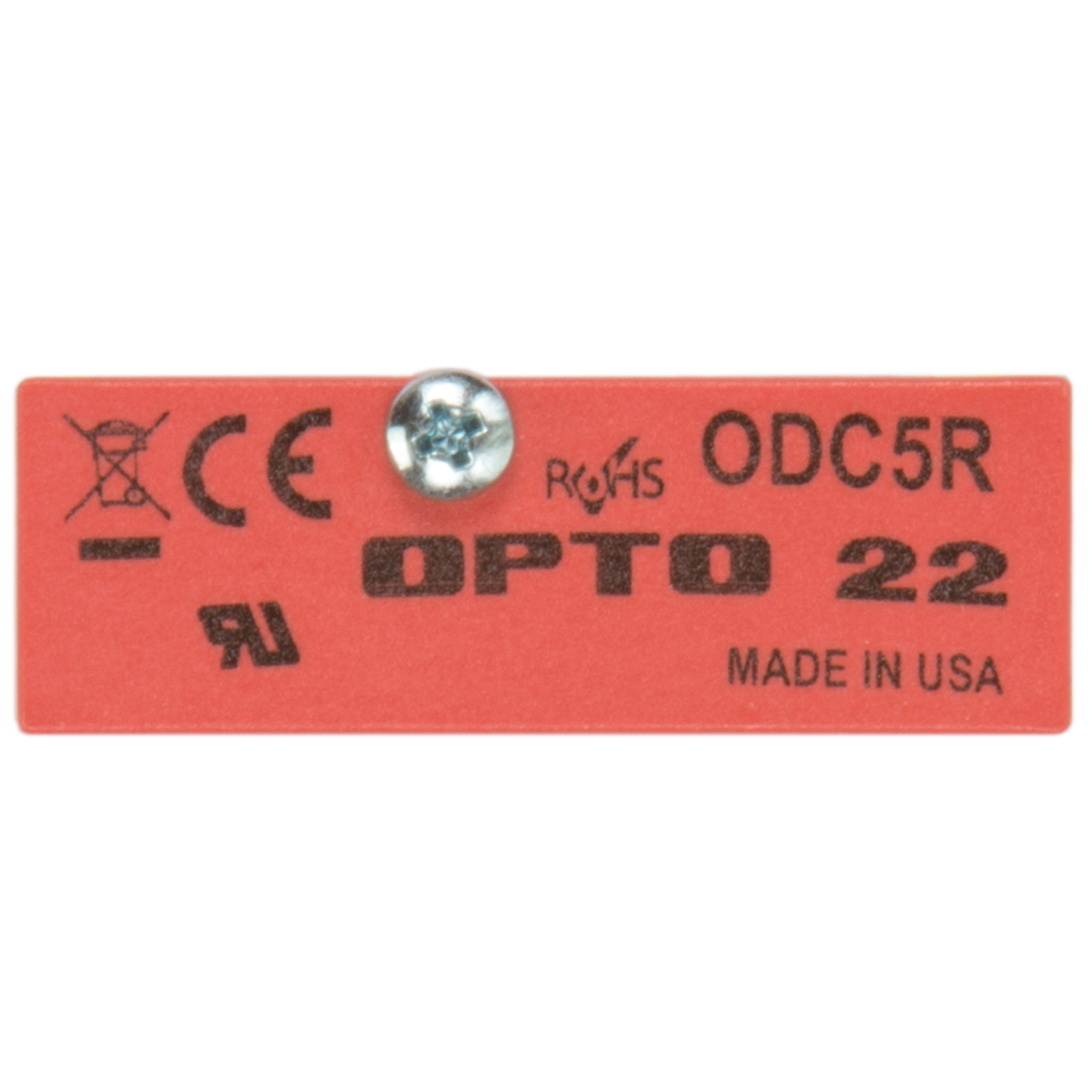

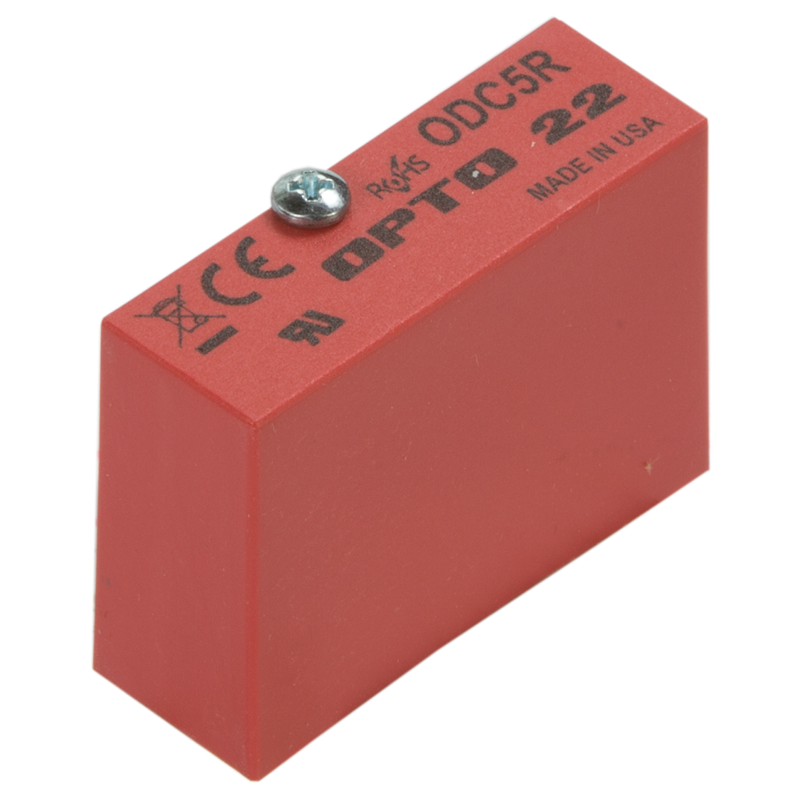

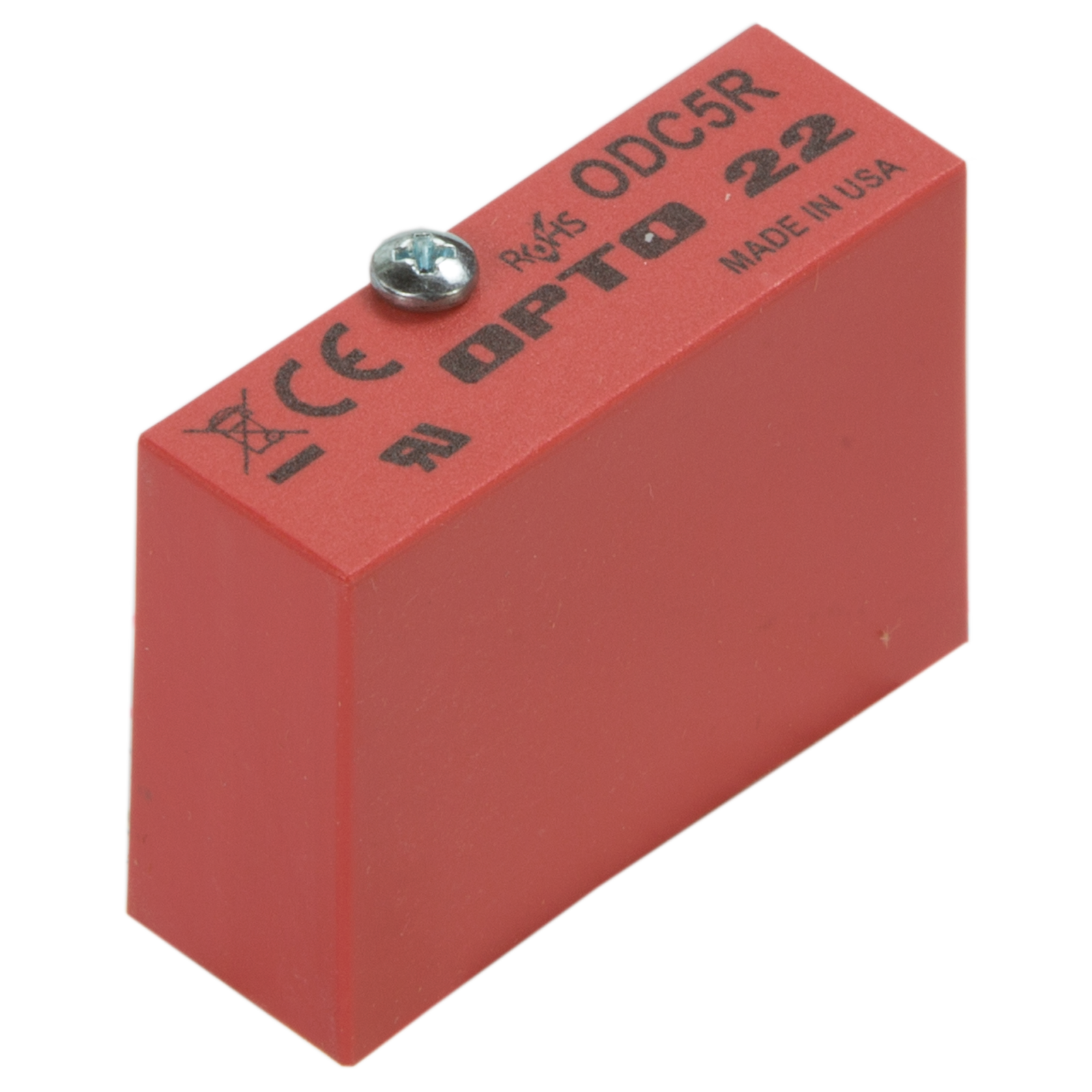

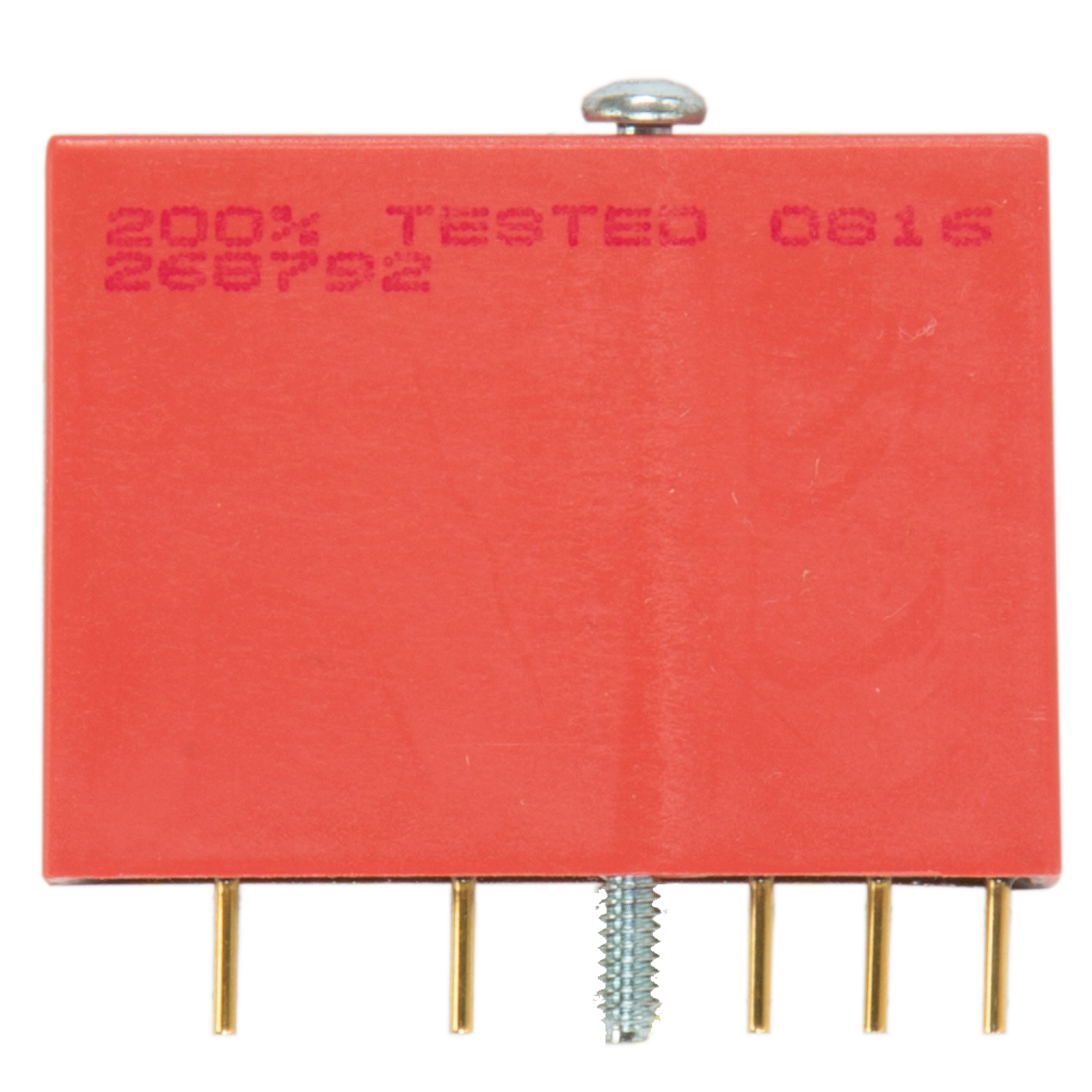

ODC5R

$21.00 (USA and Canada only)

Availability: In stock
Reed Relay Output, 5 VDC Logic

Please call (800) 321-6786 to order.

ODC5R

Production Specification

The ODC5R is a Form A mechanical relay I/O module. This module was designed for a low-voltage DC load that that is purely resistive (no inrush current).

Typical applications for these modules include analog signal and communication line multiplexing. Because of their low 10 VA rating, these modules are not recommended for inductive or capacitive loads (even very small loads) because the inrush current is likely to exceed the 10 VA rating.

IMPORTANT: Applications using 120 VAC are typically NOT suited to this module. If you are considering using this module for any application other than low-voltage purely resistive loads, see the detailed notes and rating curve in the data sheet, and call Pre-sales Engineering for specific guidance.

Item

Description



Contact type

Form A SPST-normally open

NOTE: The application of the dry contact module must not exceed 10 VA under steady-state or momentary in-rush conditions.

For voltages at or below 20 volts, the current limit is 0.5 amps. For voltages above 20 volts, the maximum allowable current is determined by the following equation:

Maximum Current =
10 VA / Voltage

Line Voltage - Range

0–100 VDC
0–130 VAC
(see Note)

Current Rating

0.5 Amps Switching
(see Note)

Contact Rating

10 VA (see Note)

Switching current

0.5 amperes maximum1

Carry current

1.5 amps maximum

Contact on-resistance

200 milliohms

Turn-on time

500 microseconds

Turn-off time

500 microseconds

Contact bounce

250 microseconds

Mechanical life

5 x 106 cycles

Logic voltage range

4.8–6 volts

Logic droupout voltage

0.8 volts

Logic input current
@ Normal logic voltage

14 milliamperes

Isolation voltage Input-to-output

1500 VDC

Temperature Operating

0 to 70 °C





Current Limit
at Key Voltages



V

mA



5

500



12

500



24

416



1001

100



120

83



1302

76



1. Maximum DC voltage is 100 VDC

2. Maximum AC voltage is 130 VAC

Standard Digital Output Reed Relay Module Data Sheet

The ODC5R is a Form A mechanical relay I/O module. This module is ideal for applications requiring a dry-contact closure.
