*** NOTE: This part is OBSOLETE and no longer available. ***

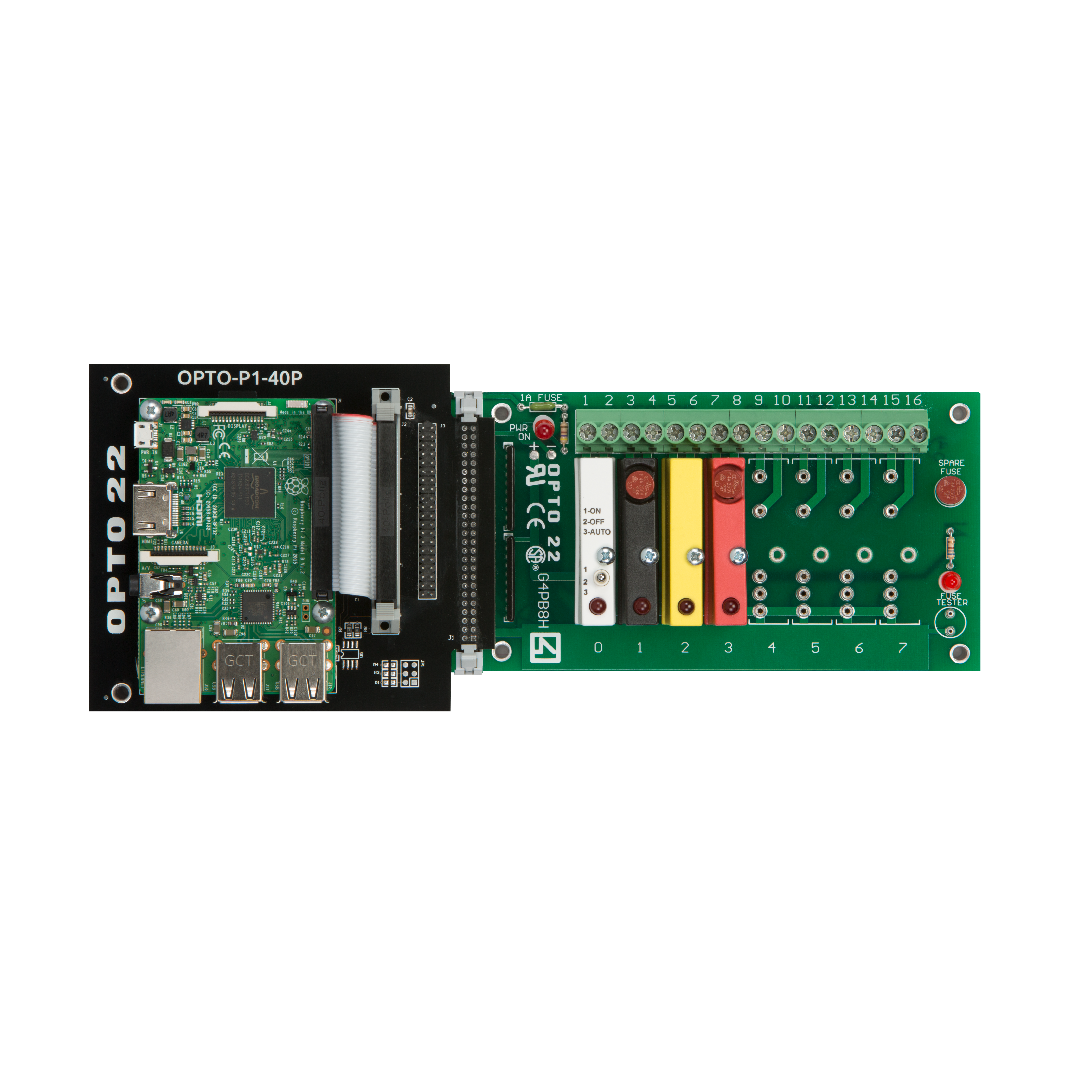

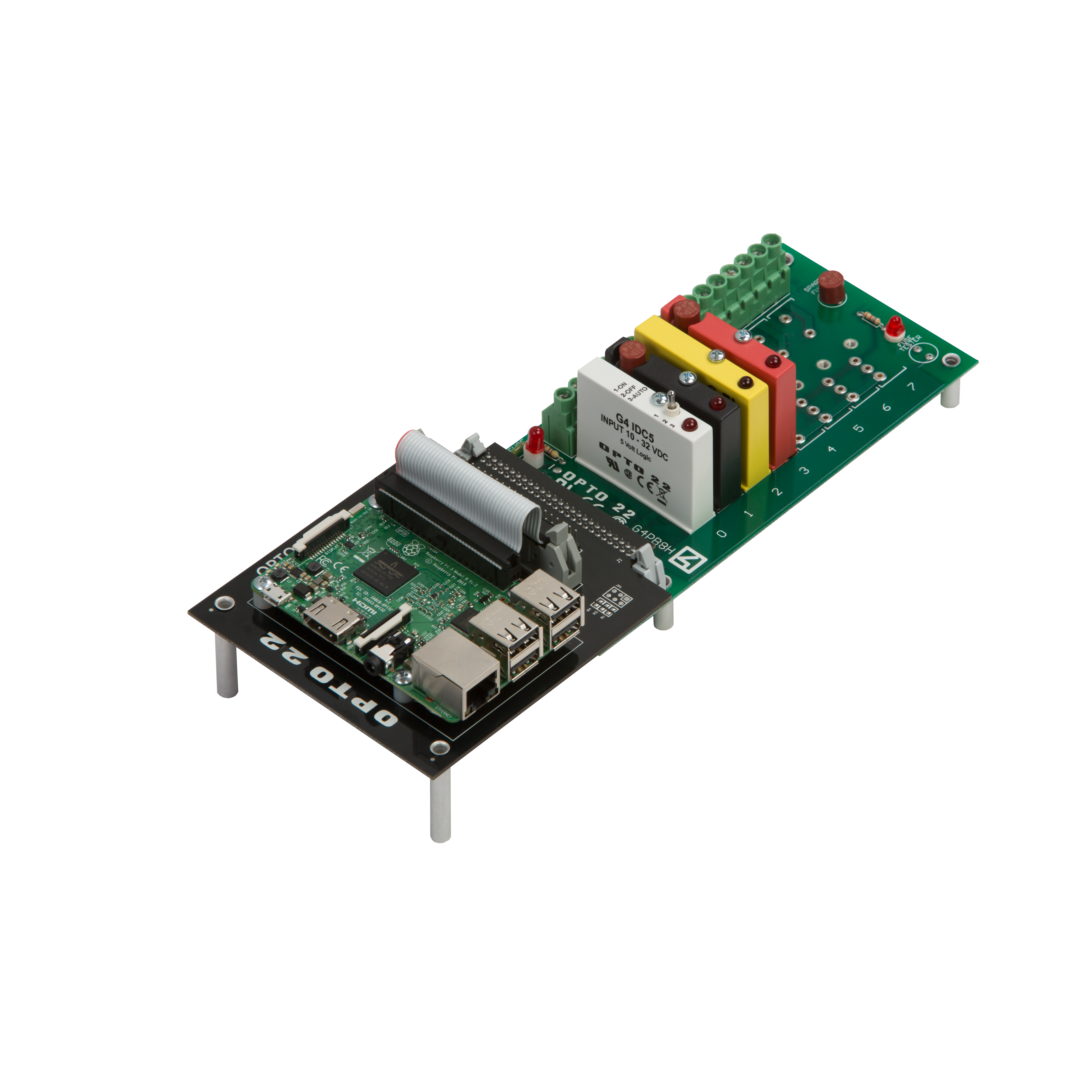

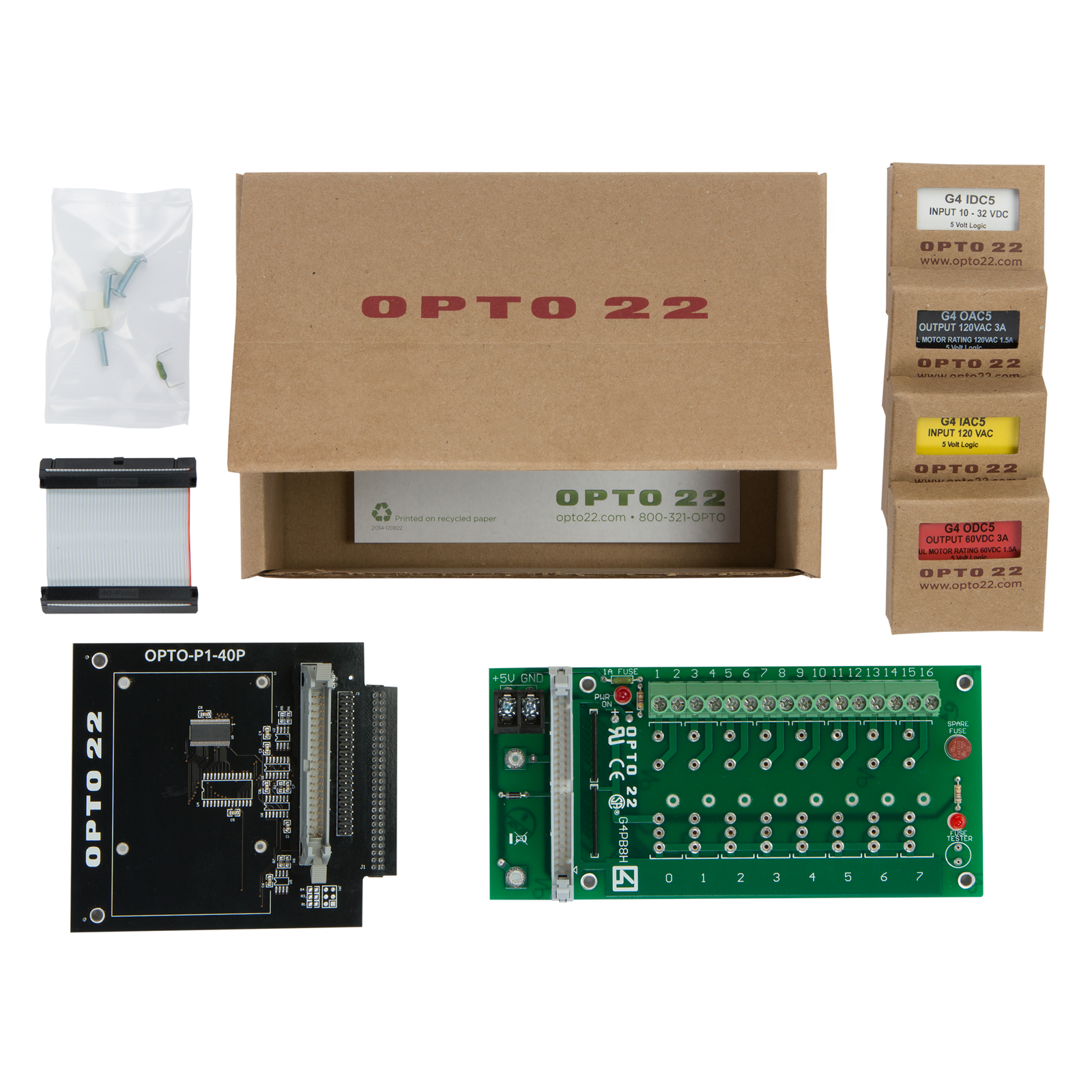

The Digital I/O for Raspberry Pi Starter Kit gets you started sensing and switching industrial loads with your own Raspberry Pi. This data sheet describes the kit and includes step-by-step instructions for using it.
Now you can safely and reliably sense and switch industrial-level electrical loads with your Raspberry Pi® and Opto 22 industrially hardened digital I/O.
This Selection Guide describes compatible I/O racks and modules, power supplies, and accessories that work with the Raspberry Pi and the Digital I/O Carrier Board for the Pi (OPTO-P1-40P). Specifications, dimensional drawings, and wiring diagrams for racks and I/O modules are included.
For code samples and steps to get started, also see developer.opto22.com.
The Raspberry Pi® is a tiny, powerful, inexpensive computer, capable of many tasks. Couple the Pi to industrial, solid-state Opto 22 digital inputs and outputs, and you can build cost-effective solutions for commercial and industrial applications.
This technical note (also a blog post on our website), shows you step-by-step how to set up your Pi to use the free, open-source software tool Node-RED with industrial I/O.
This CAD file contains a three-dimensional drawing of the OPTO-P1-40P digital I/O carrier board for Raspberry Pi. The drawing applies to the following part numbers:
