Current Transformer, Split Core, 250 A, 0.333 VAC, 0.75 inch (1.91 cm) Inner Diameter

Please call (800) 321-6786 to order.

OPTOEMU-ACT-0750-250

Production Specification

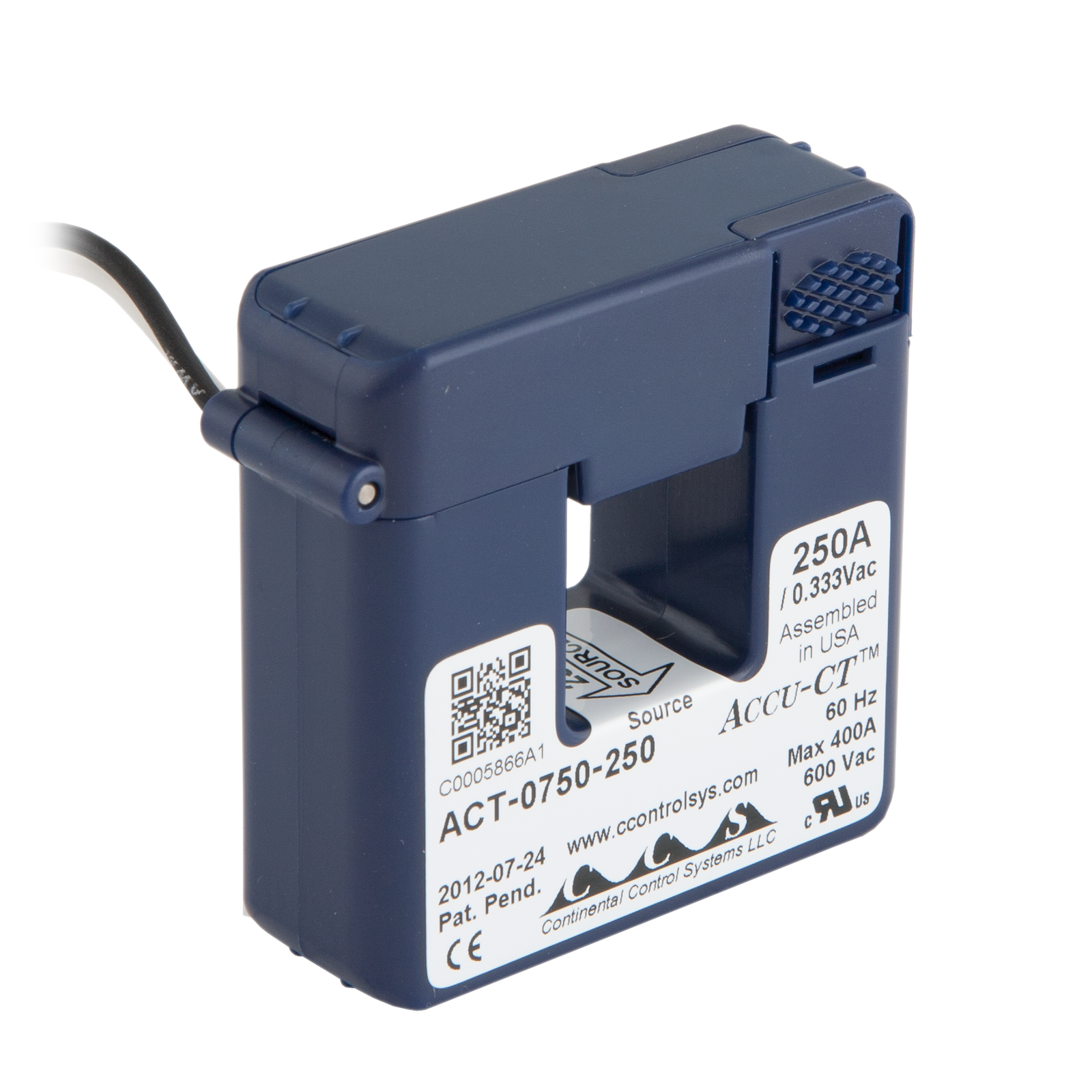

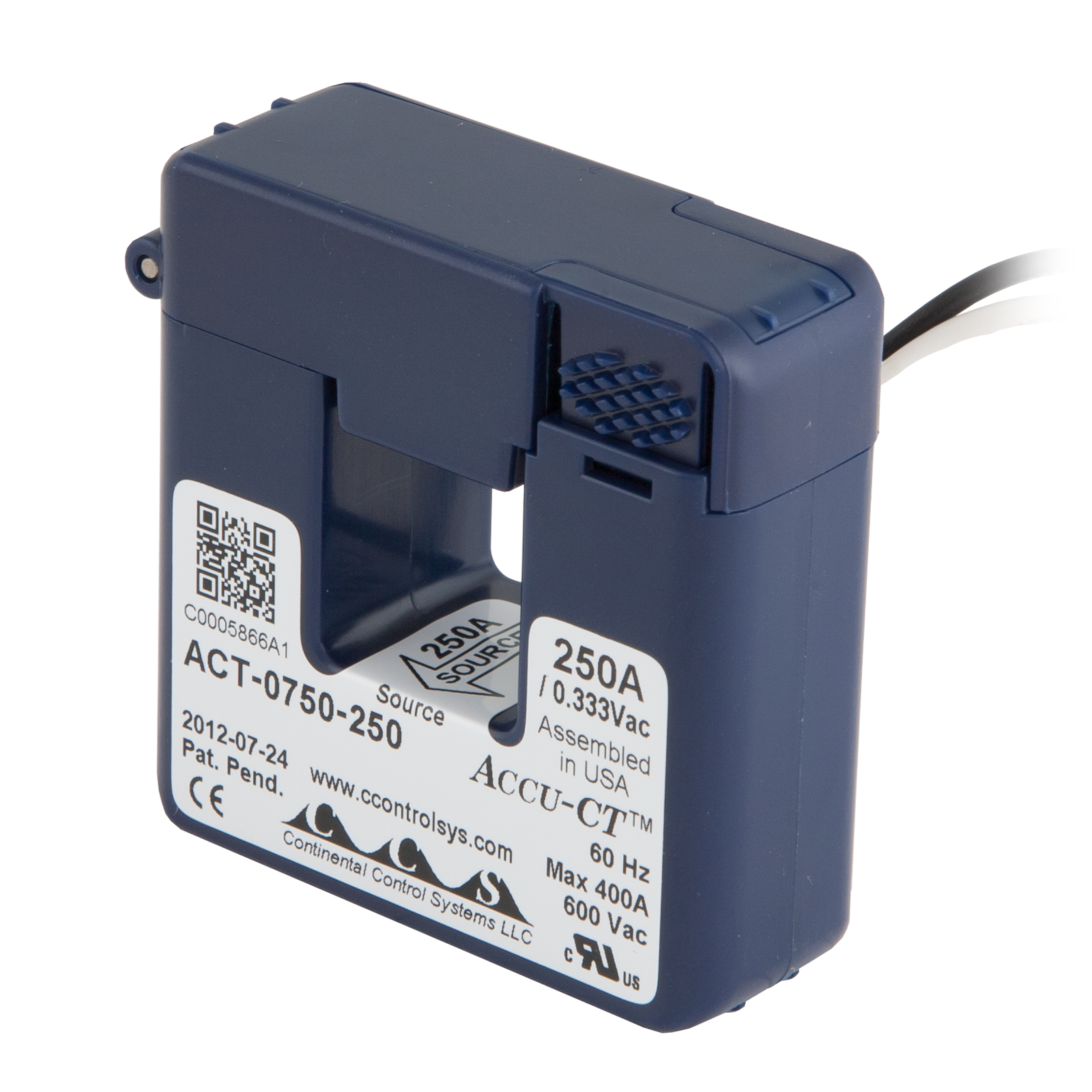

The OPTOEMU-ACT-0750-250 split-core current transformer (CT) from Continental Control Systems offers an easy, safe, and inexpensive method for monitoring electrical energy usage.

Ideal for retrofit applications, the split core makes it possible to attach the CT without disturbing existing wiring. This CT swings open for one-handed operation. Just open it, slip it over the wire, and snap the CT closed. Once assembled, the CT has no exposed metal parts.

The 0.333 VAC output of this CT is low, making it much more safe to install and use than CTs with current secondaries. It is also less expensive.

The OPTOEMU-ACT-0750-250 has exceptionally low phase angle error, which is essential for accurate power and energy measurements. It complies with the linearity and accuracy requirements of IEEE/ANSI C57.13 for tenant submetering and billing. The OPTOEMU-ACT-0750-250 is recommended for use with the OptoEMU Sensor 3V energy monitoring unit, and also with SNAP-AIPM-3V analog input modules. Determine the maximum current to be measured and choose a CT with a primary current that handles both wire size and maximum current.

Other CTs available:



OPTOEMU-ACT-0750-050

OPTOEMU-ACT-0750-100

OPTOEMU-ACT-0750-250

Rated Current (primary)

50 amps

100 amps

250 amps

Output (secondary)

0.333 VAC

0.333 VAC

0.333 VAC

Dimensions

2.38 x 2.40 x 0.90 in. (6.04 x 6.10 x 2.29 cm)

2.38 x 2.40 x 0.90 in. (6.04 x 6.10 x 2.29 cm)

2.38 x 2.40 x 0.90 in. (6.04 x 6.10 x 2.29 cm)

Inner Diameter

0.78 in. (2.0 cm)

0.78 in. (2.0 cm)

0.78 in. (2.0 cm)

Leads

8 ft (2.4 m), 22 AWG, twisted pair

8 ft (2.4 m), 22 AWG, twisted pair

8 ft (2.4 m), 22 AWG, twisted pair

Accuracy

± 0.75% from 1% to 120% of rated primary current

± 0.75% from 1% to 120% of rated primary current

± 0.75% from 1% to 120% of rated primary current

Phase Angle

± 0.5 degrees (30 min) from 1% to 120% of rated current

± 0.5 degrees (30 min) from 1% to 120% of rated current

± 0.5 degrees (30 min) from 1% to 120% of rated current

Agency Approvals

UL, CE, RoHS

UL, CE, RoHS

UL, CE, RoHS

Warranty*

5 years*

5 years*

5 years*

* Original manufacturer’s warranty applies. See https://ctlsys.com/warranty-and-return-policy/

Split-Core Current Transformers Data Sheet

Split-core current transformers (CTs) offer an easy, safe, and inexpensive method for monitoring electrical energy usage. This data sheet describes split-core CTs with a 0.333 VAC secondary.

These CTs are recommended for use with the OptoEMU Sensor 3V energy monitoring unit and with SNAP-AIPM-3V analog input modules, which monitor energy using CTs with a 333 mV secondary.
