OPTOEMU-CTS-1250-400
Hover over image to zoom in

OPTOEMU-CTS-1250-400

$95.00 (USA and Canada only)

Availability: In stock

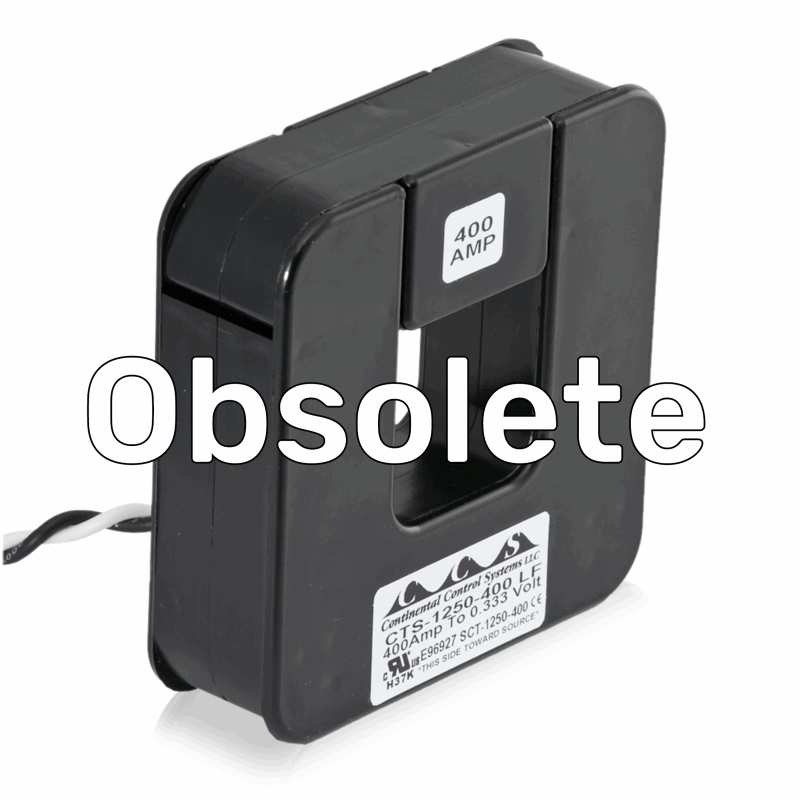

OBSOLETE Current Transformer, Split Core, 0.333V, 400A, 1.25 inch (3.18 cm) Inner Diameter
Data Sheet

Production Specification

NOTE: Available only until stock is depleted. However, the OPTOEMU-ACT-1250-400 is a drop-in replacement with additional features.

The OPTOEMU-CTS-1250-400 current transformer (CT) from Continental Control Systems offers an easy, safe, and inexpensive method for monitoring electrical energy usage. It is recommended for use with the OptoEMU Sensor.

This CT has a 400 amp primary and a 0.333 VAC secondary. Its inner diameter is 1.25 inches (3.18 cm). Ideal for retrofit applications, the split core makes it possible to attach the CT without disturbing existing wiring. Just open the CT, slip it over the wire, and snap the CT closed. Once assembled, the CTs have no exposed metal parts.

The 0.333 VAC output of this CTs is low, making it much more safe to install and use than CTs with current secondaries. Voltage CTs are also less expensive.

While somewhat less accurate than CTs with a current secondary and therefore not designed for metering applications where high accuracy is necessary for billing purposes, these CTs are accurate to ± 1% from 10% to 130% of rated current. This level of accuracy is well suited to energy monitoring applications.

The CT has an internal precision burden resistor across the secondary and is core interleaved at joints for accuracy. Phase angle is measured at 50% of rated current. The CT has an epoxy-encapsulated housing and includes 8-foot-long, twisted-pair, 22 AWG leads.

Refer to dimensional diagram below.



OPTOEMU-CTS-0750-70

OPTOEMU-CTS-0750-150

OPTOEMU-CTS-1250-400

OPTOEMU-CTS-2000-600

Rated Current (primary)

70 amps

150 amps

400 amps

600 amps

Output (secondary)

0.333 VAC

0.333 VAC

0.333 VAC

0.333 VAC

Dimension A (width)

2.00 in. (5.08 cm)

2.00 in. (5.08 cm)

3.25 in. (6.45 cm)

4.75 in. (12.1 cm)

Dimension B (depth)

2.10 in. (5.33 cm)

2.10 in. (5.33 cm)

3.35 in. (8.51 cm)

5.00 in. (12.7 cm)

Dimension C (height)

0.61 in. (1.55 cm)

0.61 in. (1.55 cm)

1.00 in. (2.54 cm)

1.20 in. (3.05 cm)

Inner Diameter (D, E)

0.75 in. (1.91 cm)

0.75 in. (1.91 cm)

1.25 in. (3.18 cm)

2.00 in. (5.08 cm)

Accuracy

± 1% from 10% to 130% of rated current

± 1% from 10% to 130% of rated current

± 1% from 10% to 130% of rated current

± 1% from 10% to 130% of rated current

Agency Approvals

UL, CE, RoHS

UL, CE, RoHS

UL, CE, RoHS

UL, CE, RoHS

Warranty*

5 years*

5 years*

5 years*

3 years*

* Original manufacturer’s warranty applies. See https://ctlsys.com/warranty-and-return-policy/
