OPTOEMU-PT600

$625.00 (USA and Canada only)

Availability: In stock

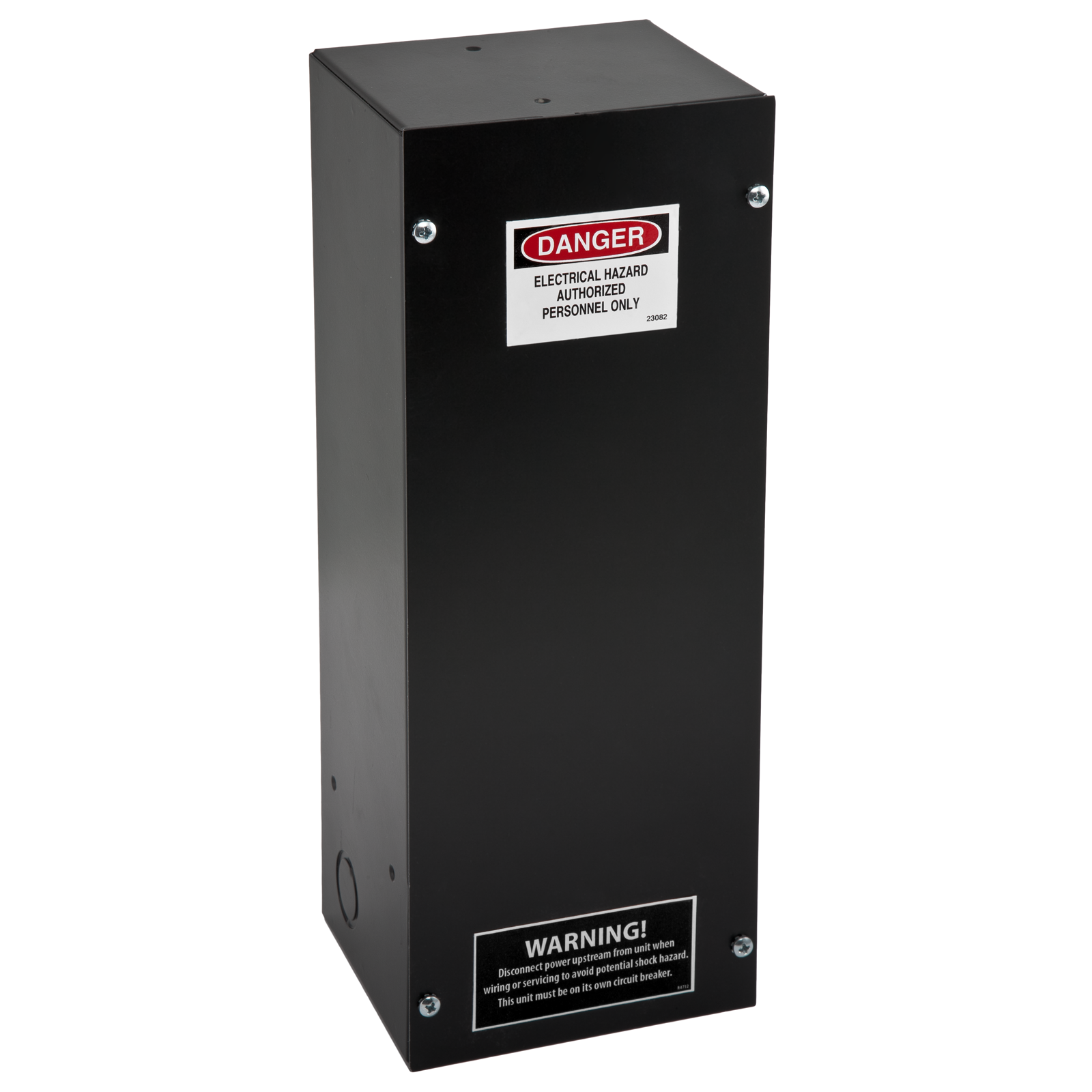

Auxiliary Box for OptoEMU Sensor with Stepdown Power Transformer & Fusible Disconnect

Please call (800) 321-6786 to order.

OPTOEMU-PT600

Production Specification

The OPTOEMU-PT600 auxiliary box is an optional accessory for the OptoEMU Sensor energy monitoring appliance.

In most installations, power for the OptoEMU Sensor is provided through a standard 120 or 240 wall outlet. However, if power is provided through another source, for example a monitored electrical panel, you will need the OPTOEMU-PT600 auxiliary box.

The box contains a transformer that takes input voltages between 220 and 600 VAC and transforms them to the 100-250 volts required by the OptoEMU Sensor. The box also contains a fusible disconnect for safety.

Note: This box is not intended for CAT3 installations.

Input voltage range

220–600 VAC line-to-line

Output voltage

110–240 VAC (power for OptoEMU-SNR-3V)

Fuses

1 amp, class CC, 600 VAC (Edison part number HCLR1)

Dimensions

6.0" w x 13.5" h x 4.5" d

Enclosure

Sturdy metal enclosure with standard knockouts for wiring

Agency Approvals

CE, RoHS, DFARS

Warranty

30 months

* NOTE: Not intended for CAT3 installations.
