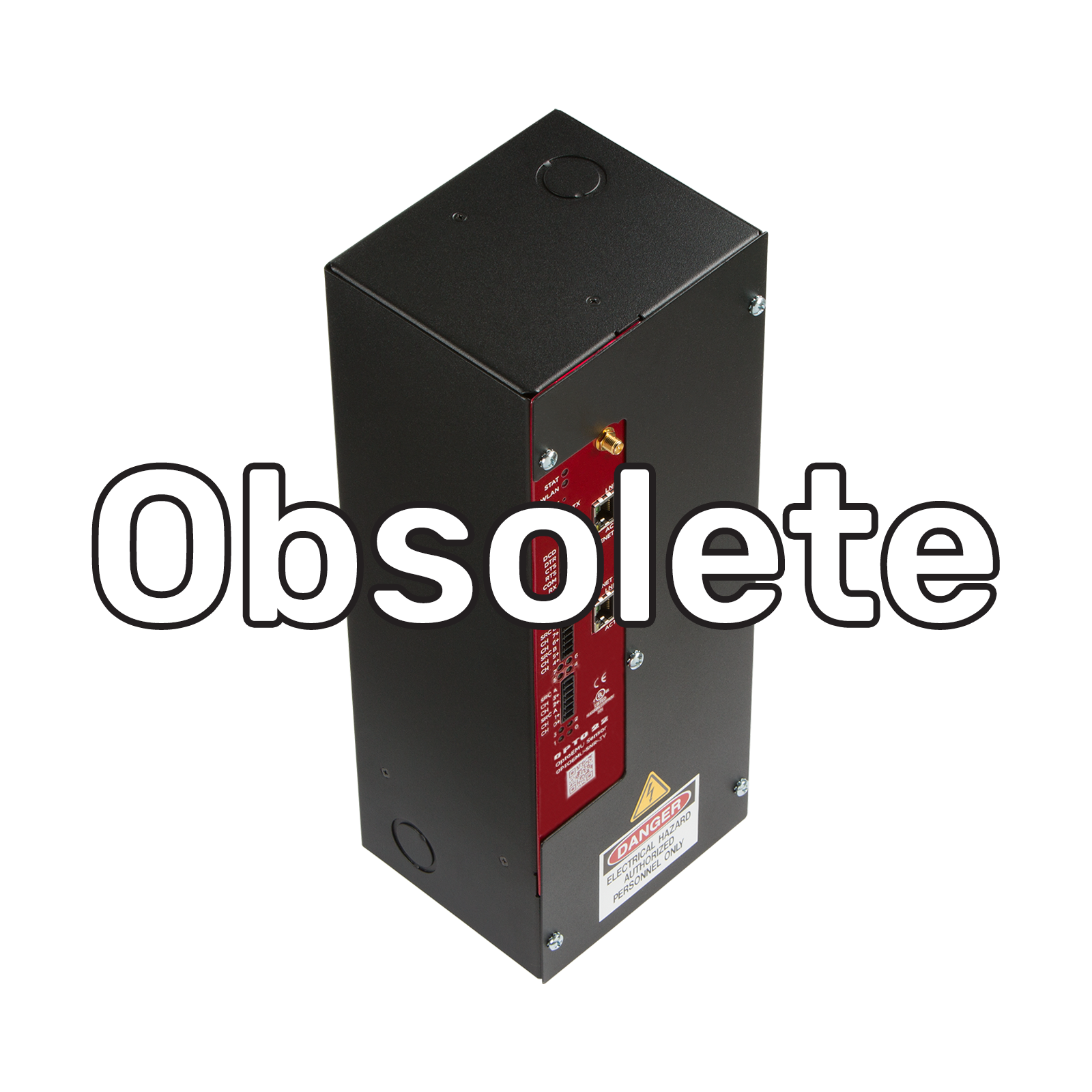

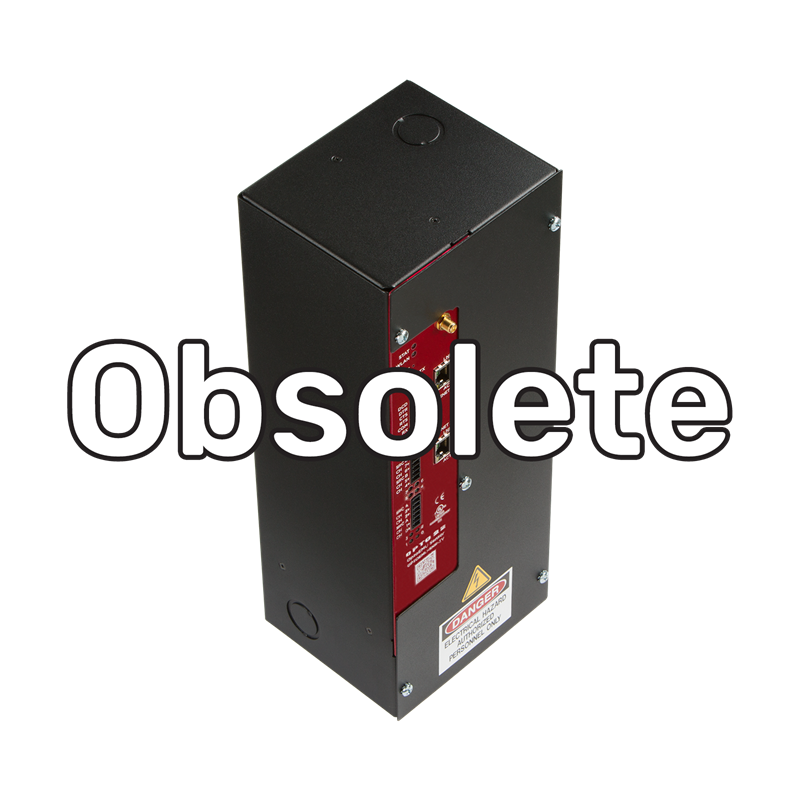

OPTOEMU-SNR-3V

Availability: OBSOLETE
Wired+Wireless monitoring unit for electrical panels, machines, and equipment

Please call (800) 321-6786 to order.

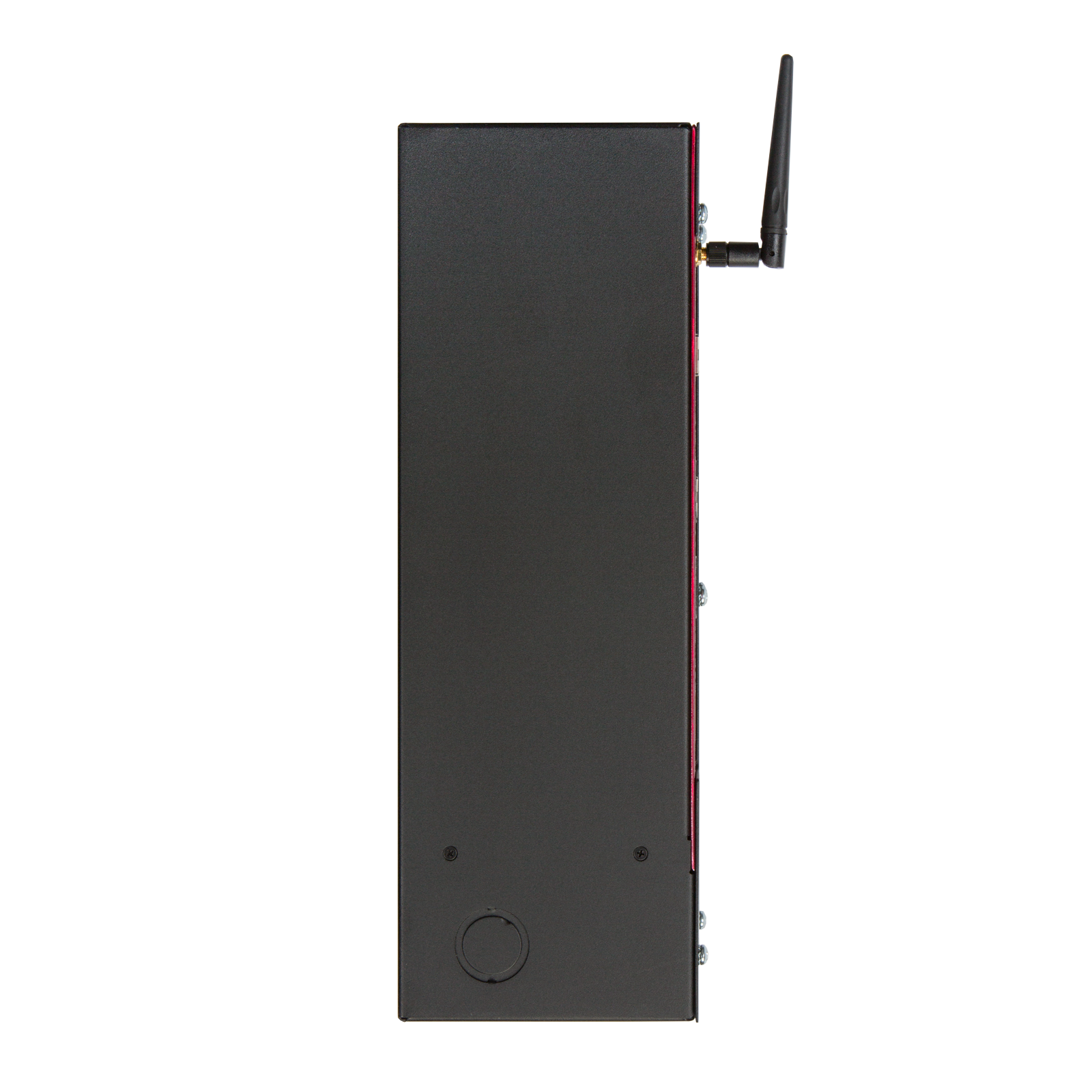

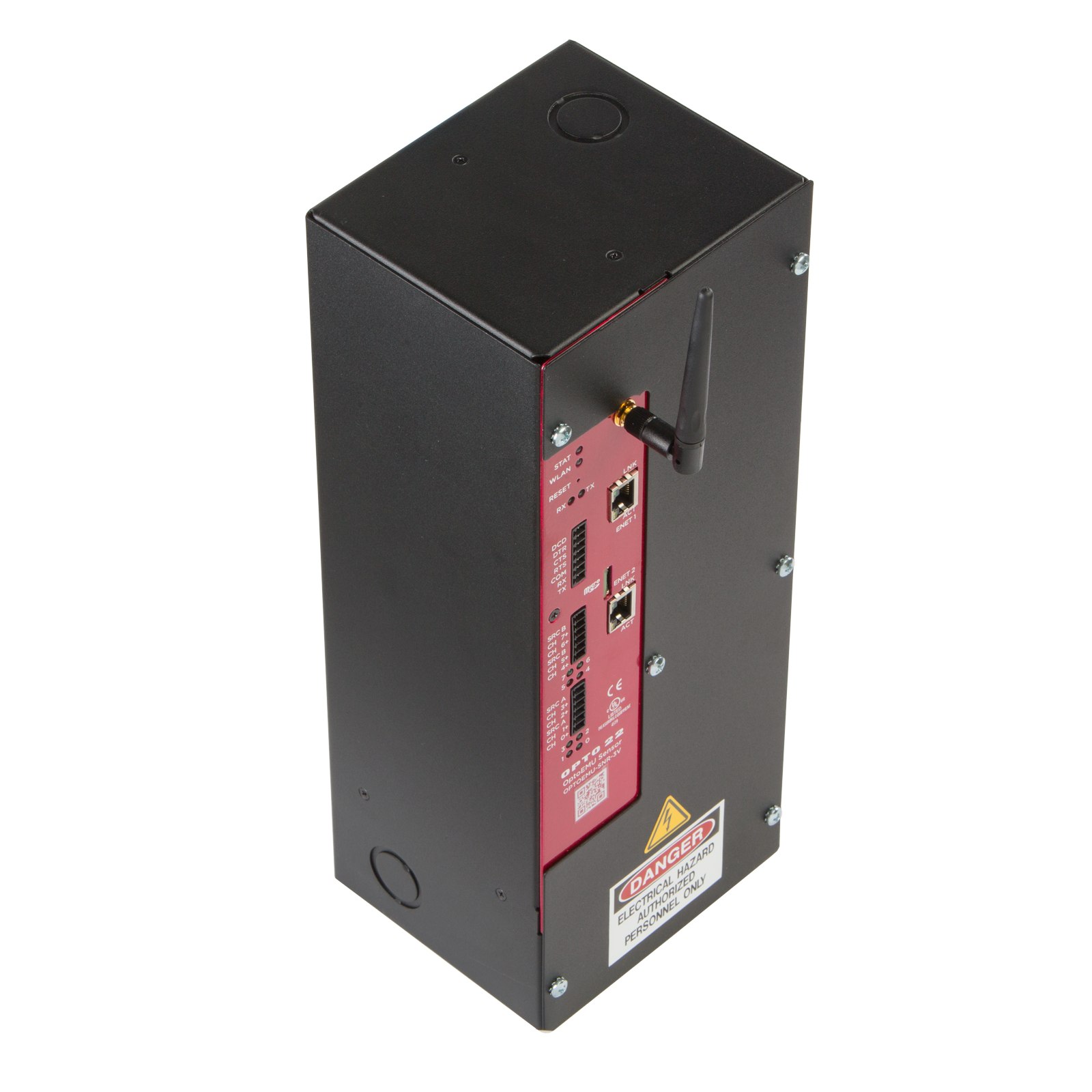

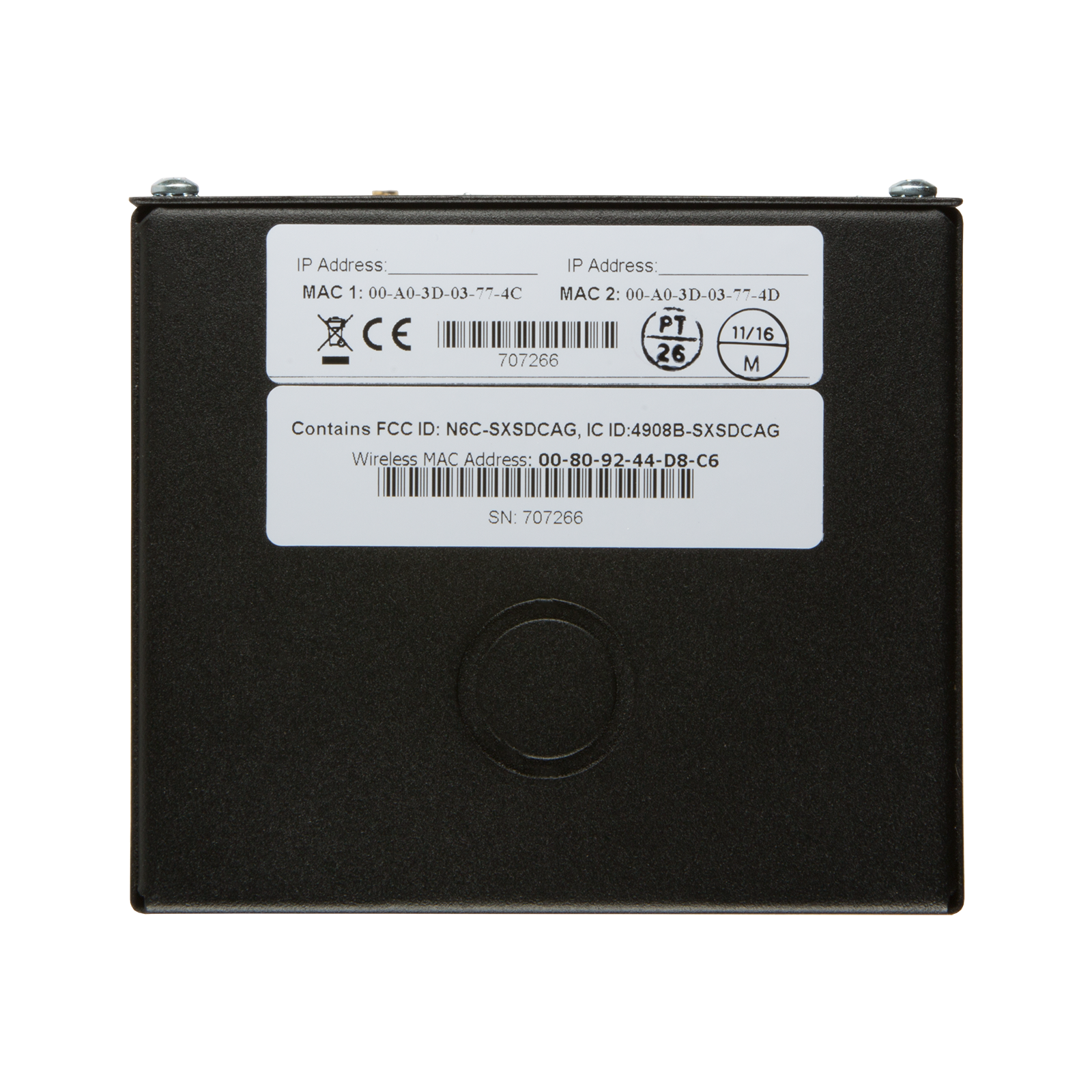

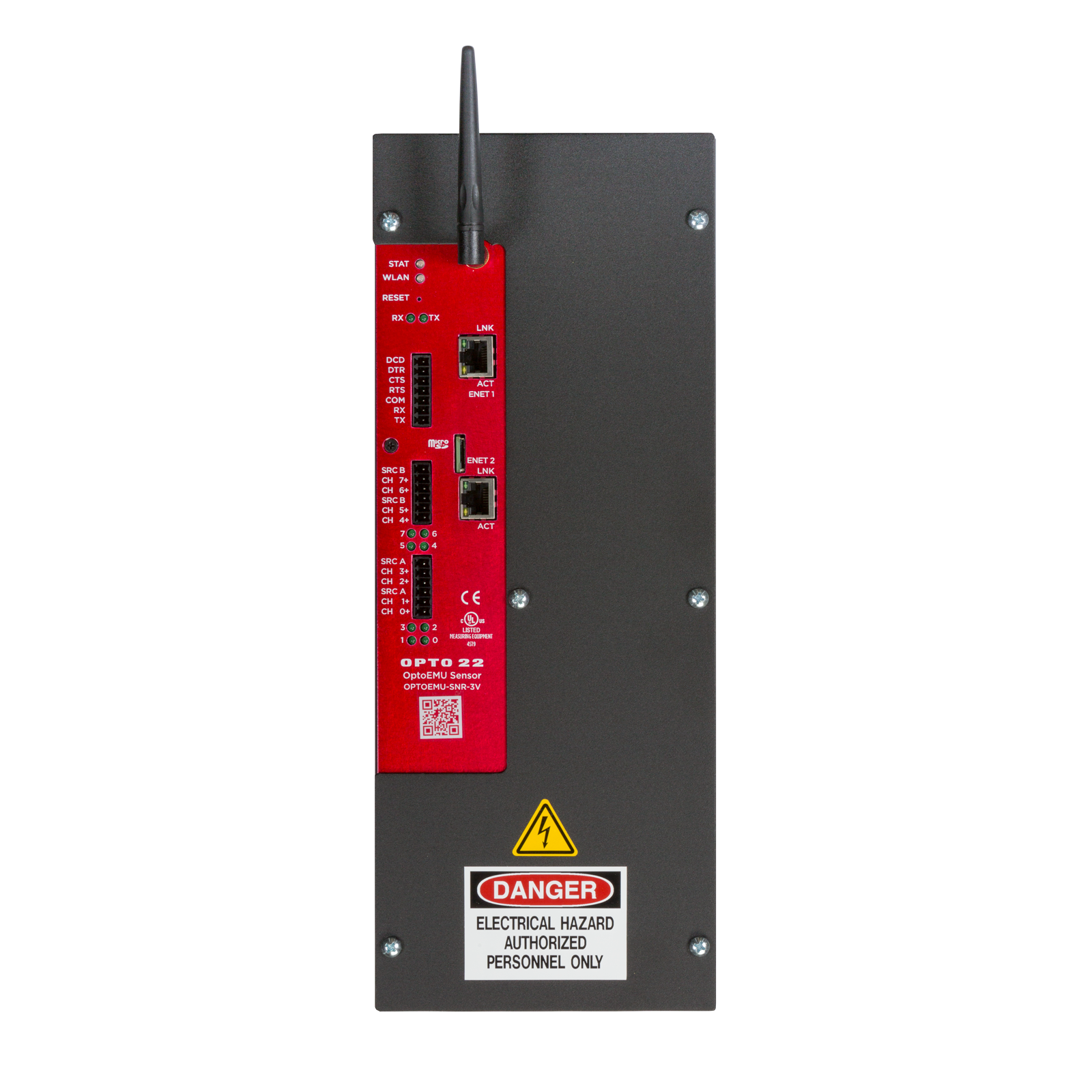

OPTOEMU-SNR-3V

Production Specification

The OptoEMU Sensor™ Energy Monitoring Unit monitors the electrical energy used in your facility and then delivers that data to online software applications—and optionally control and business systems—using your existing wired or wireless Ethernet network. The OptoEMU Sensor gives you the detailed, real-time data you need to analyze energy consumption and reduce energy costs.

You can view the real-time and historical energy data gathered by the OptoEMU Sensor online through a secure software service such as eSight. The OptoEMU Sensor sends energy data directly to the service you choose, and you can view and analyze the data from any authorized computer or mobile device.

You can also incorporate data from the OptoEMU Sensor in control systems based on Opto 22’s PAC Project™ software or Modbus/TCP, or send data to OPC clients, SQL databases, or custom programs you develop using the Microsoft .NET Framework.

The OptoEMU Sensor monitors energy used by your whole building, by electrical subpanels, or by individual high-energy users like chillers and compressors. The Sensor can connect to a variety of metering devices that emit pulses and can also connect directly to electrical circuits using current transformers (CTs) with a 0.333 VAC secondary.

The Sensor includes an easy-to-use utility program for setting up communication on your network, configuring the monitored devices, and entering the connection information needed to send data to the software service. You can download this OptoEMU Sensor Manager for free; it also comes on a CD with the Sensor.

Energy management represents significant opportunities to improve the bottom line. The OptoEMU Sensor makes it easy to eliminate assumptions, identify trouble spots, and save energy costs.

Other options for energy monitoring:
  • OPTOEMU-SNR-DR1, an energy monitoring unit with demand response capability and Wired+Wireless communication
  • OPTOEMU-SNR-DR2, an energy monitoring unit with demand response capability and wired Ethernet communication



Overall Unit Specifications

Power Requirements
(without auxiliary box)

100–240 VAC, 47–63 Hz, 0.4 A maximum, 8 W

Power Requirements
(with auxiliary box)

100–240 VAC (single phase) or 277–346 VAC (line to neutral from 480–600 VAC panels)

Dimensions

6.0"w x 13.5"h x 4.5"d (15.2 cm x 34.3 cm x 11.4 cm)

Enclosure

Sturdy metal enclosure with standard knockouts for wiring

Removable storage

MicroSD card slot (for future use)

Backup battery

Rechargeable (recharges whenever the unit has power), 3-year power-off data retention

Ethernet Communication (wired)

Two independent 10/100 Mbps Ethernet network interfaces (RJ-45 connec­tors), each with a separate IP address.

Ethernet Comm (wireless)

Wireless LAN interface with separate IP address.

Security:
802.11i: AES - Compatible with WPA2 Personal;
TKIP - Compatible with WPA Personal.

Frequency 802.11a:
5.180–5.240 GHz, 5.745–5.825 GHz

Frequency 802.11b/g:
2.412–2.472 GHz, 2.484 GHz

Transmit Power:
5 dBm maximum

Antenna Connector:
Reverse polarity SMA (RP-SMA or RSMA)

Roaming:
Supported within an SSID (Service Set Identifier) only

Serial Communication

One serial port, software configurable for RS-232 (TX, RX, COM, DTR, DCD, RTS, CTS) or RS-485 (2-wire, 4-wire, optional termination, optional biasing).

Indicators

Status of unit
Wireless: WLAN activity
Serial: Receiving, Transmitting
Ethernet interfaces (2): Link, Activity
Pulse inputs: On/Off status

Other features

Real-time clock

Operating Temperature

0 to 60 °C (32 to 140° F)

Storage Temperature

-25 to 85 °C (-13 to 185° F)

Humidity

0% to 95% relative humidity, non-condensing

Agency Approvals

UL, cUL, DFARS

Wireless: U.S., FCC Part 15 Subpart C; Canada, IC RSS-210

Warranty

30 months



Dry Contact Pulse Inputs

OptoEMU Sensor supplies 15 volts to each external dry contact switch and senses switch closure.



Open Circuit Voltage (Switch Open)

15 VDC typical (supplied by OptoEMU Sensor)

Short Circuit Current (Switch Closed)

7 milliamps nominal

Minimum Off Resistance

>20 K ohms

Maximum Allowable ON Resistance
(Wire + Contact Resistance)

500 ohms

Turn-on Time

5 msec

Turn-off Time

25 msec

Channel-to-channel Isolation

8 channels isolated in groups of two

Input-to-output Isolation

1500 V AC/DC

Minimum Pulse Width

>=7 milliseconds

Maximum Frequency

<=30 Hz

Status indicators

1 LED per channel



3-Phase Power Monitoring

Voltage Inputs (each voltage channel)

Input Range

0 to 400 VAC RMS (line to neutral—347 V for a 600 V 3-phase sys­tem or 277 V for a 480 V 3-phase system)

Input Over Range

To 440 volts

Resolution

10 mV

Accuracy (47 to 63 Hz)

± 0.2 V plus ± 0.2% reading (at full scale = ±0.2 V + ±0.8 V = ±1.0 V)

RMS Integration Time/ Data Freshness

1000 ms (synchronous with current measurement)

Input Resistance – Single Ended

1 Megohm
NOTE: Because both channels share the same reference terminal,
polarity must be observed when connecting the current channel.

Maximum Input

600 V non-operating

Current Inputs (each current channel)

Input Range

0 to 333 mV AC input from current transducer

Input Over Range

To 416 mV AC

Input Overload

5 VAC continuous, non-operating

Resolution

15.1 µV AC

Accuracy (47 to 63 Hz)

± 266 microvolts plus 0.2% of reading
(at full scale = 266 µV + 667 µV = 933 µV = 0.28%)

RMS Integration Time/ Data Freshness

1000 ms (synchronous with voltage measurement)

Input Resistance – Single Ended

500 K Ohms
NOTE: Because both channels share the same reference terminal,
polarity must be observed when connecting the voltage channel.

Maximum Input

5 VAC continuous, non-operating

OptoEMU Sensor 3V Data Sheet

The OptoEMU Sensor™ Energy Monitoring Unit monitors the electrical energy used in your facility and then delivers that data to online software applications, using your existing wired or wireless Ethernet network.

Energy data can also be incorporated into a control system, including the SNAP PAC System and systems communicating via Modbus/TCP or OPC. In addition, data can be sent to common SQL databases.

The OptoEMU Sensor gives you the detailed, real-time data you need to analyze energy consumption, manage use, and reduce energy costs.
