PB16AH
Hover over image to zoom in

PB16AH

$347.00 (USA and Canada only)

Availability: In stock

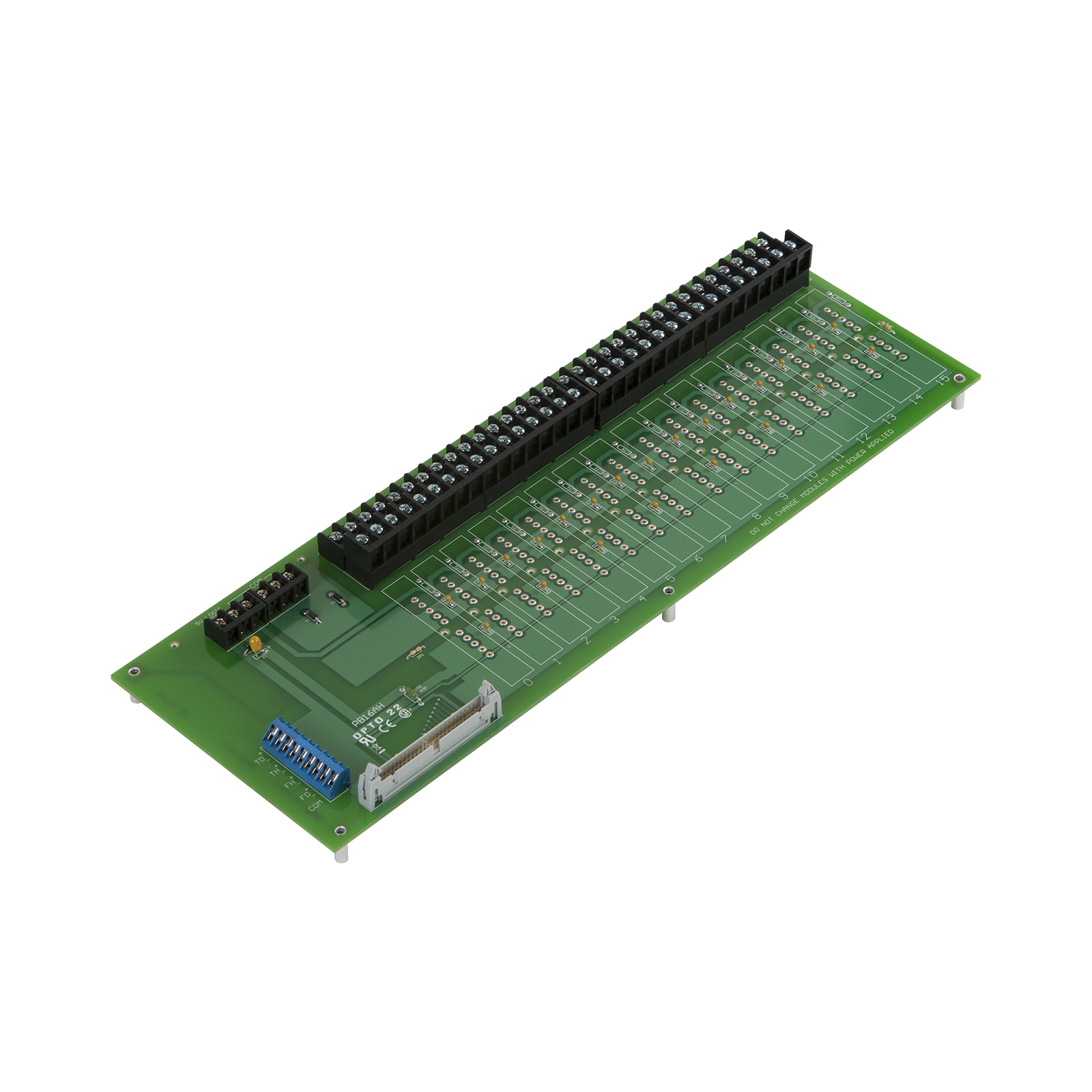

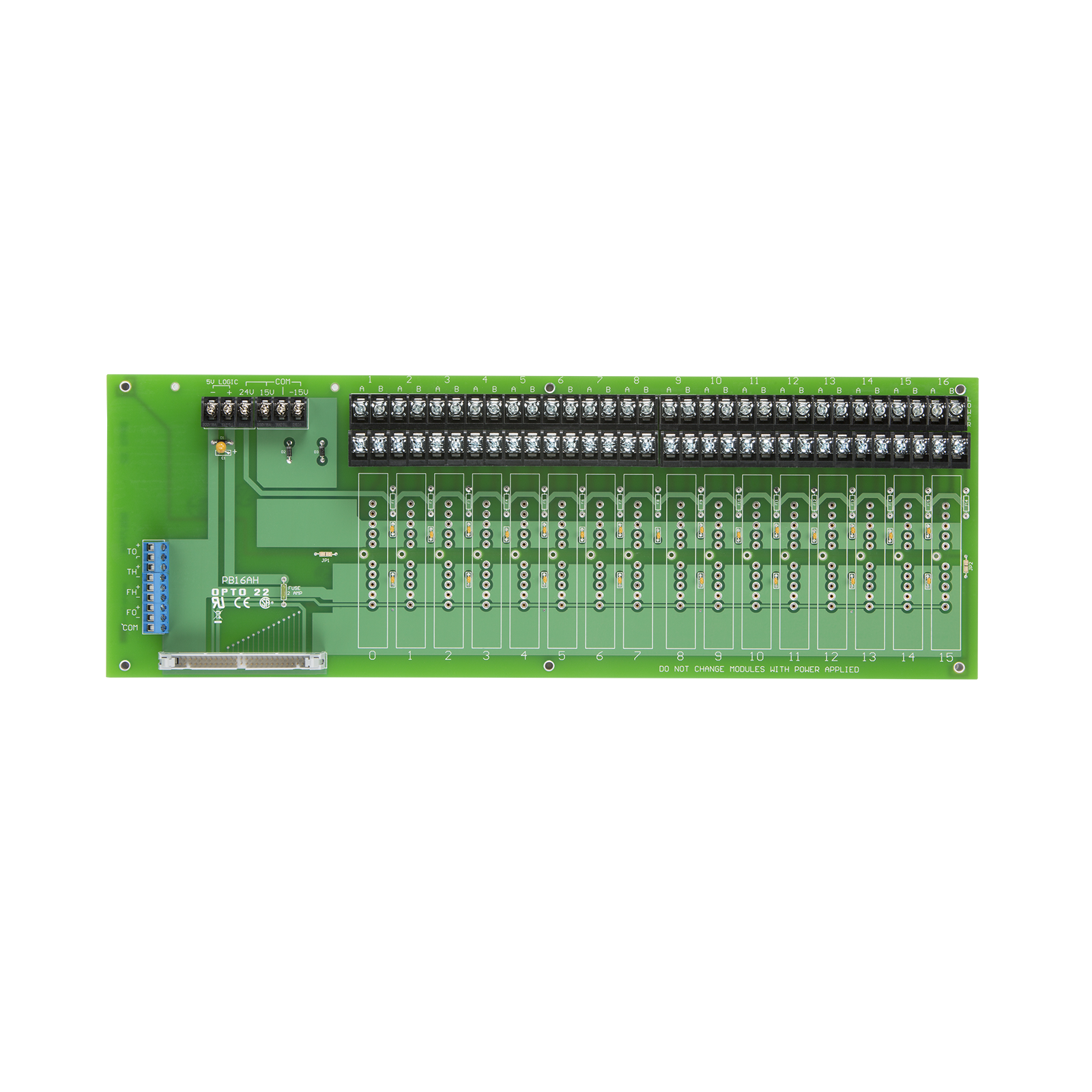

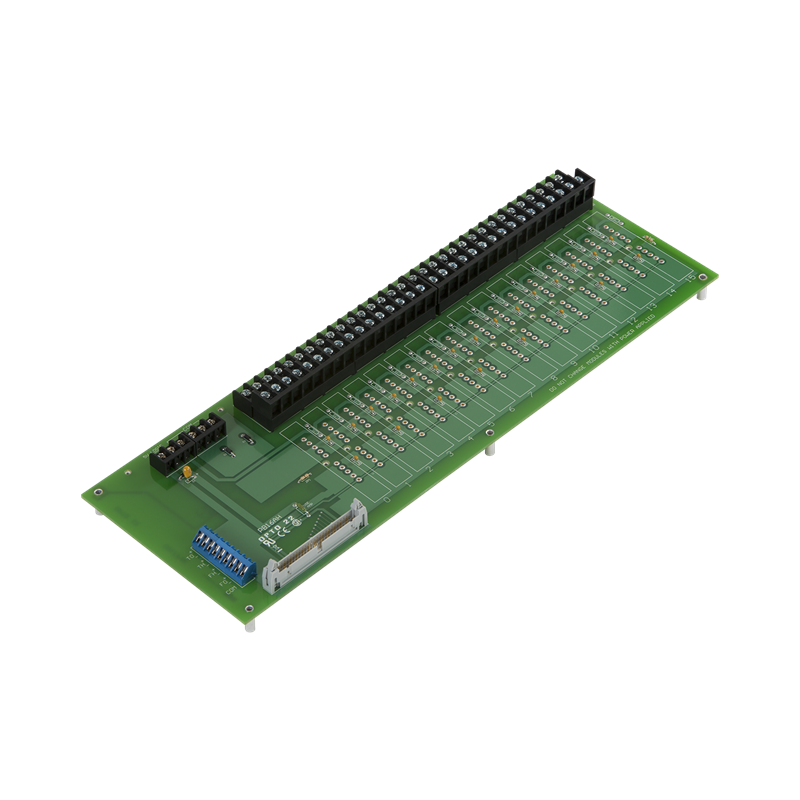

G1 16-channel Analog Mounting Rack

Production Specification

G1 I/O family

The PB16AH I/O mounting rack can accommodate up to 16 standard G1 analog I/O modules.

The rack uses a 50-pin header connector to interface with Optomux E2 brain boards. It is also compatible with obsolete Optomux B2, Pamux B6, and mistic B200 brain boards.

Operating Temperature

0 to 70 °C

Relative Humidity

95%, Non-condensing

Field Interface Connector

6-32 Screw Terminals

Logic Interface Connector

50-pin Male Header Connector

Power Interface
Connectors

2-position Screw Terminals to Supply 5 Volts to Brain Board.
3-position Screw Terminals to Supply ±15 Volts to Analog Modules.
Screw Terminal for Optional 24-Volt Loop Supply for Current Loop Modules

Agency Approvals UL, CE, CSA, RoHS; UKCA

.

Standard Analog 16-Channel Mounting Rack Data Sheet

The PB16AH I/O mounting rack can accommodate up to 16 standard (G1) analog I/O modules in any combination.
