PB16C

$245.00 (USA and Canada only)

Availability: Call for Availability
G1 16-channel I/O Module Rack, Edge Connector, Extra Terminal Strip

Please call (800) 321-6786 to order.

PB16C

Production Specification

G1 I/O family

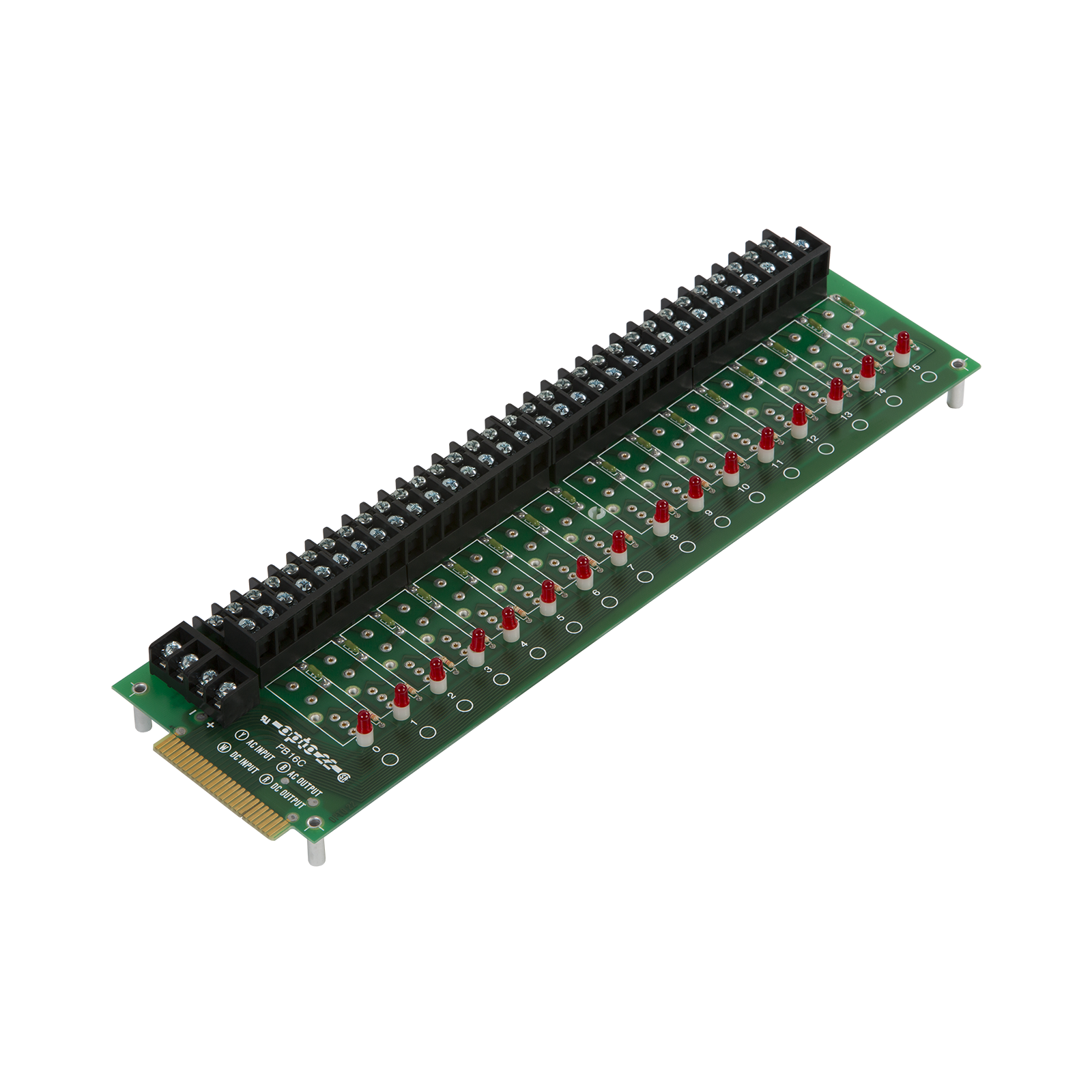

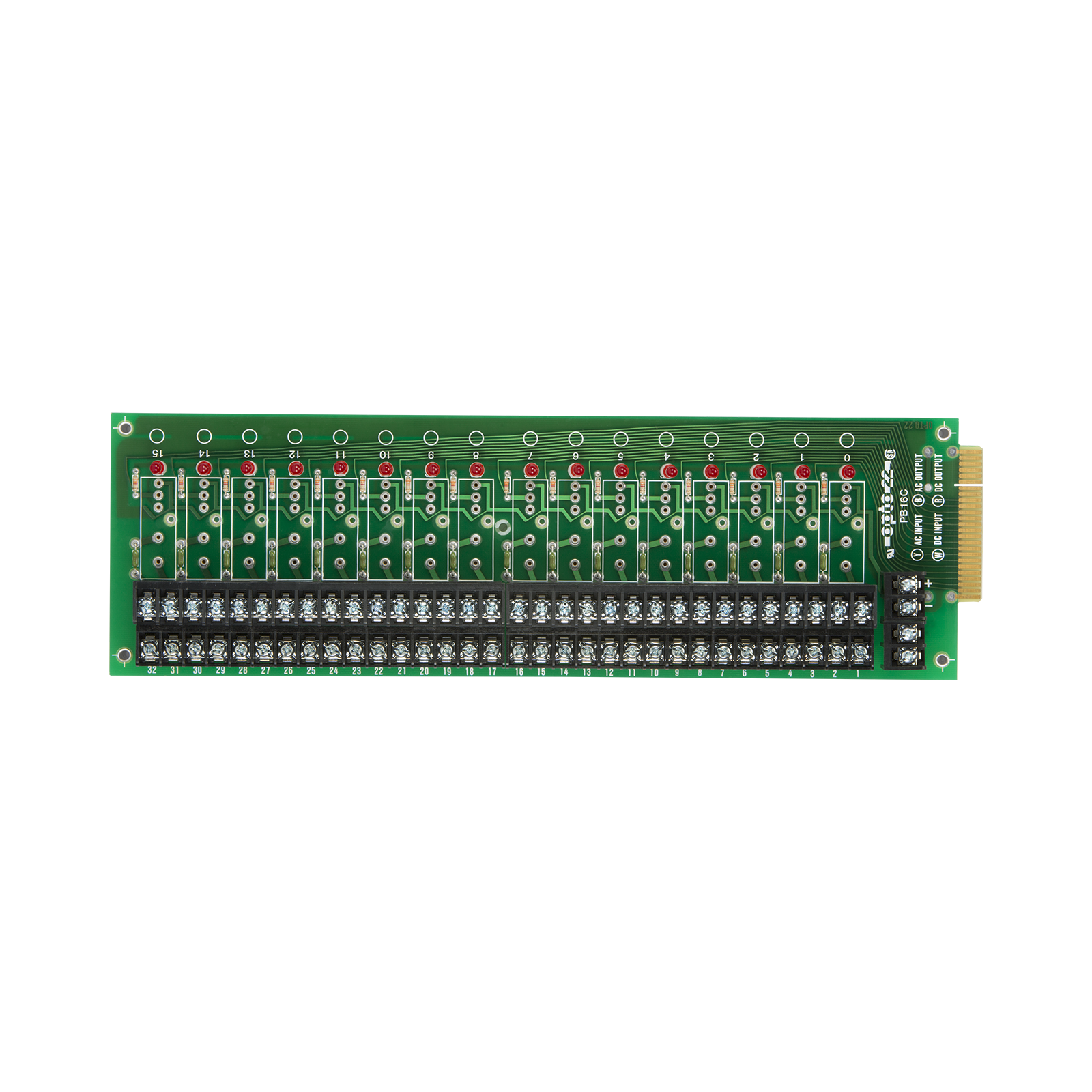

The PB16C I/O mounting rack can accommodate up to 16 Opto 22 standard G1 digital single-channel I/O modules.

This mounting rack uses a 50-pin card edge connector, via a 50-conductor ribbon cable, for interfacing to older computers using an ISA bus.

The rack features an extra row of isolated terminals for field connections.

Operating Temperature

0 to 70 °C; 95% relative humidity
Non-condensing

Interface Connector Field

6-32 screw terminals

Logic

50-conductor card edge connector

Compatible I/O Module Family

Standard (Generation 1).



Standard Digital 16-Channel (with extra terminal strip) Rack Data Sheet

The PB16C I/O mounting rack can accommodate up to 16 single-channel standard I/O modules.

Declaration of Conformity (RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Standard Digital I/O Wiring Diagrams

Wiring diagrams for Standard digital modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

PB Rack Strap in-the-box

Shows the use of STRAP8 and STRAP2 on PB mounting racks.

No downloads are available for this product.
No videos or demos are available for this product.
