PB16H
Hover over image to zoom in

PB16H

$221.00 (USA and Canada only)

Availability: In stock

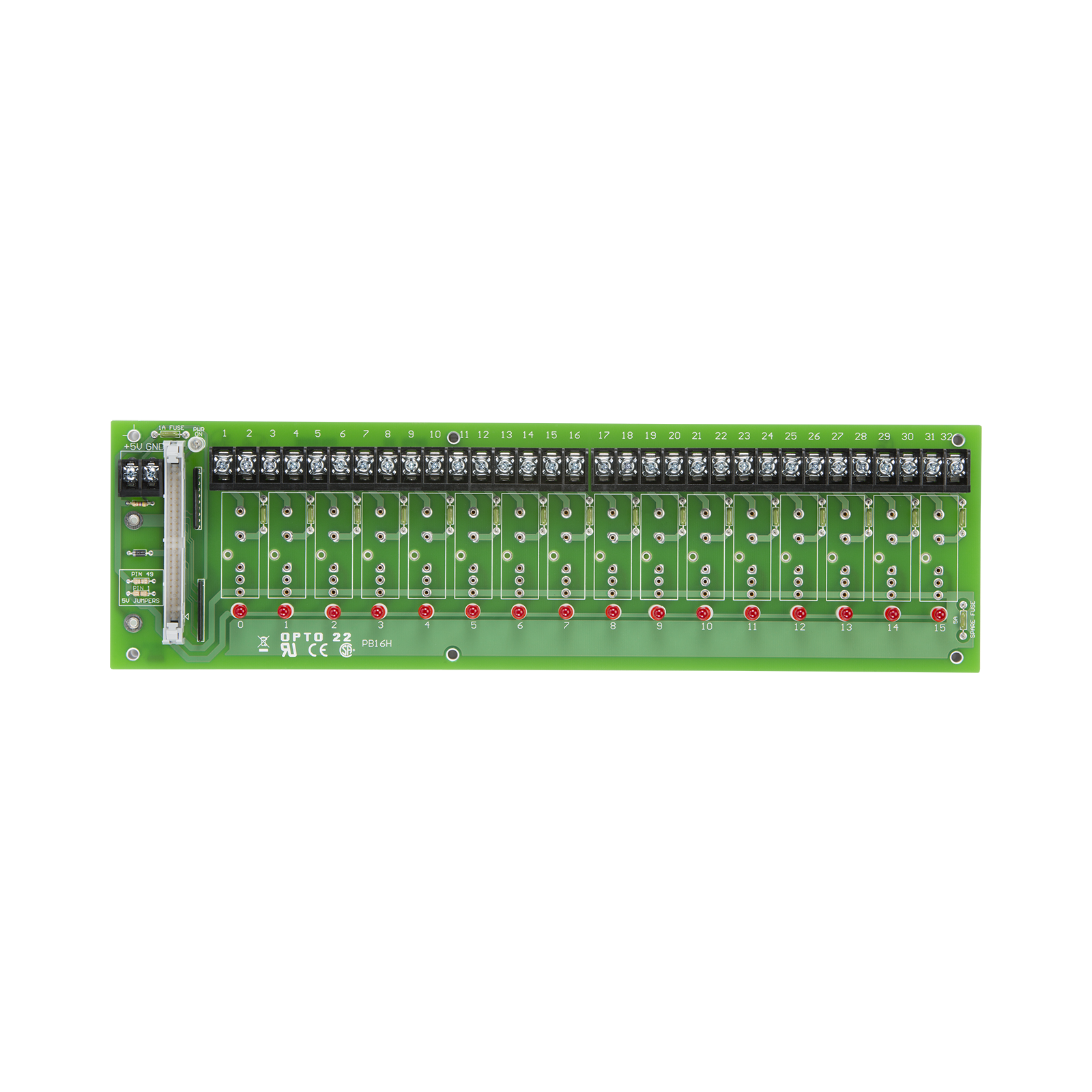

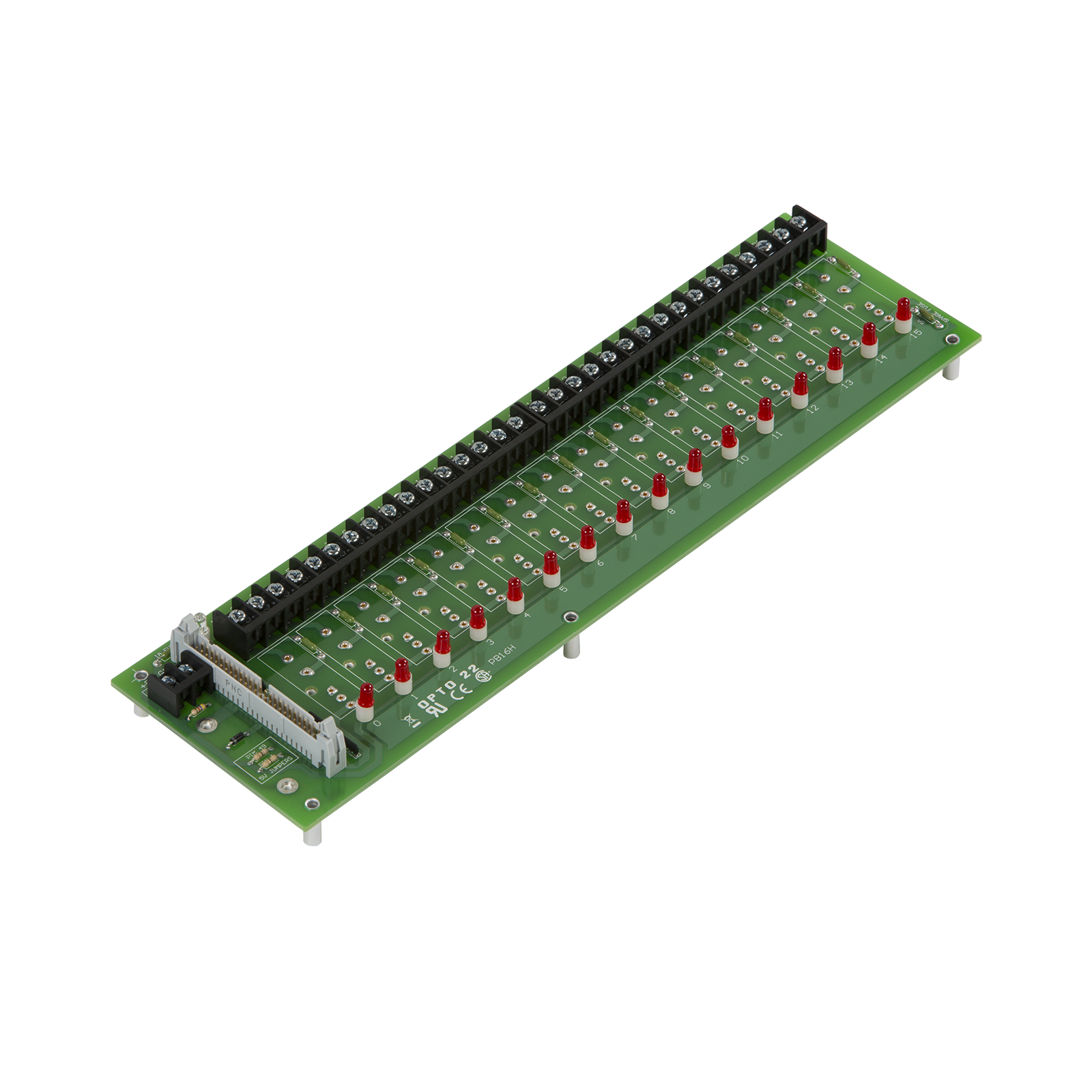

G1 16-channel Rack with Header Connector

Production Specification

G1 I/O family

The PB16H I/O mounting rack can accommodate up to 16 Opto 22 standard G1 digital single-channel I/O modules.

This rack is compatible with Optomux E1 and Pamux B5 brain boards via a 50-pin header connector. It can also be used with obsolete Optomux B1 and mistic B100 brain boards.

Operating
Temperature

0 to 70 °C
95% Relative Humidity
Non-condensing

Interface Connectors
Field
Control
Power



6-32 Screw Terminals
50-conductor Header Connector
2-position Screw Terminal or
Opto 22 PBSA/B/C Power Supply

Agency Approvals UL, CSA, CE; UKCA

.

Standard 16-Channel (with header connector) Rack Data Sheet

The PB16H I/O mounting rack can accommodate any combination of 16 standard single-channel digital I/O modules.
