PB16HC

Availability: In stock

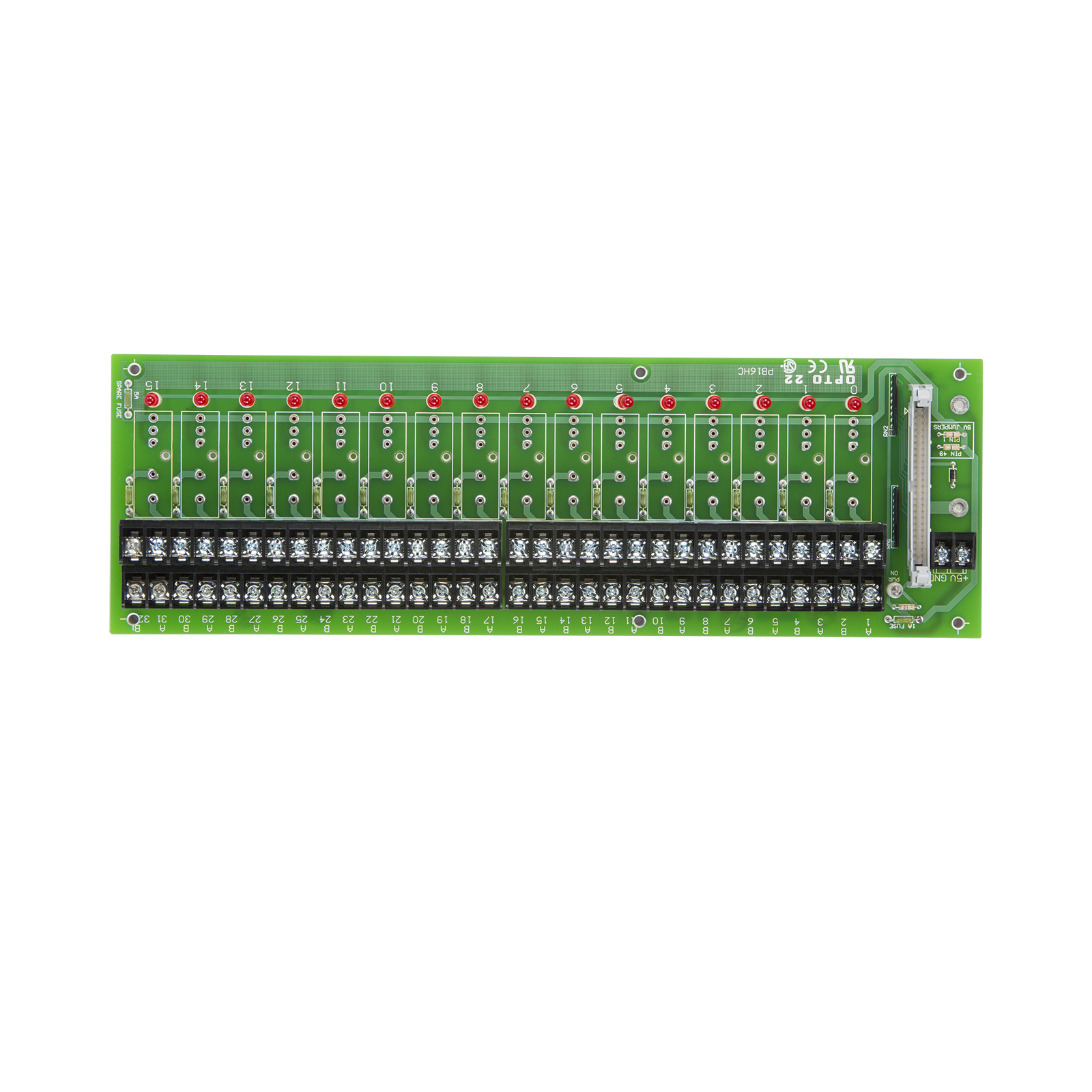

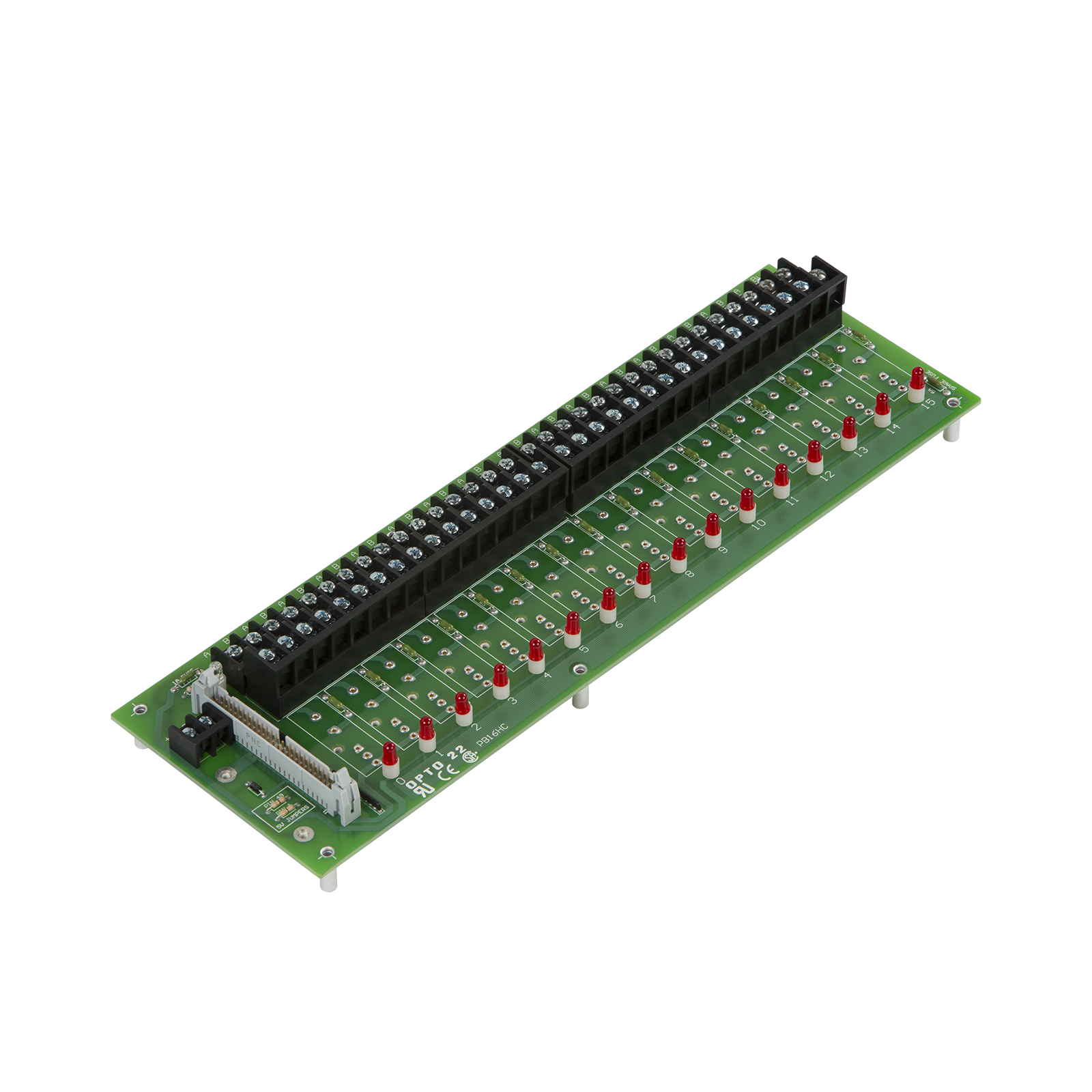

G1 16-channel Rack with Header Connector, Extra Terminal Connector

Please call (800) 321-6786 to order.

PB16HC

Production Specification

G1 I/O family

The PB16HC I/O mounting rack can accommodate up to 16 Opto 22 standard  G1 digital single-channel I/O modules (5 V).

This rack is compatible with Optomux E1 and Pamux B5 brain boards via a 50-pin header connector. It can also be used with obsolete Optomux B1 and mistic B100 brain boards.

The rack features an extra terminal connector for field loop power.

Operating Temperature

0 to 70 °C
95% Relative Humidity Non-condensing

Interface Connectors
Field

6-32 Screw Terminals

Control

50-conductor Header Connector

Power

2-position Screw Terminal or
Opto 22 PBSA/B/C Power Supply

.

Standard 16-Channel (with header, common TB) Rack Data Sheet

The PB16HC I/O mounting rack can accommodate up to 16 single-channel digital I/O modules.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

Standard Digital I/O Wiring Diagrams

Wiring diagrams for Standard digital modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

PB Rack Strap in-the-box

Shows the use of STRAP8 and STRAP2 on PB mounting racks.
