PB16J

$250.00 (USA and Canada only)

Availability: In stock

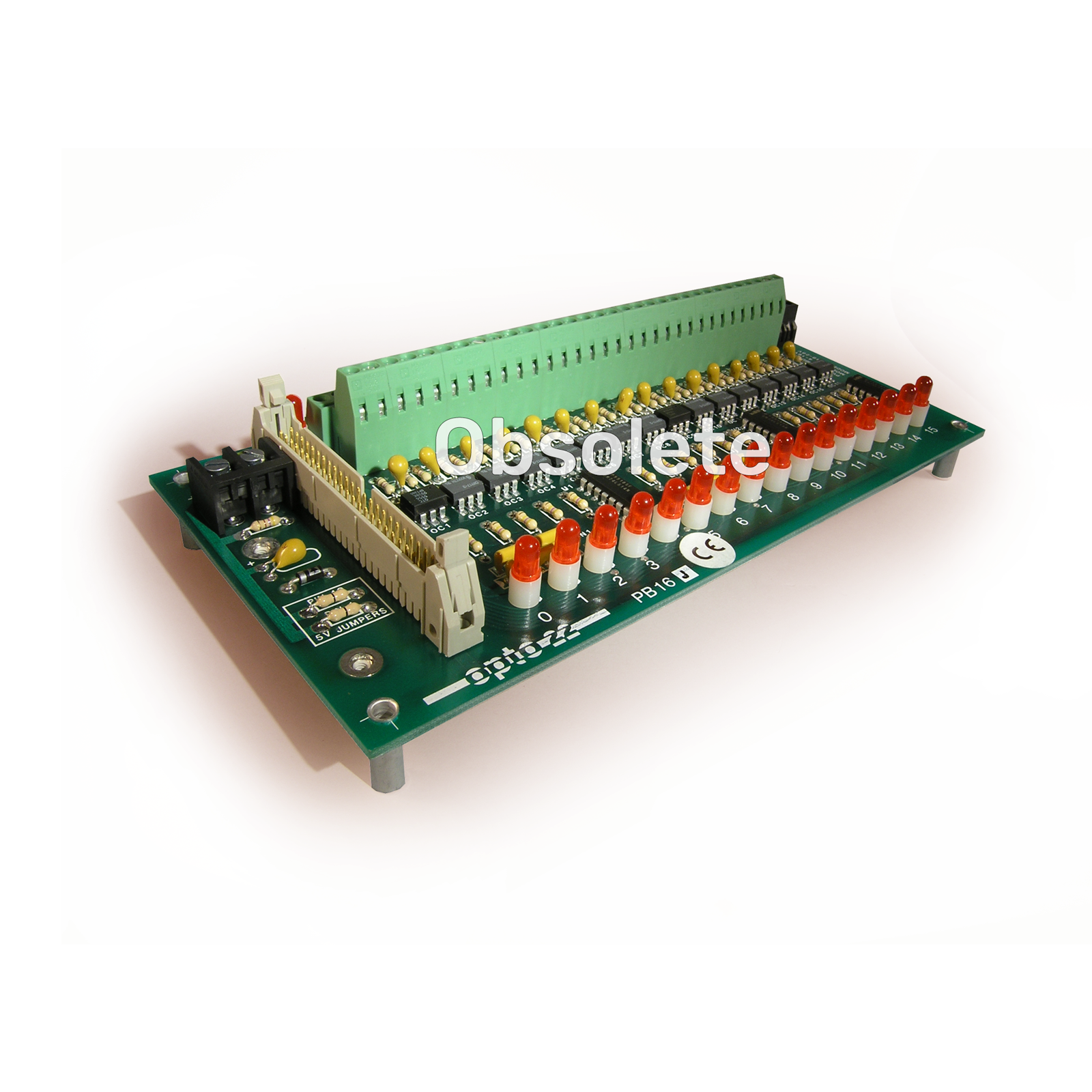

OBSOLETE DC Input 4-16 VDC 16-channel Integral Rack

Please call (800) 321-6786 to order.

PB16J

Production Specification

----OBSOLETE----

NOTE: The PB16J integrated rack is obsolete and no longer available as of August 2012, due to the unavailability of essential parts.
Instead of the integrated I/O, you can use the appropriate PB16 rack and the I/O modules you need. For example, you could use either of these: Note that you have additional flexibility with these racks, because they accommodate not just the 4-16 VDC input modules listed above, but also a variety of other modules.



PB16J

PB16K

Input Line Voltage

4 - 16 VDC

16 - 28 VDC

Input Current

3.3 mA @ 4 VDC
16 mA @ 16 VDC

3.4 mA @ 16 VDC
6.3 mA @ 28 VDC

Isolation
Input-to-Output
Channel-to-Channel



4,000 Vrms
300 Vrms continuous



4,000 Vrms
300 Vrms continuous

Capacitance Input-to-Output

8 pF/channel

8 pF/channel

Input Allowed For No Output

1 VDC (0.2 mA)

1 VDC (0.2 mA)

Turn-on Time

2.5 ms maximum

3 ms maximum

Turn-off Time

3.5 ms maximum

4.5 ms maximum

Logic Supply Voltage

4.5 - 6 VDC

4.5 - 6 VDC

Logic Supply Current

190 mA @ 5 VDC

190 mA @ 5 VDC

Operating Ambient Temperature

- 30 to 70 °C

- 30 to 70 °C



Standard DC Input 16-Channel Integral Rack Data Sheet

The PB16J and PB16K DC input racks provide 16 channels of optically-isolated inputs for sensing ON/OFF DC voltage levels.
