G1 24-channel I/O Module Rack

Production Specification

G1 I/O family

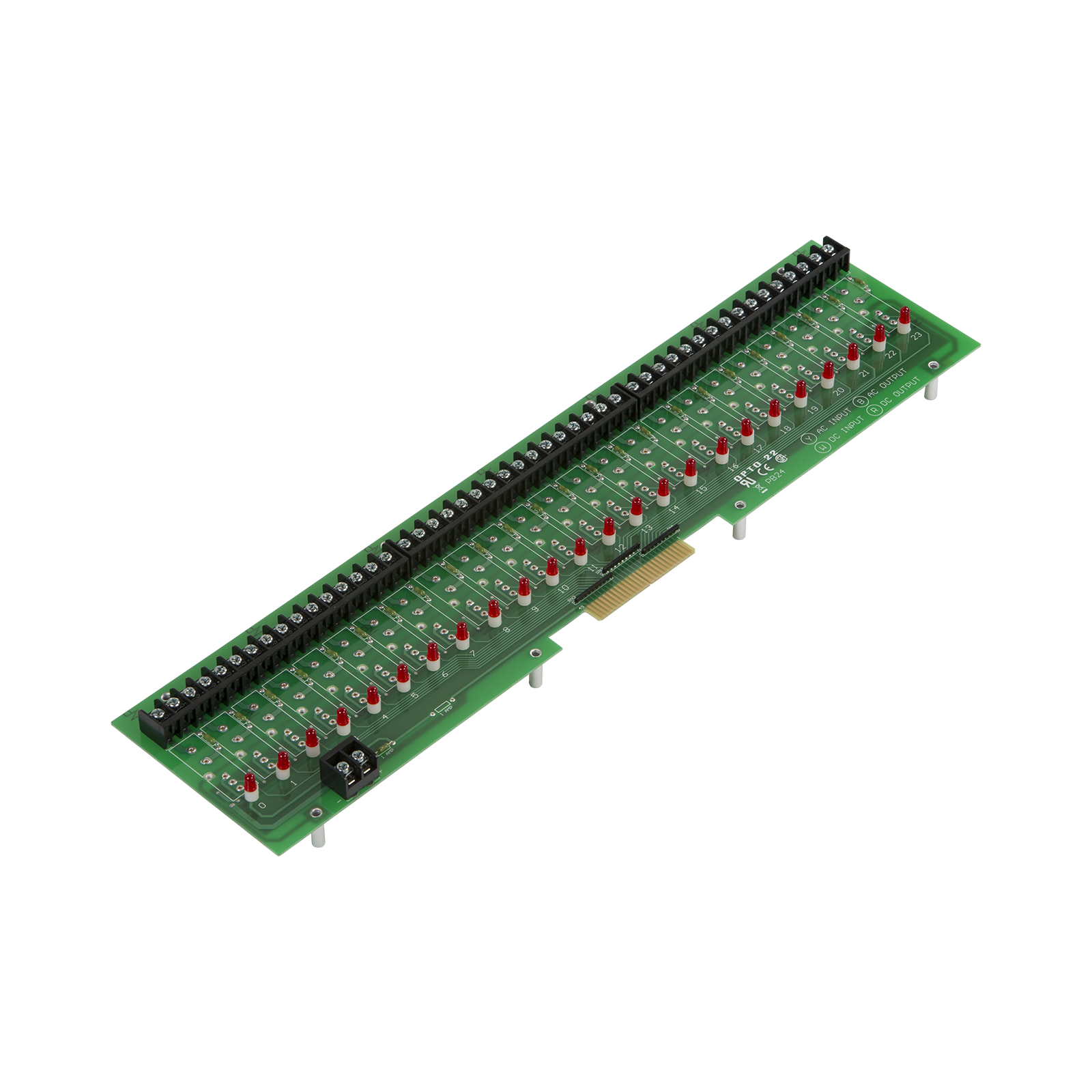

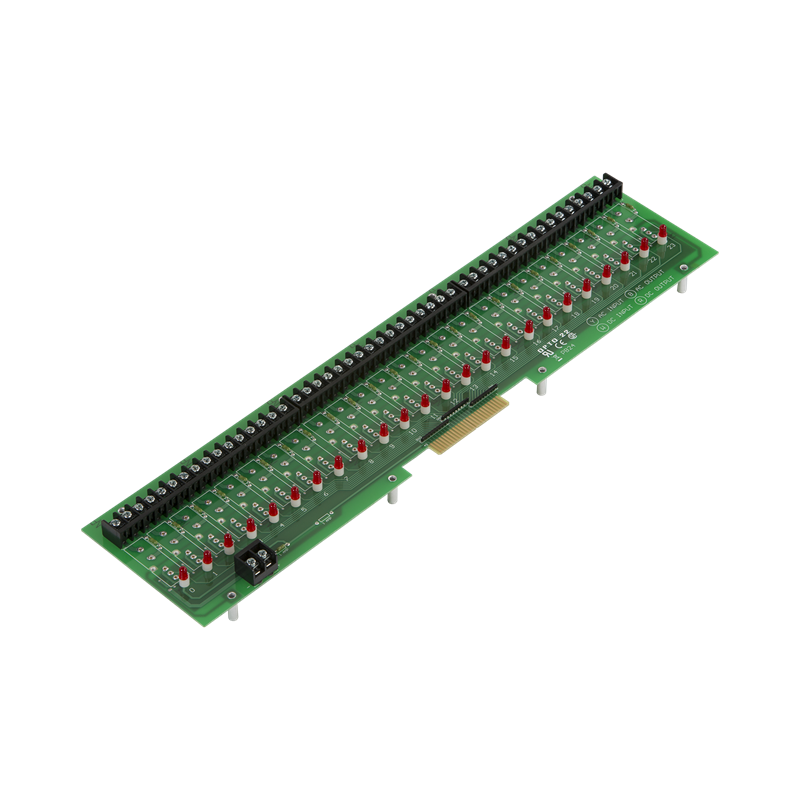

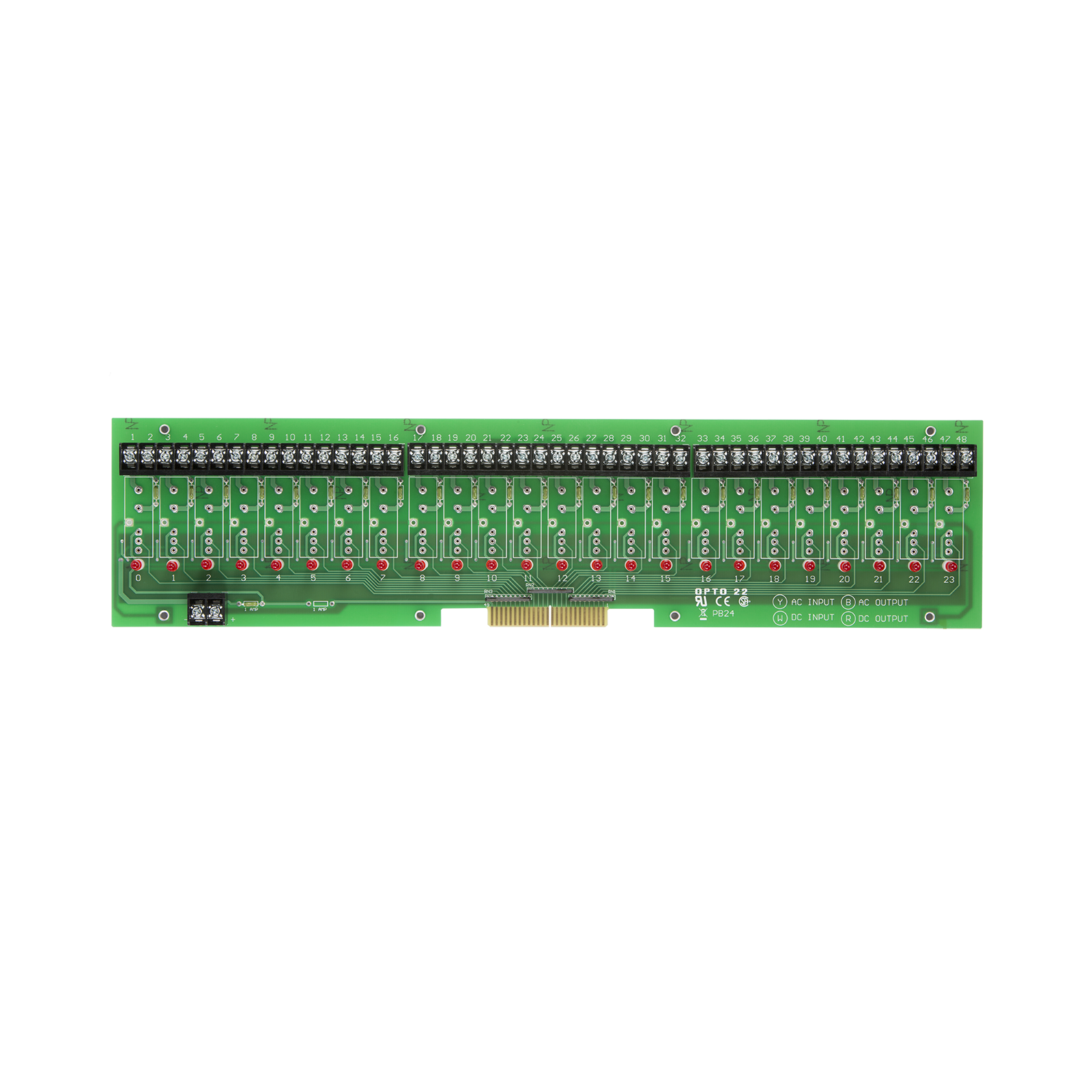

The PB24 I/O mounting rack can accommodate up to 24 Opto 22 standard G1 digital single-channel  I/O modules.

This rack uses a 50-pin card edge connector for interface to computer I/O ports via a 50-conductor ribbon cable. The mounting rack features LED status indicators and replaceable fuses for each channel.

Operating Temperature

0 to 70 °C
95% relative humidity
Non-condensing

Interface Connector
Field Logic

6-32 Screw Terminals
50-conductor edge card connector

Compatible I/O Module Family

Standard (Generation 1)

Agency Approvals UL, CSA, CE; UKCA



Standard Digital 24-Channel Rack Data Sheet

The PB24 I/O mounting rack can accommodate up to 24 single-channel standard I/O modules.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

Standard Digital I/O Wiring Diagrams

Wiring diagrams for Standard digital modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

PB Rack Strap in-the-box

Shows the use of STRAP8 and STRAP2 on PB mounting racks.
