PB24HQ

$174.00 (USA and Canada only)

Availability: In stock
Quad Pak 6-module Position Rack With Header Connector

Please call (800) 321-6786 to order.

PB24HQ

Production Specification

Quad Pak I/O family

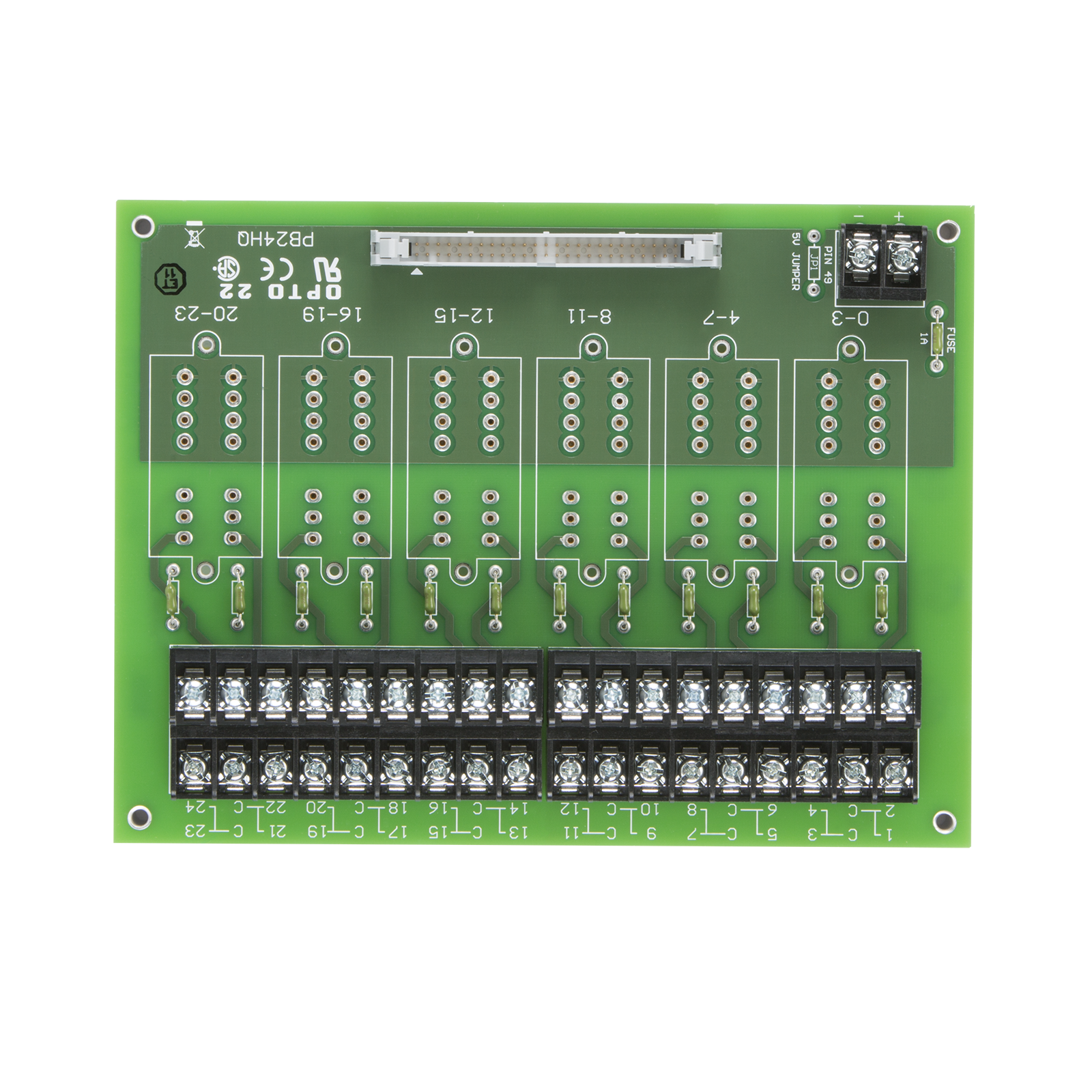

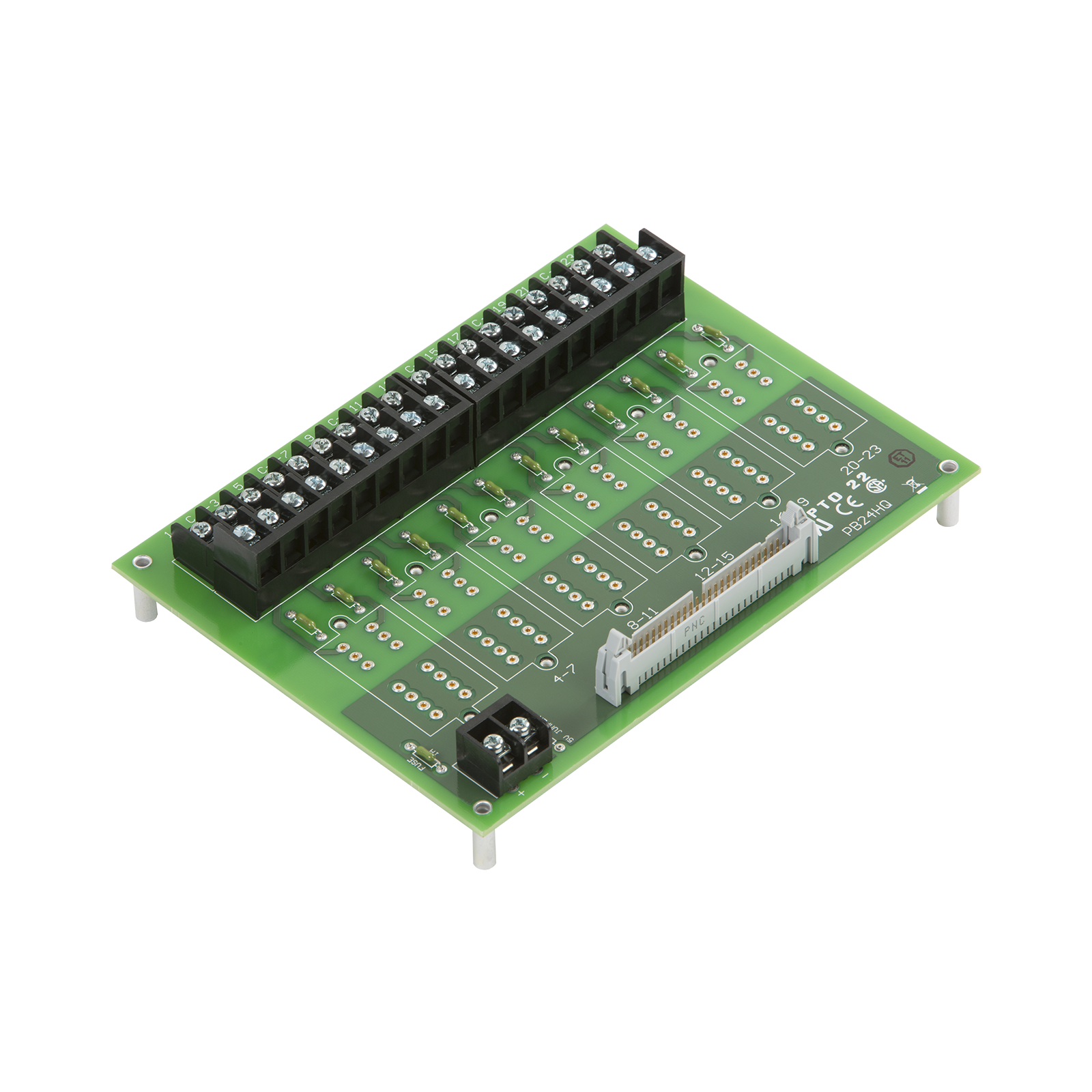

The PB24HQ I/O mounting rack can accommodate up to six Quad Pak I/O modules for a total of 24 I/O channels. This mounting rack uses a 50-pin male header connector for connection to computer parallel I/O ports via a 50-conductor ribbon cable.

Any combination of Quad Pak input and output modules can be used with the PB24HQ.

PB24HQ

Operating Temperature

0 to 70 °C
95% Relative Humidity
Non-Condensing

Interface Connector
  Field
  Logic


6-32 Screw Terminals
50-Pin Male Header Connector



Quad Pak 24-Channel (with header connector) Rack Data Sheet

The PB24HQ I/O mounting rack can accommodate up to six Quad Pak I/O modules for a total of 24 I/O channels.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

Quad Pak Strap in-the-box

Shows how to use STRAP4Q and STRAP2Q with a Quad Pak rack.
