PB32DEC

Availability: In stock
Quad Pak 8-module Position Rack

Please call (800) 321-6786 to order.

PB32DEC

Production Specification

Quad Pak I/O family

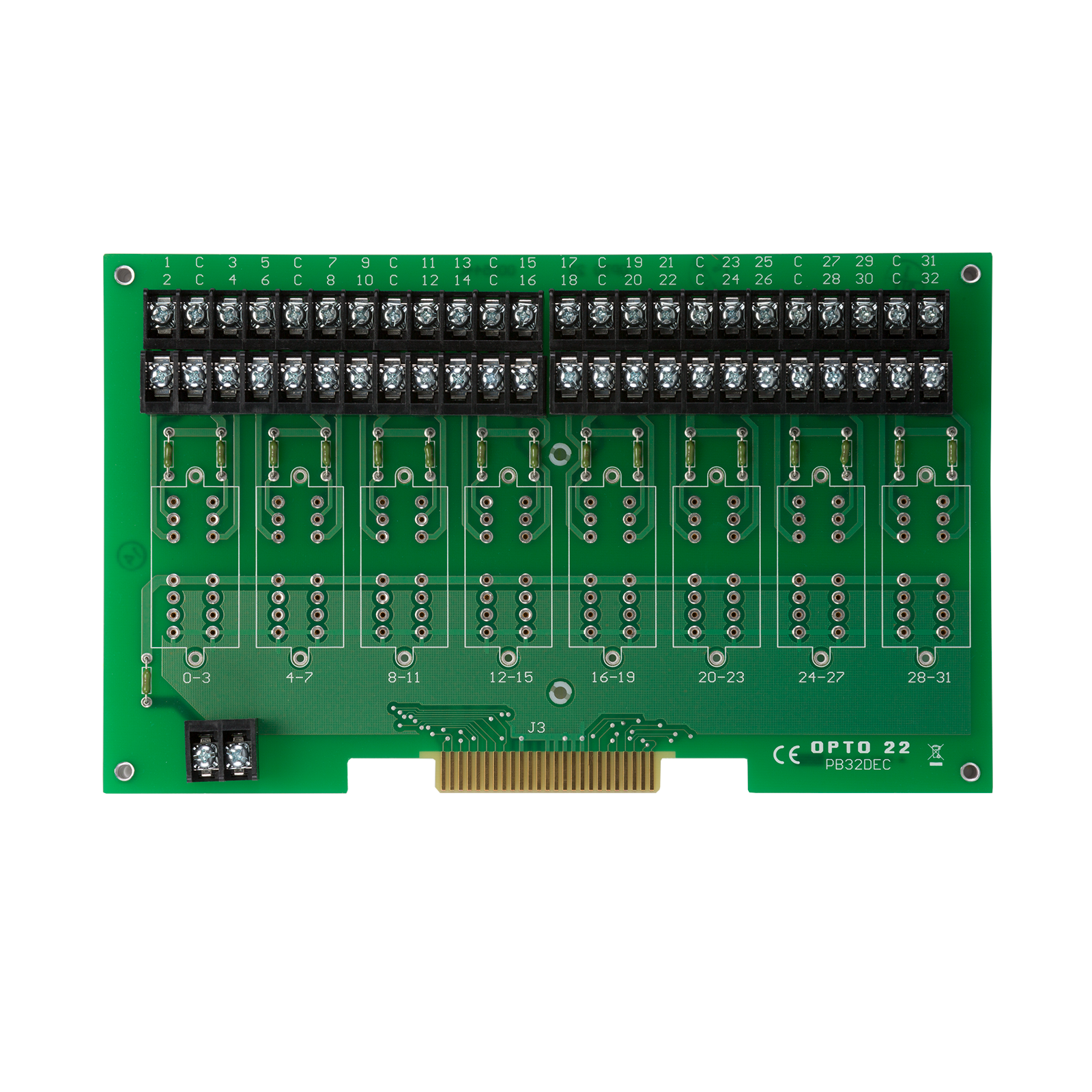

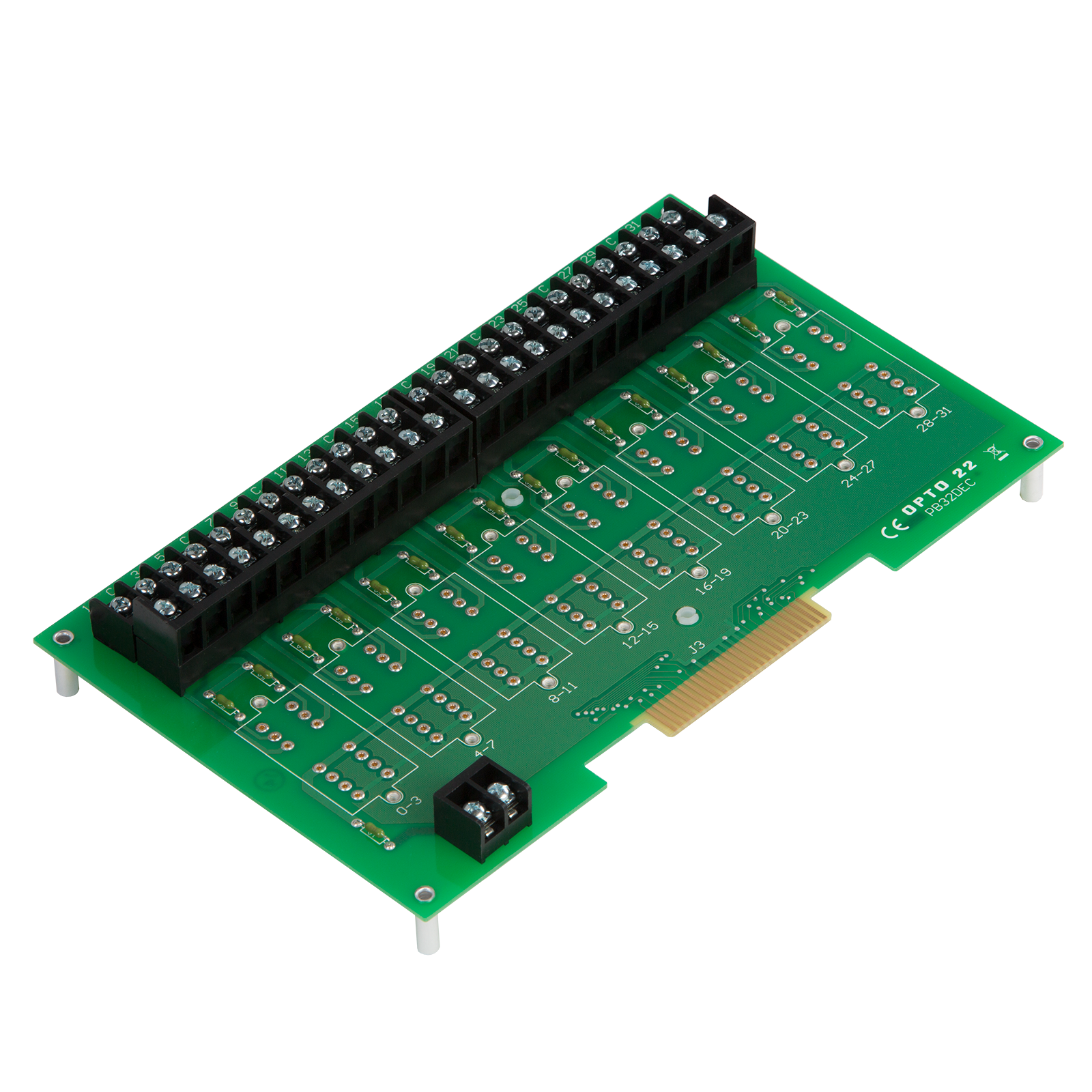

The PB32DEC I/O mounting rack is a 32-channel mounting rack that can accommodate up to eight Quad Pak I/O modules. This mounting rack uses a 50-pin card edge connector for interface to computer parallel I/O ports via a 50-conductor ribbon cable. The interface connector is compatible with the DEC DRV11-J parallel port. Use OD-series cables; see the Classic Cables Data Sheet (form 0490).

Operating Temperature

0 to 70 °C
95% relative humidity
Non-condensing

Interface Connector
  Field
  Logic



6-32 screw terminals
50-conductor card edge connector



Quad Pak Digital 32-Channel Rack Data Sheet

The PB32DEC I/O mounting rack is a 32-channel mounting rack that can accommodate up to eight Quad Pak I/O modules.

Use an OD-series cable with this rack. See the Classic Cables Data Sheet (form 0490) for more information.
