PB32HQ

PB32HQ

Please contact your local distributor for pricing. Please contact your local distributor for pricing.

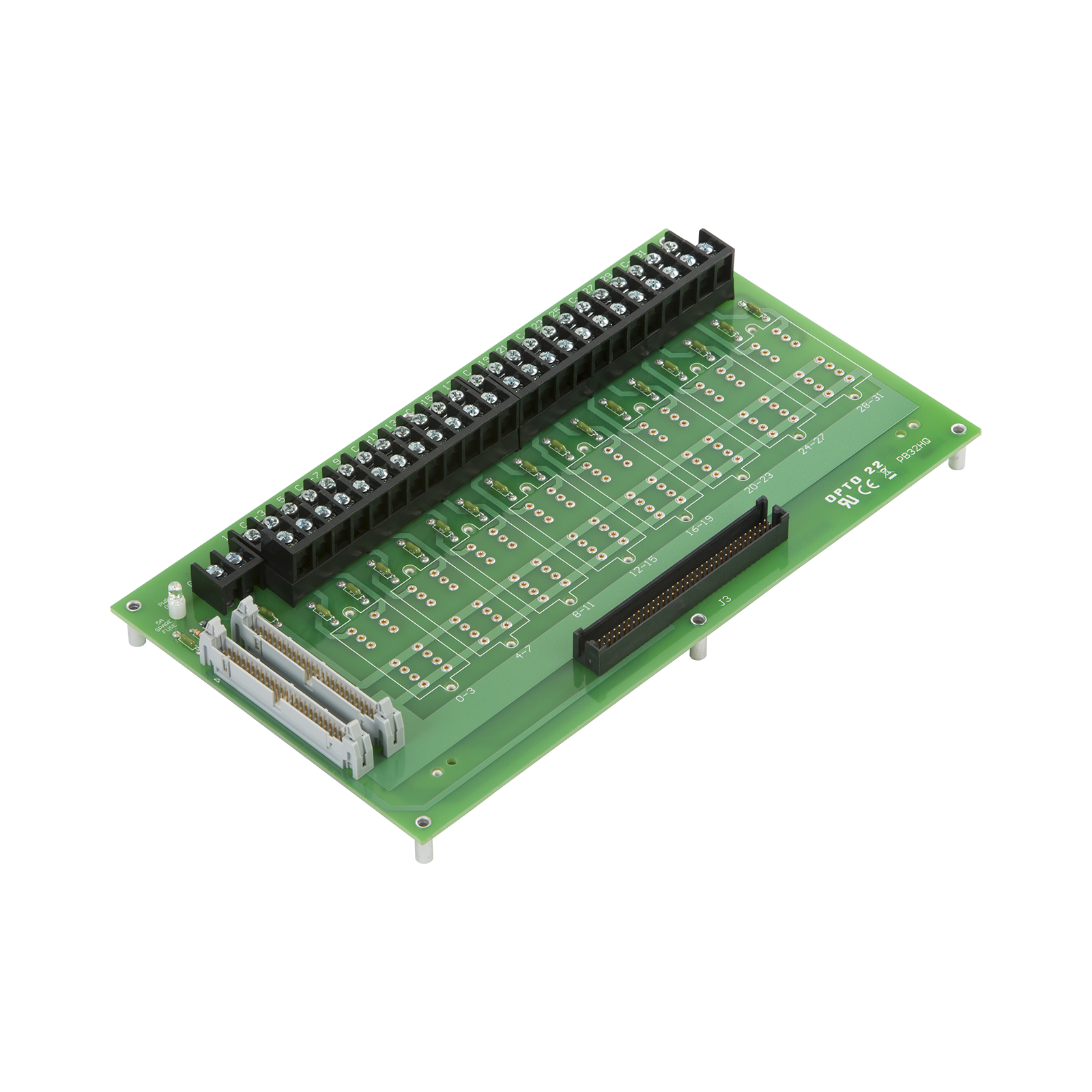

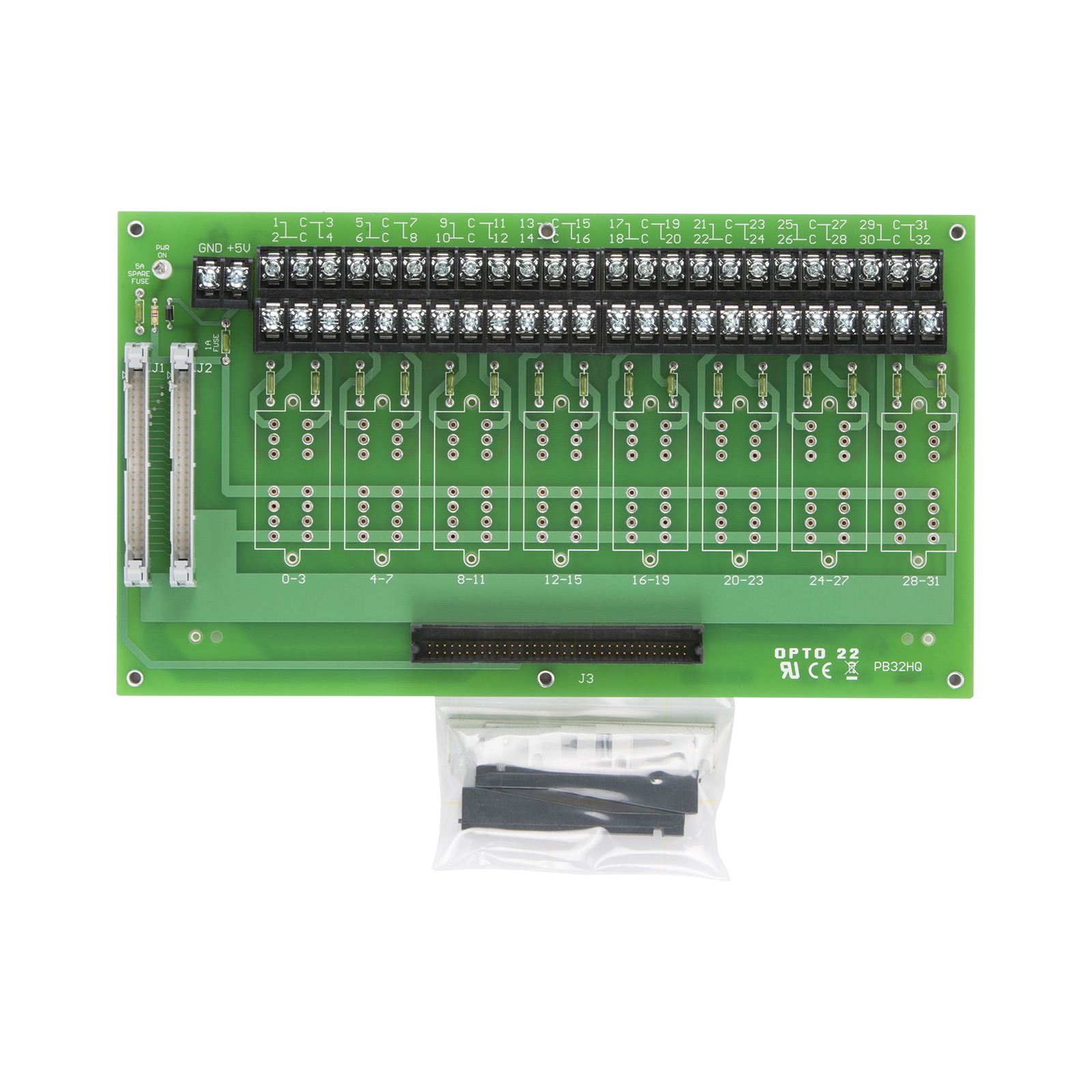

Quad Pak 8-module Rack with Header Connector for G4EB2 or B4 Brain

Please call (800) 321-6786 to order.

Production Specification

Quad Pak I/O family

The PB32HQ is a mounting rack for eight Quad Pak digital I/O modules and a G4EB2 brain (connects to an Ethernet network and uses the OptoMMP protocol) or a B4 brain (connects to a serial network and uses the Pamux protocol). The rack has a header connector for the brain.

Operating Temperature

0 to 70 °C
95% relative humidity, non-condensing

Interface Connectors:
  Field
  Logic
  Host
  System



6-32 screw terminals for wires connecting the rack to field devices
70-pin box connector for brain
50-pin header connector for ribbon cable to host
50-pin header connector for ribbon cable to next rack or for
termination card on last rack

Maximum Torque:
  Upper terminal strip
  Lower terminal strip


9 in-lbs
10 in-lbs

Quad Pak 32-Channel Rack Data Sheet

The PB32HQ I/O mounting rack is designed to mate with the PAMUX 32-channel Brain Board (P/N B4). This mounting rack has a header connector.
