Products > PBSC
PBSC
Hover over image to zoom in

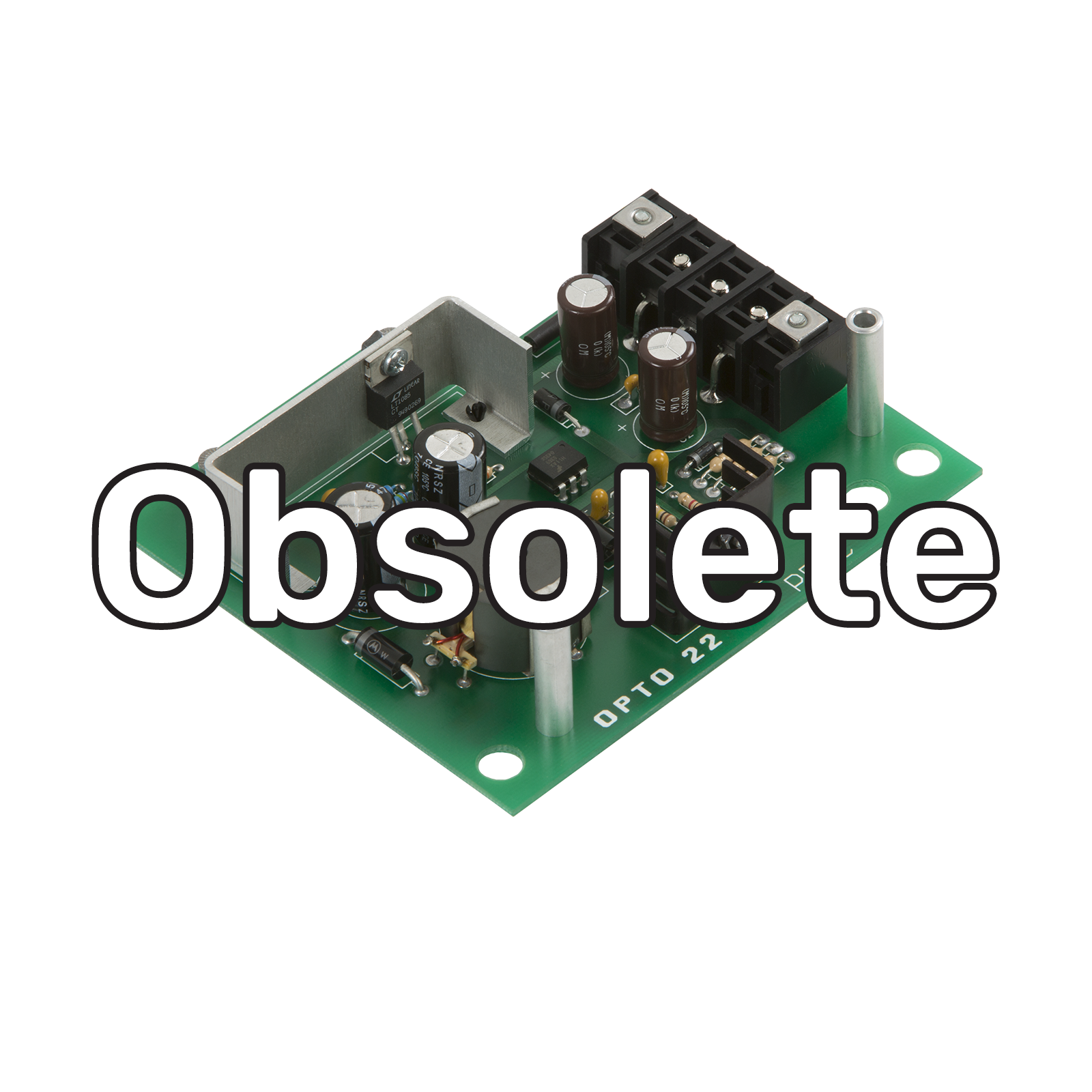

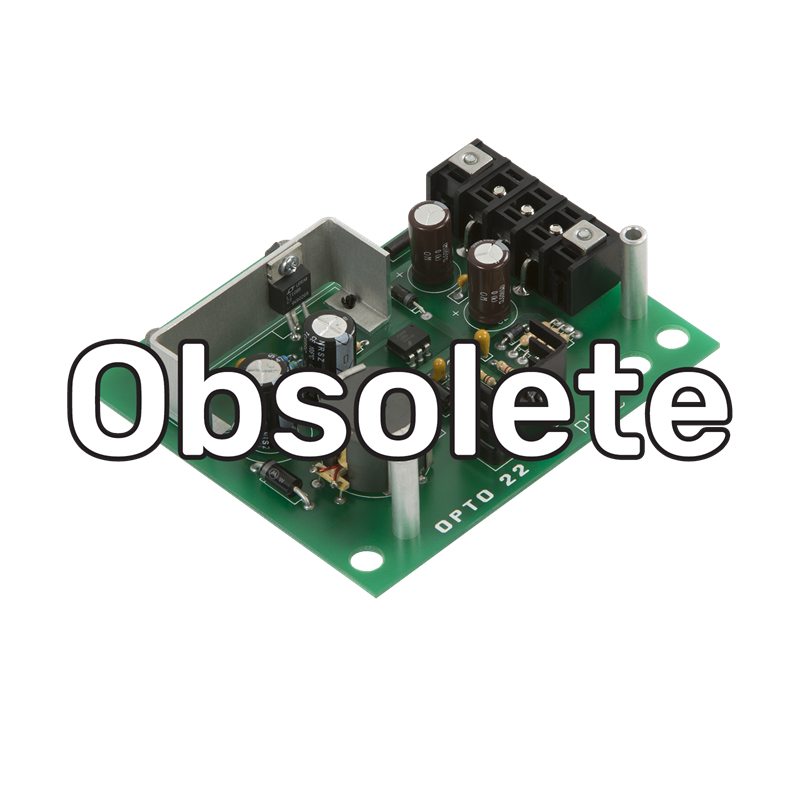

PBSC

Availability: Obsolete
5 VDC Power Supply for Digital I/O Mounting Racks, 12/24 VDC input
Data Sheet

Production Specification

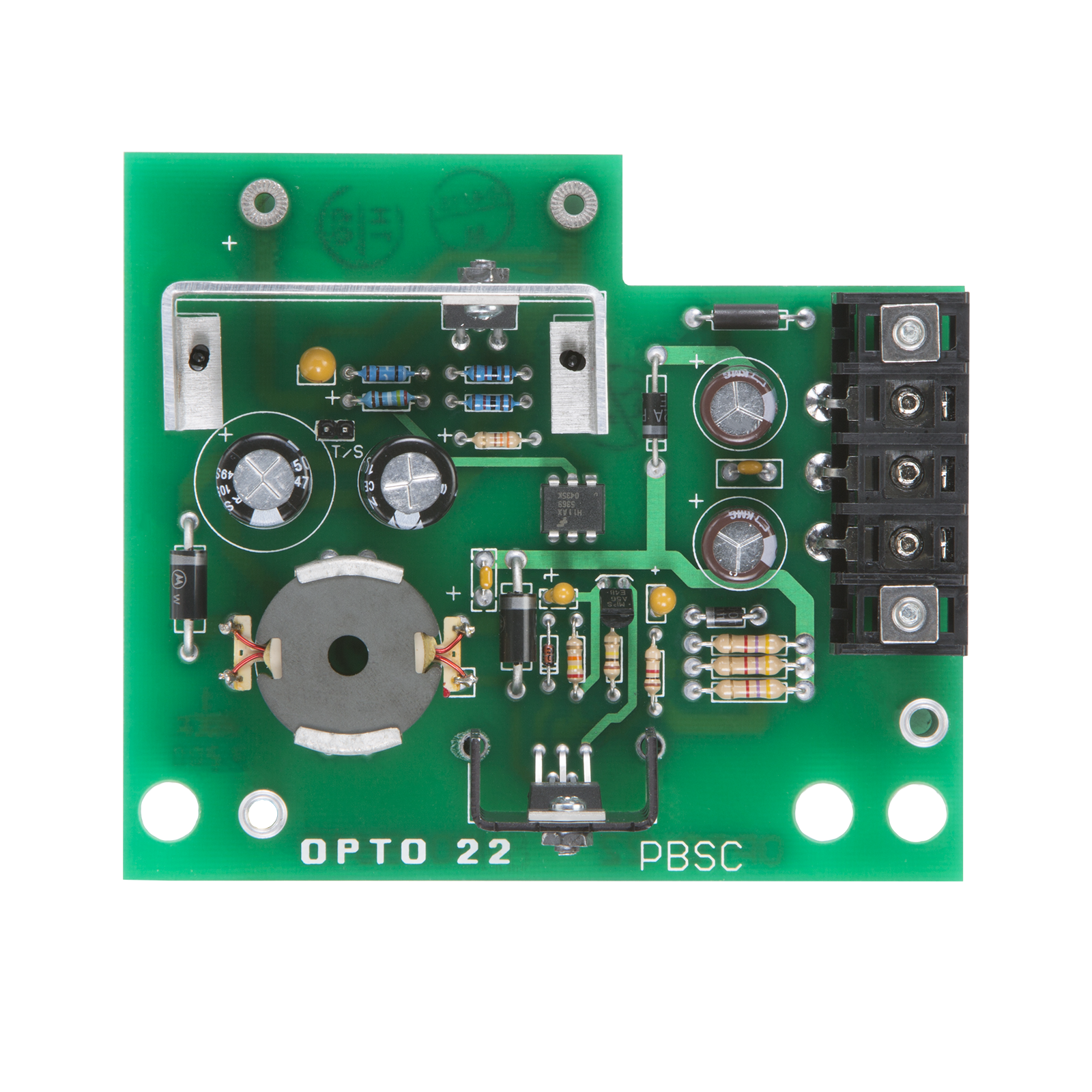

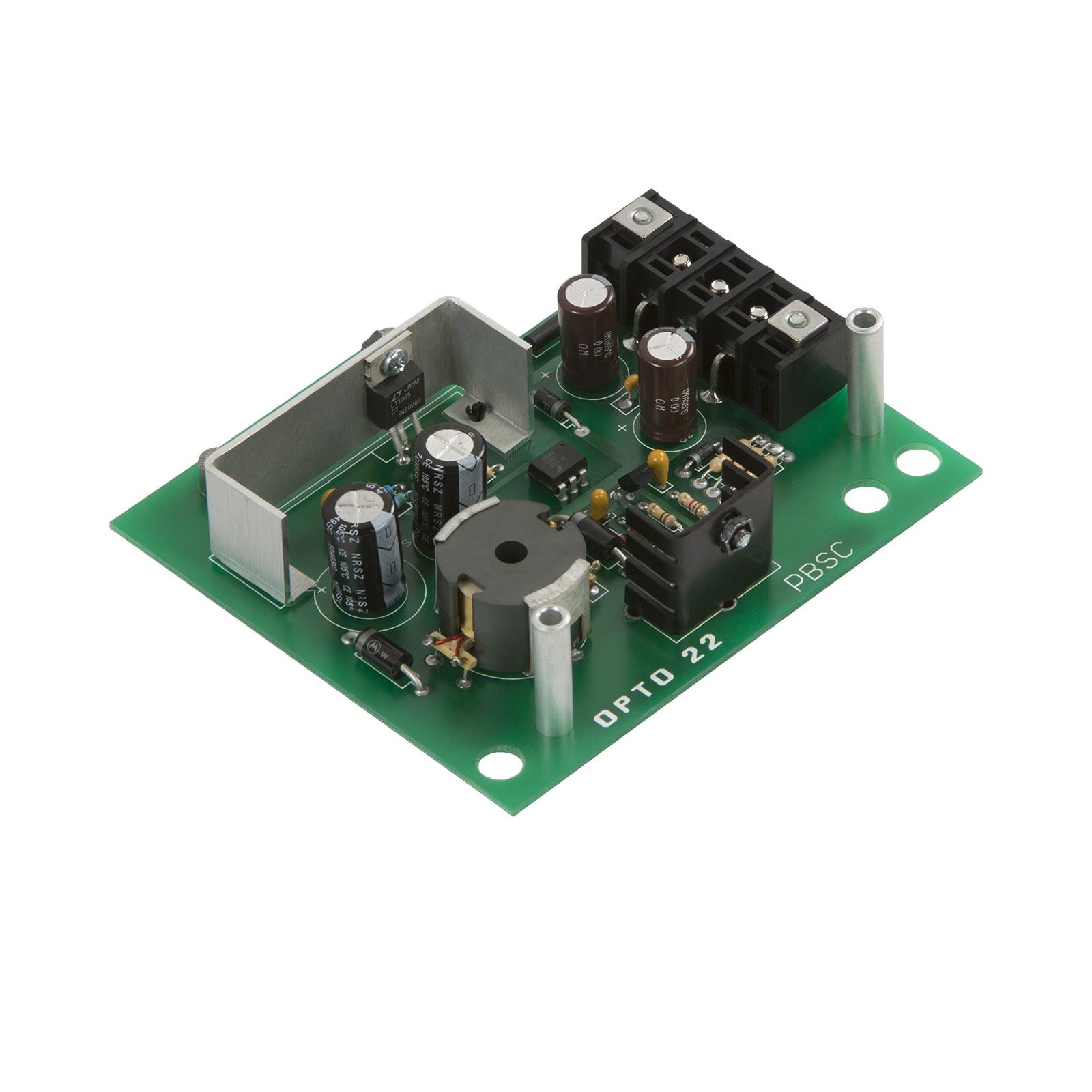

The PBSC 5 VDC power supplies is designed to work with an Opto 22 digital I/O mounting rack connected to an Optomux® E1 or B1 brain board, a mistic™ B100 brain board, or a Pamux® B5 brain board. When the PBSC is used with a Pamux B5 brain board, it can also supply power for a Pamux Term1 terminating resistor connected to the B5.

The PBSC also supports Opto 22's Digital I/O Carrier Board for Raspberry Pi® (part OPTO-P1-40P).

The PBSC provides power for the brain board and logic power for 16 digital I/O modules. It requires 12/24 VDC input.

Other power supply options include:
  • PBSA (120 VAC input)
  • PBSB (220 VAC input)
  PBSA PBSB PBSC
Input Range 105-125 VAC 200-240 VAC 10-28 VDC
Output Voltage 5 VDC 5 VDC 5 VDC
Output Current 0.5 amps 0.5 amps 1.5 amps
Operating Temperature -25 to 65 °C -25° to 65 °C< -25° to 65 °C
Isolation Breakdown Voltage 2,500 VAC 2,500 VAC 500 VAC
Power Dissipation <3-9 Watts 3-9 Watts 3-10 Watts
Humidity (non-condensing) 0-95% 0-95% 0-95%
Compatible Brain Boards E1, B1, B100, OPTO-P1-40P E1, B1, B100, OPTO-P1-40P E1, B1, B5, B100, OPTO-P1-40P
Agency Approvals Compliant with CE, ROHS, DFARS Compliant with CE, ROHS, DFARS Compliant with DFARS
Compatible digital I/O mounting racks (All 3 power supplies are compatible with these racks) Standard: PB4H, PB8H, PB16H, PB16HC
Quad Pak: PB16HQ
G4: G4PB8H, G4PB16H, G4PB16HC
Warranty 30 months from date of manufacture



0491

Digital Rack Power Supplies Data Sheet

The PBSA, PBSB, and PBSC 5 VDC power supplies are designed to work with an Opto 22 digital I/O mounting rack connected to an Optomux® E1 or B1 brain board, or a mistic™ B100 brain board. Each power supply is sized to provide power for the brain board and logic power for 16 digital I/O modules.

The PBSC can also be used with a Pamux® B5 brain board and is sized to provide power for the brain, 16 modules, and a Term1 Pamux bus terminator.

The PSBC can also be used with a Raspberry Pi® and Opto 22’s Digital I/O Carrier Board for Raspberry Pi (part number OPTO-P1-40P) to monitor and control industrial devices.
