PCI-AC5
Hover over image to zoom in

PCI-AC5

$723.00 (USA and Canada only)

Availability: In stock
PCI Adapter Card for Direct I/O

Production Specification

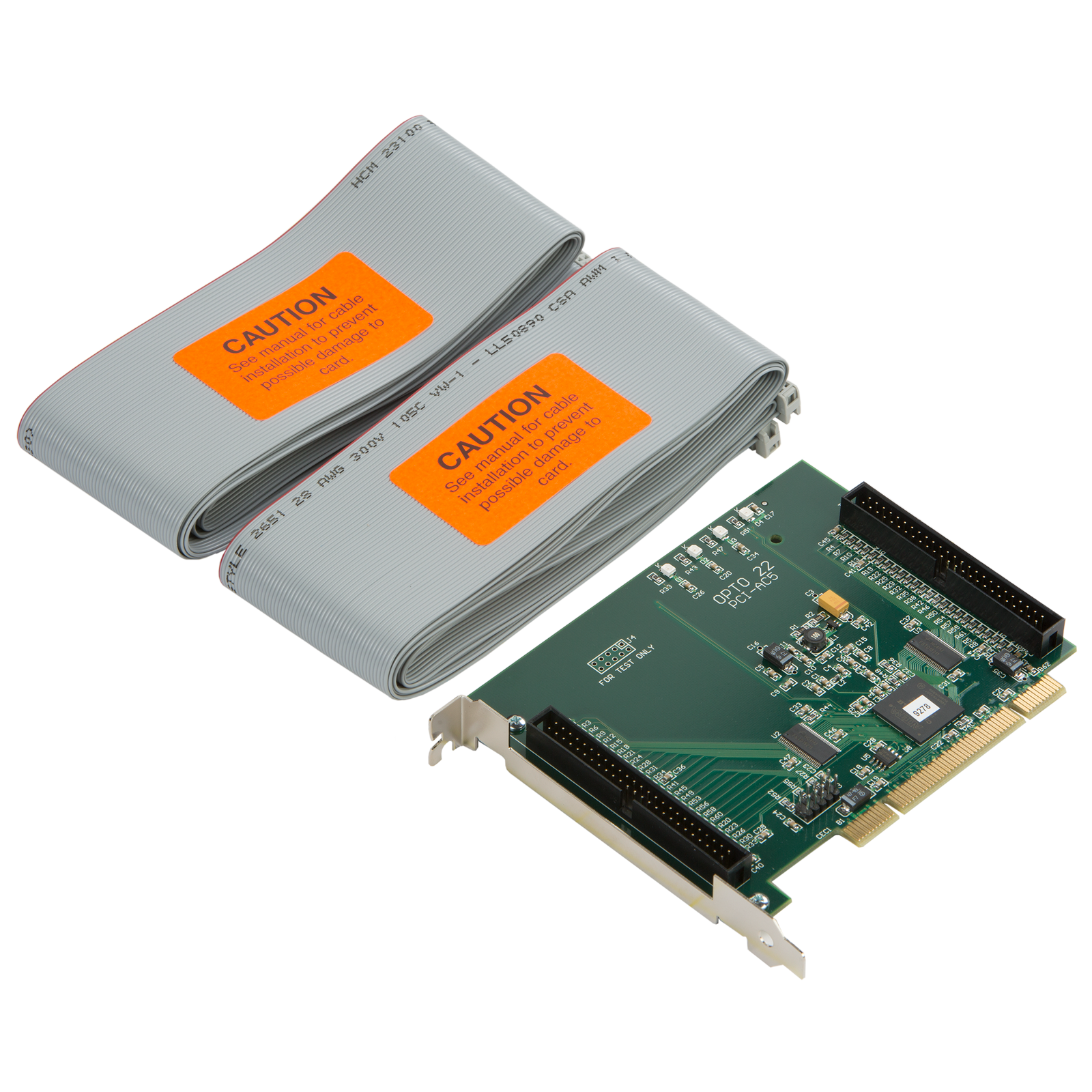

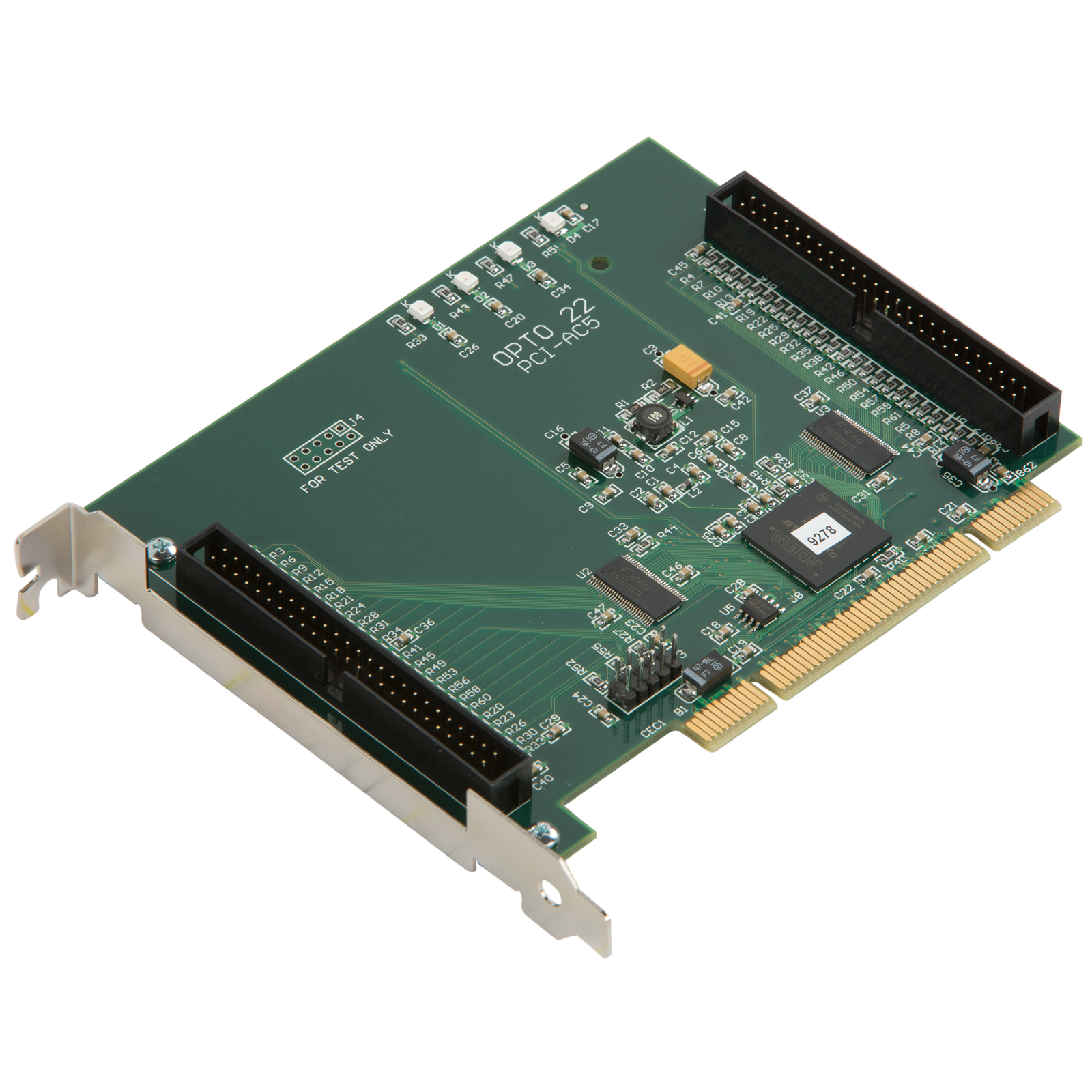

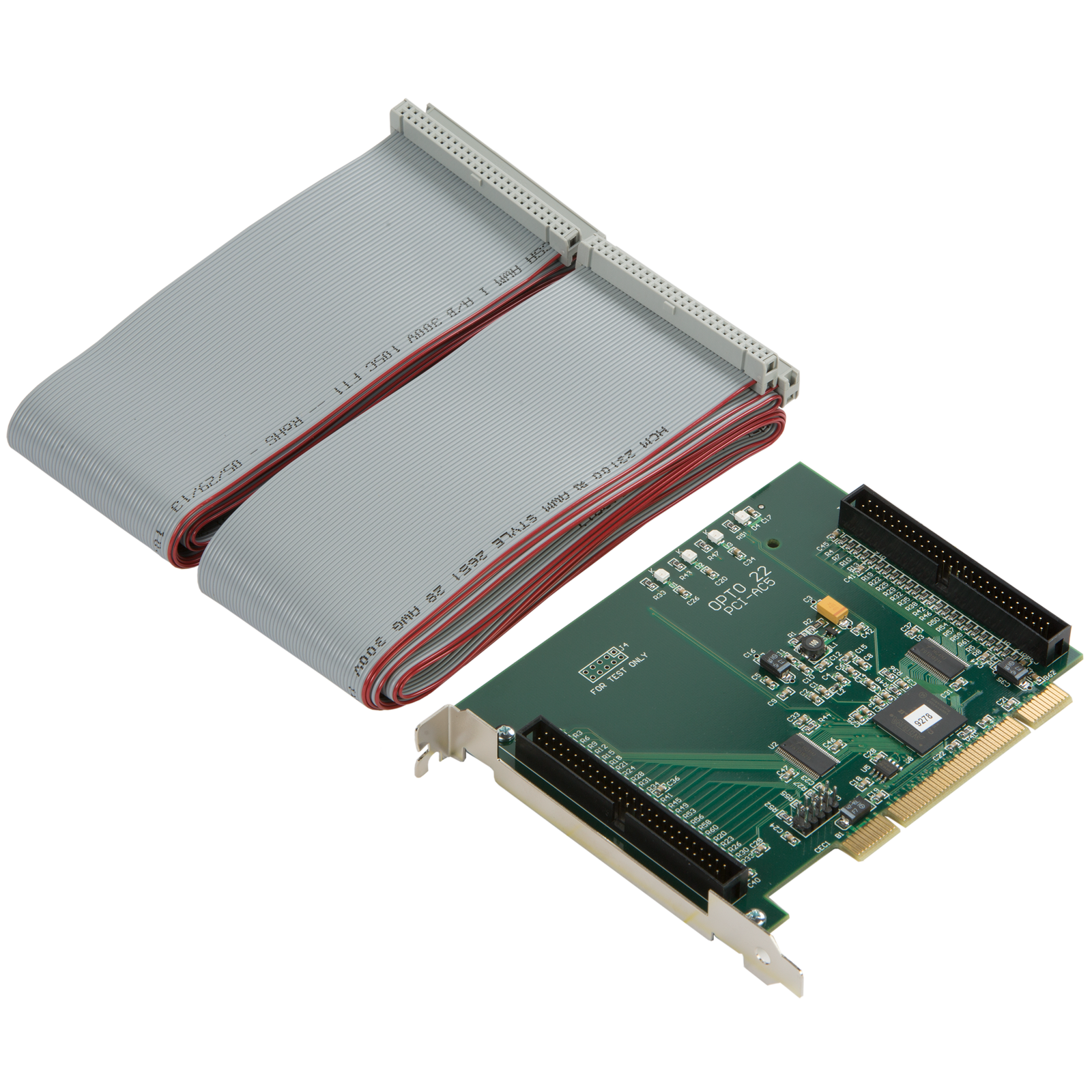

The PCI-AC5 adapter card provides an interface between personal computers with a 33 MHz PCI bus and Opto 22 digital I/O mounting racks, for direct connection to input/output points. No brain (I/O processor) is required.

The PCI-AC5 is about 100 times as fast as the older AC5 adapter card and can control up to 48 I/O points.

Use the PC-Based Direct I/O SDK with this adapter card.

IMPORTANT: When choosing digital I/O for use with this card, make certain that you choose 5 VDC logic I/O modules. The card is not compatible with 15 VDC or 24 VDC I/O.

Compatible racks and I/O: If you need a similar card using the PCI Express bus, see the PCIe-AC5.

For system diagrams and more information, see the PC-Based I/O Control Overview.



PCI-AC5

PCIe-AC5 [Obsolete]

AC5  [Obsolete] or G4AC5 [Obsolete]

Interface

PCI

PCIe (1.x)

ISA

I/O points controlled

48

48

24

Computer compatibility

32-bit, 33 MHz PCI 2.1 bus

PCIe 1.1 bus

ISA bus

Power requirements for card (from the PCI or ISA bus on the PC)

Rev C card1: 5 VDC @ 250 mA and 3.3 VDC @ 250 mA

Rev B card*: 5.0 VDC @ 600 mA

12 VDC @ 50 mA and
3.3 VDC @ 500 mA

5 VDC @ 600 mA

Compatible modules

5 VDC logic modules, such as the IDC5, ODC5, G4IDC5, G4ODC5, SNAP-IAC5, etc.2

SDK compatibility

The SDK works with .NET platform languages including C#® and VB.NET®, and supports both 64-bit and 32-bit versions of:

  • o Windows® 10 Professional
  • o Windows 8.1 Professional
  • o Windows 7 Professional

The SDK works with .NET platform languages including C#® and VB.NET®, and supports both 64-bit and 32-bit versions of:

  • o Windows® 10 Professional
  • o Windows 8.1 Professional
  • o Windows 7 Professional



See Note 3.

Jumpers

Jumperless configuration

Jumperless configuration

Seven, used to configure base address

LEDs

Four

Four

One

Operating temperature
Storage temperature

0 to 70 °C
-30 to 85 °C

0 to 60 °C
-30 to 85 °C

0 to 70 °C
-30 to 85 °C

Agency certifications

DFARS

DFARS

DFARS

Warranty

30 months

30 months

30 months

1. Rev C card shows “9278” on the white label; older Rev B card shows a number beginning with “8939”. Rev C card requires both 5.0 and 3.3 volts. This card is not compatible with computers that supply 5 VDC only.

2. Choose 5 VDC logic modules that are compatible with the mounting rack used.
WARNING: Do not use 15 VDC or 24 VDC modules (such as the IDC15 and IDC24). Using these modules with 15 or 24 VDC logic power can cause serious damage to the adapter card and to the computer.

3. The PC-Based Direct I/O SDK no longer supports the AC5 or G4AC5 adapter cards. For these cards, you can continue to use version R5.0b of the PC-Based Direct I/O SDK (PC_Based_Direct _IO_SDK_R5.0b.exe). It can be downloaded from Opto 22's FTP site.

PC-Based I/O Overview

This document shows examples of system architecture for PC-based I/O control systems and lists Opto 22 products that work together for PC-based control. System examples include:

  • Ethernet systems using SoftPAC, a software-based programmable automation controller programmed with PAC Control
  • Ethernet systems using the OptoMMP protocol
  • Direct control of I/O using no I/O processor (no brain)
  • High-speed control using the Pamux protocol
NOTE: Before choosing to use a PC for control, consider groov EPIC.  A groov EPIC processor offers many features similar to a PC, such as a Linux OS with optional secure shell access; cybersecurity features; Ethernet, USB, and HDMI ports; and the ability to run the control program and HMI on the same hardware. In addition, a groov EPIC system offers real-time control using traditional programming languages; guaranteed-for-life I/O on the same chassis; industrial toughness for hazardous locations; and easier integration with company computer networks, manufacturing, business, and facility systems, and cloud-based services & software.

PCI-AC5, PCIe-AC5, AC5, and G4AC5 Adapter Cards Data Sheet

The PCI-AC5, PCIe-AC5, AC5, and G4AC5 adapter cards provide a PC interface for Opto 22 digital I/O mounting racks.

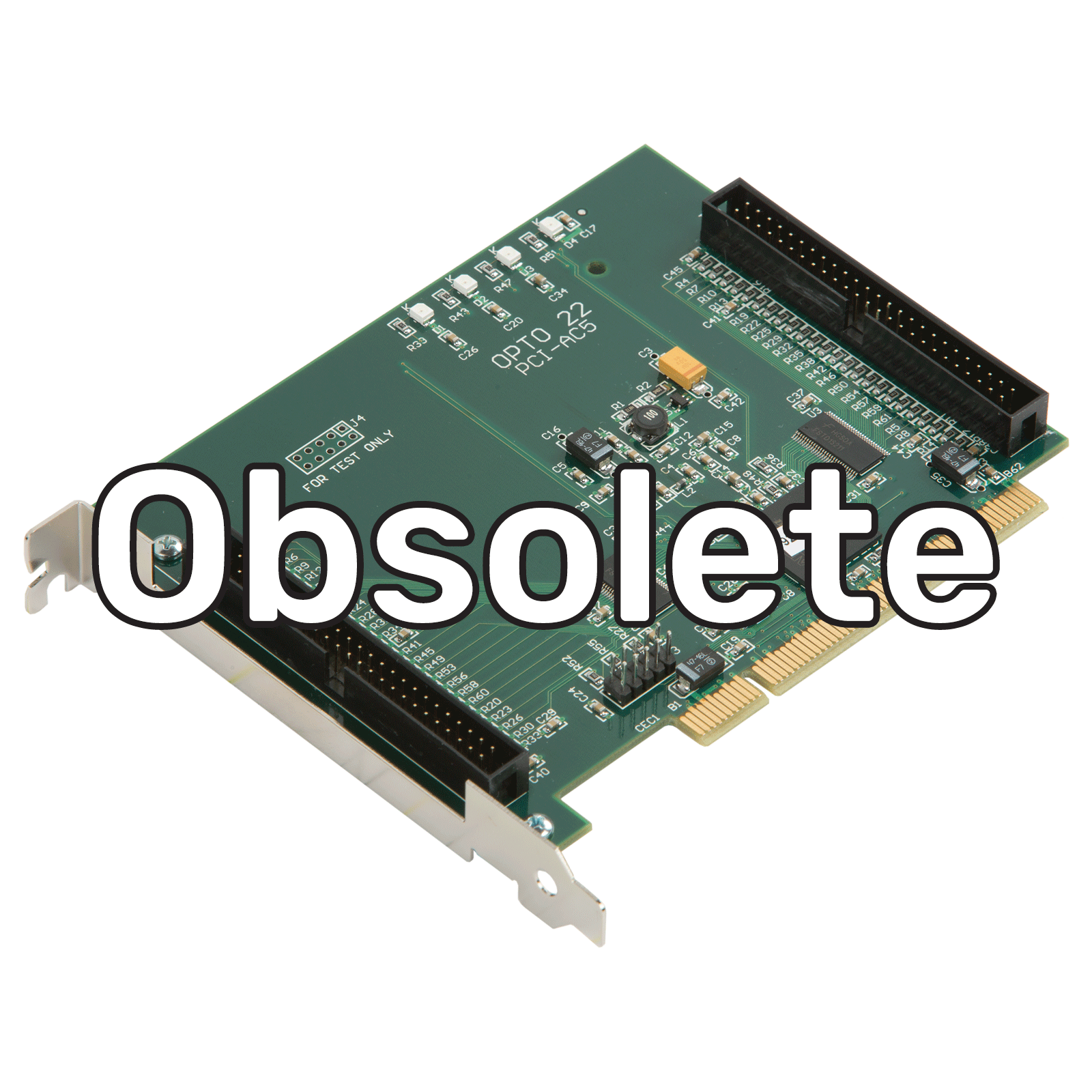

*** NOTE: The AC5, PCle-AC5, and G4AC5 are OBSOLETE and no longer available.***

PCI-AC5 and PCIe-AC5 Quick Start

This document shows you quickly how to install the card and its software. For more details, see Form 1211, the PCI-AC5, PCIe-AC5, and AC5 User's Guide.

PCI-AC5, PCIe-AC5, and AC5 User's Guide

Opto 22 PCI-AC5, PCIe-AC5, and AC5 (or G4AC5) adapter cards provide an interface between personal computers and Opto 22 digital input/output (I/O) mounting racks for direct connection to I/O points.

This document includes installation and use instructions for the cards and the driver toolkit that comes with them.
