GRV-ENC-POLY-SM
Hover over image to zoom in

GRV-ENC-POLY-SM

$575.00 (USA and Canada only)

Availability: In stock

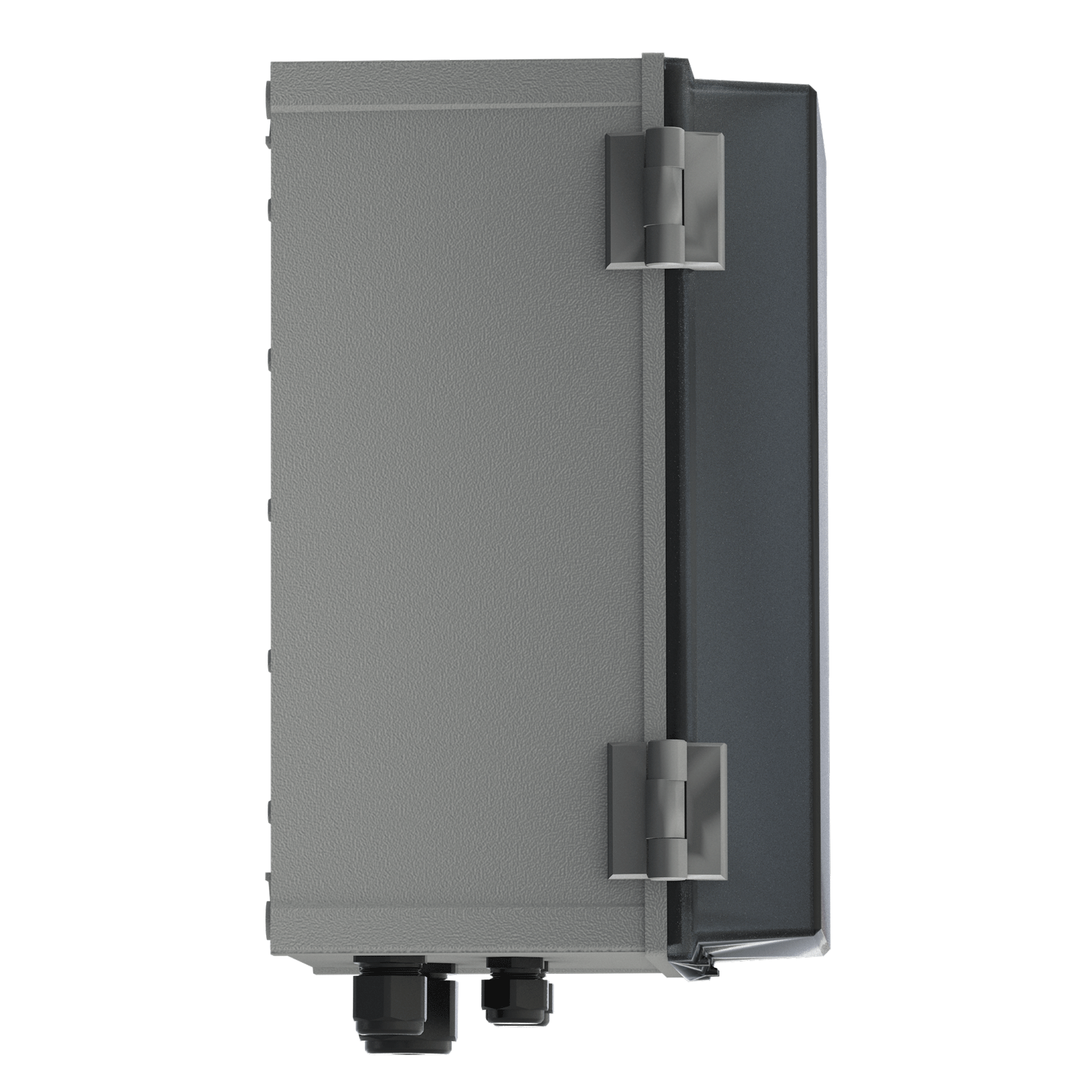

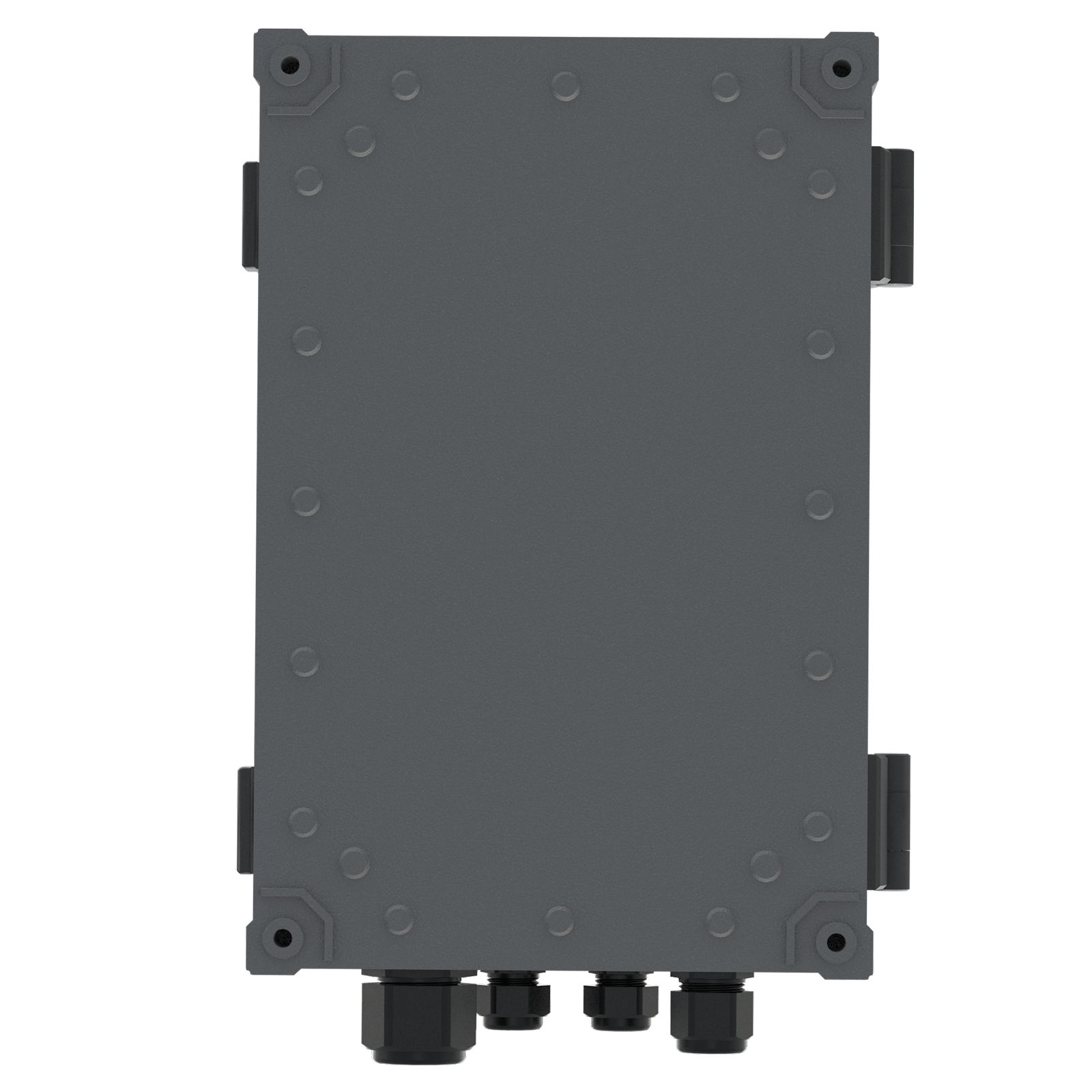

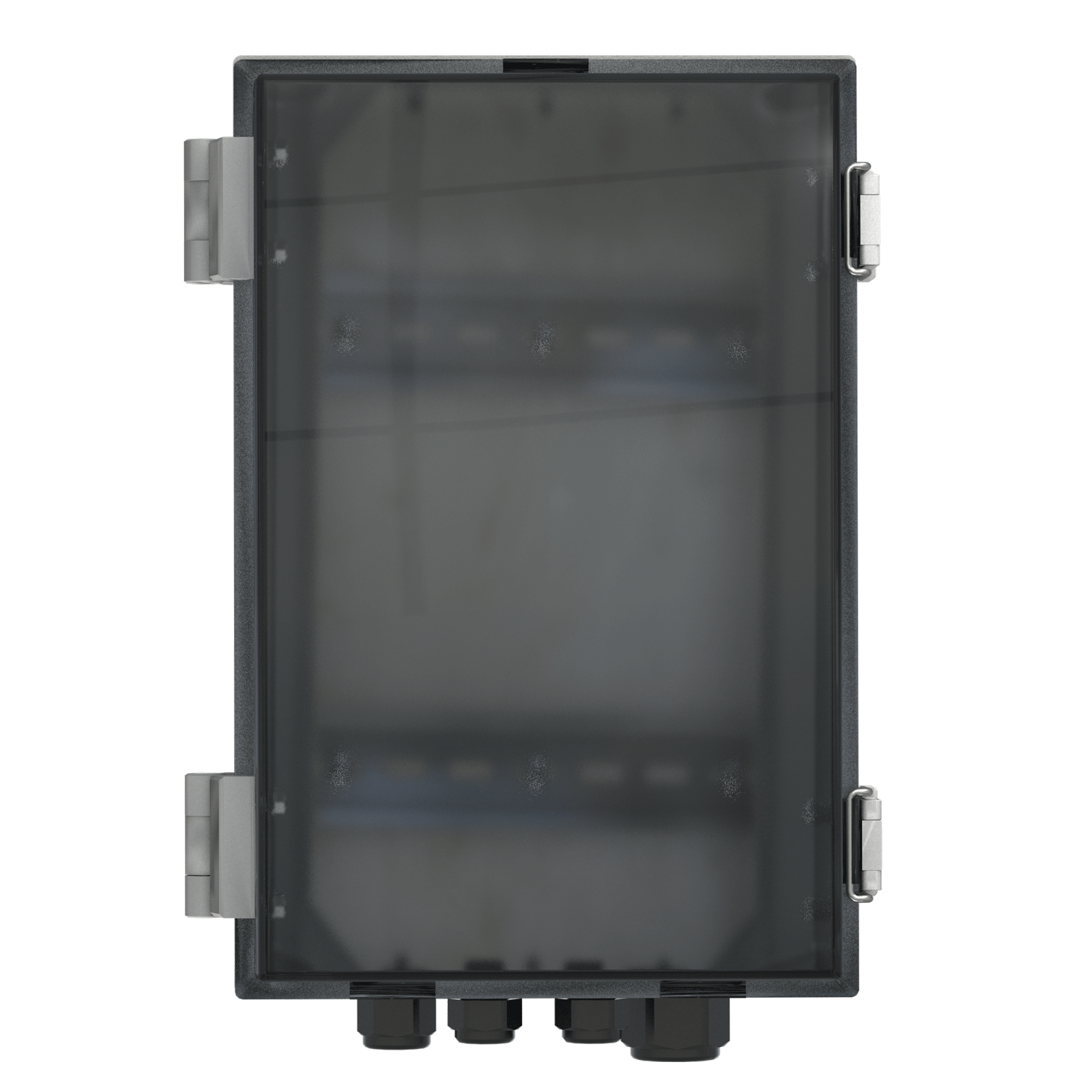

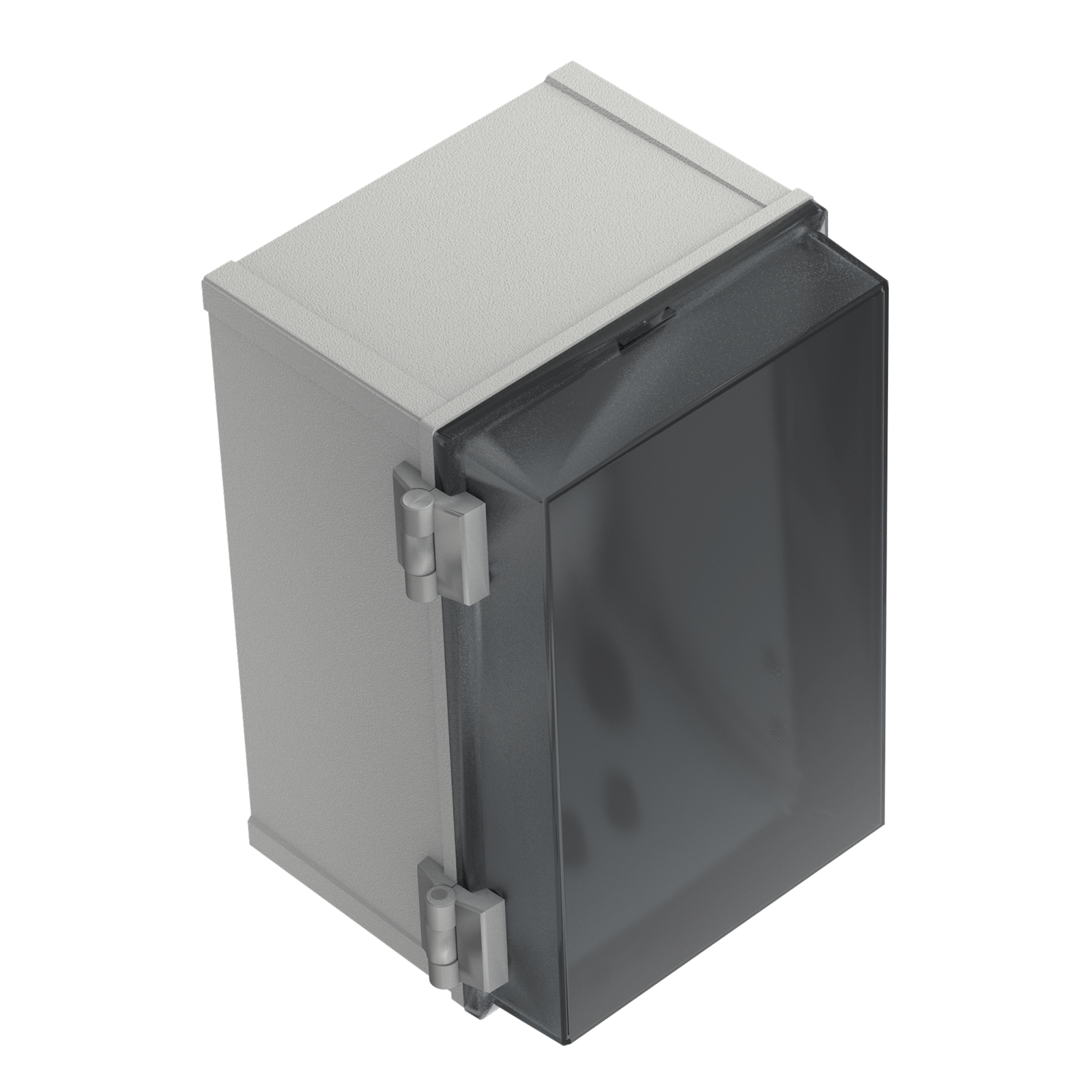

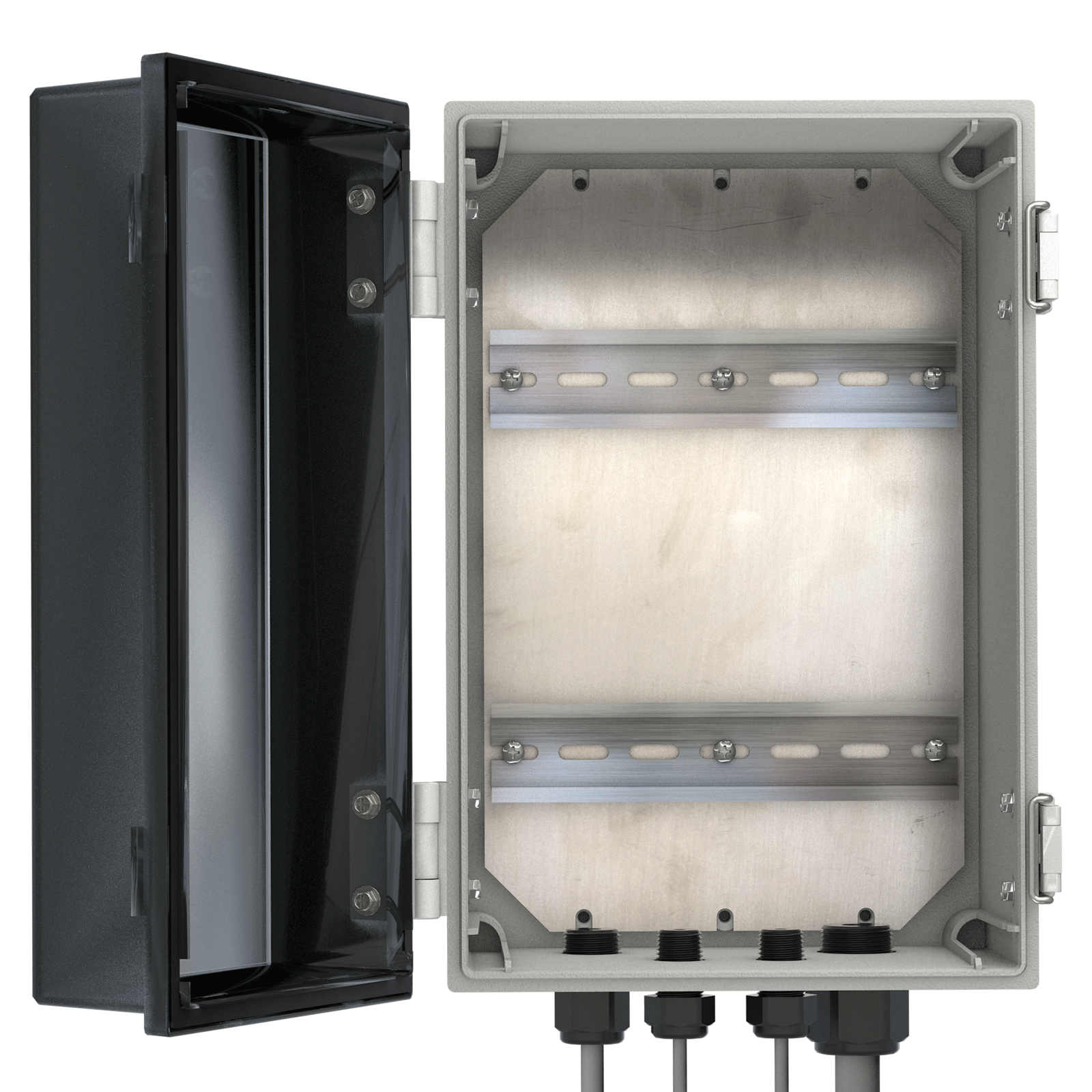

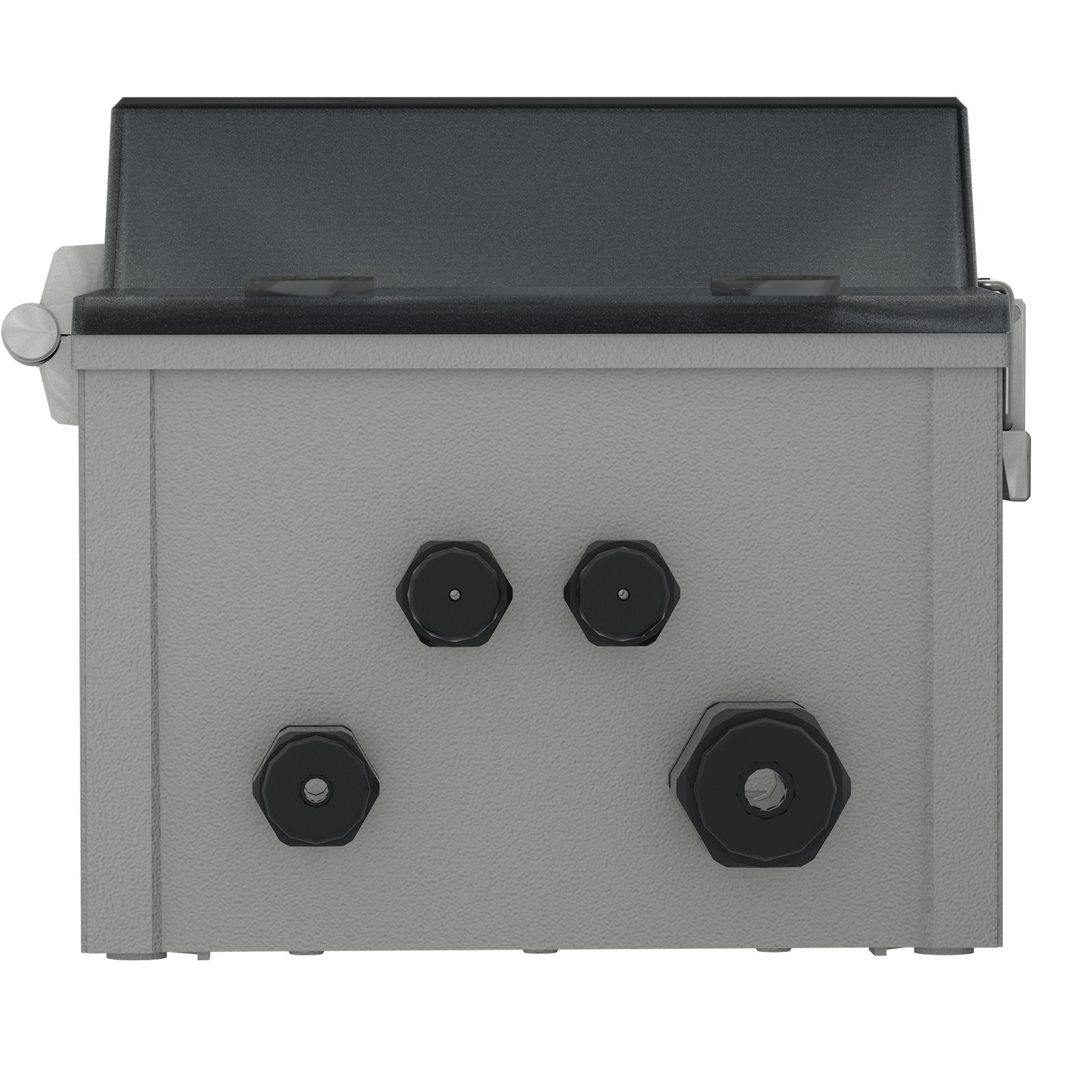

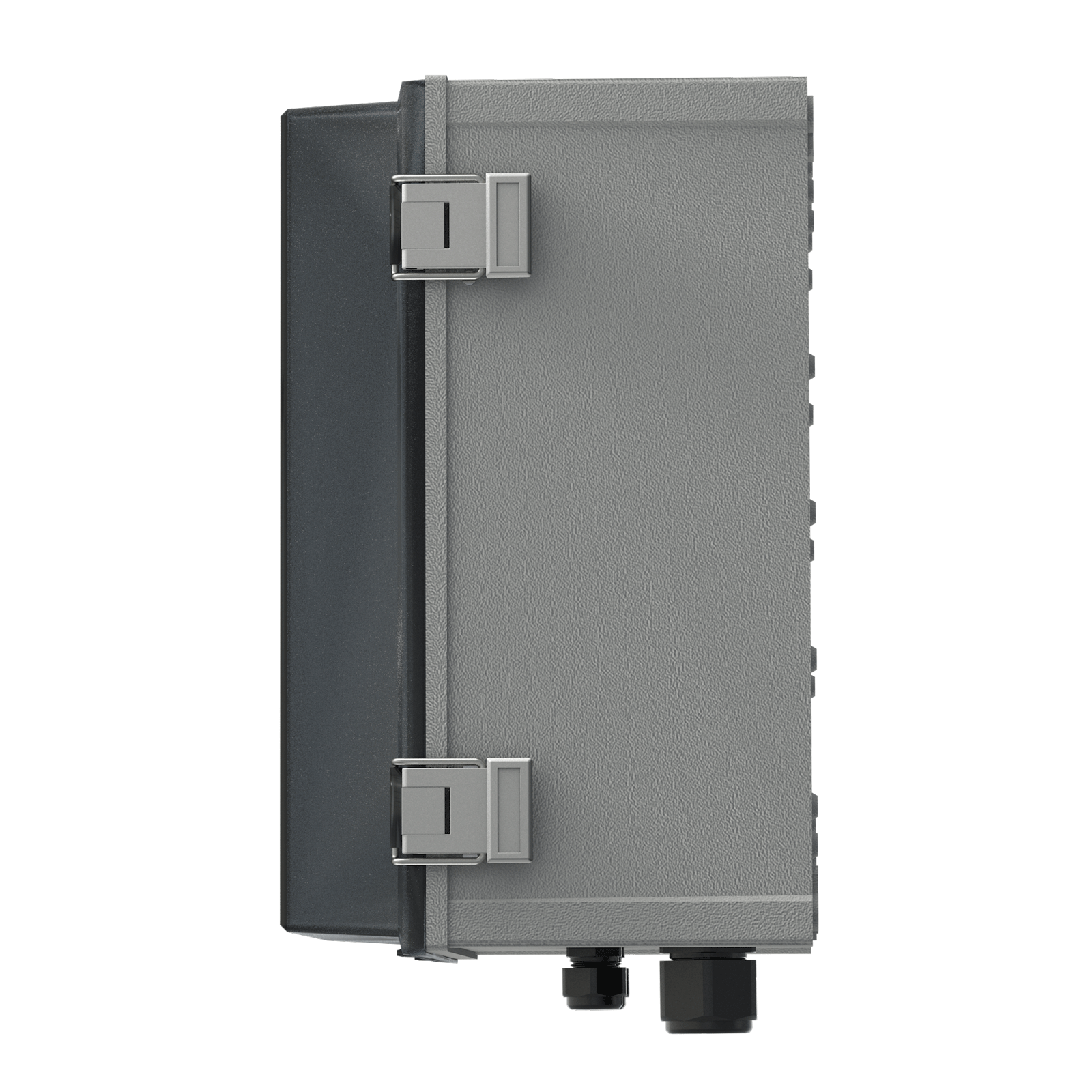

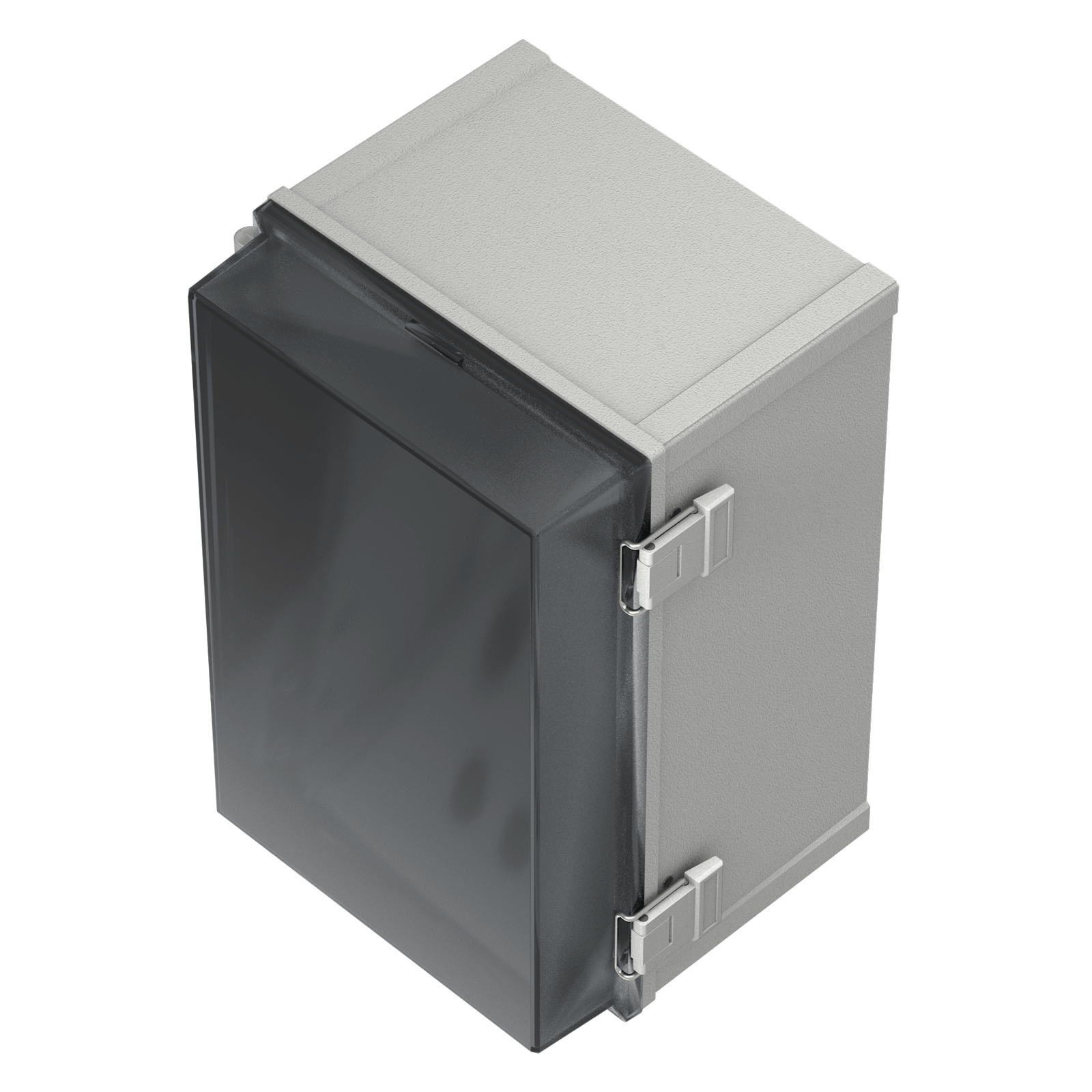

groov EPIC/RIO enclosure, 1–2 devices/chassis, polycarbonate, wall or panel mount, IP65

Production Specification

groov System enclosures make it easy to install Opto 22 groov EPIC and groov RIO products wherever you need them. These sturdy polycarbonate industrial enclosures protect your groov EPIC and groov RIO products and valuable applications.

GRV-ENC-POLY-SM is a small groov enclosure that can accommodate:
  • groov EPIC processor on a CHS0 chassis
  • Up to 2 groov RIO modules
  • A combination of one groov EPIC on a CHS0 chassis and one groov RIO
If you need a larger enclosure, see the GRV-ENC-POLY-MD.

NOTE: This part number is an enclosure only. Purchase groov EPIC processors, power supplies, chassis, groov I/O, and groov RIO modules separately.

Specification

GRV-ENC-POLY-SM

GRV-ENC-POLY-MD

Dimensions

Depth: 7.14 in/181.3 mm (lid open: 13.34 in/338.7 mm)
Height: 12.60 in/319.7 mm
Width: 8.69 in/220.6 mm (lid open: 10.38 in/263.6 mm)

Depth: 7.14 in/181.3 mm (lid open: 13.34 in/338.7 mm)
Height: 12.1 in/307.3 mm (lid open: 12.69 in/322.4 mm)
Width: 12.82 in/ 325.7 mm

Items Included

  • Enclosure
  • Cable grip plugs (inserted into cable grips)
  • Enclosure
  • Cable grip plugs (inserted into cable grips)

IP Ratings

IP65

IP69

Capacity:





  • groov EPICs
  • 1 on GRV-EPIC-CHS0
  • 1 or 2 on GRV-EPIC-CHS0, or
  • 1 on GRV-EPIC-CHS4, or
  • 1 on GRV-EPIC-CHS8
  • groov RIOs
  • up to 2
  • up to 3
  • Combinations
  • 1 groov EPIC on GRV-EPIC-CSH0 with 1 groov RIO
  • 1 groov EPIC on GRV-EPIC-CSH0 with 1 groov RIO, or
  • 1 groov EPIC on GRV-EPIC-CSH4 with 1 groov RIO

Torque, tab mounting screws (not included)

50 in-lb (5.65 N-m)

50 in-lb (5.65 N-m)

Operating Temperature

-20 °C to +70 °C

-20 °C to +70 °C

Storage Temperature

-40 °C to +85 °C

-40 °C to +85 °C

Humidity

5-95%

5-95%

Warranty

30 months

30 months

groov Enclosures Data Sheet

groov System enclosures make it easy to install Opto 22 groov EPIC and groov RIO products wherever you need them. These sturdy polycarbonate industrial enclosures protect your groov EPIC and groov RIO products and valuable applications.

  • GRV-ENC-POLY-SM is rated IP65 and can accommodate a groov EPIC processor on a CHS0 chassis, up to two groov RIO modules, or a groov EPIC on a CHS0 chassis plus a groov RIO.
  • GRV-ENC-POLY-MD is rated IP69 and can accommodate a groov EPIC processor on a CHS0, CHS4, or CHS8 chassis, with I/O modules. Or it can accommodate up to three groov RIO modules, or a combination of one groov EPIC on a CHS0 or CHS4 chassis and one groov RIO module.

NOTE: These part numbers are for an enclosure only. Purchase groov EPIC processors, power supplies, chassis, groov I/O, and groov RIO modules separately.
