GRV-EPIC-CHS4
Hover over image to zoom in

GRV-EPIC-CHS4

$155.00 (USA and Canada only)

Availability: In stock
4-module groov EPIC analog/discrete/serial mounting chassis

Production Specification

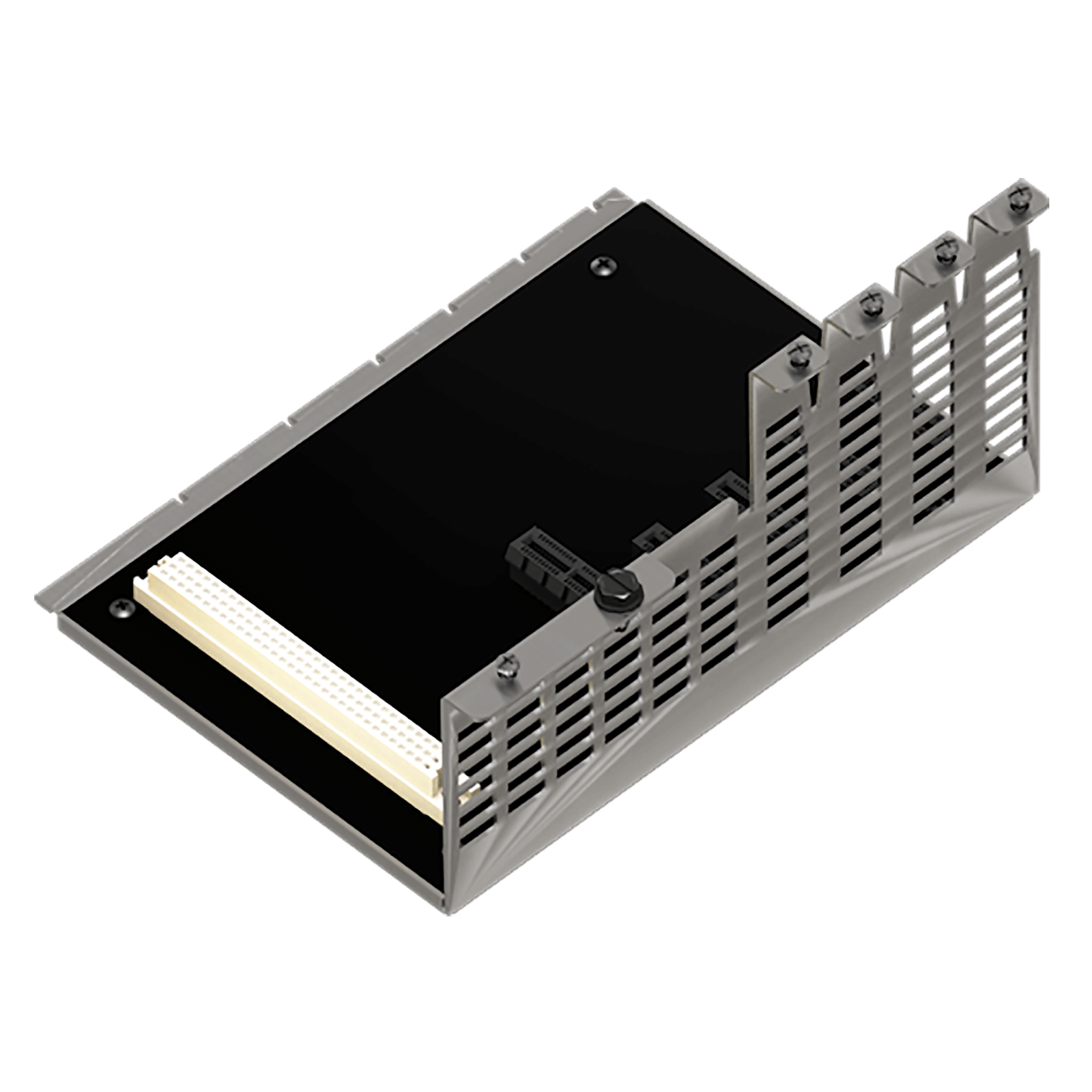

Part of the groov EPIC® system, the GRV-EPIC-CHS4 is designed to hold an intelligent GRV-EPIC-PR1 processor, a groov EPIC power supply, and up to 4 groov I/O modules.

Since groov analog, discrete, and serial I/O modules all have the same footprint, you can mix all these modules on the same chassis. Field devices are wired directly to the top-mounted connectors on the modules. The module and chassis design allows modules to pivot into a specific mounting point on the chassis.

NOTE: If you need space for more I/O modules, see the 8-module GRV-EPIC-CHS8 or the 16-module GRV-EPIC-CHS16. If you need a chassis that doesn't hold I/O modules, see the 0-module GRV-EPIC-CHS0.
Specification GRV-EPIC-CHS16 GRV-EPIC-CHS8 GRV-EPIC-CHS4 GRV-EPIC-CHS0
Number of module slots 16 8 4 0
Maximum Power Rating 60 W with GRV-EPIC-PSAC
50 W with GRV-EPIC-PSDC
108 W with GRV-EPIC-PSPT
Temperature (operating) -20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C
Relative Humidity (non-condensing) 5-95%
Agency Approvals UL/cUL (Class 1 Div. 2)a; CE, ATEX (Category 3, Zone 2), RoHS; DFARS; CB Scheme
Warranty 30 months
a For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).


groov EPIC Chassis Data Sheet

The groov EPIC® chassis is designed to hold a groov EPIC processor and power supply, with models available to hold several groov® I/O modules.

This data sheet includes information, specifications, and dimensional diagrams for the four models of chassis:

Letter of Conformity for groov EPIC

This Letter of Conformity is provided to support Declaration of Conformity (GRV-EPIC), form 2261.

Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

CAD Drawing: groov EPIC Chassis

This ZIP file includes drawings in a variety of file formats (pdf, dwg, stp) for the groov EPIC chassis models:

  • GRV-EPIC-CHS0
  • GRV-EPIC-CHS4
  • GRV-EPIC-CHS8
  • GRV-EPIC-CHS16

CAD Drawings: groov EPIC System

This ZIP file contains drawings in a variety of file formats for groov EPIC products, including the groov EPIC processor, chassis, groov I/O modules, power supplies, and more, all in one download.

NOTE: This is a very large file (55+ MB) and may take awhile to download. If this file is too large or you need drawings only for a specific product, you may prefer the following:
