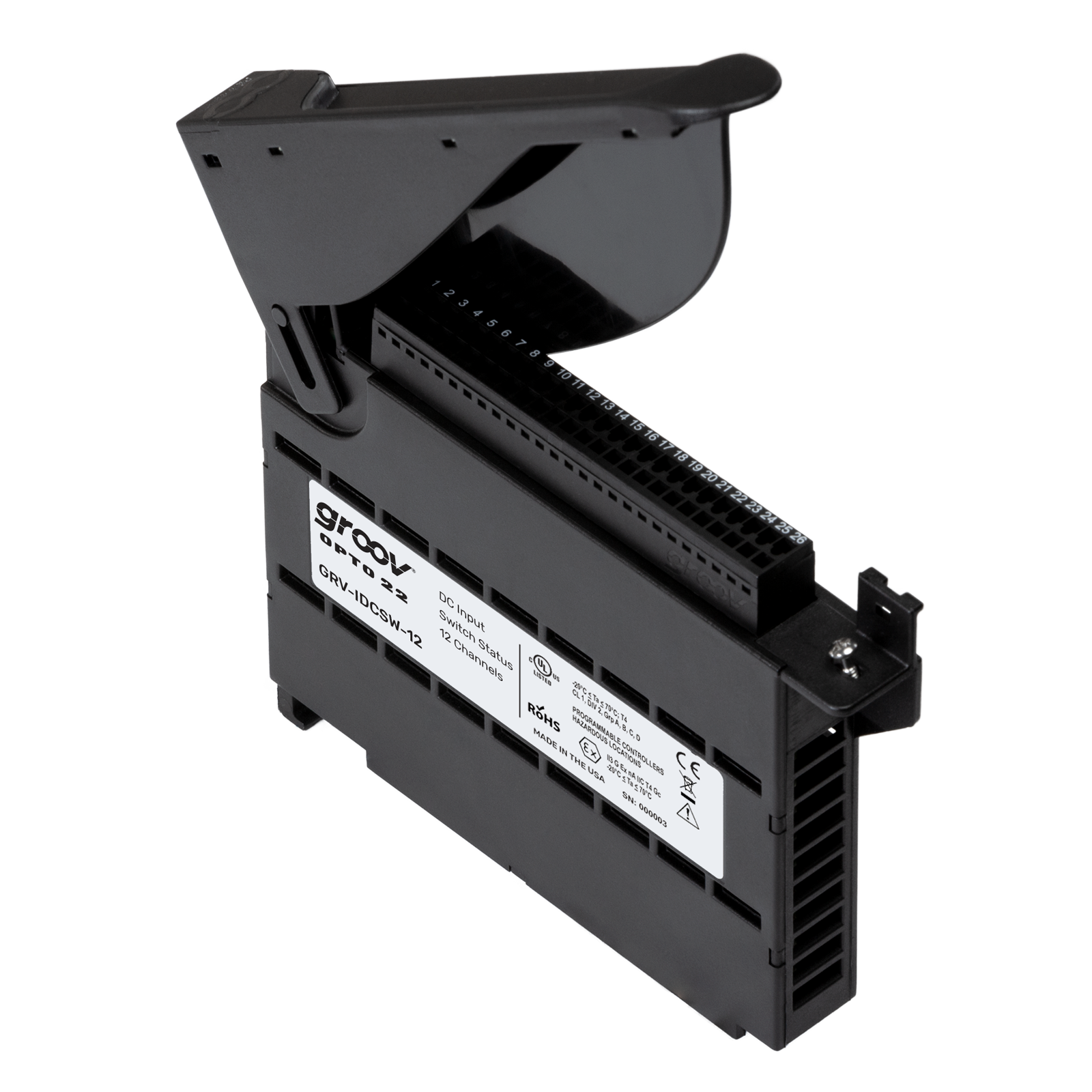

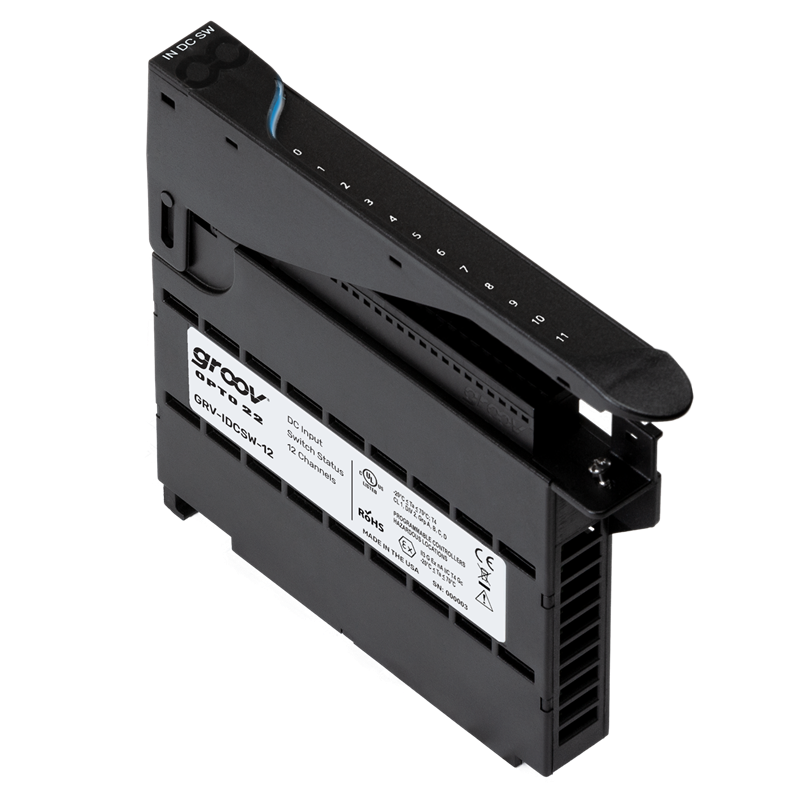

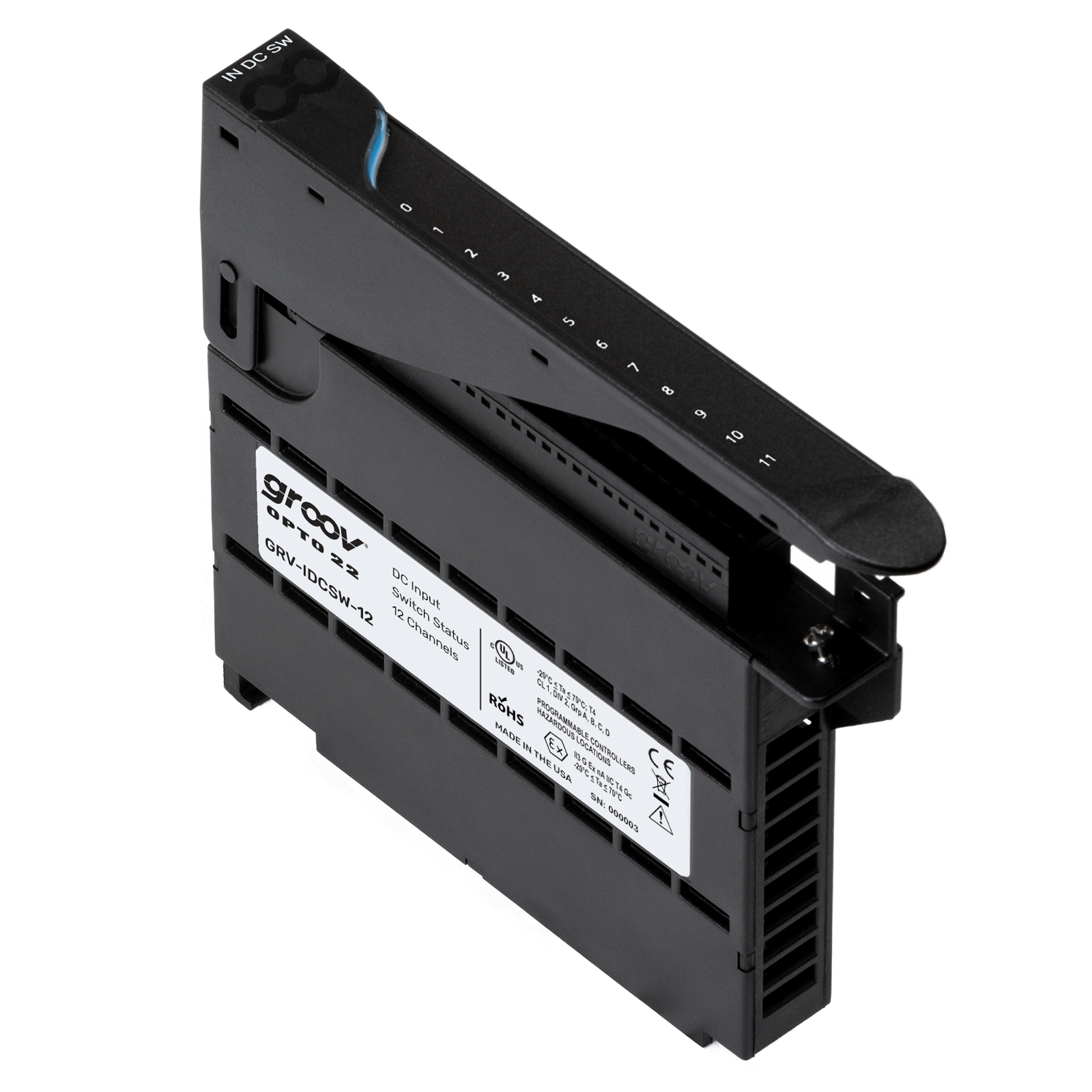

GRV-IDCSW-12
Hover over image to zoom in

GRV-IDCSW-12

$450.00 (USA and Canada only)

Availability: In stock
DC input, 12 channels, switch status

Production Specification

groov 10–30 VDC input modules are part of Opto 22's groov EPIC® System. The GRV-IDCSW-12 module provides 12 channels of contact status input. It supplies power to an external dry contact switch and senses switch closure or opening. The channels can also be configured as DC inputs with a nominal range of 5–30 V.

Part of the groov EPIC® system, the GRV-IDCSW-12 mounts on a groov EPIC® chassis alongside other discrete, analog, and serial groov I/O modules and a GRV-EPIC-PR1 processor.



Feature

GRV-IDC-24

GRV-IDCS-24

GRV-IDCSW-12

GRV-IDCI-12

GRV-IDCIS-12

GRV-IDCIFQ-12

Number of channels

24

24

12

12

12

12

Channel-to-channel isolation







x

x

x

On/off state

x

x

x

x

x

x

On/off latching

x



x

x



x

Counting

x



x

x



x

On/off totalization

x



x

x



x

Frequency measurement

x



x

x



x

Period measurement

x



x

x



x

Pulse measurement

x



x

x



x

Quadrature











x



Specification

GRV-IDCSW-12

Open Circuit Voltage (Switch Open)

> 20 V

Channel Current Limit

2.0 mA ±25%

Channel Operating Current

0.7 mA typical

Minimum Off Resistance

50 KOhms

Maximum On Resistance

10 KOhms

Turn ON Characteristic

> 5 V

Turn OFF Characteristic

< 1.5 V

Maximum Continuous Survivable Input Voltage

32 V

Input Impedance

3.9 KOhms

Max. Freq. (50% square wave)

80 Hz

Debounce Time

> 500 microseconds

Isolation (field-to-logic)

300 V working, 1500 V transient (1 minute)

Isolation (channel-to-channel)

None

Number of Channels

12

Chassis Power Consumption

2.4 W

Minimum GRV-EPIC-PR1 Firmware Version

1.4.2

Minimum PAC Project Version

10.2003

Minimum Library Package for CODESYS Version

1.0.2.0

Wire Size

28-14 AWG

Torque, connector screw

2.5 in-lb (0.28 N-m)

Torque, hold-down screw

3.5 in-lb (0.4 N-m)

Temperature (operating)

-20 °C to +70 °C

Temperature (storage)

-40 °C to +85 °C

Relative Humidity (non-condensing)

5-95%

Agency Approvals

UL/cUL(Class 1 Div. 2); CE, ATEX(Category 3, Zone 2), RoHS; DFARS; CB Scheme

Warranty

Lifetime
