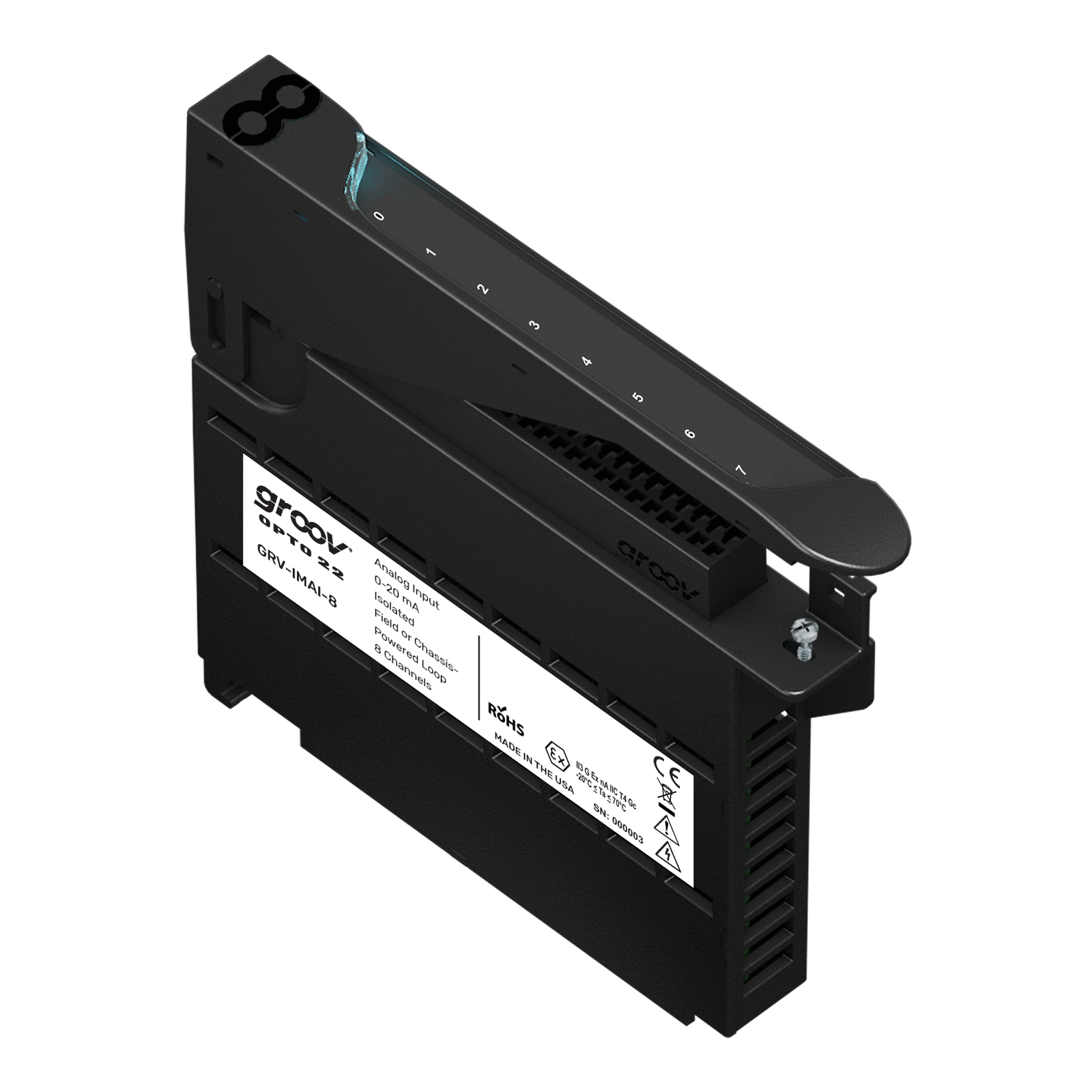

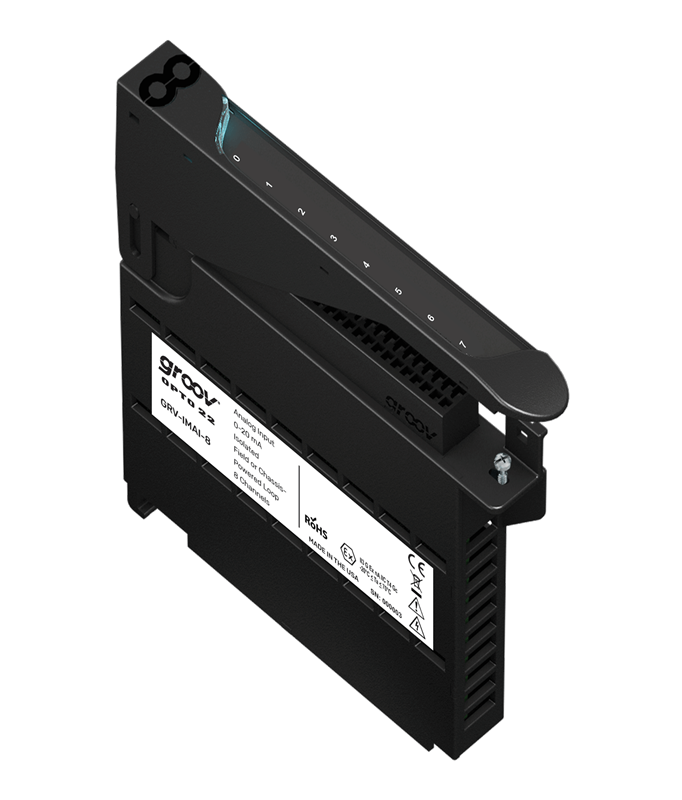

GRV-IMAI-8
Hover over image to zoom in

GRV-IMAI-8

$995.00 (USA and Canada only)

Availability: In stock
Analog input, 0–20 mA, isolated, field or chassis-powered loop, 8 channels

Production Specification

The GRV-IMAI-8 analog input module is part of the groov EPIC® system. This module provides channel-to-channel isolation on its  8 channels of analog current input with an input range of 0 to 20 mA and 4 to 20 mA. Each channel can be powered by an internally isolated loop supply or from an externally connected loop supply. Ranges are software configurable.

The GRV-IMAI-8 mounts on a groov EPIC chassis with other analog, discrete, and serial groov I/O modules and a GRV-EPIC-PR1 processor.

Specification

GRV-IMA-24

GRV-IMAI-8

Input Range (per channel)

 -20 to +20 mA, 0 to 20 mA, 4 to 20 mA

0 to 20 mA, 4 to 20 mA

Over-range limits

 -22 mA to +22 mA

0 mA to +22 mA, 1.8 mA to 22.0 mA

Resolution

 0.02 µA (20-bits)

0.02 µA (20-bits)

Accuracy

 ± 0.1% ( ± 20 µA )

± 0.1% ( ± 20 µA )

Input Voltage Drop nominal (Impedance ± 20%)

 5.5 V nominal @ 20 mA (275 Ohms)

5.5 V nominal @ 20 mA (275 Ohms)

Input Filter (hardware)

 -3 dB at 140 Hz

-3 dB at 140 Hz

Step Input Response Time

 225 ms x SMA value (7.2 s @ 32 SMA, Default SMA = 4 )

11 ms x SMA value
(.355 s @ 32 SMA, Default SMA = 4)

Data /Refresh Time

 225 ms

11 ms

Analog Data Filtering

 -3 dB @ 2.4 Hz / -25 dB @ 60 Hz

-5 dB @ 60 Hz

Software Data Filtering:
Simple moving average (SMA)
Weighted Filter


SMA: 1 to 32 Readings
Filter Weight: 1 to 4096


SMA: 1 to 32 readings
Filter Weight: 1 to 4096

Common Mode Rejection

 > -120 dB

 > -120 dB

Max. Survivable Input

 ± 32 V

 ± 32 V

Problem Indications

 out of range

out of range

Isolation (field-to-logic)

 300 V working, 1500 V transient (1 minute)

Isolation (channel-to-channel)

 300 V between group A (ch 0-11) & group B (ch 12-23)

 300 V working, 1500 V transient (1 minute)

Number of Channels

 24

 8

Chassis Power Consumption

 1.0 W

 1.4 W

Minimum GRV-EPIC-PR1 Firmware Version

 1.0.0

 1.3.0

Minimum PAC Project Version

 10.0000

 10.2000

Wire Size

 28-14 AWG

 28-14 AWG

Torque, connector screw

 2.5 in-lb (0.28 N-m)

 2.5 in-lb (0.28 N-m)

Torque, hold-down screw

 3.5 in-lb (0.4 N-m)

 3.5 in-lb (0.4 N-m)

Temperature (operating)

 -20 °C to +70 °C

 -20 °C to +70 °C

Temperature (storage)

 -40 °C to +85 °C

 -40 °C to +85 °C

Relative Humidity (non-condensing)

 5-95%

 5-95%

Agency Approvals

 UL/cUL(Class 1 Div. 2); CE, ATEX(Category 3, Zone 2), RoHS; DFARS; CB Scheme

Warranty

 Lifetime

 Lifetime

groov Analog Current Input Module Data Sheet

groov analog current input modules are part of Opto 22's groov EPIC® System. This document includes descriptions, specifications, and wiring and dimensional diagrams for the following part numbers:

groov I/O Modules Firmware Readme

Readme for the latest update to the groov I/O modules. Includes information on new features, enhancements, and bug fixes.

See a list of groov I/O module firmware.

UKCA Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

ATEX Letter of Conformity for groov EPIC

This ATEX Letter of Conformity is provided to support CE Declaration of Conformity (groov EPIC and groov RIO), form 2261.

Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

GRV-IMAI-8 Module Firmware

This download contains current firmware for the GRV-IMAI-8 module. For a list of bug fixes and enhancements included in this firmware, see the groov I/O Modules Firmware readme document.

You can download the previous version of the firmware by clicking on this link:1.3c

CAD Drawing: groov I/O Module

This ZIP file includes drawings in a variety of file formats (pdf, dwg, stp) that apply to all groov I/O modules.

Note: These drawings do not apply to groov RIO modules.

Accuracy vs Resolution

What's the difference between accuracy and resolution in analog I/O specifications? Try your own specs in the calculator.
