GRV-ITMI-8
Hover over image to zoom in

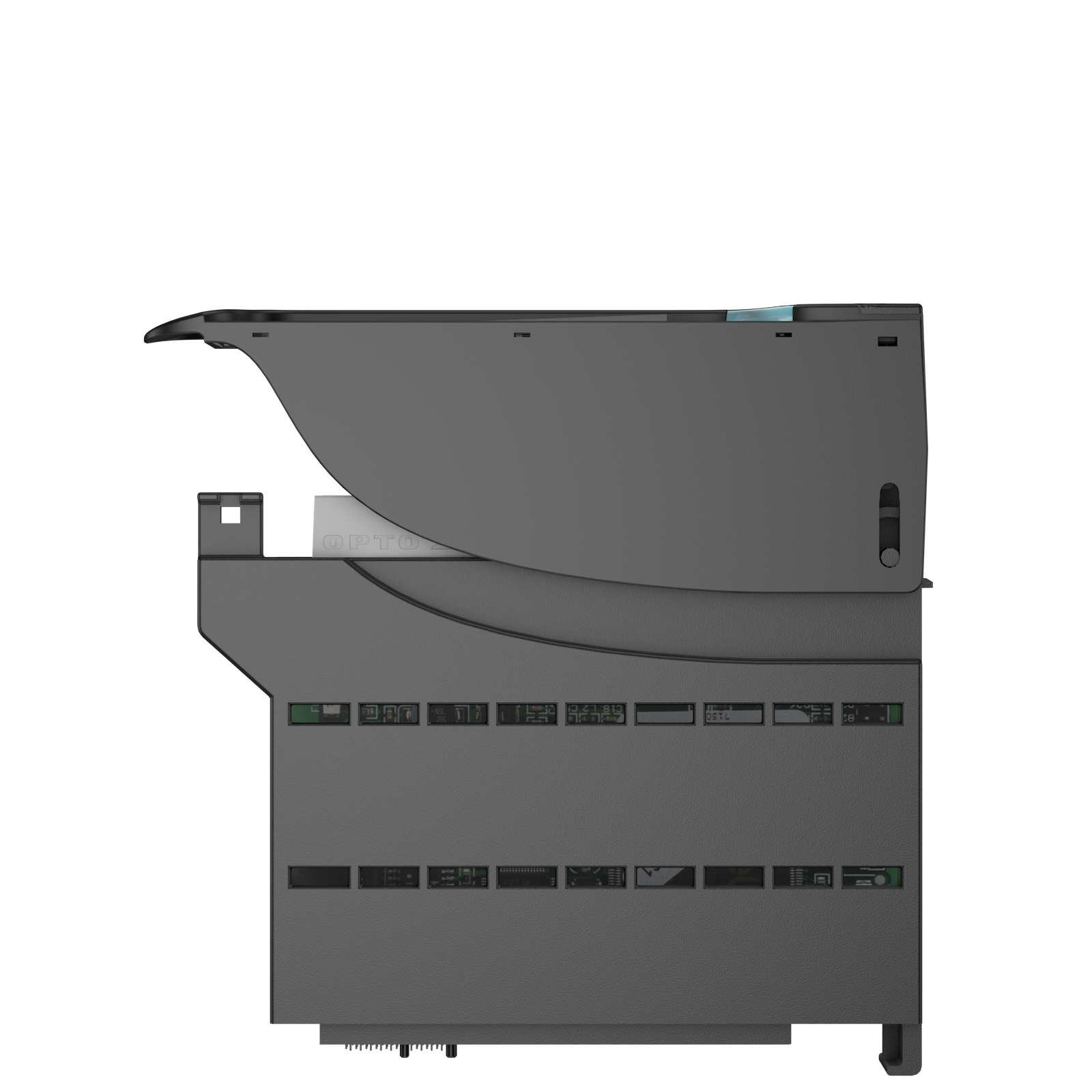

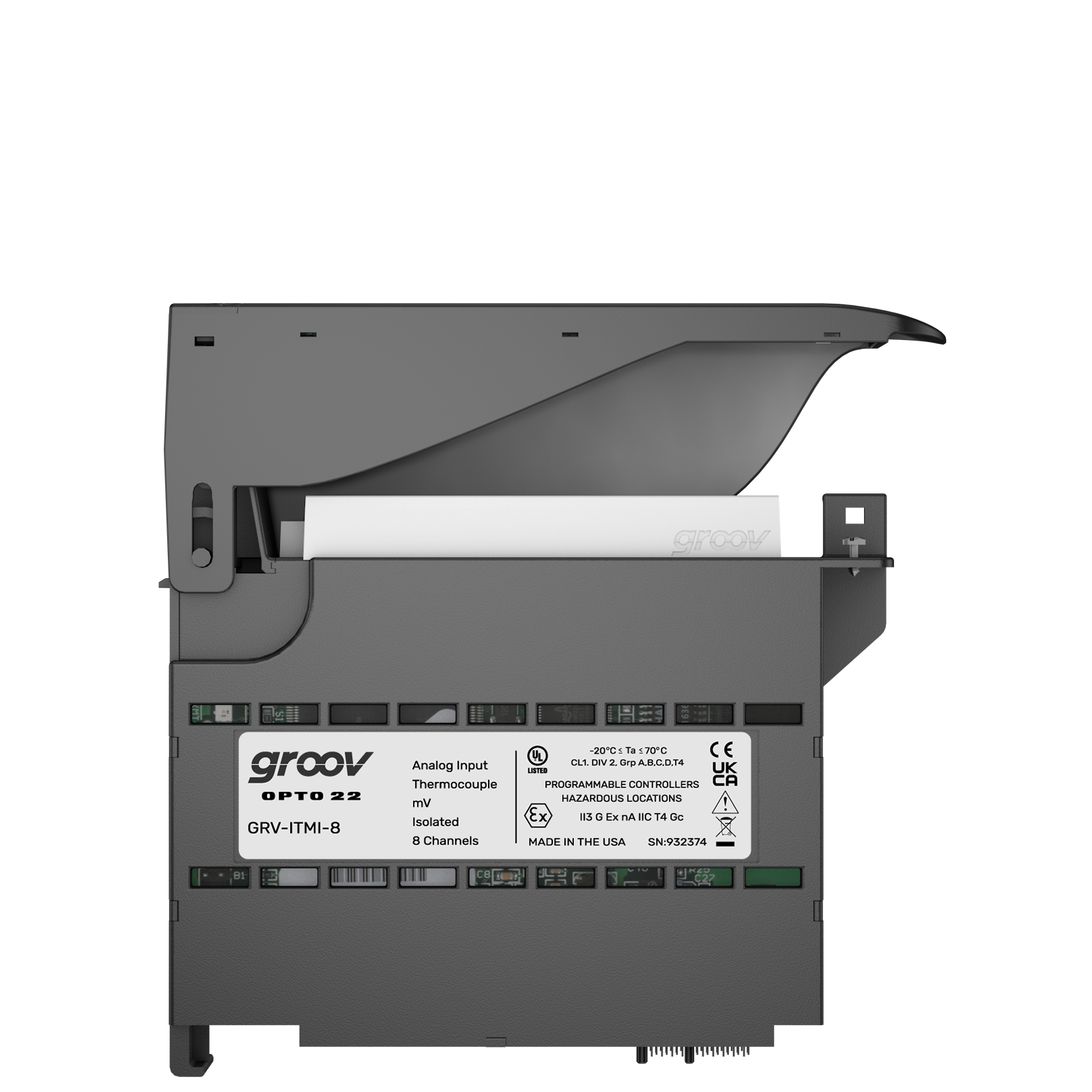

GRV-ITMI-8

$1,145.00 (USA and Canada only)

Availability: Call for Availability
Analog input, 8 channel, thermocouple or mV, channel-to-channel isolation
Data Sheet

Production Specification

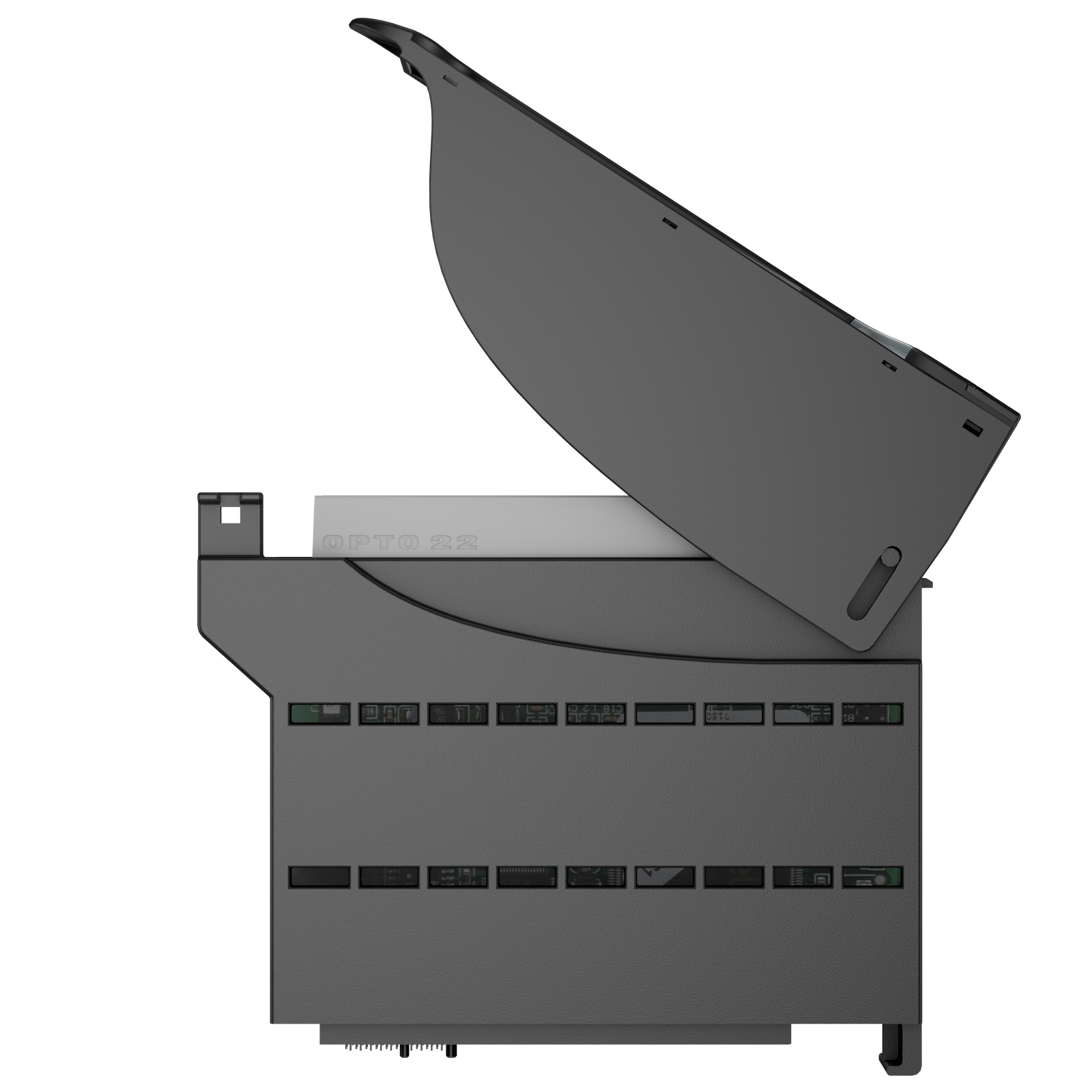

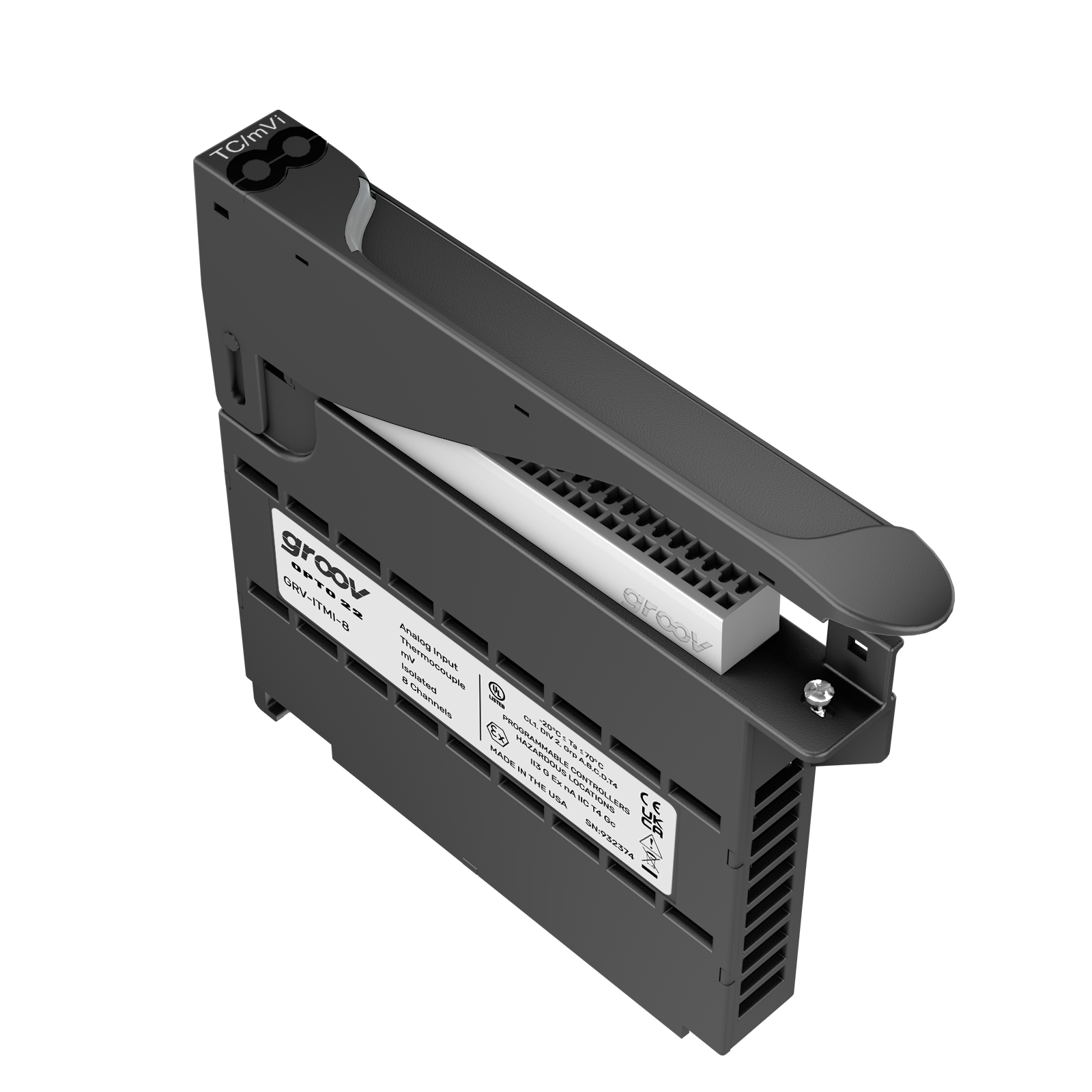

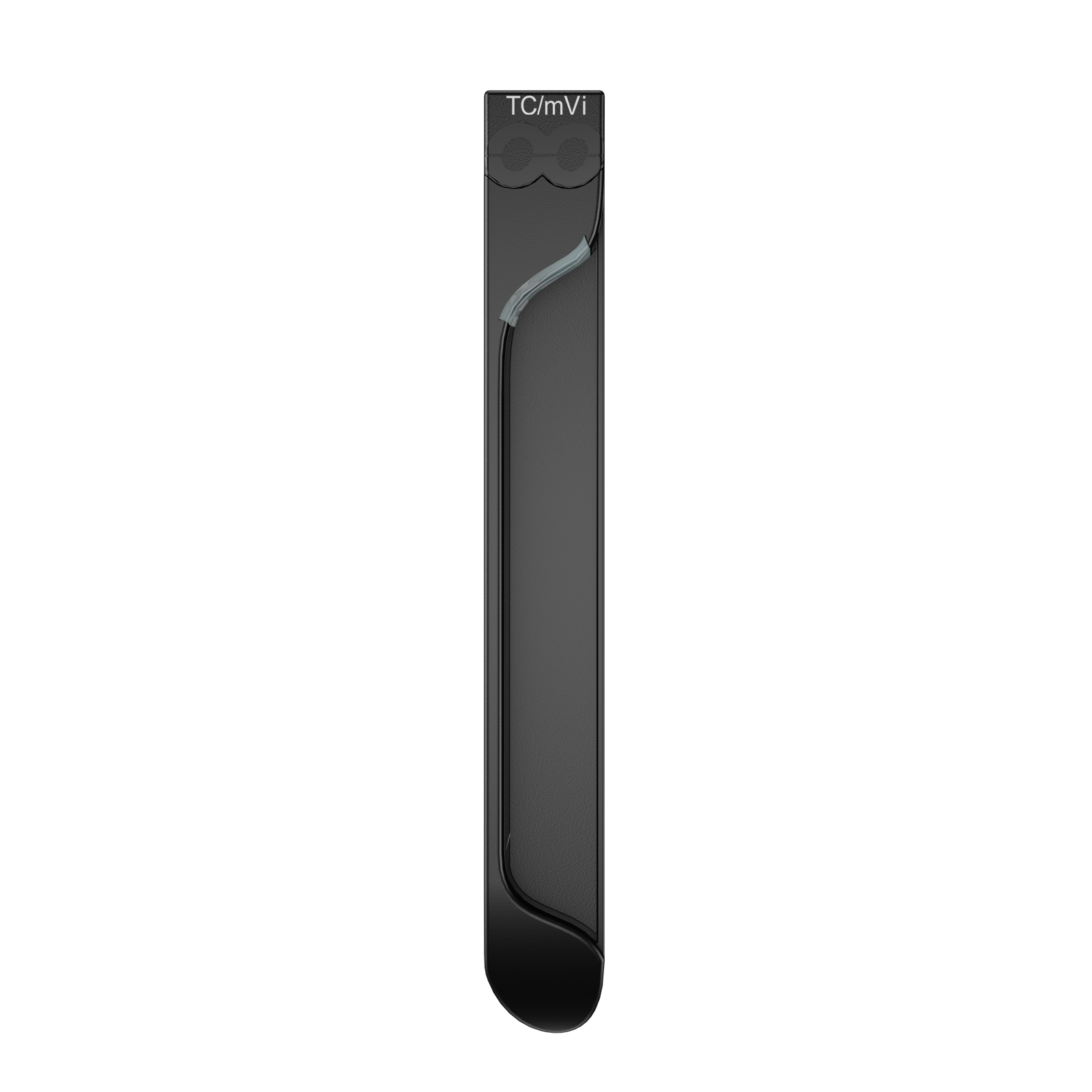

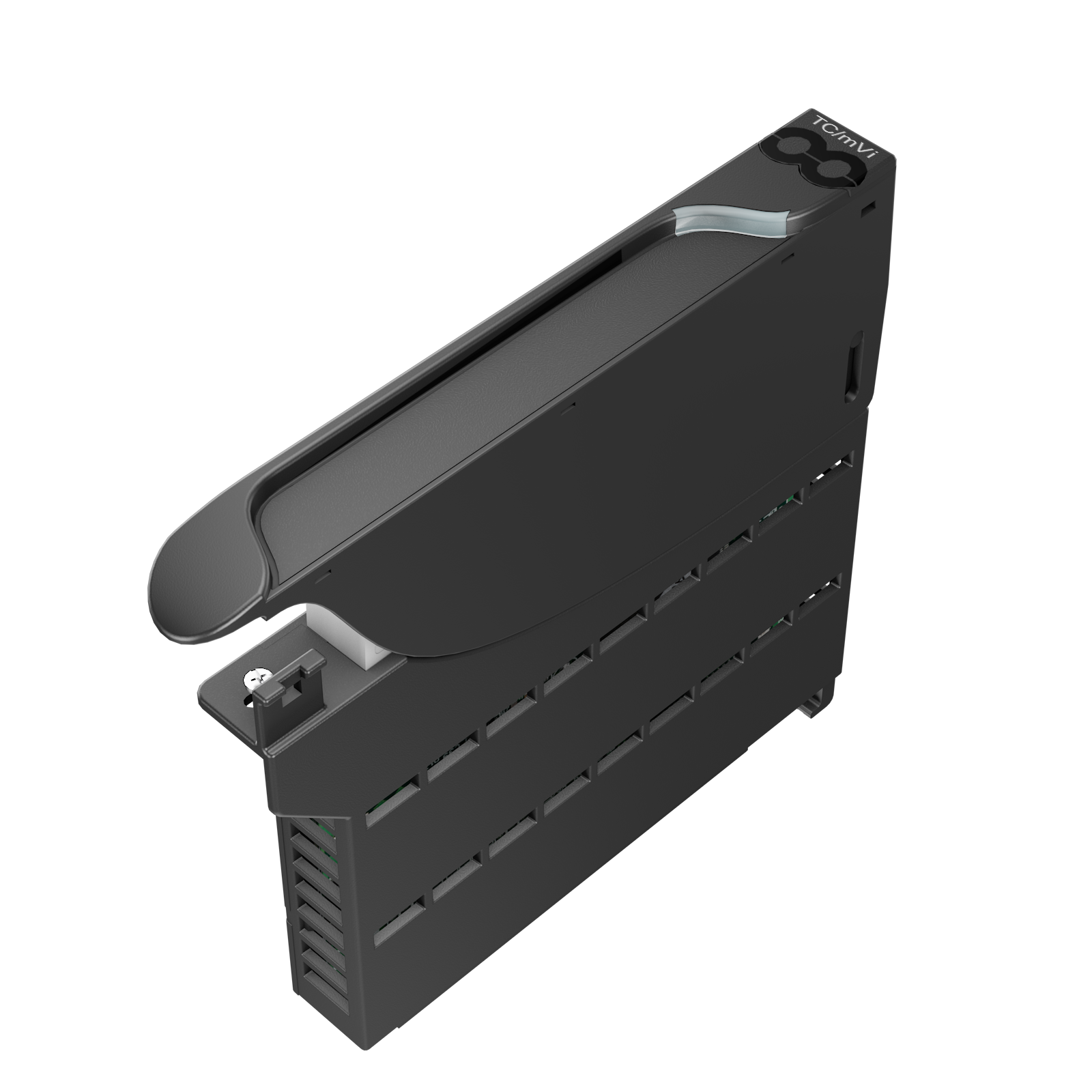

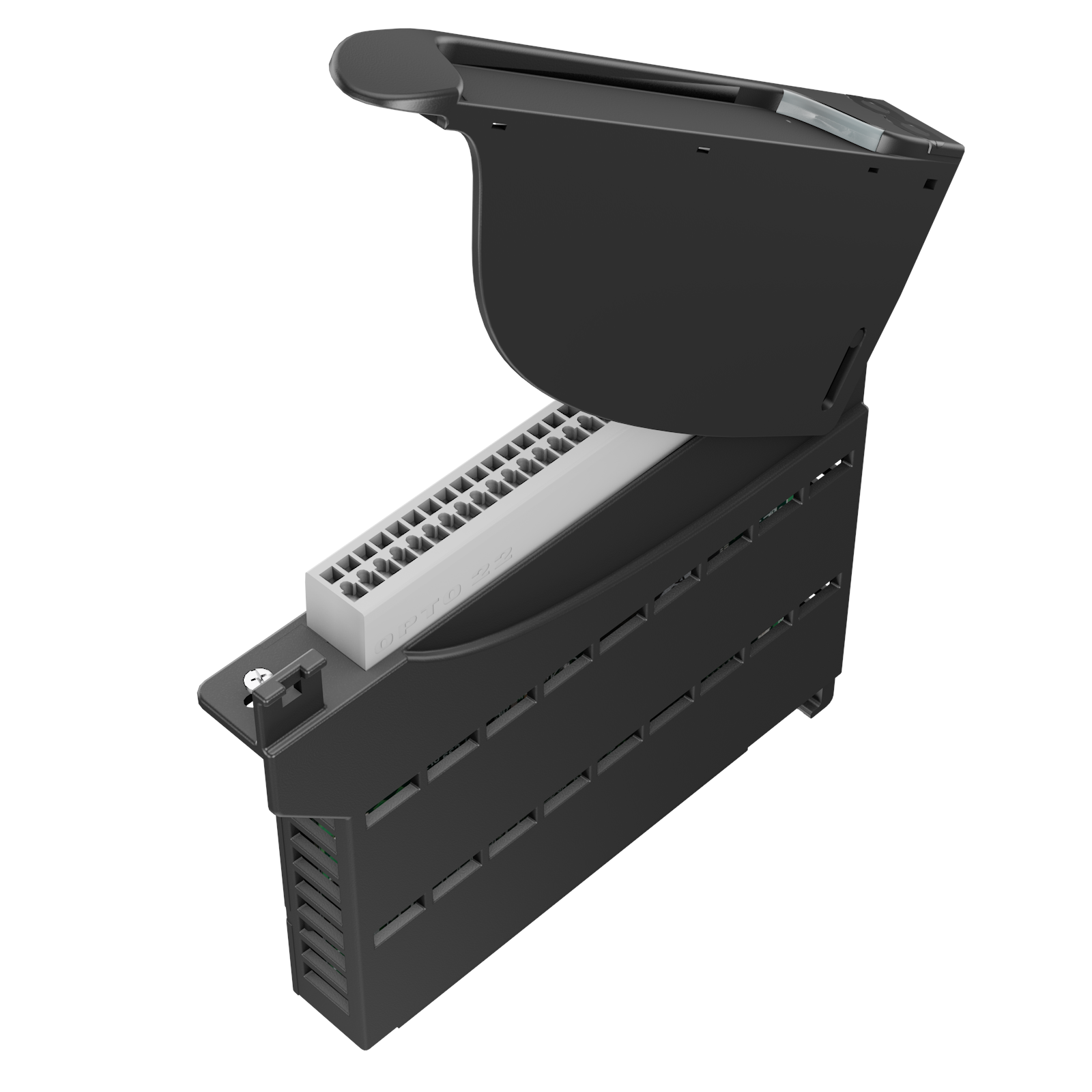

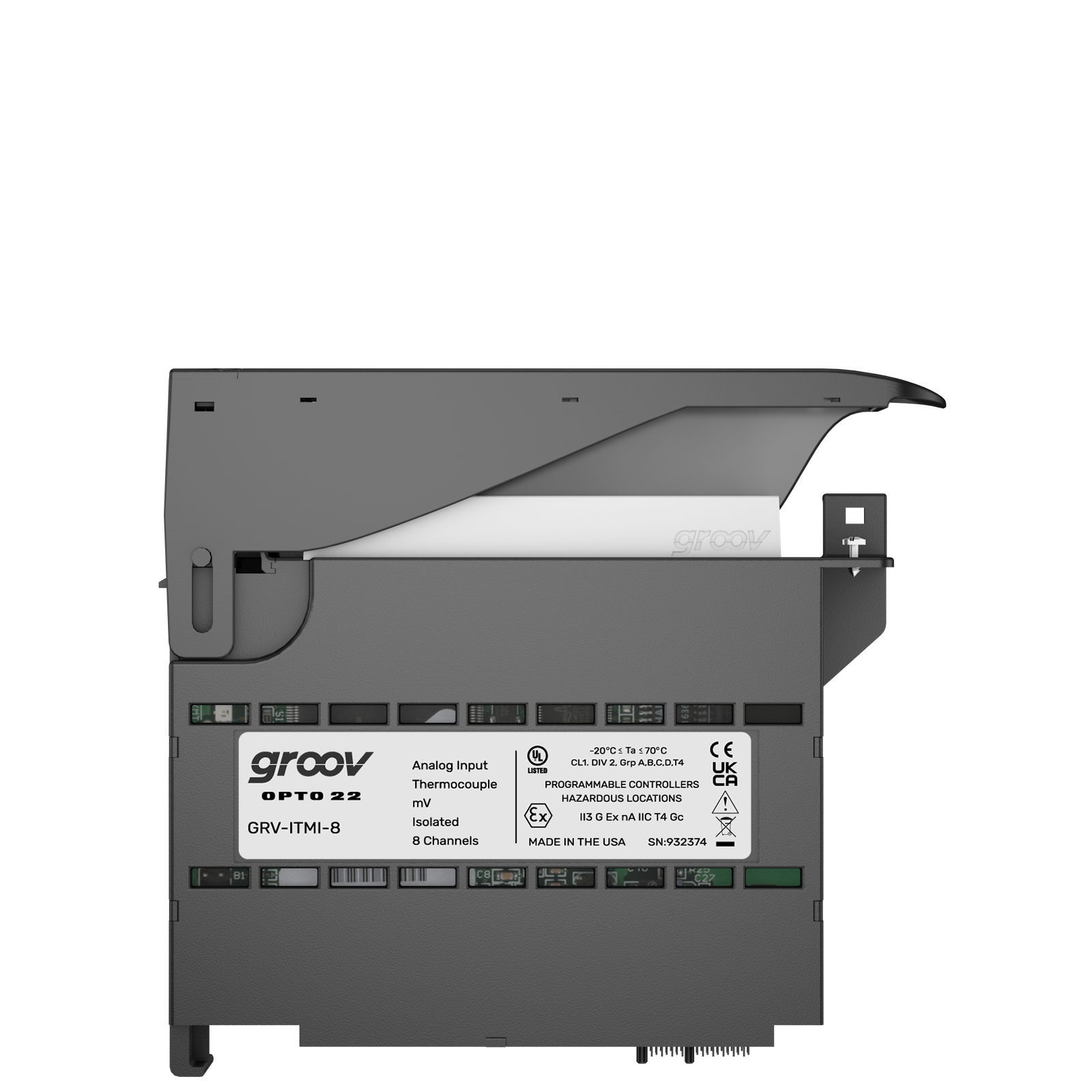

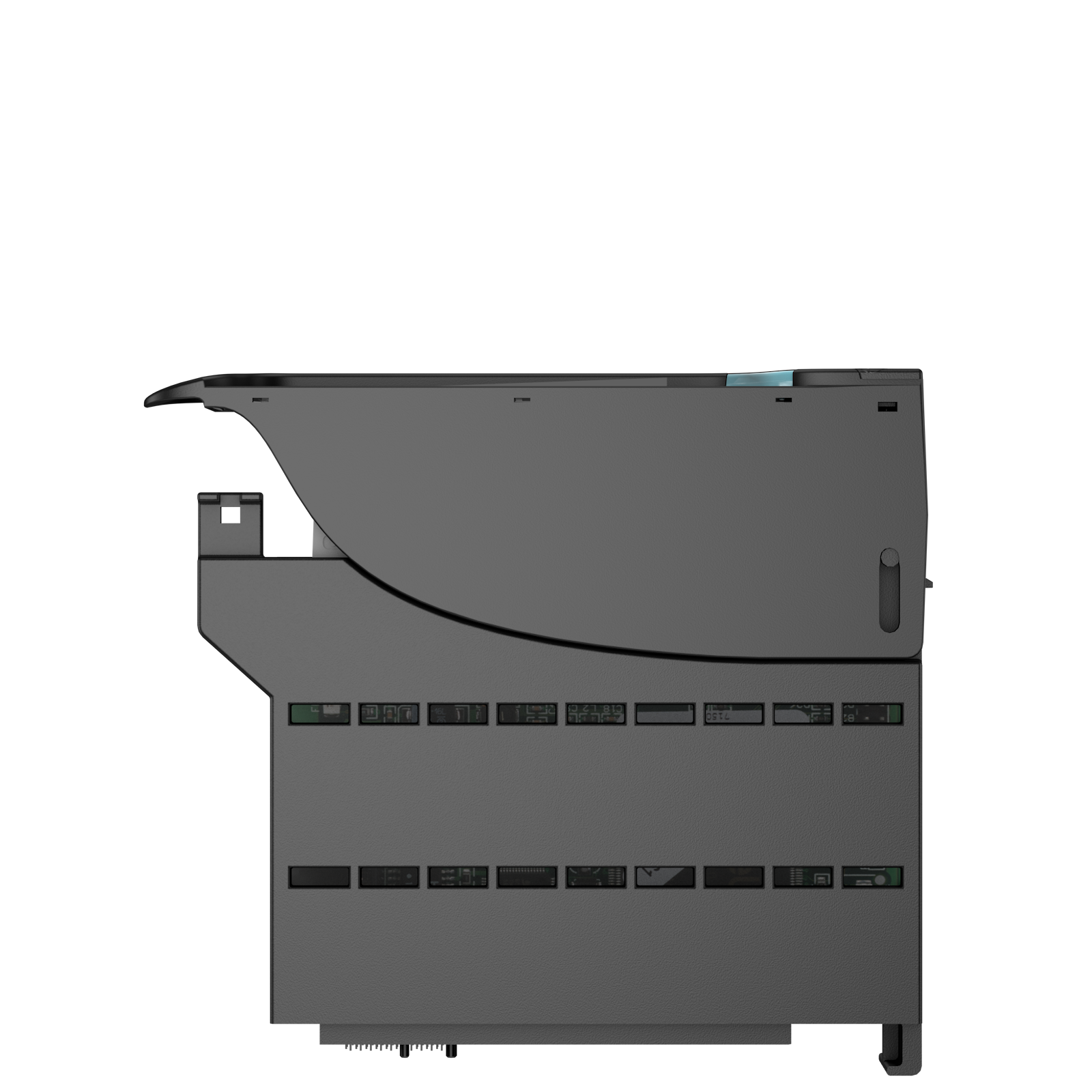

The GRV-ITMI-8 analog module is part of the groov EPIC® system. This flexible module provides 8 channels of input from millivolt or thermocouple field devices. Each channel is individually configurable for ±1200 mV, ±600 mV, ±300 mV, ±150 mV, ±75 mV, ±50 mV, ±25 mV or Type B, E, J, K, N, R, S, or T thermocouples.

The eight channels on the module are isolated from each other. Since these channels do not share any common connections, you can use grounded sensors and field devices with them.

The GRV-ITMI-8 mounts on a groov EPIC chassis with a GRV-EPIC-PR1 processor and additional analog, discrete, and serial groov I/O modules, to provide the mix of signals you need at any location.
Features GRV-ITM-12 GRV-ITMI-8
Scaling x x
Offset and Gain x x
Minimum/Maximum Values x x
Average Filter Weight x x
Simple Moving Average x x
Analog Totalizing x x
Problem indication x x

Specification GRV-ITM-12 and GRV-ITMI-8
Millivolt Input Ranges ±1200.0 mV, ±600.0 mV, ±300.0 mV, ±150.0 mV, ±75.0 mV, ±50.0 mV, ±25.0 mV
Over range limits (± 10%) ±1320.0 mV, ±660.0 mV, ±330.0 mV, ±165.0 mV, ±82.5 mV, ±55.0 mV, ±27.5 mV
Resolution mV Range / 1,048,576 (20 bits)
Accuracy 0.1% of Range ±1200 µV, ±600 µV, ±300 µV, ±150 µV, ±75 µV, ±50 µV, ±50 µV
Thermocouple ITS90 Types Accuracy (Default) / Accuracy (User-Calibrated) / Resolution
B: 90 °C to 1,820 °C 5.0 °C / 3.0 °C @ 250 °C / 0.05 °C
E: -270 °C to 1,000 °C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
J: -210 °C to 1,200 °C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
K: -270 °C to 1,372 °C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
N: -270 °C to 1,300 °C 3.0 °C / 0.8 °C @ 0.0 °C / 0.05 °C
R: -50 °C to 1,768 °C 5.0 °C / 2.5 °C @ 250 °C / 0.05 °C
S: -50 °C to 1,768 °C 5.0 °C / 3.0 °C @ 250 °C / 0.05 °C
T: -270 °C to 400 °C 3.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
Specification GRV-ITM-12 GRV-ITMI-8
Cold Junction Compensation Automatic Automatic
Data Refresh Time mV Ranges = 0.9 s
T/C Ranges = 1.2 s		 mV Ranges = 100 ms
T/C Ranges = 200 ms
Analog Data Filtering -3 dB @ 14 Hz
-25 dB @ 60 Hz		 -3 dB @ 14 Hz
-25 dB @ 60 Hz
Software Filtering: Simple Moving Average (SMA) 1 to 32 readings 1 to 32 readings
Software Filtering: Weighted Average 1 to 4096 1 to 4096
Step Input Response Time 1.2 s x SMA value
(38.4 s @ 32 SMA, Default SMA = 6)		 16.5 ms x SMA value
(0.53 s @ 32 SMA, Default SMA = 8)
Common Mode Rejection > -120 dB > -120 dB
Input Resistance 100 megohm 100 megohm
Problem Indication out of range, open thermocouple out of range, open thermocouple
Isolation (field-to-logic) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute)
Isolation (channel-to-channel) 300 V between channel group 0-5 & channel group 6-11.
None within a group.		 300 V working, 1500 V transient (1 minute)
Number of Channels 12 8
Chassis Power Consumption 1.3 W 1.4 W
Minimum GRV-EPIC-PR1 Firmware Version 1.4.2 1.0.0
Minimum PAC Project Version 10.2003 10.0000
Minimum Library Package for CODESYS Version 1.0.2.0 1.0.0.0
Wire Size 28–14 AWG 28–14 AWG
Torque, connector screw 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m)
Torque, hold-down screw 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m)
Temperature (operating) -20 °C to +70 °C -20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C -40 °C to +85 °C
Humidity (non-condensing) 5–95% RH 5–95% RH
Agency Approvals UL/cUL (Class 1 Div. 2)a; CE, ATEX (Category 3, Zone 2), RoHS; DFARS; CB Scheme; UKCA
Warranty Lifetime Lifetime
a For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).
