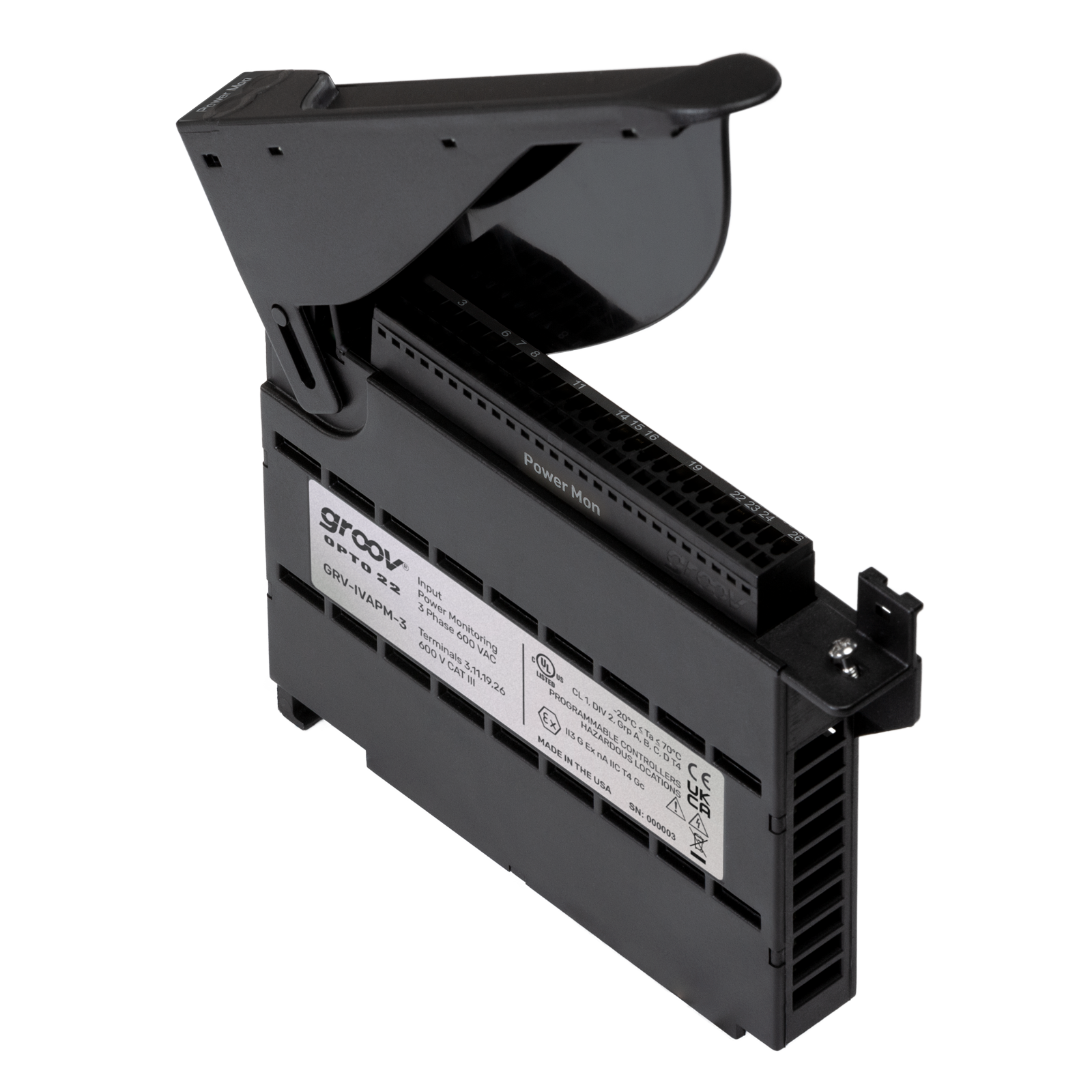

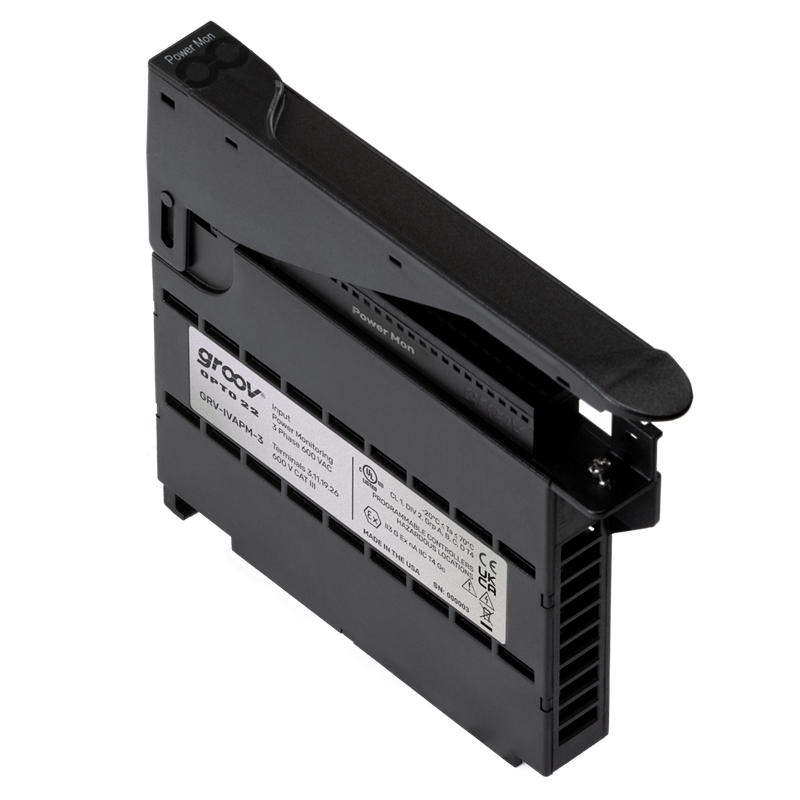

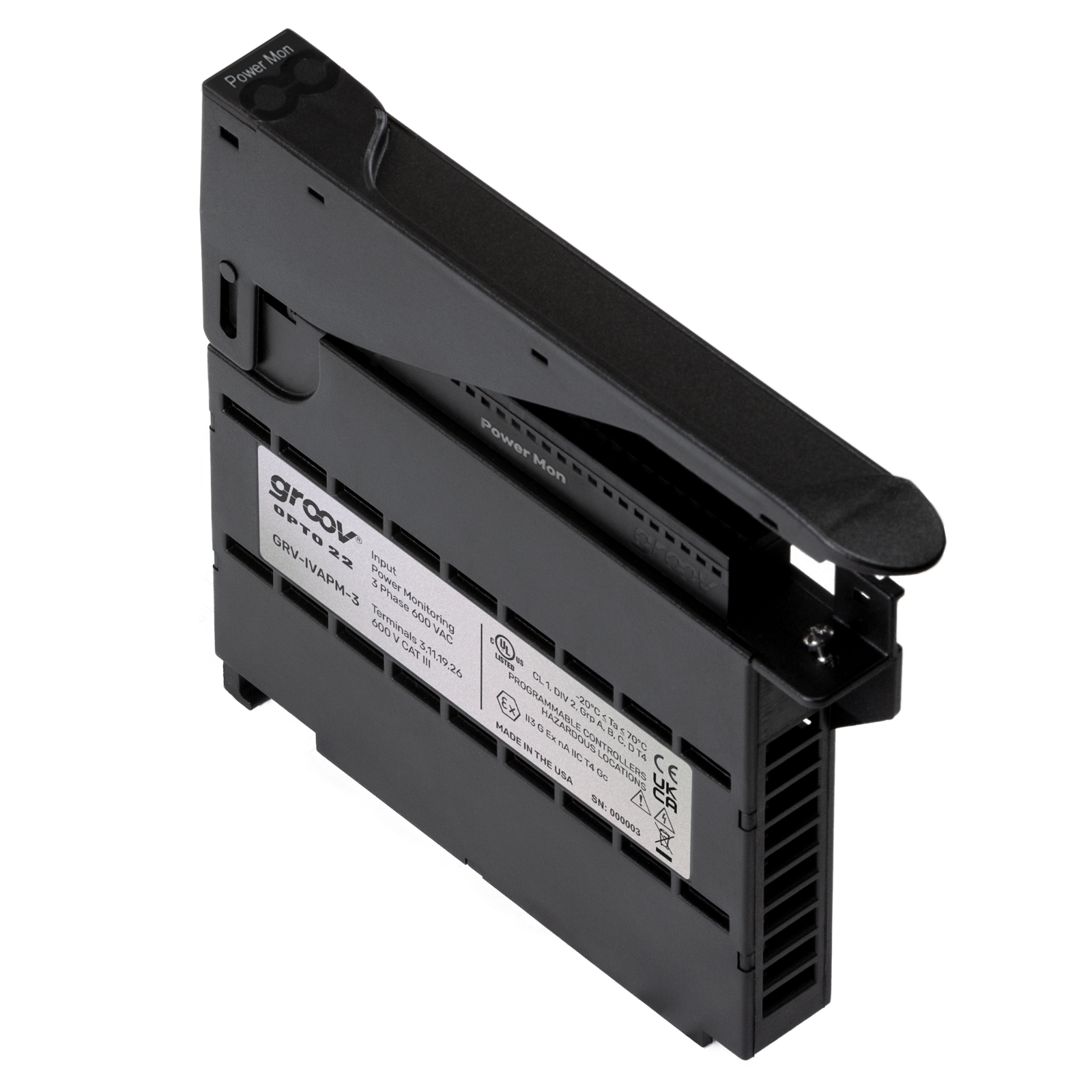

GRV-IVAPM-3 analog input module provides an efficient way to monitor and measure power and energy usage
in your facility. GRV-IVAPM-3 simultaneously measures volts AC RMS and amps AC RMS on Category III Wye (up to 400 VAC) or Delta (up to 600 VAC) circuits. It can monitor three-phase AC current using 0.333 V, 1 V, or 5 A current transformers (CT). Each phase can be configured to eliminate small signals from power measurement and energy accumulation to help you tune signal accuracy.
From the measured field inputs, the module automatically calculates additional channels of significant data, for a total of 64 data channels, including voltage and current; true, reactive and apparent power; power factor, frequency, net energy, and other values, as well as summations for all phases.
If the module is part of a groov
EPIC system running a PAC Control™ strategy, strategy logic can automatically perform additional calculations and take action to address any issues detected.
Part of the groov
EPIC system, mounts on a groov EPIC chassis
together with a GRV-EPIC-PR1
processor and other analog, discrete, and serial groov I/O modules
. Opto 22 also offers a range of split core current transformers
suitable for the GRV-IVAPM-3.
