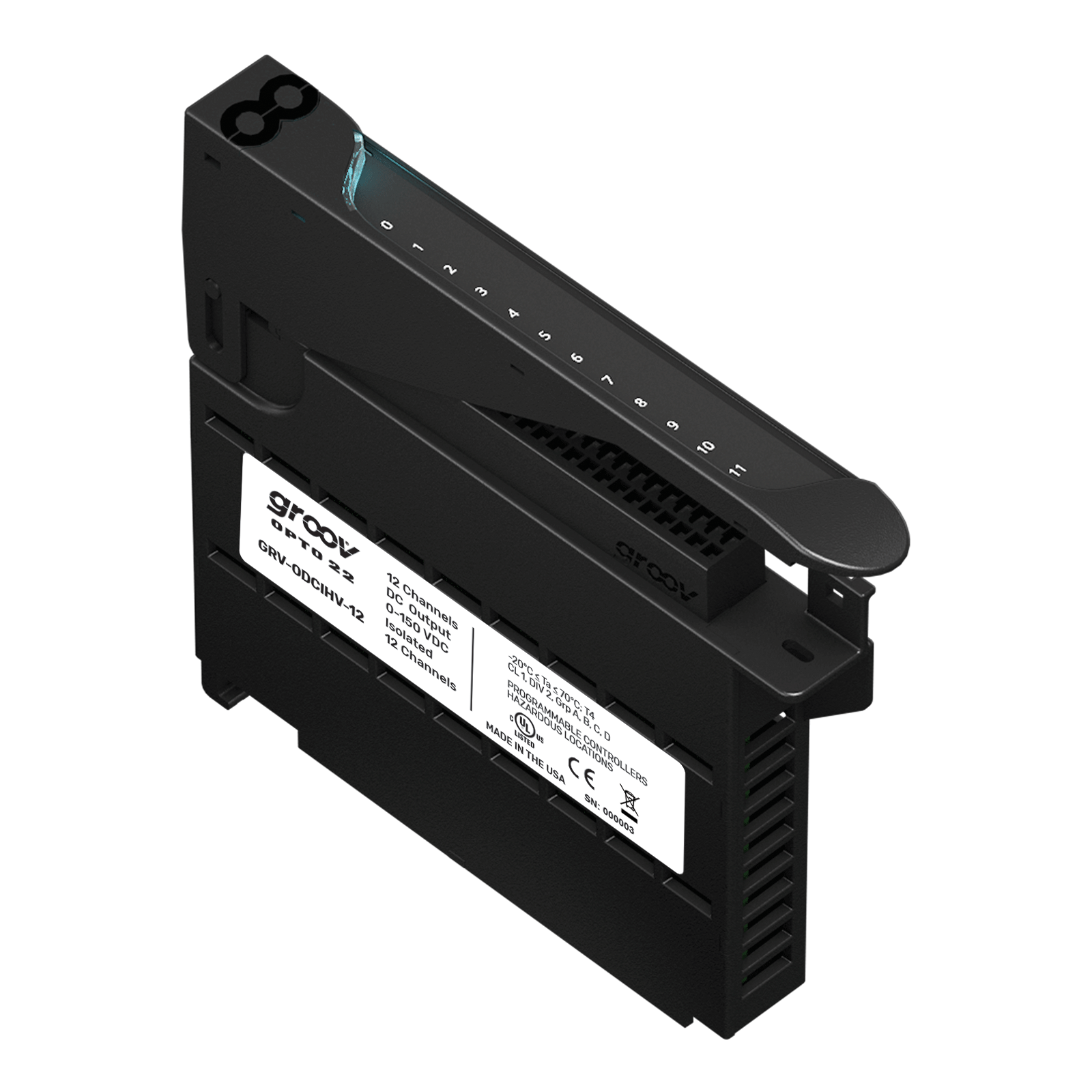

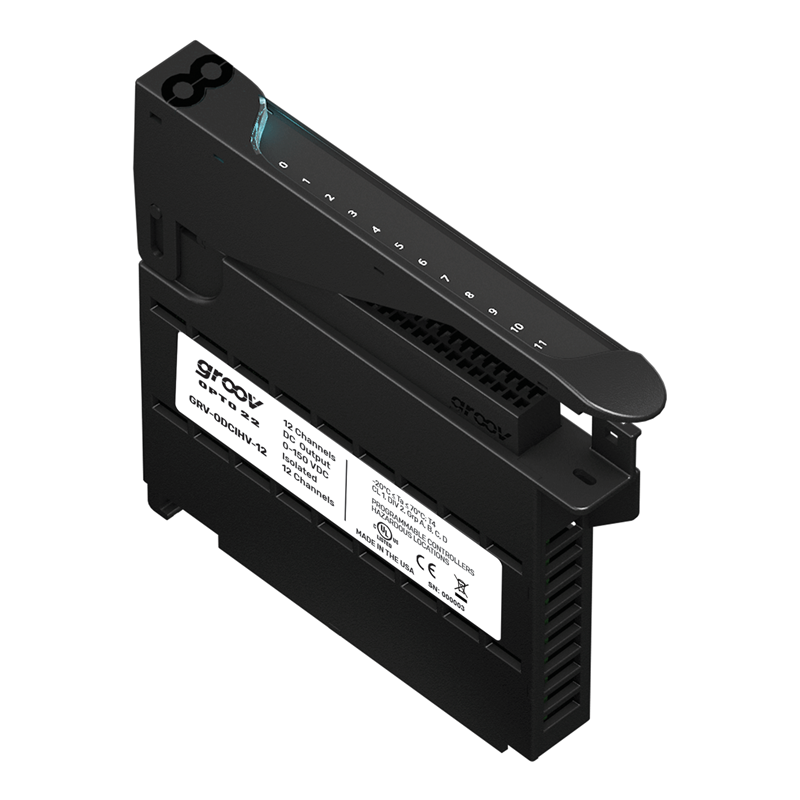

GRV-ODCIHV-12
Hover over image to zoom in

$630.00 (USA and Canada only)

Availability: Call for Availability
DC discrete output, 12 channels, 0-150 VDC, channel-to-channel isolation
Data Sheet

Production Specification

Part of the groov EPIC® system, the GRV-ODCIHV-12 discrete DC output module offers 12 channels of 0–150 VDC output, each switching a separate DC load, and is perfect for applications that need to drive higher voltage loads. The module's 12 channels are isolated from each other (channel-to-channel isolation), and it features channel-specific LEDs for troubleshooting. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.


The GRV-ODCIHV-12 provides a full set of features, including:
  • On/off state
  • On/off totalization
  • Output pulsing/TPO
The GRV-ODCIHV-12 module mounts on a groov EPIC chassis alongside other groov I/O modules and a groov EPIC processor (GRV-EPIC-PR1 or GRV-EPIC-PR2), providing the mix of signals you need at one location.

This groov I/O module is UL/cUL listed for Class 1, Div 2 hazardous locations and carries CE and UKCA marks. Each groov I/O module is factory tested twice before shipment, and most modules are guaranteed for life.

Opto 22 products, like GRV-ODCIHV-12, are ideal for OEMs and machine designers, process control, machine monitoring, power and energy monitoring, predictive maintenance, remote installations like water-wastewater and oil & gas, SCADA, and industrial internet of things (IIoT) applications.


Feature GRV-ODCI-12 GRV-ODCIS-12 GRV-ODCIHC-12 GRV-ODCIHV-12
Number of Channels 12 12 12 12
Channel-to-Channel Isolation ⬤ ⬤ ⬤ ⬤
On/Off State ⬤ ⬤ ⬤ ⬤
On/Off Totalization ⬤   ⬤ ⬤
Output Pulsing/TPO ⬤   ⬤ ⬤
Quality Indication
Watchdog Timeout ⬤ ⬤ ⬤ ⬤

Specification GRV-ODCI-12 GRV-ODCIS-12 GRV-ODCIHC-12 GRV-ODCIHV-12
Line Voltage Range (nominal) 5–48 VDC 5–48 VDC 0–60 VDC 0–150 VDC
Line Voltage Range (max) 5–60 VDC 5–60 VDC 0–60 VDC 0–150 VDC
Current Rating 400 mA per channel or 4.8 A per module (70 °C) 400 mA per channel or 4.8 A per module (70 °C) 6 A per channel (70 °C) 1.8 A per channel (70 °C)
Surge Current 5 A peak for 1 second 5 A peak for 1 second 10 A peak for 1 second 4 A peak for 1 second
Recommended Max. Fuse (fast) or Circuit Breaker 3 A 60 VDC / channel, 6 A 60 VDC / module 3 A 60 VDC / channel, 6 A 60 VDC / module 8 A 60 VDC / channel 2 A 150 VDC / channel
Minimum Load 20 mA 20 mA N/A N/A
Output Voltage Drop 1.2 V max. 1.2 V max. 200 mV @ 6 A, 70 °C 400 mV @ 1.8 A, 70 °C
Off-state Leakage 1 mA at 60 V 1 mA at 60 V <10 microamps at 60 V <10 microamps at 150 V
Peak Blocking Voltage 60 V 60 V 60 V 150 V
TPO Period (min, max, resolution) 0.005 seconds, 429496.72 seconds, 0.001 seconds N/A 0.005 seconds, 429496.72 seconds, 0.001 seconds; do not exceed 200 Hz 0.005 seconds, 429496.72 seconds, 0.001 seconds; do not exceed 200 Hz
Turn On/Off Time 2.5 ms   <100 microseconds <100 microseconds / 2.5 ms
Isolation (field-to-logic) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute)
Isolation (channel-to-channel) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute)
Number of Channels 12 12 12 12
Chassis Power Consumption 1.2 W 1.2 W 2.5 W 2.5 W
Minimum groov EPIC Firmware Version 1.0.0 1.0.0 4.1.0 4.1.0
Minimum PAC Project Version 10.0000 10.0000 10.6000 10.6000
Minimum Library Package for CODESYS Version 1.0.0.0 1.0.0.0 3.1.3.0 3.1.3.0
Wire Size 28–14 AWG 28–14 AWG 28–14 AWG 28–14 AWG
Wire Strip Length 0.315–0.354 inches (8–9 mm) 0.315–0.354 inches (8–9 mm) 0.315–0.354 inches (8–9 mm) 0.315–0.354 inches (8–9 mm)
Torque, connector screw 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m)
Torque, hold-down screw 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m)
Temperature (operating) -20 °C to +70 °C -20 °C to +70 °C -20 °C to +70 °C -20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C -40 °C to +85 °C -40 °C to +85 °C -40 °C to +85 °C
Relative Humidity (non-condensing) 5–95% 5–95% 5–95% 5–95%
MTBF (minimum, 25 °C) 1.2 Mhrs 1.2 Mhrs 1.2 Mhrs 1.2 Mhrs
Agency Approvals UL/cUL (Class 1, Div 2)a; CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA UL/cUL (Class 1, Div 2)a; CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA UL/cUL (Class 1, Div 2)a; CE: RoHS; DFARS; UKCA UL/cUL (Class 1, Div 2)a; CE: RoHS; DFARS; UKCA
Warranty Lifetime Lifetime Lifetime Lifetime

a. For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).
