GRV-TERMG26-5
Hover over image to zoom in

GRV-TERMG26-5

$145.00 (USA and Canada only)

Availability: In stock

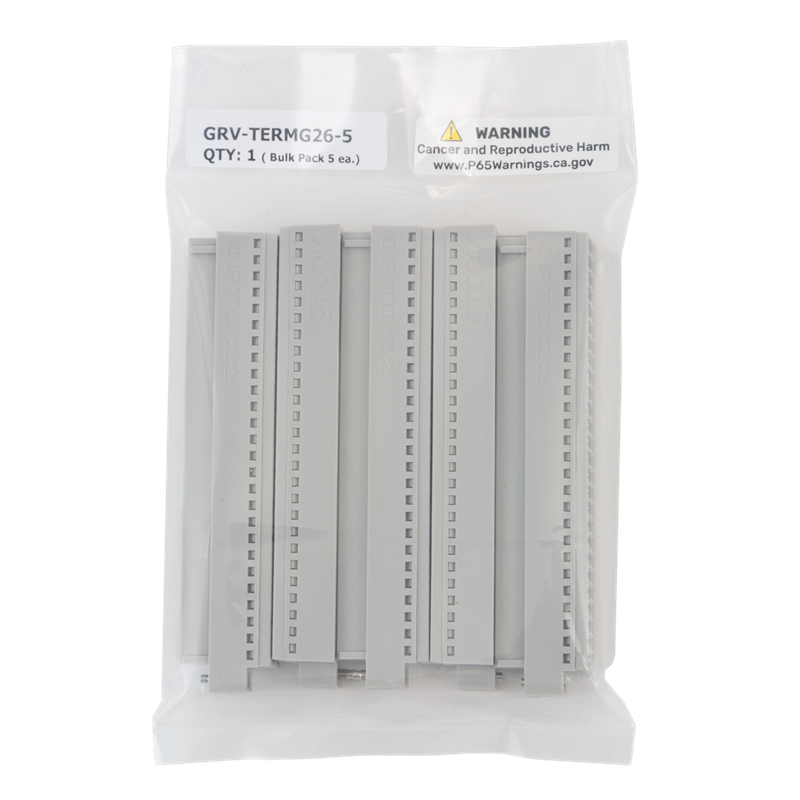

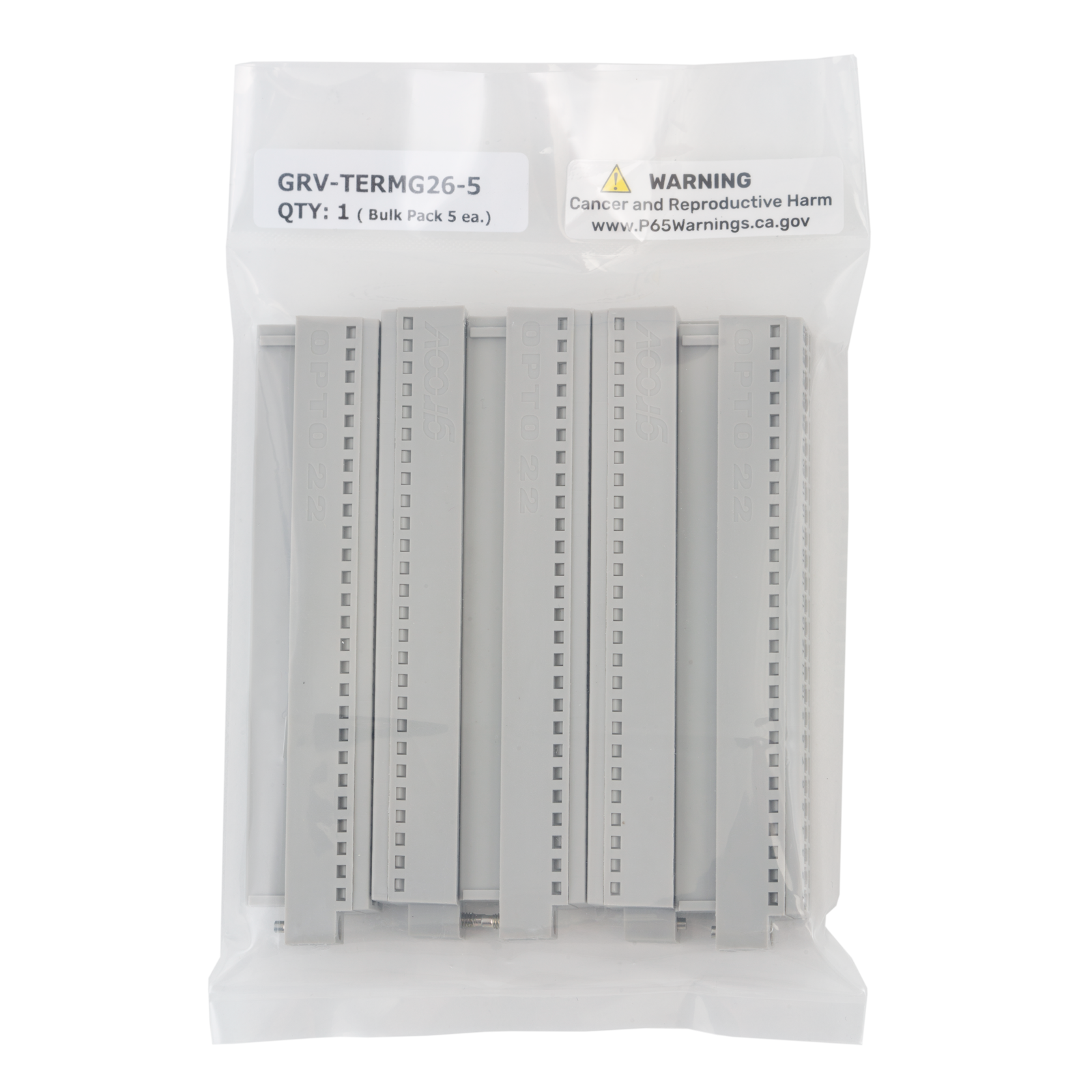

groov I/O Module Terminal, Gray, for Thermocouple Modules, 5-pack
Data Sheet

Production Specification

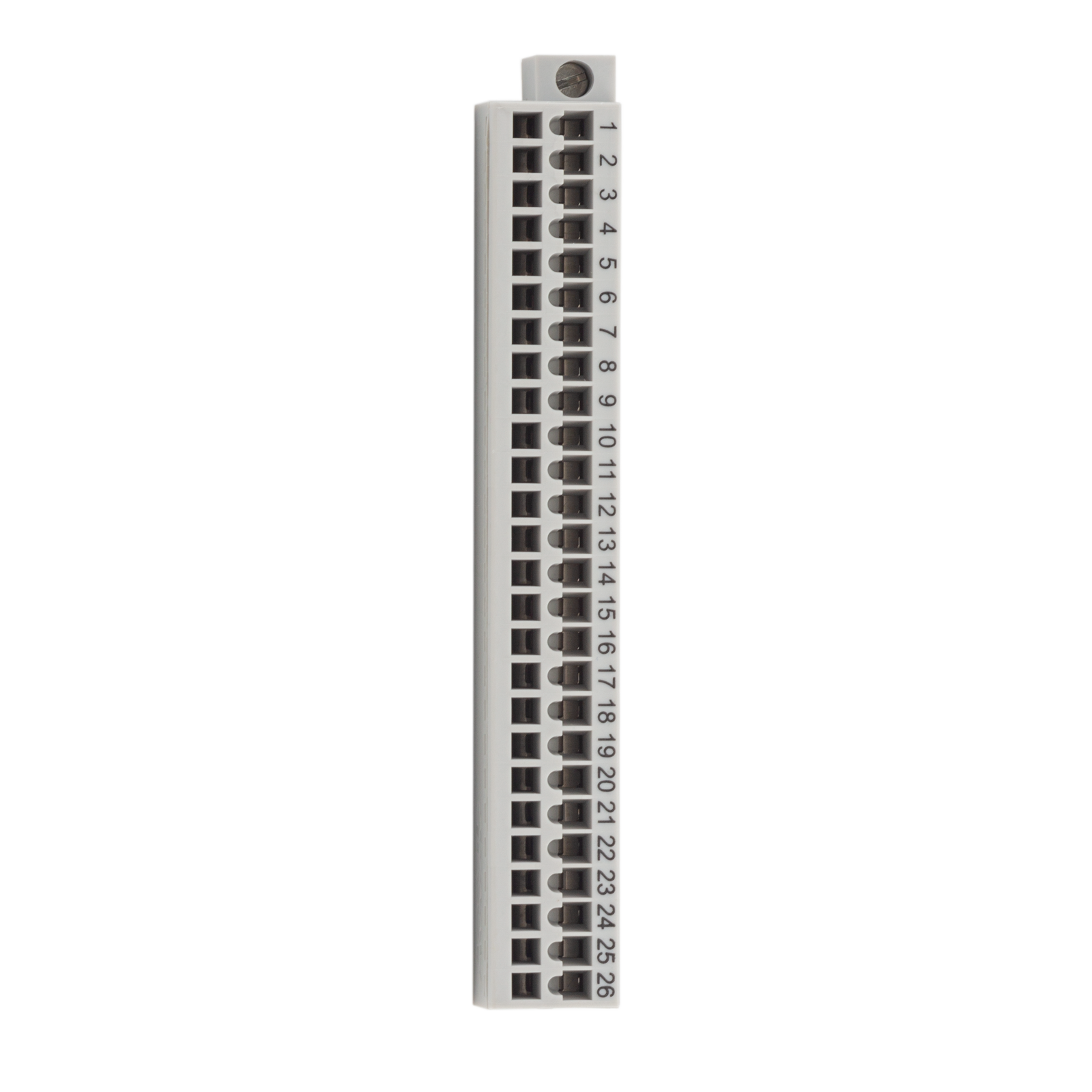

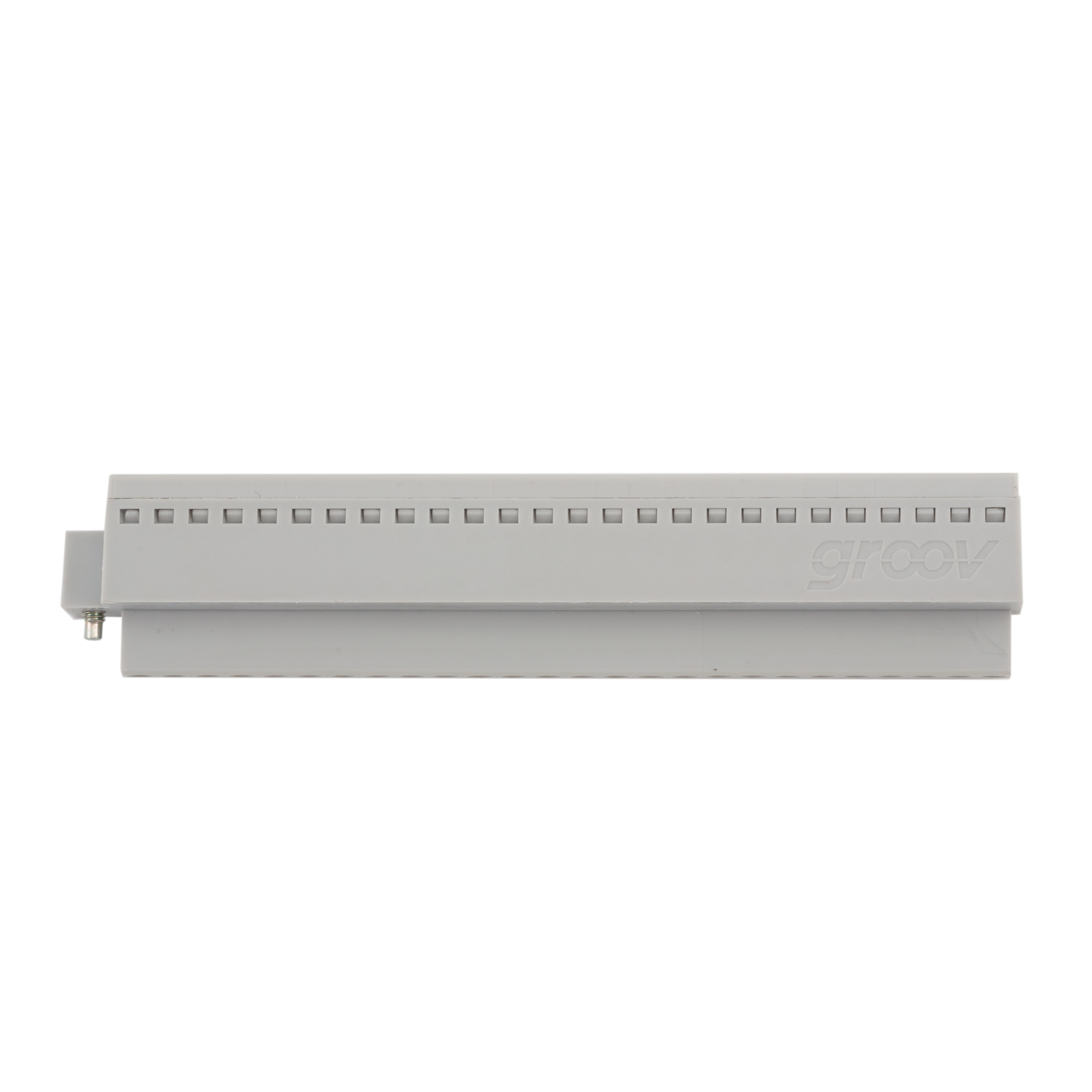

GRV-TERMG26-5 is a pack of five pluggable terminal connectors for field wiring. These connectors support cold-junction compensation for thermocouple channels. Use these terminal connectors with the following groov I/O and groov RIO modules:

Important: These modules support thermocouple channels which require special terminal connectors. These terminal connectors are gray to make them easy to identify. When replacing terminal connectors on the modules listed above, make sure to use only the gray connectors.

If you have a GRV-IVAPM-3 or GRV-R7-I1VAPM-3, see GRV-TERMPM13-5. If you have a different groov I/O part number, see GRV-TERM26-5.

Accepts wire sizes from 28–14 AWG.
Torque specification for connector screw: 2.5 in-lb (0.28 N-m)

2314

groov Accessories Data Sheet

groov accessories are additional or replacement parts designed specifically for the groov EPIC system. This data sheet covers items like groov I/O terminal connectors and cables that save you time and money when wiring field devices to groov RIO and groov I/O modules.

This data sheet covers the following part numbers:
