GRV-TEX-26F6
Hover over image to zoom in

GRV-TEX-26F6

$145.00 (USA and Canada only)

Availability: In stock

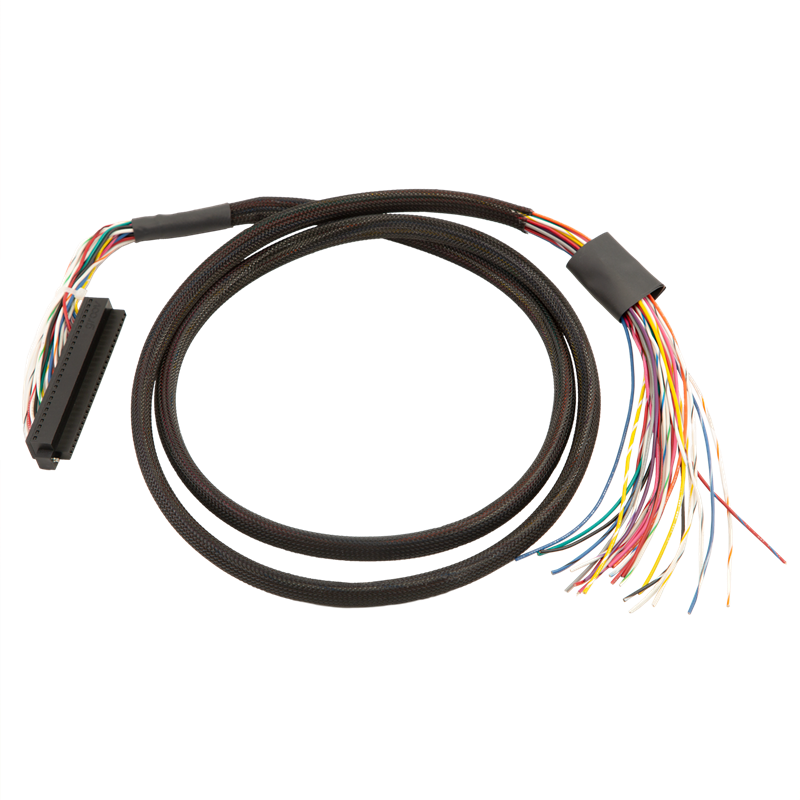

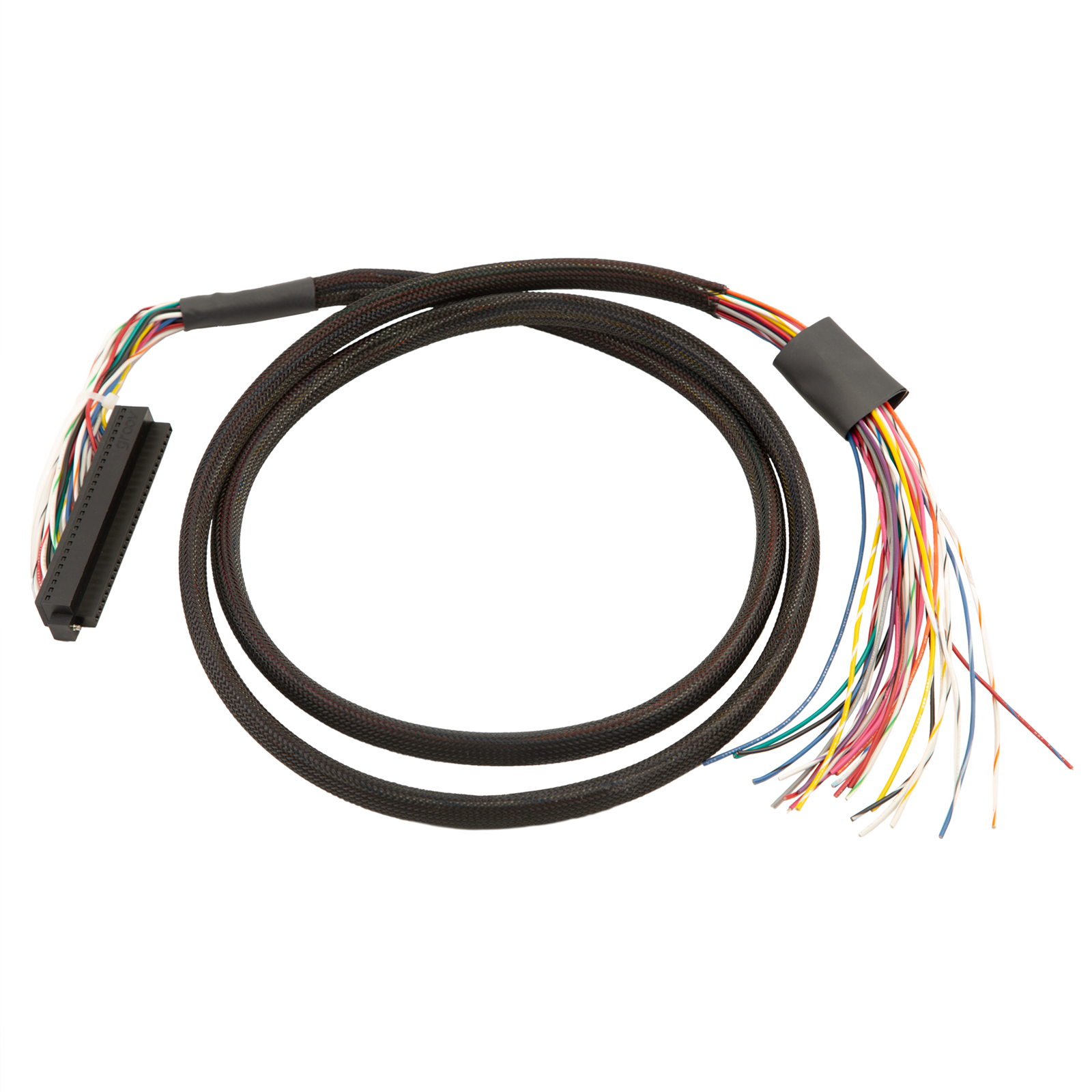

26-wire cable for groov I/O modules. Straight-through; no common terminals. Flying leads.
Data Sheet

Production Specification

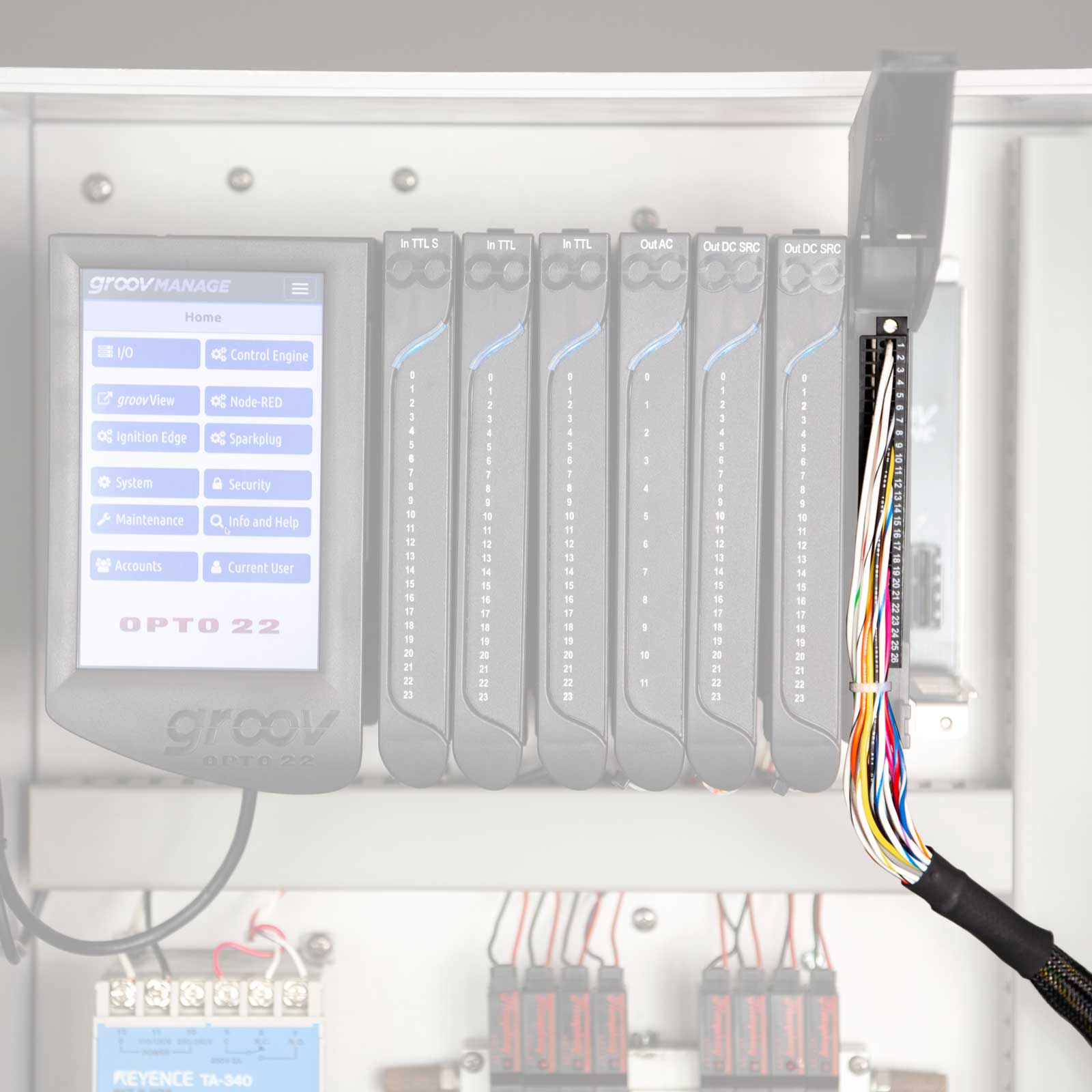

The GRV-TEX-26F6 cable provides neat, protected wiring from the terminal connector of a groov I/O module to your field devices. The cable is six feet (1.8 m) long.

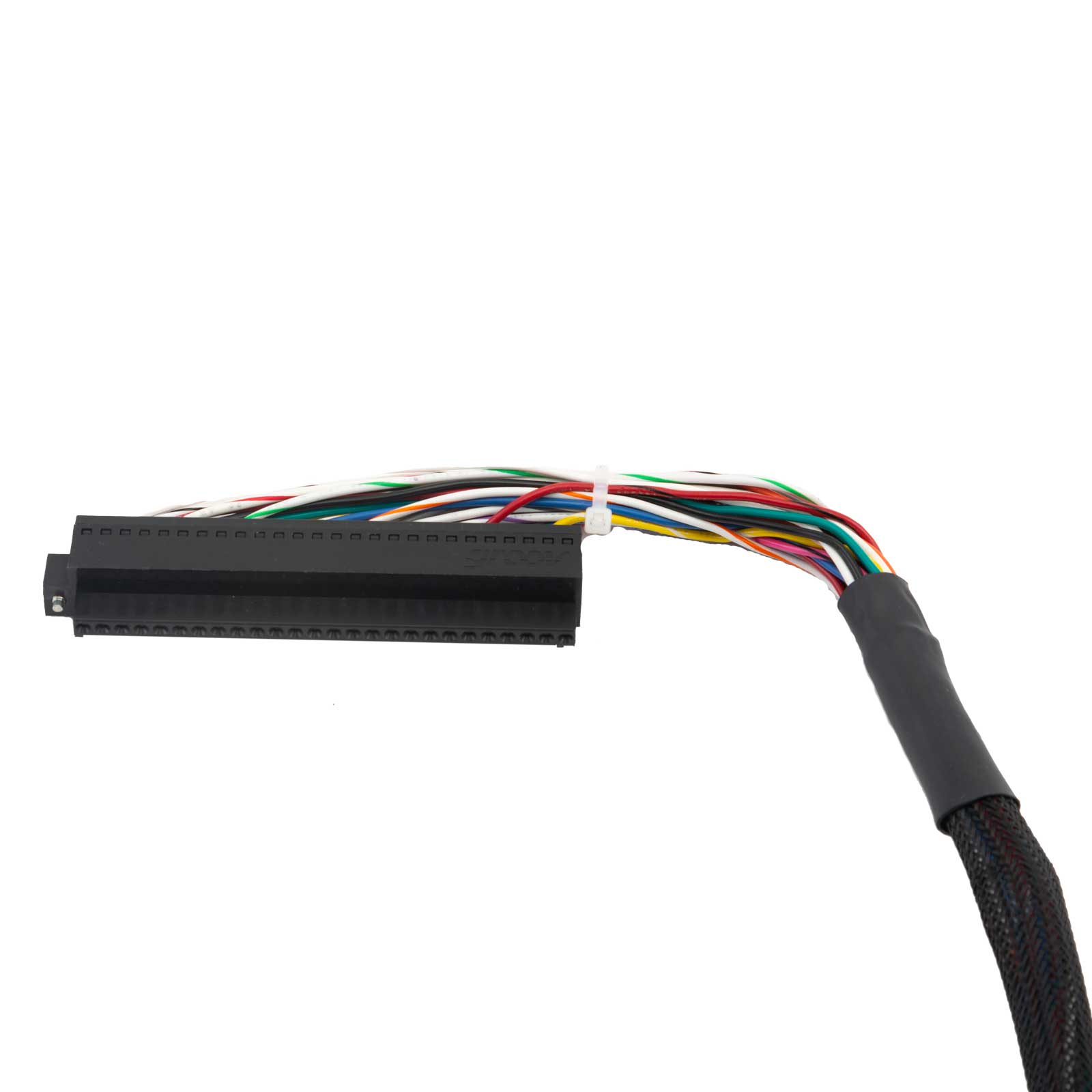

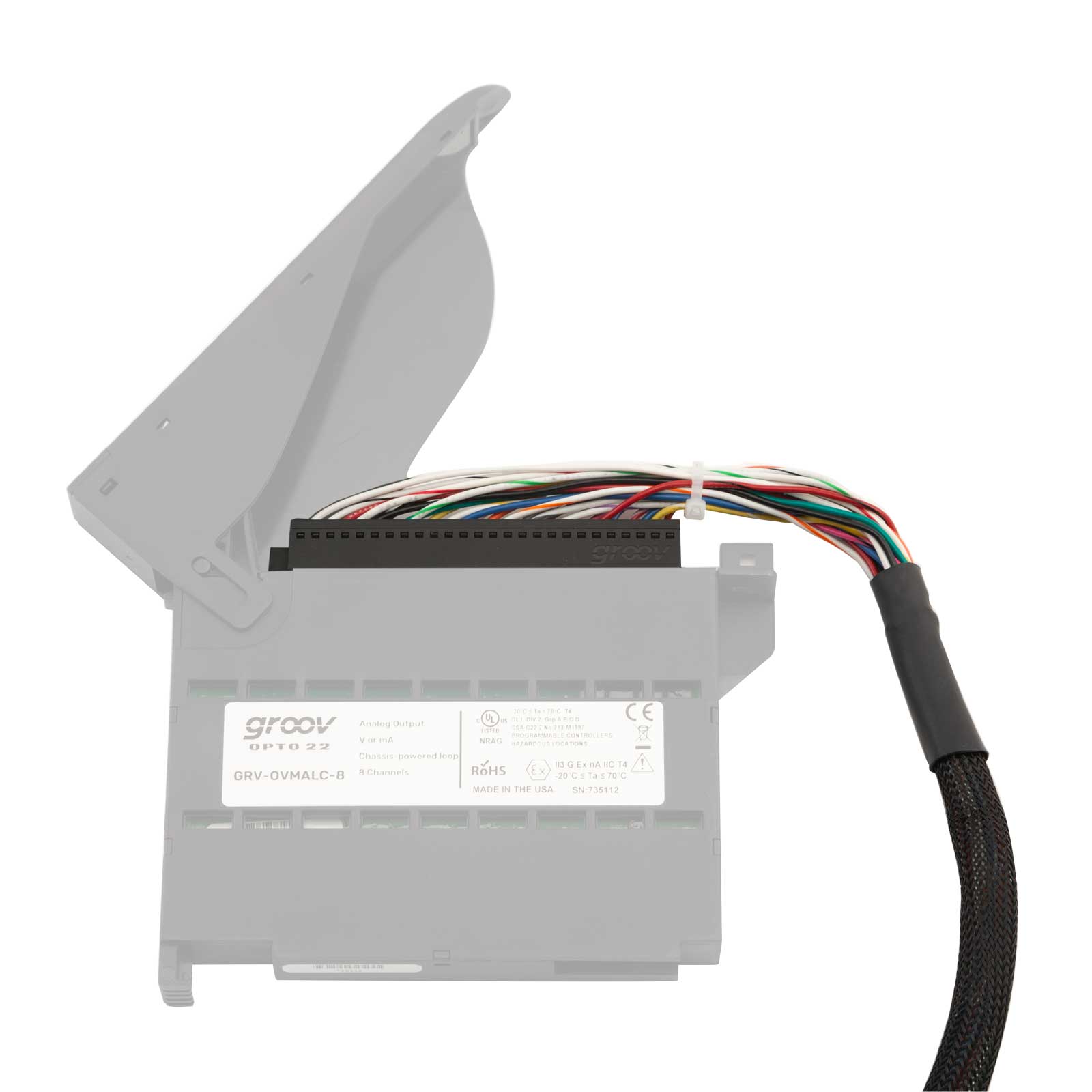

Installation, maintenance, and troubleshooting are faster and simpler with the GRV-TEX-26F6. The terminal connector at one end of the cable easily replaces the terminal connector that comes with each module. The 20-gauge, color-coded flying leads can be trimmed to any desired length and a heat-shrinkable neck band helps keep the flying leads bundled together, minimizing entanglement.

The wiring is straight through; there are no terminal connections. You can use this cable with digital and analog input and output modules. See the data sheet for details.

NOTE: The GRV-TEX-26F6 can be used with groov RIO part number GRV-R7-MM1001-10 and GRV-R7-MM2001-10 unless you have one or more channels configured as thermocouples.

Specification

GRV-TEX-26F6

Number of wires

26

Wire gauge

20 AWG

Temperature (operating)

-20 °C to +70 °C

Temperature (storage)

-40 °C to +85 °C

Humidity (non-condensing)

5–95% RH

Agency Approvals

CE, RoHS, DFARS; UKCA

Warranty

30 months

2314

groov Accessories Data Sheet

groov accessories are additional or replacement parts designed specifically for the groov EPIC system. This data sheet covers items like groov I/O terminal connectors and cables that save you time and money when wiring field devices to groov RIO and groov I/O modules.

This data sheet covers the following part numbers:

View

2370

UKCA Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

View

CAD Drawing: GRV-TEX-26F6

This file contains a CAD drawing of the GRV-TEX-26F6 cable for groov I/O modules.

View
