SNAP-AIARMS-i
Hover over image to zoom in

SNAP-AIARMS-i

$605.00 (USA and Canada only)

Availability: In stock
SNAP Isolated 2-Ch 0–0 amp RMS AC/DC Input Module
Data Sheet

Production Specification

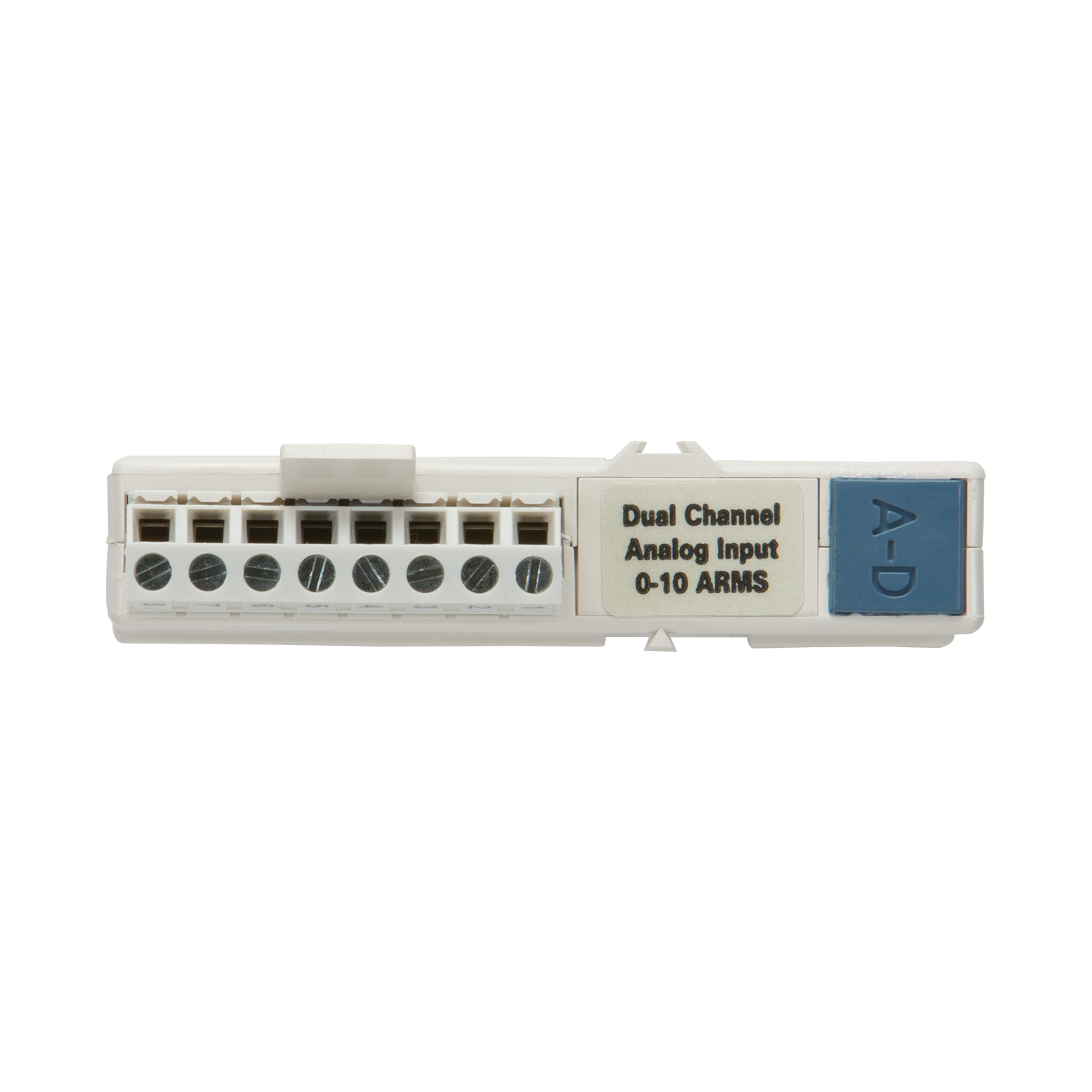

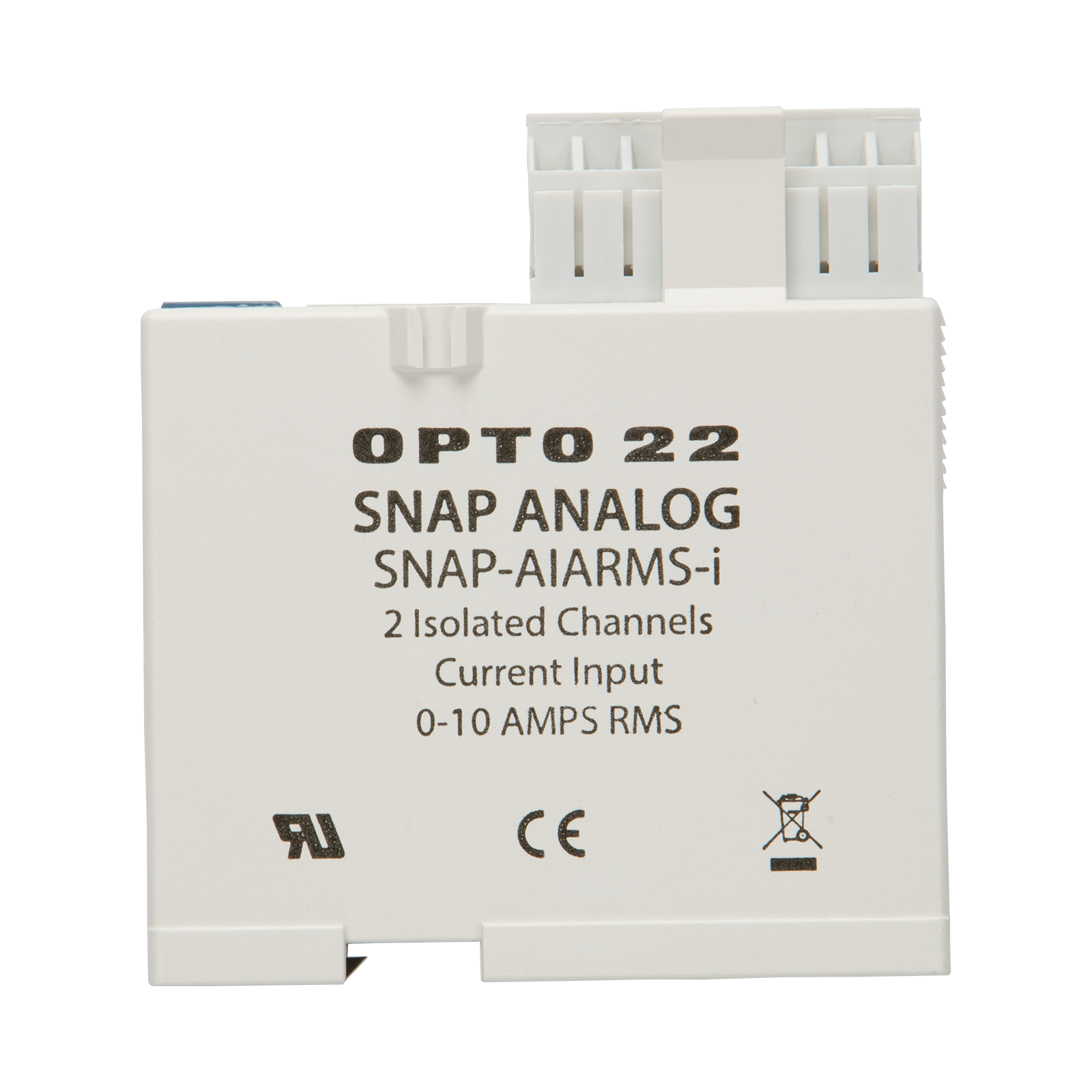

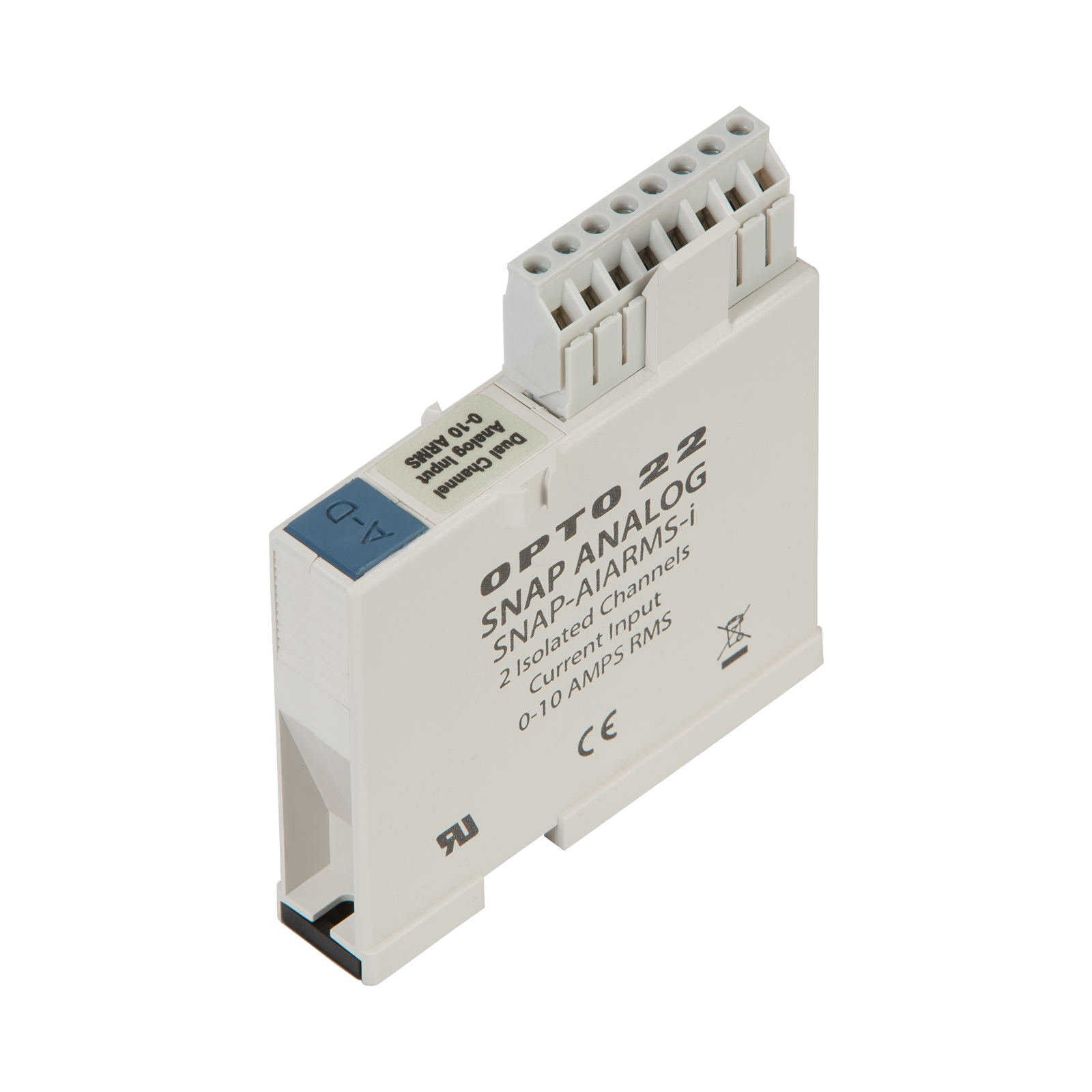

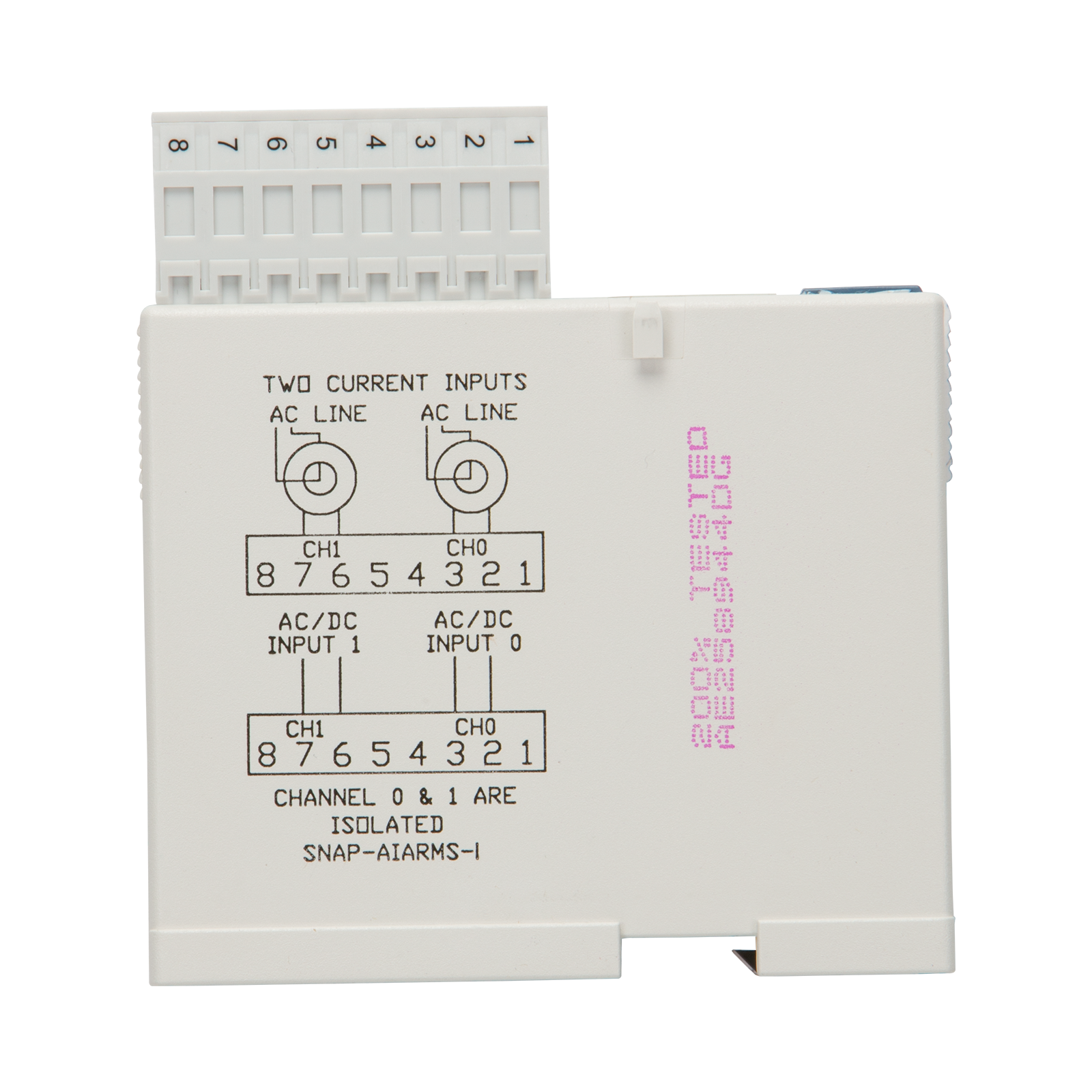

The SNAP-AIARMS-i module provides two isolated channels with an input range of 0 to 10 amps RMS AC/DC. An ideal input is the 5-amp secondary of a standard current transformer used to monitor AC line current. The module may also be used to monitor AC current to greater than a 100-amp range, using a current transformer of suitable ratio.

The two channels are isolated from each other; they do not share any field connection. The SNAP-AIARMS-i module is an excellent choice for differential current measurements.

If you do not need channel-to-channel isolation, see SNAP-AIARMS.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Build your system in the SNAP I/O Configurator.

Opto 22 industrial automation products include groov EPIC edge programmable industrial controllers, groov RIO edge I/O, SNAP PAC controllers and I/O, and solid state relays (SSRs). You can collect, process, view, and exchange data where it's produced—at the edge of the network—and securely share data among databases, cloud platforms, web services, PLC systems, and other systems and equipment. Our products offer built-in cybersecurity and multiple control programming options including CODESYS, plus NODE RED, Ignition Edge, and MQTT communications. Opto 22 products are ideal for OEMs and machine designers, process control, machine monitoring, power and energy monitoring, predictive maintenance, remote installations like water-wastewater and oil & gas, SCADA, and industrial internet of things applications.

Input Range

0 to 10 amp RMS AC/DC

Input Over Range

To 11 amps

Input Resistance

0.005 ohms

Maximum Input

11 amps AC/DC

Accuracy (AC)

±8 mA and ±0.2% reading

Resolution

400 µA

DC Reversal

±16 mA (0.16%)

Input Response Time
(Step Change)

63.2% (6.32 A) in 50 ms
99% (9.92 A) in 75 ms

Data Freshness (Max)

0.025 ms

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB at 60 Hz

Maximum Operating
  Voltage Between Channels
  Common Mode Voltage



250 V
250 V

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

Power Requirements

5 VDC (±0.15 V) at 200 mA

Ambient Temperature:
  Operating
  Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

CE, RoHS, DFARS; UKCA

Warranty

Lifetime

1182

SNAP Isolated Analog Input Modules Data Sheet
