SNAP-AIARMS-i-FM
Hover over image to zoom in

SNAP-AIARMS-i-FM

$515.00 (USA and Canada only)

Availability: In stock

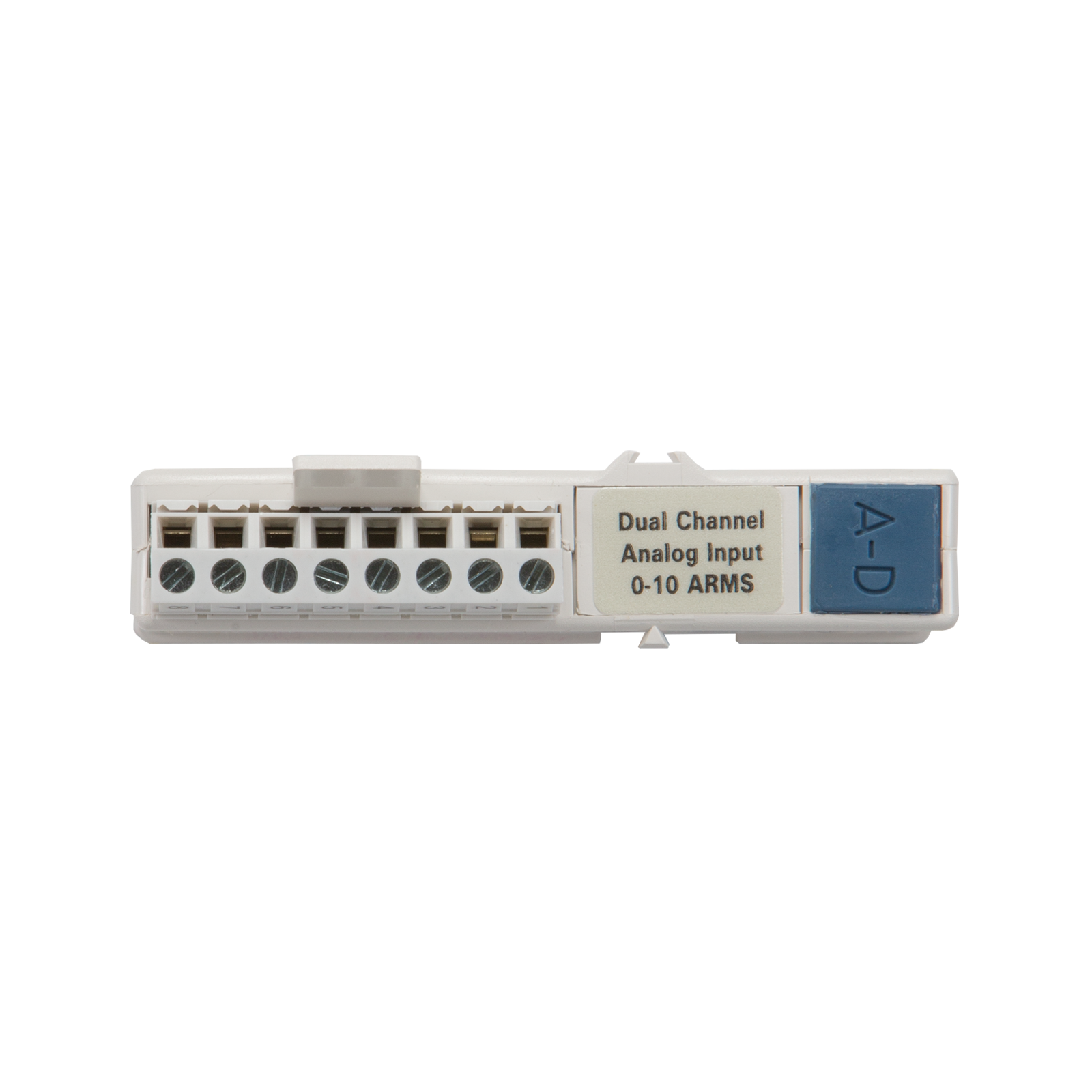

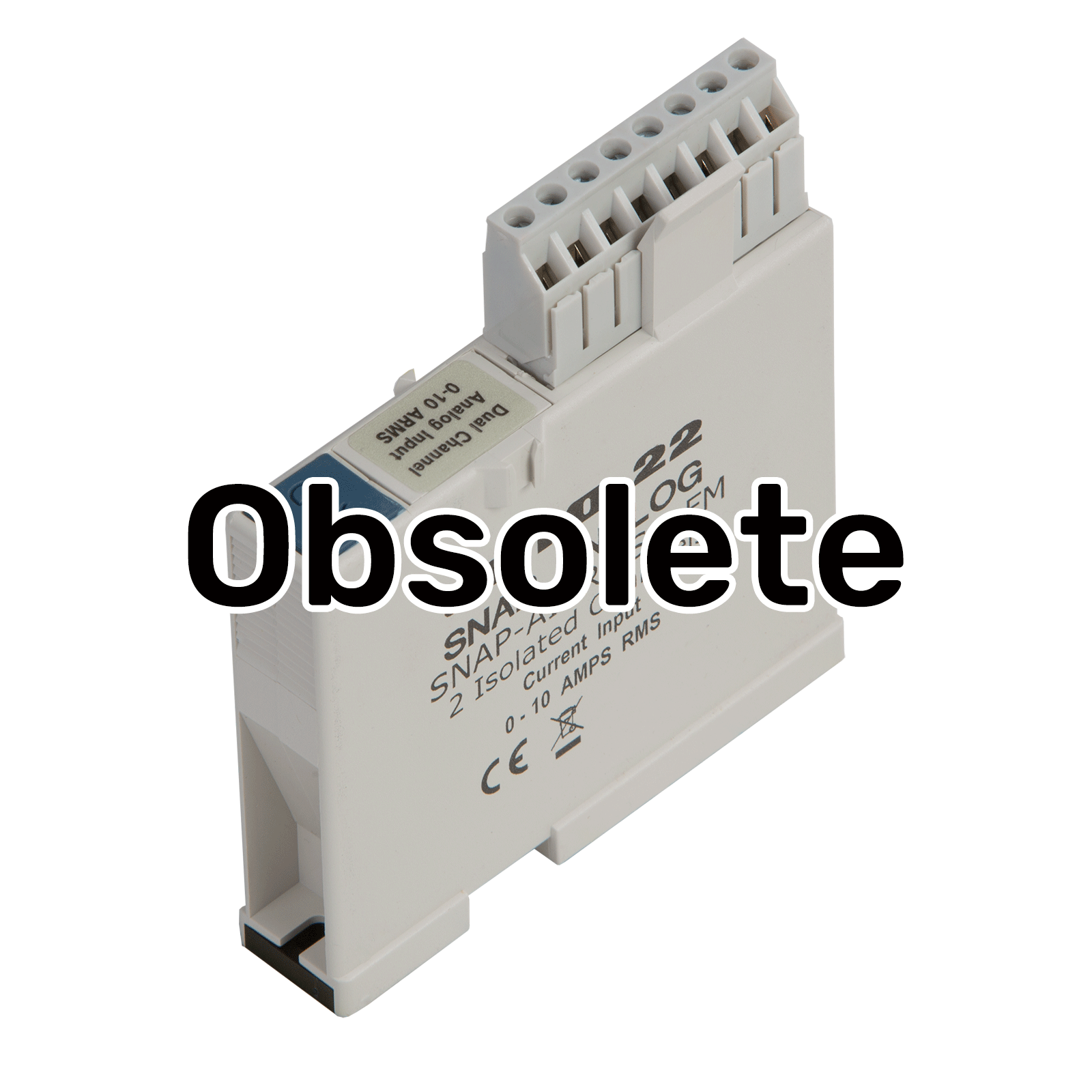

OBSOLETE SNAP Isolated 2-Ch 0-10 amp RMS Analog Input Module, Factory Mutual Approved
Data Sheet

Production Specification

*** NOTE: This part is OBSOLETE and no longer available when current stock is depleted. ***

The SNAP-AIARMS-i-FM module provides two isolated channels with an input range of 0 to 10 amps RMS AC/DC. An ideal input is the 5-amp secondary of a standard current transformer used to monitor AC line current. The module may also be used to monitor AC current to greater than a 100-amp range, using a current transformer of suitable ratio.

The two channels are isolated from each other; they do not share any field connection. The SNAP-AIARMS-i-FM module is an excellent choice for differential current measurements.

The SNAP-AIARMS-i-FM is Factory Mutual approved. If you don't need FM approval, see SNAP-AIARMS-i.

If you do not need channel-to-channel isolation, see SNAP-AIARMS.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Build your system in the SNAP I/O Configurator.

Input Range

0 to 10 amp RMS AC/DC

Input Over Range

To 11 amps

Input Resistance

0.005 ohms

Maximum Input

11 amps AC/DC

Accuracy (AC)

±8 mA and ±0.2% reading

Resolution

400 µA

DC Reversal

±16 mA (0.16%)

Input Response Time
(Step Change)

63.2% (6.32 A) in 50 ms
99% (9.92 A) in 75 ms

Data Freshness (Max)

0.025 ms

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB at 60 Hz

Maximum Operating
  Voltage Between Channels
  Common Mode Voltage



250 V
250 V

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Channel

250 V continuous
(1500 V transient)

Power Requirements

5 VDC (±0.15 V) at 200 mA

Ambient Temperature:
  Operating
  Storage



-20 °C to 70 °C
-25 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

CE, RoHS, DFARS; UKCA

FM (SNAP-AIARMS-FM only)

Warranty

Lifetime
