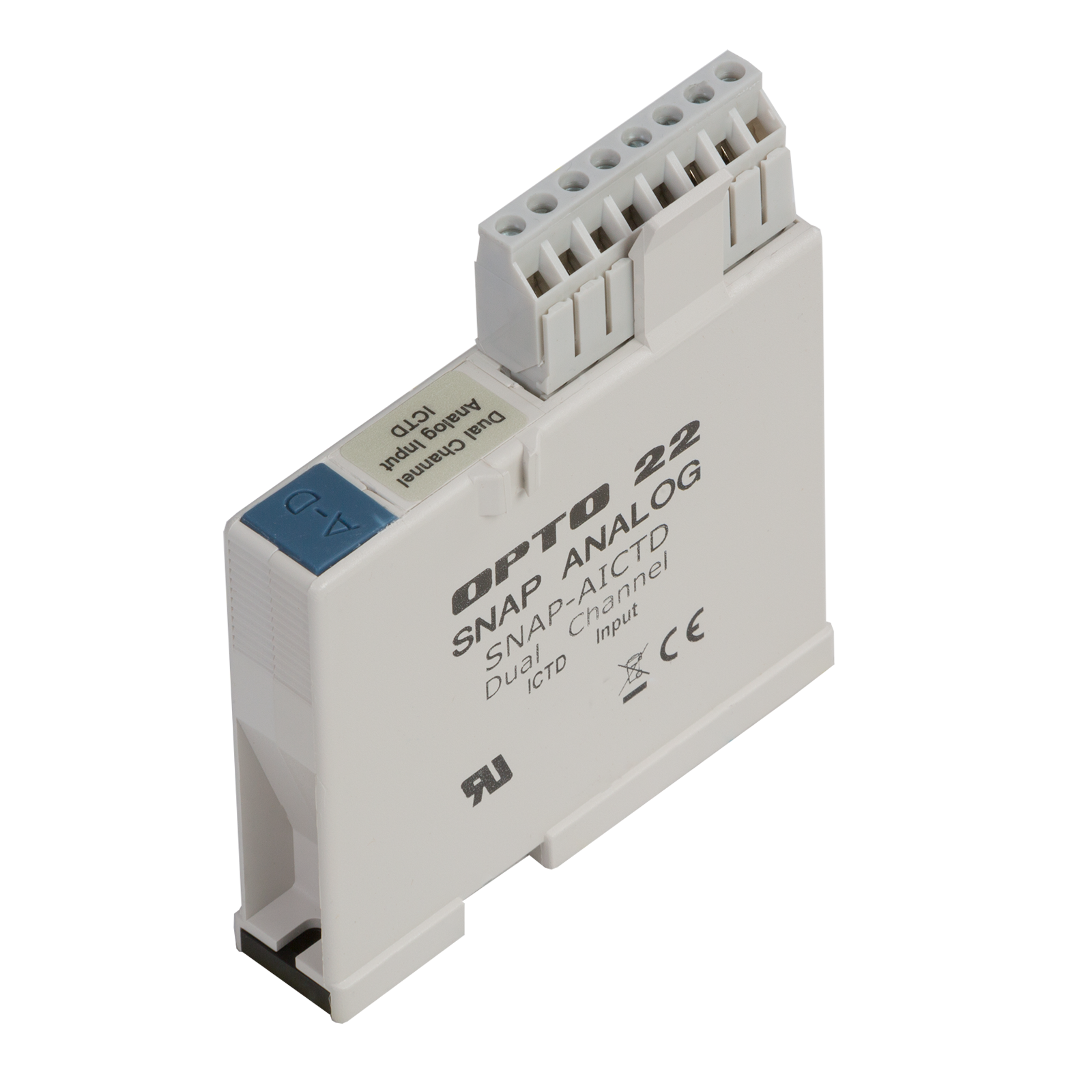

SNAP-AICTD

$296.00 (USA and Canada only)

Availability: In stock

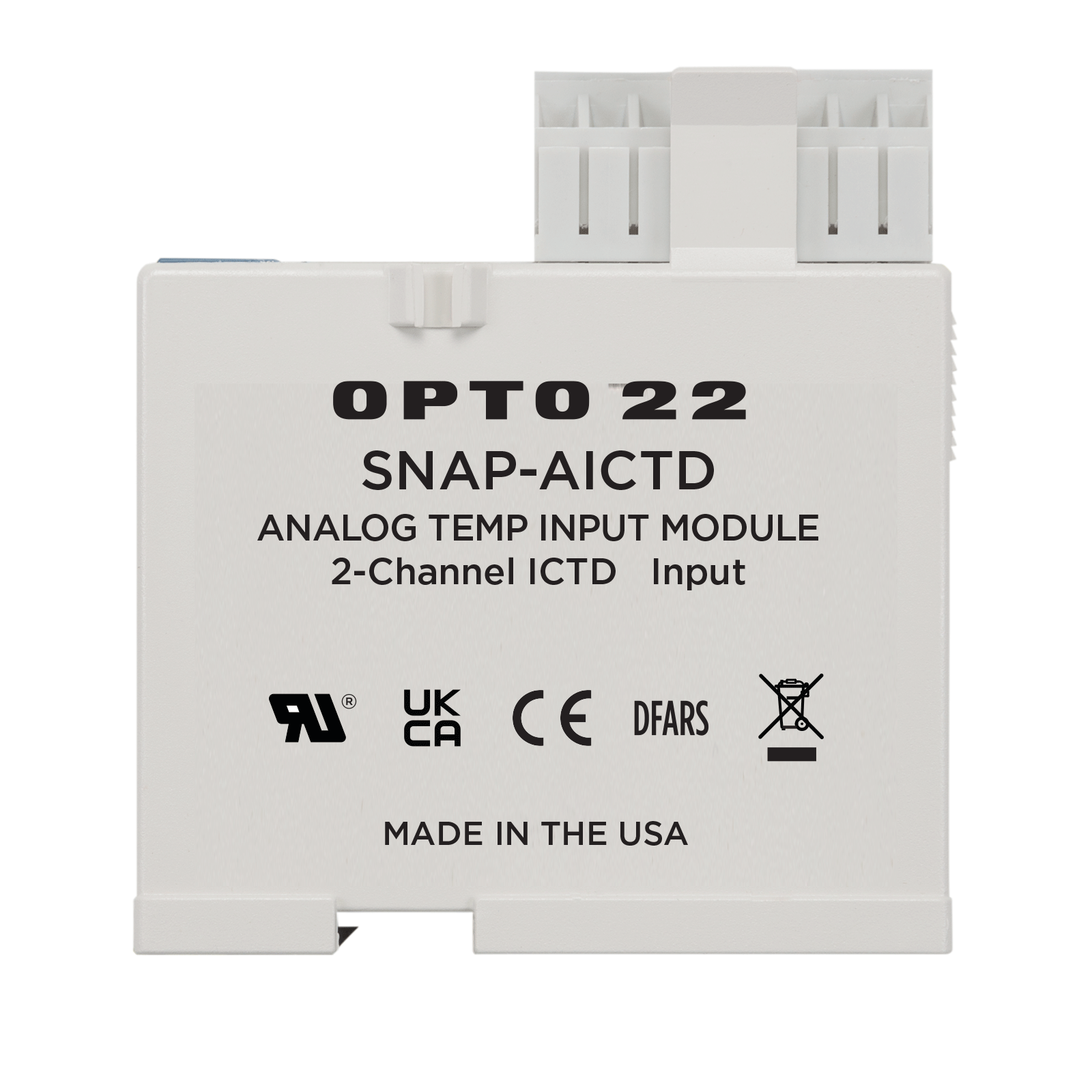

SNAP 2-Ch Analog Temperature Input Module - ICTD

Production Specification

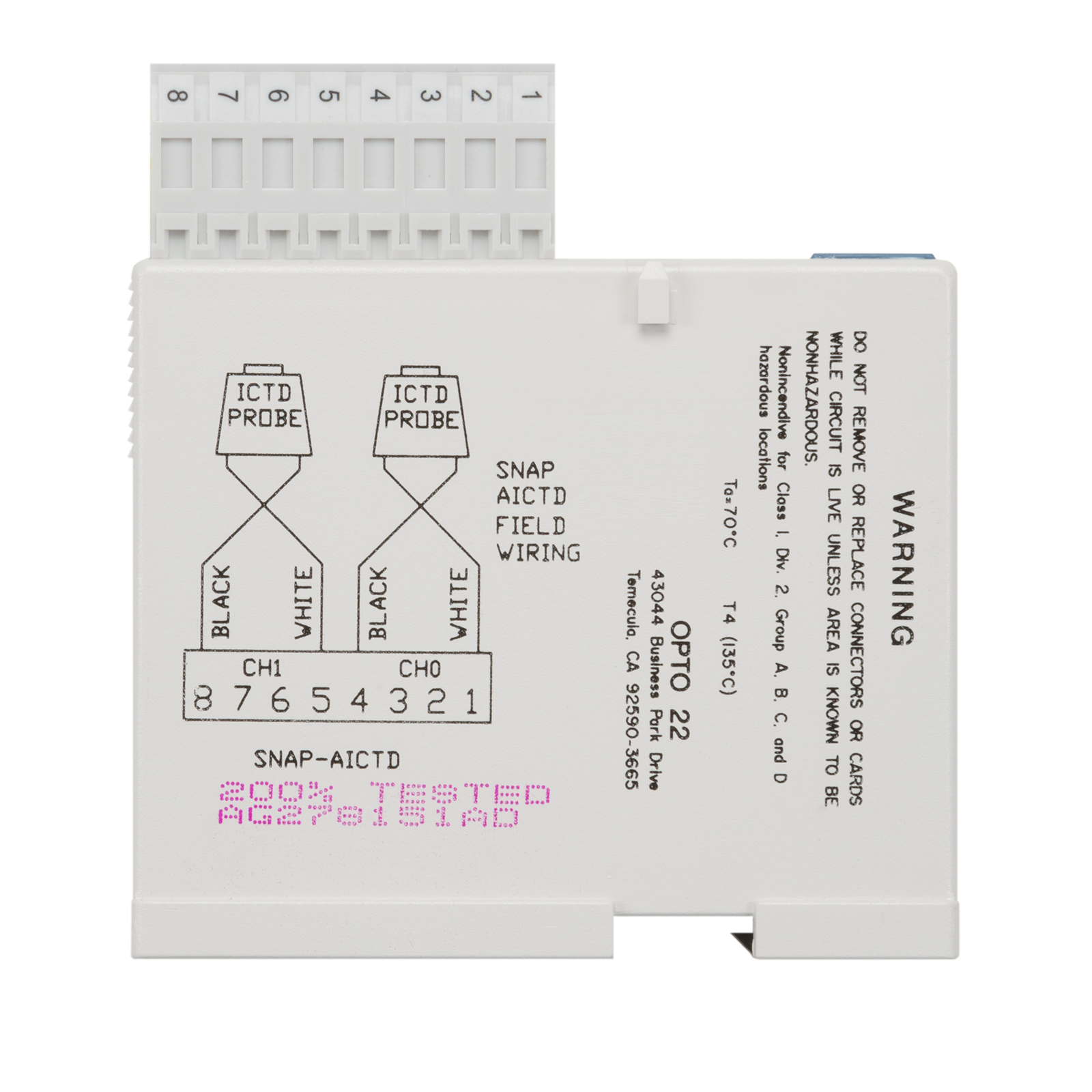

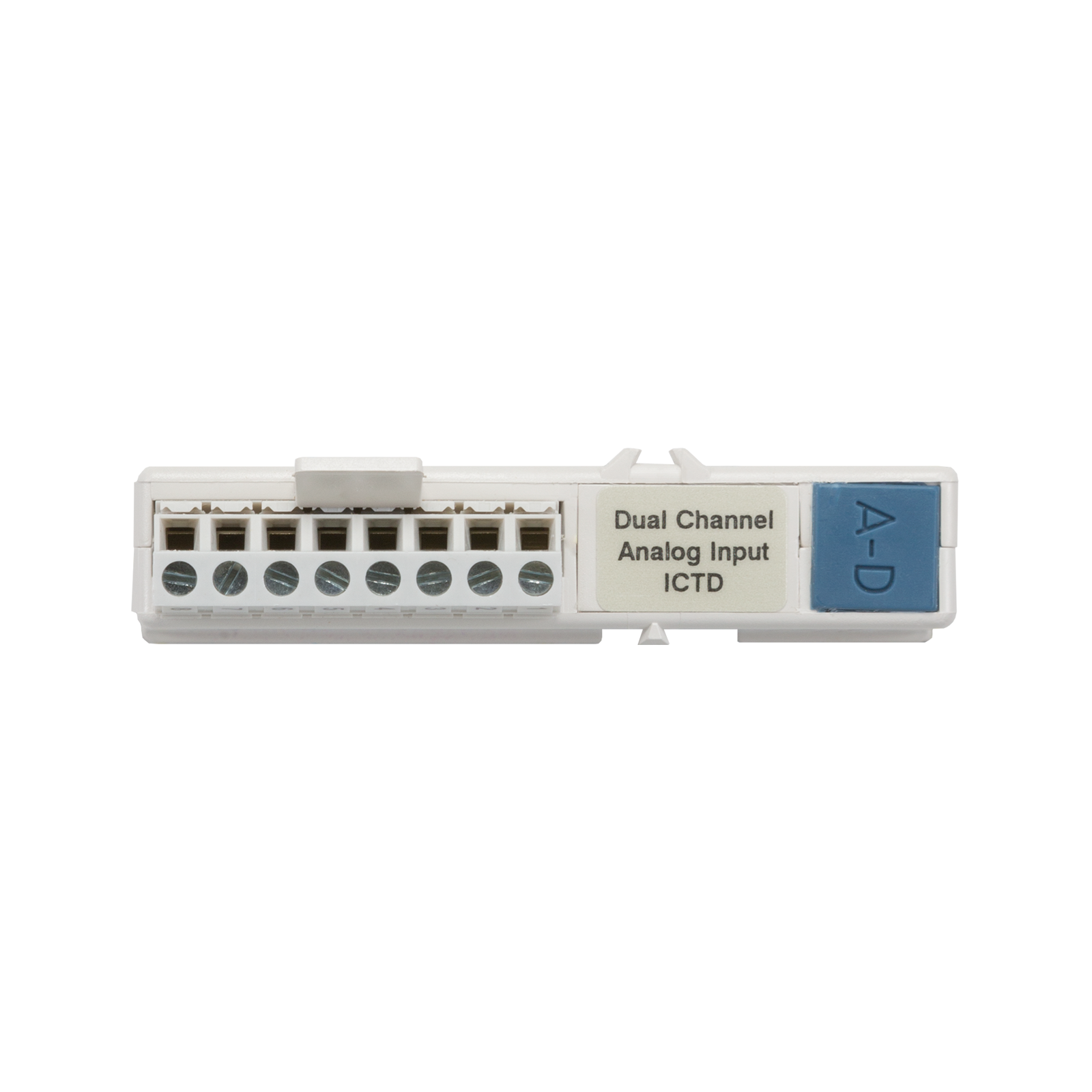

The SNAP-AICTD provides two channels of analog temperature input from any industry-standard Integrated Circuit Temperature Device (ICTD). Simple two-wire connections are made to the pluggable terminal strip on top of the module. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Need more channels? See the 4-channel SNAP-AICTD-4 or the 8-channel SNAP-AICTD-8.

Build your system in the SNAP I/O Configurator.

Input Range with ICTD Probe

-40 °C to +100 °C

Module Input Range
 Zero Scale
 Full Scale



-273 °C
+150 °C

Resolution

0.017 °C

Accuracy with ICTD Probe

±0.8 °C

Sensitivity

1.0 microamps/ °C

Data Freshness (Max)

167 ms (2-channel module)
355 ms (4-channel module)

DC Common Mode Rejec­tion

>-120 dB

AC Common Mode Rejec­tion

>-120 dB @ 60 Hz

Maximum Operating Com­mon Mode Voltage

250 V

Isolation

1500 V

Power Requirements

5 VDC (± .015 ) @ 150 mA

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Humidity

5-95%, non-condensing

Wire size

22 to 14 AWG

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

Warranty

Lifetime
